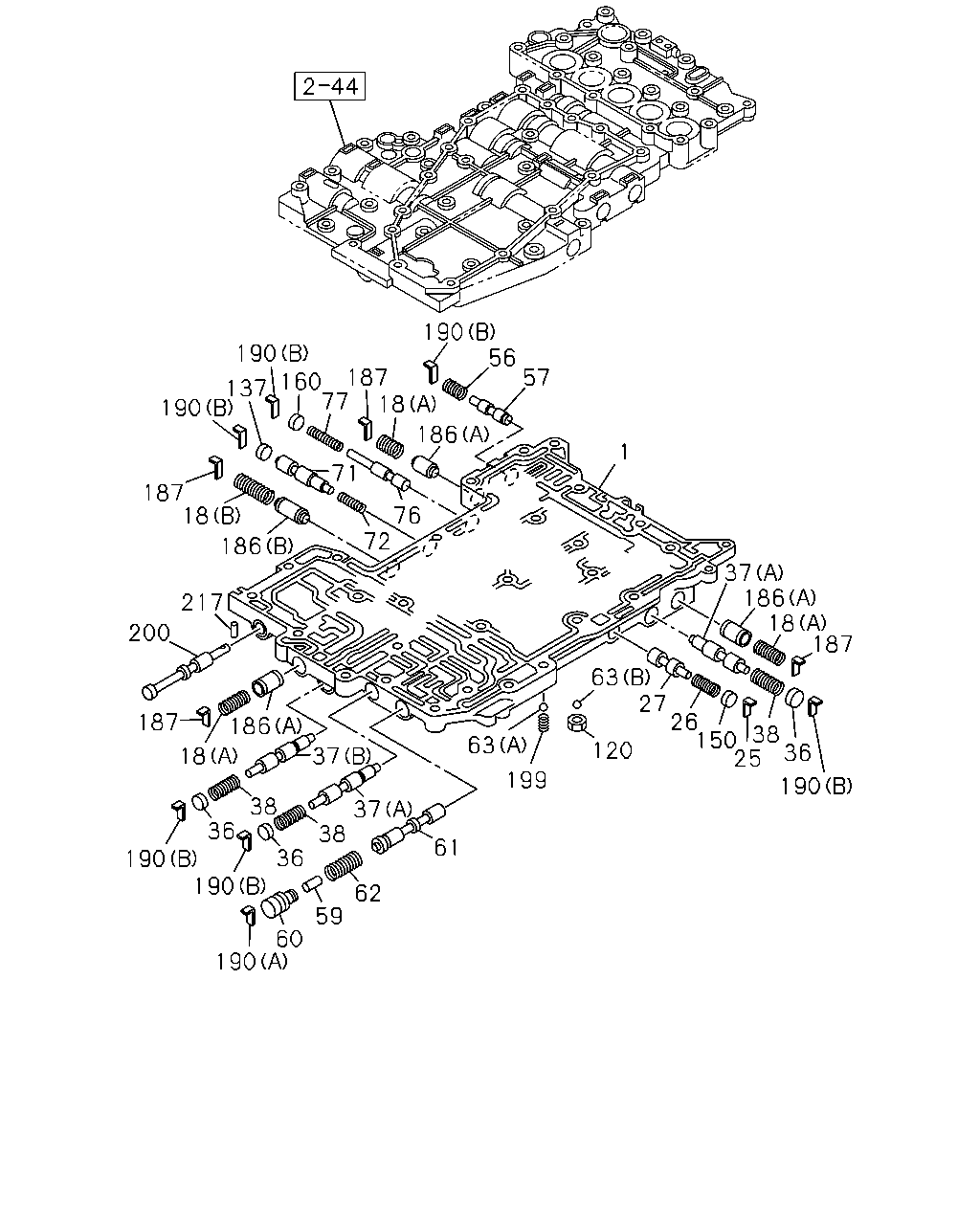

2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#40765) — 68 parça

190 56 57 190 187 160 77 18 137 190 186 1 71 187 18 76 72 186 37 186 18 187 217 200 63 27 26 38 150 36 25 186 187 37 63 120 18 199 190 38 37 38 62 36 61 36 190 190 59 60 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BODY ASM; UPR,VALVE,A/T 4JH1 ENG<RJX> THA	8-97331-058-0	01	1	0303-0408
1	BODY ASM; UPR,VALVE,A/T 4JJ1 ENG<LFB> THA	8-97331-058-0	01	1	0409-
18	SPRING; ACCUMLATOR CONT VLV 4JH1 ENG<RJX> (A) THA	8-97092-821-0	03	1	0303-0408
18	SPRING; ACCUMLATOR CONT VLV 4JJ1 ENG<LFB> (A) THA	8-97092-821-0	03	1	0409-
18	SPRING; ACCUMLATOR CONT VLV 4JH1 ENG<RJX> (B) THA	8-97331-077-0	01	1	0303-0408
18	SPRING; ACCUMLATOR CONT VLV 4JJ1 ENG<LFB> (B) THA	8-97331-077-0	01	1	0409-
25	PLATE; RET,SHIFT CONT VLV 4JH1 ENG<RJX> THA	8-97331-080-0	01	1	0303-0408
25	PLATE; RET,SHIFT CONT VLV 4JJ1 ENG<LFB> THA	8-97331-080-0	01	1	0409-
26	SPRING; SHIFT CONT VLV 4JH1 ENG<RJX> THA	8-97331-076-0	01	1	0303-0408
26	SPRING; SHIFT CONT VLV 4JJ1 ENG<LFB> THA	8-97331-076-0	01	1	0409-
27	VALVE; SHIFT CONT,UPR BODY 4JH1 ENG<RJX> THA	8-97331-084-0	01	1	0303-0408
27	VALVE; SHIFT CONT,UPR BODY 4JJ1 ENG<LFB> THA	8-97331-084-0	01	1	0409-
36	PLUG; SPOOL CONT VLV,UPR BODY 4JH1 ENG<RJX> THA	8-97331-098-0	03	1	0303-0408
36	PLUG; SPOOL CONT VLV,UPR BODY 4JJ1 ENG<LFB> THA	8-97331-098-0	03	1	0409-
37	VALVE; SPOOL CONT,UPR BODY 4JH1 ENG<RJX> (A) THA	8-97331-086-0	02	1	0303-0408
37	VALVE; SPOOL CONT,UPR BODY 4JJ1 ENG<LFB> (A) THA	8-97331-086-0	02	1	0409-
37	VALVE; SPOOL CONT,UPR BODY 4JH1 ENG<RJX> (B) THA	8-97331-090-0	01	1	0303-0408
37	VALVE; SPOOL CONT,UPR BODY 4JJ1 ENG<LFB> (B) THA	8-97331-090-0	01	1	0409-
38	SPRING; SPOOL CONT VLV 4JH1 ENG<RJX> THA	8-97331-068-0	03	1	0303-0408
38	SPRING; SPOOL CONT VLV 4JJ1 ENG<LFB> THA	8-97331-068-0	03	1	0409-
56	SPRING; PILOT VALVE,SPOOL CONT 4JH1 ENG<RJX> THA	8-97331-066-0	01	1	0303-0408
56	SPRING; PILOT VALVE,SPOOL CONT 4JJ1 ENG<LFB> THA	8-97331-066-0	01	1	0409-
57	VALVE; PILOT,SPOOL CONT 4JH1 ENG<RJX> THA	8-97331-088-0	01	1	0303-0408
57	VALVE; PILOT,SPOOL CONT 4JJ1 ENG<LFB> THA	8-97331-088-0	01	1	0409-
59	SLEEVE; LOCKUP CONT VALVE 4JH1 ENG<RJX> THA	8-97331-095-0	01	1	0303-0408
59	SLEEVE; LOCKUP CONT VALVE 4JJ1 ENG<LFB> THA	8-97331-095-0	01	1	0409-
60	PLUG; LOCKUP CONT VALVE 4JH1 ENG<RJX> THA	8-97331-094-0	01	1	0303-0408
60	PLUG; LOCKUP CONT VALVE 4JJ1 ENG<LFB> THA	8-97331-094-0	01	1	0409-
61	VALVE; LOCKUP CONT,UPR BODY 4JH1 ENG<RJX> THA	8-97331-093-0	01	1	0303-0408
61	VALVE; LOCKUP CONT,UPR BODY 4JJ1 ENG<LFB> THA	8-97331-093-0	01	1	0409-
62	SPRING; LOCKUP CONT VALVE 4JH1 ENG<RJX> THA	8-97331-067-0	01	1	0303-0408
62	SPRING; LOCKUP CONT VALVE 4JJ1 ENG<LFB> THA	8-97331-067-0	01	1	0409-
63	BALL; STEEL,VLV UPR,A/T 4JH1 ENG<RJX> (A) THA	8-97135-609-0	10	1	0303-0408
63	BALL; STEEL,VLV UPR,A/T 4JJ1 ENG<LFB> (A) THA	8-97135-609-0	10	1	0409-
63	BALL; STEEL,VLV UPR,A/T 4JH1 ENG<RJX> (B) THA	8-97331-092-0	01	1	0303-0408
63	BALL; STEEL,VLV UPR,A/T 4JJ1 ENG<LFB> (B) THA	8-97331-092-0	01	1	0409-
71	VALVE; LOW,VLV UPR RR,A/T 4JH1 ENG<RJX> THA	8-97331-082-0	01	1	0303-0408
71	VALVE; LOW,VLV UPR RR,A/T 4JJ1 ENG<LFB> THA	8-97331-082-0	01	1	0409-
72	SPRING; VLV LOW,VLV UPR RR,A/T 4JH1 ENG<RJX> THA	8-97331-070-0	01	1	0303-0408
72	SPRING; VLV LOW,VLV UPR RR,A/T 4JJ1 ENG<LFB> THA	8-97331-070-0	01	1	0409-
76	VALVE; REV CLU,A/T 4JH1 ENG<RJX> THA	8-97331-085-0	01	1	0303-0408
76	VALVE; REV CLU,A/T 4JJ1 ENG<LFB> THA	8-97331-085-0	01	1	0409-
77	SPRING; VLV,REV,A/T 4JH1 ENG<RJX> THA	8-97331-074-0	01	1	0303-0408
77	SPRING; VLV,REV,A/T 4JJ1 ENG<LFB> THA	8-97331-074-0	01	1	0409-
120	NUT; UPR BODY,VLV,A/T 4JH1 ENG<RJX> THA	8-97112-969-0	02	1	0303-0408
120	NUT; UPR BODY,VLV,A/T 4JJ1 ENG<LFB> THA	8-97112-969-0	02	1	0409-
137	PLUG; LOW MODULATOR VALVE 4JH1 ENG<RJX> THA	8-97331-099-0	01	1	0303-0408
137	PLUG; LOW MODULATOR VALVE 4JJ1 ENG<LFB> THA	8-97331-099-0	01	1	0409-
150	PLUG; SHIFT VLV 4JH1 ENG<RJX> THA	8-97331-099-0	01	1	0303-0408
150	PLUG; SHIFT VLV 4JJ1 ENG<LFB> THA	8-97331-099-0	01	1	0409-
160	PLUG; VLV BODY 4JH1 ENG<RJX> THA	8-97331-097-0	01	1	0303-0408
160	PLUG; VLV BODY 4JJ1 ENG<LFB> THA	8-97331-097-0	01	1	0409-
186	PISTON; ACCUMLATOR VLV,A/T 4JH1 ENG<RJX> (A) THA	8-94342-922-0	03	1	0303-0408
186	PISTON; ACCUMLATOR VLV,A/T 4JJ1 ENG<LFB> (A) THA	8-94342-922-0	03	1	0409-
186	PISTON; ACCUMLATOR VLV,A/T 4JH1 ENG<RJX> (B) THA	8-97331-056-0	01	1	0303-0408
186	PISTON; ACCUMLATOR VLV,A/T 4JJ1 ENG<LFB> (B) THA	8-97331-056-0	01	1	0409-
187	PLATE; ACCUM CONT VLV,A/T 4JH1 ENG<RJX> THA	8-94385-905-0	04	1	0303-0408
187	PLATE; ACCUM CONT VLV,A/T 4JJ1 ENG<LFB> THA	8-94385-905-0	04	1	0409-
190	PLATE; VLV RET,A/T 4JH1 ENG<RJX> (A) THA	8-94385-905-0	01	1	0303-0408
190	PLATE; VLV RET,A/T 4JJ1 ENG<LFB> (A) THA	8-94385-905-0	01	1	0409-
190	PLATE; VLV RET,A/T 4JH1 ENG<RJX> (B) THA	8-97331-080-0	06	1	0303-0408
190	PLATE; VLV RET,A/T 4JJ1 ENG<LFB> (B) THA	8-97331-080-0	06	1	0409-
199	SPRING; VALVE,A/T 4JH1 ENG<RJX> THA	8-97331-079-0	01	1	0303-0408
199	SPRING; VALVE,A/T 4JJ1 ENG<LFB> THA	8-97331-079-0	01	1	0409-
200	VALVE; MANUAL,UPR BODY 4JH1 ENG<RJX> THA	8-97331-065-0	01	1	0303-0408
200	VALVE; MANUAL,UPR BODY 4JJ1 ENG<LFB> THA	8-97331-065-0	01	1	0409-
217	PIN; DOWEL 4JH1 ENG<RJX> THA	8-97331-120-0	01	1	0303-0408
217	PIN; DOWEL 4JJ1 ENG<LFB> THA	8-97331-120-0	01	1	0409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
