2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#40763) — 87 parça

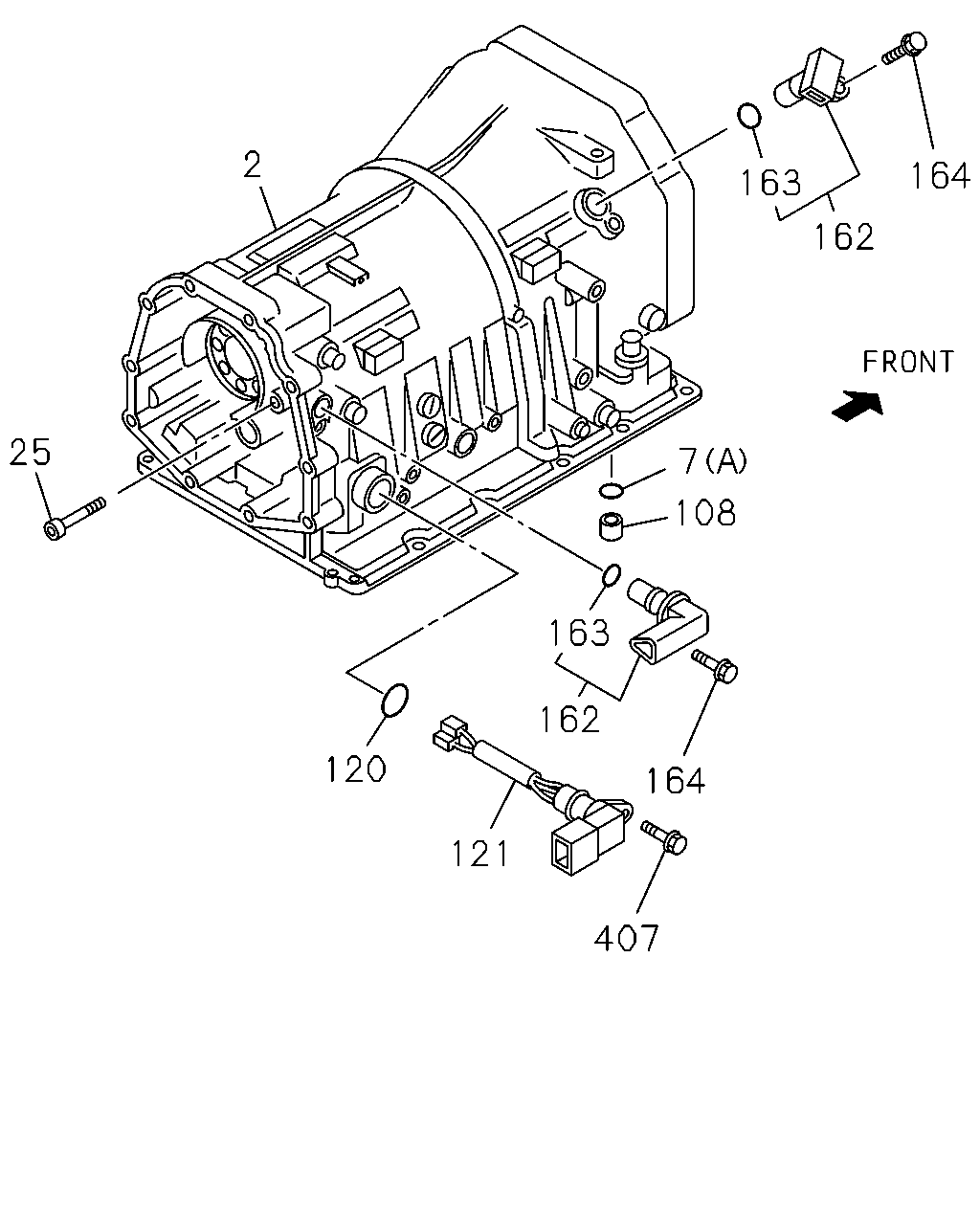

çizim 49698
2 164 163 162 25 7 108 163 162 120 164 121 407
BalonParca AdiParca NoAdetTipApplied Date
2 CASE ASM; A/T
4JH1 ENG<RJX> THA 		8-97330-900-0 01 1 0303-0408
2 CASE ASM; A/T
4JJ1 ENG<LFB> THA 		8-97330-900-0 01 1 0409-0711
2 CASE ASM; A/T
4JJ1 ENG<LFB> THA 		8-97383-551-0 01 1 0712-
7 SEAL; OIL,LIP,A/T
4JH1 ENG<RJX> (A) THA 		8-94385-664-0 01 1 0303-0408
7 SEAL; OIL,LIP,A/T
4JJ1 ENG<LFB> (A) THA 		8-94385-664-0 01 1 0409-
7 SEAL; OIL,LIP,A/T
4JH1 ENG<RJX> (B) THA 		8-97330-904-0 01 1 0303-0408
7 SEAL; OIL,LIP,A/T
4JJ1 ENG<LFB> (B) THA 		8-97330-904-0 01 1 0409-0711
7 SEAL; OIL,LIP,A/T
4JJ1 ENG<LFB> (B) THA 		8-98126-853-0 01 1 0712-
25 PIN; SPR,BRG HSG,A/T
4JH1 ENG<RJX> THA 		8-97330-914-0 07 1 0303-0408
25 PIN; SPR,BRG HSG,A/T
4JJ1 ENG<LFB> THA 		8-97330-914-0 07 1 0409-
108 SLEEVE; LOW & REV BRAKE,A/T
4JH1 ENG<RJX> THA 		8-94385-683-0 01 1 0303-0408
108 SLEEVE; LOW & REV BRAKE,A/T
4JJ1 ENG<LFB> THA 		8-94385-683-0 01 1 0409-
120 SEAL; TRANS,ELEC CONN
4JH1 ENG<RJX> THA 		8-97330-987-0 01 1 0303-0408
120 SEAL; TRANS,ELEC CONN
4JJ1 ENG<LFB> THA 		8-97330-987-0 01 1 0409-
121 CONNECTOR; ELEC
4JH1 ENG<RJX> THA 		8-97331-112-0 01 1 0303-0408
121 CONNECTOR; ELEC
4JJ1 ENG<LFB> THA 		8-97331-112-0 01 1 0409-
162 SENSOR; REVOLUTION,A/T CONT
4JH1 ENG<RJX> THA 		8-97331-108-0 02 1 0303-0408
162 SENSOR; REVOLUTION,A/T CONT
4JJ1 ENG<LFB> THA 		8-97331-108-0 02 1 0409-0711
162 SENSOR; REVOLUTION,A/T CONT
4JJ1 ENG<LFB> THA 		8-97331-108-0 02 1 0712-0908
162 SENSOR; REVOLUTION,A/T CONT
4JJ1 ENG<LFB> THA 		8-97331-108-0 02 1 0909-
163 GASKET; REV SENSOR,A/T
4JH1 ENG<RJX> THA 		8-97330-988-0 02 1 0303-0408
163 GASKET; REV SENSOR,A/T
4JJ1 ENG<LFB> THA 		8-97330-988-0 02 1 0409-0711
163 GASKET; REV SENSOR,A/T
4JJ1 ENG<LFB> THA 		8-98126-854-0 02 1 0712-0908
163 GASKET; REV SENSOR,A/T
4JJ1 ENG<LFB> THA 		8-98126-854-0 02 1 0909-
164 BOLT; REV SENSOR,A/T
4JH1 ENG<RJX> THA 		8-94483-616-0 02 1 0303-0408
164 BOLT; REV SENSOR,A/T
4JJ1 ENG<LFB> THA 		8-94483-616-0 02 1 0409-0711
164 BOLT; REV SENSOR,A/T
4JJ1 ENG<LFB> THA 		8-94483-616-0 02 1 0712-0908
164 BOLT; REV SENSOR,A/T
4JJ1 ENG<LFB> THA 		8-94483-616-0 02 1 0909-
407 BOLT; ELEC CONNECTOR
4JH1 ENG<RJX> THA 		8-94483-616-0 01 1 0303-0408
407 BOLT; ELEC CONNECTOR
4JJ1 ENG<LFB> THA 		8-94483-616-0 01 1 0409-

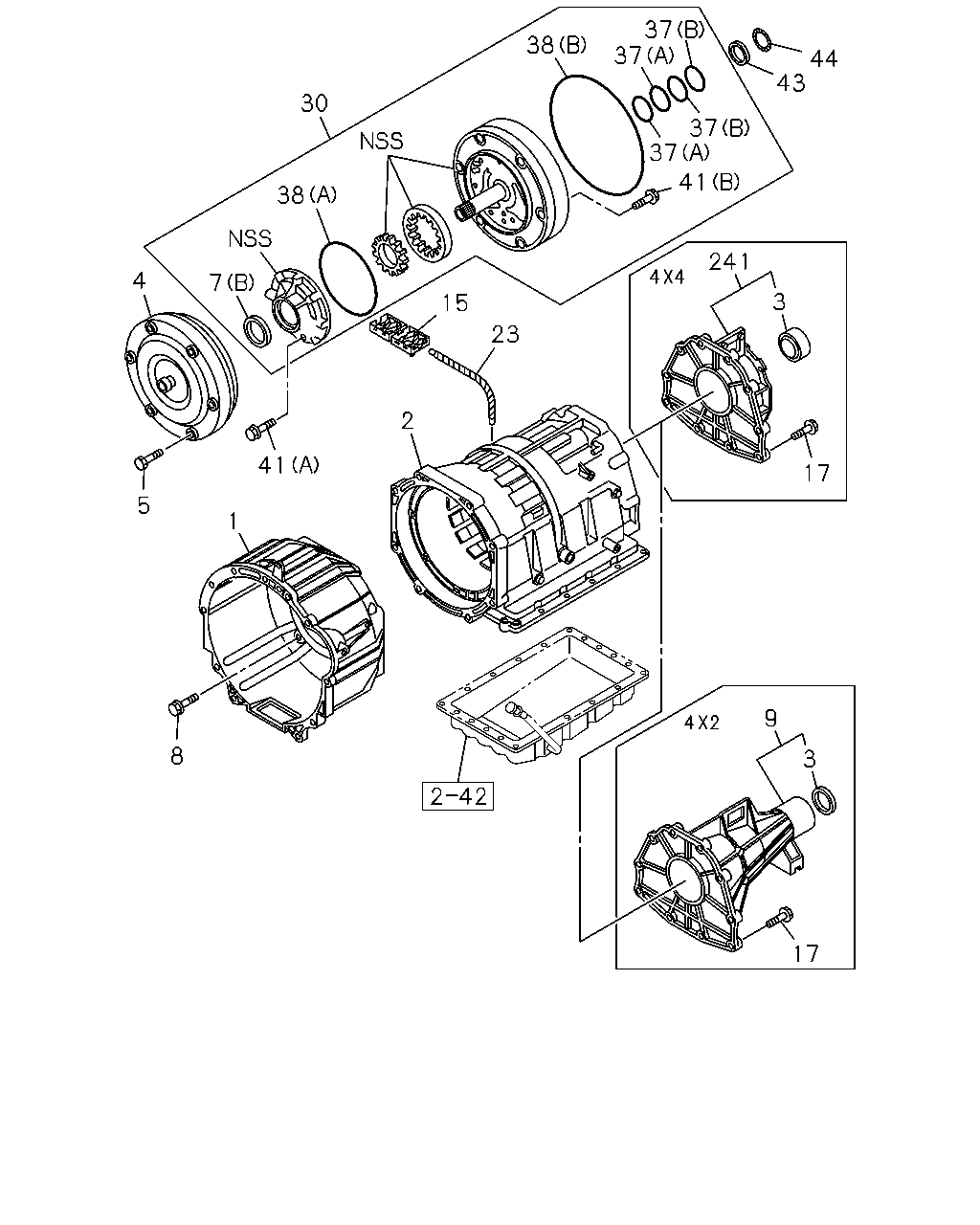

çizim 49863
37 37 38 44 43 30 37 37 41 38 241 4 7 3 15 23 2 41 17 5 1 9 8 3 17
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T
4JH1 ENG<RJX> THA 		8-97330-899-0 01 1 0303-0408
1 HOUSING; CONV,A/T
4JJ1 ENG<LFB> THA 		8-97330-899-0 01 1 0409-
2 CASE ASM; A/T
4JH1 ENG<RJX> THA 		8-97330-900-0 01 1 0303-0408
2 CASE ASM; A/T
4JJ1 ENG<LFB> THA 		8-97330-900-0 01 1 0409-0711
2 CASE ASM; A/T
4JJ1 ENG<LFB> THA 		8-97383-551-0 01 1 0712-
3 SEAL; OIL,RR COVER,A/T
4X2<TFB***> 4JH1 ENG<RJX> THA 		8-97330-910-0 01 1 0303-0408
3 SEAL; OIL,RR COVER,A/T
4X2<TFB***> 4JJ1 ENG<LFB> THA 		8-97330-910-0 01 1 0409-
3 SEAL; OIL,RR COVER,A/T
4X4<TFS***> 4JH1 ENG<RJX> THA 		8-97330-909-0 01 1 0303-0408
3 SEAL; OIL,RR COVER,A/T
4X4<TFS***> 4JJ1 ENG<LFB> THA 		8-97330-909-0 01 1 0409-
4 CONVERTER ASM; TORQUE,A/T
4JH1 ENG<RJX> THA 		8-97330-898-0 01 1 0303-0408
4 CONVERTER ASM; TORQUE,A/T
4JJ1 ENG<LFB> THA 		8-97368-547-0 01 1 0409-
5 BOLT; RR PLATE TO TORQUE CONV
4JH1 ENG<RJX> M8X10 THA 		8-94460-742-0 06 1 0303-0408
7 SEAL; OIL,LIP,A/T
4JH1 ENG<RJX> (A) THA 		8-94385-664-0 01 1 0303-0408
7 SEAL; OIL,LIP,A/T
4JJ1 ENG<LFB> (A) THA 		8-94385-664-0 01 1 0409-
7 SEAL; OIL,LIP,A/T
4JH1 ENG<RJX> (B) THA 		8-97330-904-0 01 1 0303-0408
7 SEAL; OIL,LIP,A/T
4JJ1 ENG<LFB> (B) THA 		8-97330-904-0 01 1 0409-0711
7 SEAL; OIL,LIP,A/T
4JJ1 ENG<LFB> (B) THA 		8-98126-853-0 01 1 0712-
8 BOLT; HSG TO CASE
4JH1 ENG<RJX> M8X35 THA 		8-97330-912-0 08 1 0303-0408
8 BOLT; HSG TO CASE
4JJ1 ENG<LFB> M8X35 THA 		8-97330-912-0 08 1 0409-
9 COVER ASM; RR,A/T
4X2<TFB***> 4JH1 ENG<RJX> THA 		8-97330-901-0 01 1 0303-0408
9 COVER ASM; RR,A/T
4X2<TFB***> 4JJ1 ENG<LFB> THA 		8-97330-901-0 01 1 0409-
15 BREATHER; A/T CASE
4JH1 ENG<RJX> THA 		8-97301-433-1 01 1 0303-0408
15 BREATHER; A/T CASE
4JJ1 ENG<LFB> THA 		8-97301-433-1 01 1 0409-
17 BOLT; REAR COVER TO CASE
4JH1 ENG<RJX> M8X35 THA 		8-97330-912-0 10 1 0303-0408
17 BOLT; REAR COVER TO CASE
4JJ1 ENG<LFB> M8X35 THA 		8-97330-912-0 10 1 0409-
23 HOSE; BREATHER,A/T
4JH1 ENG<RJX> L=580 SERVICED BY L=3000 IMA 		0-04750-300-0 01 1 0303-0408
23 HOSE; BREATHER,A/T
4JJ1 ENG<LFB> L=580 SERVICED BY L=3000 IMA 		0-04750-300-0 01 1 0409-
30 PUMP ASM; OIL,A/T
4JH1 ENG<RJX> THA 		8-97357-220-0 01 1 0303-0408
30 PUMP ASM; OIL,A/T
4JJ1 ENG<LFB> THA 		8-97357-220-0 01 1 0409-
37 RING; SEAL,OIL PUMP,A/T
4JH1 ENG<RJX> (A) THA 		8-94483-322-0 02 1 0303-0408
37 RING; SEAL,OIL PUMP,A/T
4JJ1 ENG<LFB> (A) THA 		8-94483-322-0 02 1 0409-
37 RING; SEAL,OIL PUMP,A/T
4JH1 ENG<RJX> (B) THA 		8-97330-984-0 02 1 0303-0408
37 RING; SEAL,OIL PUMP,A/T
4JJ1 ENG<LFB> (B) THA 		8-97330-984-0 02 1 0409-
38 GASKET; OIL PUMP,A/T
4JH1 ENG<RJX> (A) THA 		8-97330-985-0 01 1 0303-0408
38 GASKET; OIL PUMP,A/T
4JJ1 ENG<LFB> (A) THA 		8-97330-985-0 01 1 0409-
38 GASKET; OIL PUMP,A/T
4JH1 ENG<RJX> (B) THA 		8-97330-986-0 01 1 0303-0408
38 GASKET; OIL PUMP,A/T
4JJ1 ENG<LFB> (B) THA 		8-97330-986-0 01 1 0409-
41 BOLT; OIL PUMP HSG,A/T
4JH1 ENG<RJX> (A) M8X45 FLANGE THA 		8-97330-913-0 08 1 0303-0408
41 BOLT; OIL PUMP HSG,A/T
4JJ1 ENG<LFB> (A) M8X45 FLANGE THA 		8-97330-913-0 08 1 0409-
41 BOLT; OIL PUMP HSG,A/T
4JH1 ENG<RJX> (B) M6X25 FLANGE THA 		8-97331-123-0 08 1 0303-0408
41 BOLT; OIL PUMP HSG,A/T
4JJ1 ENG<LFB> (B) M6X25 FLANGE THA 		8-97331-123-0 08 1 0409-
43 RACE; THRUST BRG,OIL PUMP,A/T
4JH1 ENG<RJX> T=1.4 THA 		8-97330-940-0 01 1 0303-0408
43 RACE; THRUST BRG,OIL PUMP,A/T
4JJ1 ENG<LFB> T=1.4 THA 		8-97330-940-0 01 1 0409-
43 RACE; THRUST BRG,OIL PUMP,A/T
4JH1 ENG<RJX> T=1.6 THA 		8-97330-941-0 01 1 0303-0408
43 RACE; THRUST BRG,OIL PUMP,A/T
4JJ1 ENG<LFB> T=1.6 THA 		8-97330-941-0 01 1 0409-
43 RACE; THRUST BRG,OIL PUMP,A/T
4JH1 ENG<RJX> T=1.8 THA 		8-97330-942-0 01 1 0303-0408
43 RACE; THRUST BRG,OIL PUMP,A/T
4JJ1 ENG<LFB> T=1.8 THA 		8-97330-942-0 01 1 0409-
43 RACE; THRUST BRG,OIL PUMP,A/T
4JH1 ENG<RJX> T=2.0 THA 		8-97330-943-0 01 1 0303-0408
43 RACE; THRUST BRG,OIL PUMP,A/T
4JJ1 ENG<LFB> T=2.0 THA 		8-97330-943-0 01 1 0409-
43 RACE; THRUST BRG,OIL PUMP,A/T
4JH1 ENG<RJX> T=2.2 THA 		8-97330-944-0 01 1 0303-0408
43 RACE; THRUST BRG,OIL PUMP,A/T
4JJ1 ENG<LFB> T=2.2 THA 		8-97330-944-0 01 1 0409-
43 RACE; THRUST BRG,OIL PUMP,A/T
4JH1 ENG<RJX> T=2.4 THA 		8-97330-945-0 01 1 0303-0408
43 RACE; THRUST BRG,OIL PUMP,A/T
4JJ1 ENG<LFB> T=2.4 THA 		8-97330-945-0 01 1 0409-
44 BEARING; THRUST,OIL PUMP,A/T
4JH1 ENG<RJX> THA 		8-97330-924-0 01 1 0303-0408
44 BEARING; THRUST,OIL PUMP,A/T
4JJ1 ENG<LFB> THA 		8-97330-924-0 01 1 0409-
241 ADAPTER; A/T
4X4<TFS***> 4JH1 ENG<RJX> THA 		8-97330-902-0 01 1 0303-0408
241 ADAPTER; A/T
4X4<TFS***> 4JJ1 ENG<LFB> THA 		8-97330-902-0 01 1 0409-
