◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#40761) — 38 parça

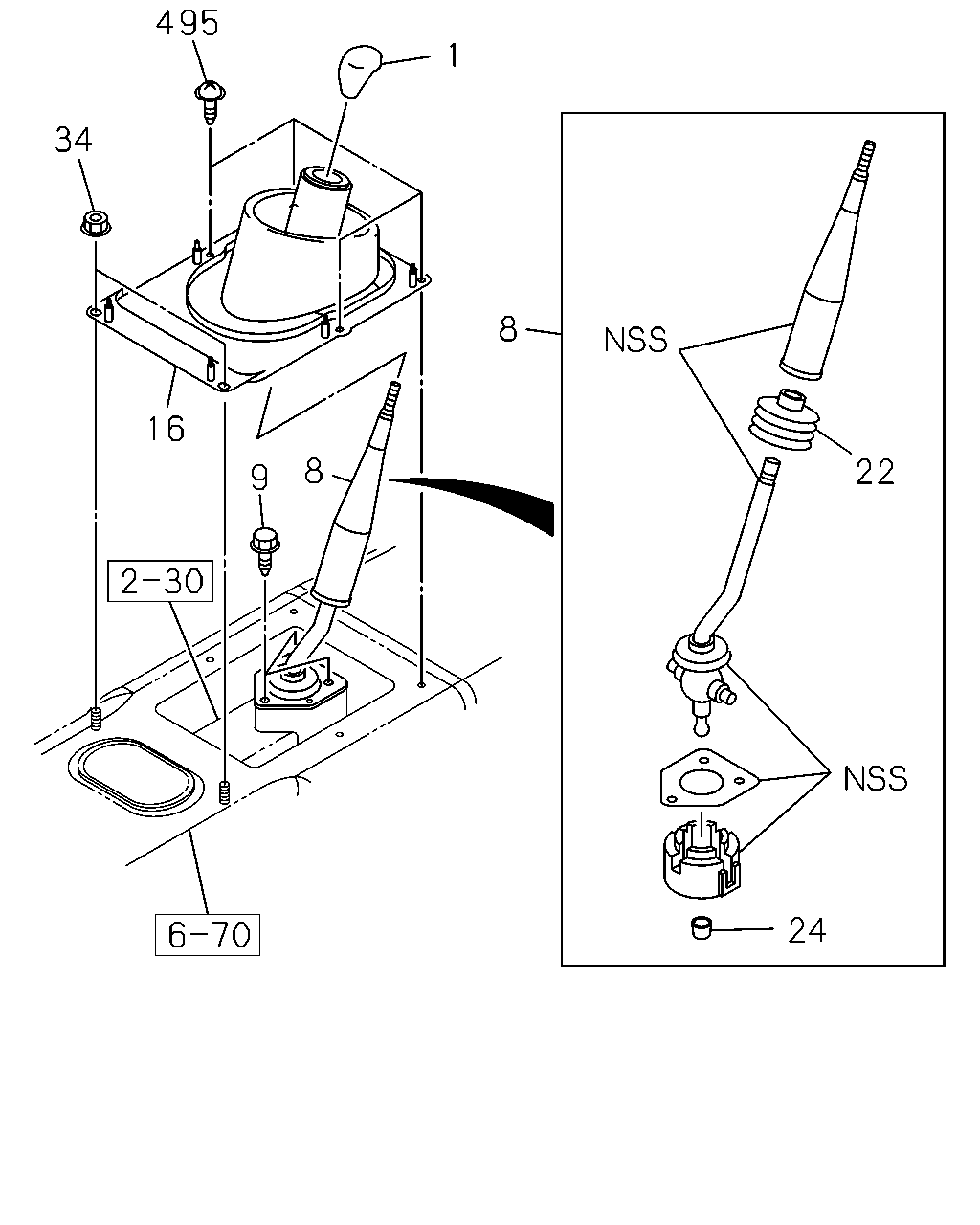

çizim 49335
495 1 34 8 16 8 22 9 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97298-804-0 01 1 0303-0307 ●
1 KNOB; CHANGE LEVER
LEATHER GRIP PACKAGE<7GZ> DARK GRAY THA 		8-97298-804-0 01 1 0308-0404 ●
1 KNOB; CHANGE LEVER
LEATHER GRIP PACKAGE<7GZ> DARK GRAY THA 		8-97944-165-0 01 1 0405-0408 ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97398-543-0 01 1 0409-0412 ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97398-543-0 01 1 0501-0512 ● ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97406-181-0 01 1 0601-0606 ● ●
1 KNOB; CHANGE LEVER
DARK GRAY THA 		8-97406-182-0 01 1 0607- ●
8 LEVER; CHANGE
THA 		8-97235-806-3 01 1 0303-0305 ●
8 LEVER; CHANGE
THA 		8-97943-608-0 01 1 0306-0408 ●
8 LEVER; CHANGE
4JJ1 ENG<LFB> THA 		8-97944-094-0 01 1 0409-0412 ●
8 LEVER; CHANGE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97944-094-0 01 1 0501-0606 ● ●
8 LEVER; CHANGE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97945-707-0 01 1 0607-0610 ●
8 LEVER; CHANGE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97945-847-0 01 1 0611-0802 ●
8 LEVER; CHANGE
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97947-101-1 01 1 0803- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0303-0408 ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0409-0412 ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0501-0606 ● ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE THA 		0-28650-820-0 03 1 0607- ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0303-0408 ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0409-0412 ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0501-0606 ● ●
16 BOOT; CHANGE LEVER
THA 		8-97235-879-2 01 1 0607- ●
22 COVER; DUST,CHANGE LEVER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97945-801-0 01 1 0611- ●
24 BUSHING; CHANGE LEVER
THA 		8-97161-606-0 01 1 0303-0305 ●
24 BUSHING; CHANGE LEVER
THA 		8-97943-618-0 01 1 0306-0408 ●
24 BUSHING; CHANGE LEVER
4JJ1 ENG<LFB> THA 		8-97943-618-0 01 1 0409-0412 ●
24 BUSHING; CHANGE LEVER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97943-618-0 01 1 0501-0606 ● ●
24 BUSHING; CHANGE LEVER
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA 		8-97943-618-0 01 1 0607- ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0303-0408 ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0409-0412 ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0501-0606 ● ●
34 NUT
M6 FLANGE THA 		8-97063-399-0 02 1 0607-0702 ●
34 NUT
M6 FLANGE IMA 		8-98055-704-0 02 1 0703- ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74305-516-0 04 1 0303-0408 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74305-516-0 04 1 0409-0412 ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74305-516-0 04 1 0501-0605 ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0606-0606 ● ●
495 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER THA 		0-74365-516-0 04 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
