8-90 — RADIO AND TV (#4076) — 43 parça

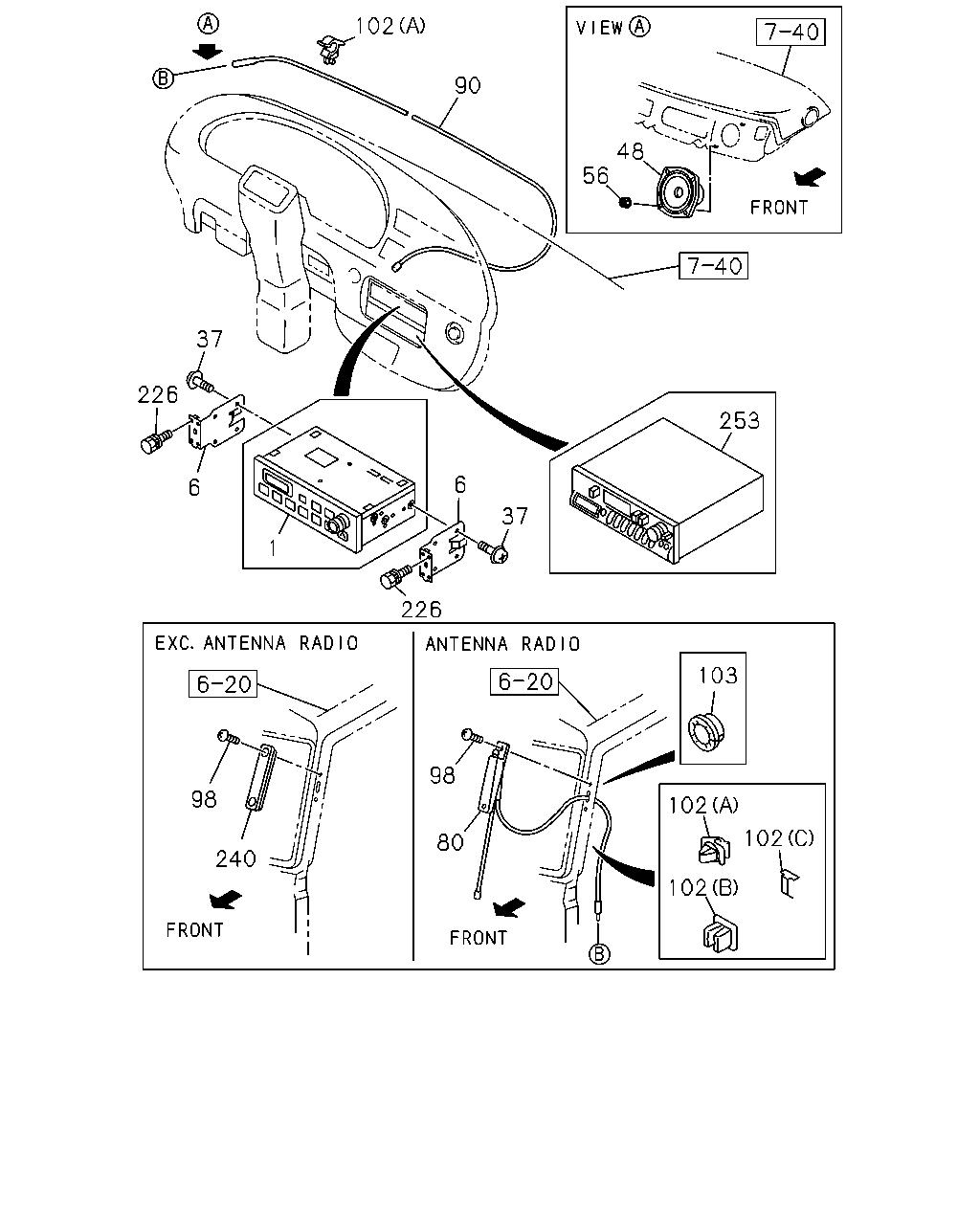

çizim 116171
90 102 37 226 6 1 6 37 226 253 56 48 98 240 98 80 102 102 102 103
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIO
RADIO CLARION(SK2) SAUDI ARABIA EQUIPMENT(WH1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84112-068-0 01 1 9912-0210 ● ●
1 RADIO
RADIO CLARION(SK2) SAUDI ARABIA EQUIPMENT(WH1) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84112-068-0 01 1 0211-0702 ●
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84112-063-0 01 1 9510-9911 ● ●
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,SAUDI ARABIA EQUIPMENT(WH1) 		1-84112-063-0 01 1 9912-0210 ● ●
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84112-063-0 01 1 0211-0702 ●
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,SAUDI ARABIA EQUIPMENT(WH1) 		1-84112-063-0 01 1 0211-0702 ●
1 RADIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> CLARION AM/FM 		8-98029-605-0 01 1 0703- ● ●
6 BRACKET; RADIO TO PANEL 1-65671-551-4 02 1 9510-0612 ● ●
6 BRACKET; RADIO TO PANEL 1-65671-822-1 02 1 0701- ● ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9510-0604 ● ●
37 SCREW; CASSETTE & RADIO
RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605- ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-050-0 01 1 9510-0308 ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-073-0 01 1 0309-0702 ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		1-84114-073-0 02 1 0703-0905 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		1-84114-073-0 02 1 0703-0905 ● ●
48 SPEAKER; AUDIO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> 		8-98140-326-1 02 1 0906- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		8-98140-326-1 02 1 0906- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-84114-062-0 02 1 9510-0605 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV> EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		8-98046-216-0 02 1 0606- ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		1-84114-050-0 02 1 9510-0308 ● ●
48 SPEAKER; AUDIO
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. RADIO CLARION(SK2) 		1-84114-073-0 02 1 0309-0702 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 02 1 9510-0702 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 9510-0702 ● ●
56 NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703- ● ●
56 NUT; SPEAKER,RADIO OR STEREO
RADIO CLARION(SK2) EXC. SPEAKER SYSTEM FRT 2 SPEAKER 12 VOLT<BDV>, SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE 		1-09984-170-0 04 1 0703- ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		1-84115-055-2 01 1 9510-1203 ● ●
80 ANTENNA
ANTENNA RADIO<U73> 		8-98210-874-1 01 1 1204- ● ●
90 CABLE; ANTENNA,FEEDER
ANTENNA RADIO<U73> 		1-84113-011-2 01 1 9510- ● ●
98 SCREW; TAP,ANTENNA
M5X11 		1-09981-536-1 02 1 9510- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (C) L=20 SET=10 PIECE 		1-09987-246-2 01 1 1410- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 05 1 9510-9612 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 07 1 9701-9902 ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (A) WO/PACKING ID=4.8 		8-94128-483-0 02 1 9903- ● ●
102 CLIP; CABLE
ANTENNA RADIO<U73> (B) ID=4.8 		1-73907-618-0 05 1 9903- ● ●
103 GROMMET; ANTENNA HOLE,FRT
ANTENNA RADIO<U73> 		8-97027-381-0 01 1 9510- ● ●
226 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9510- ● ●
240 COVER; ANTENNA
EXC. ANTENNA RADIO<U73> 		1-79996-296-0 01 1 9510- ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> CLARION 		1-84122-032-2 01 1 9510-9911 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. SAUDI ARABIA EQUIPMENT(WH1) CLARION 		1-84122-032-3 01 1 9912-0210 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> CLARION 		1-84122-032-3 01 1 0211- ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> EXC. SAUDI ARABIA EQUIPMENT(WH1) CLARION 		1-84122-032-3 01 1 0211- ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> SAUDI ARABIA EQUIPMENT(WH1) 		1-84122-038-1 01 1 9912-0210 ● ●
253 DECK ASM; RADIO & CD
RADIO AM/FM STEREO & TAPE PLAYER(UN3) SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> SAUDI ARABIA EQUIPMENT(WH1) 		1-84122-038-1 01 1 0211- ●
