◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#40758) — 158 parça

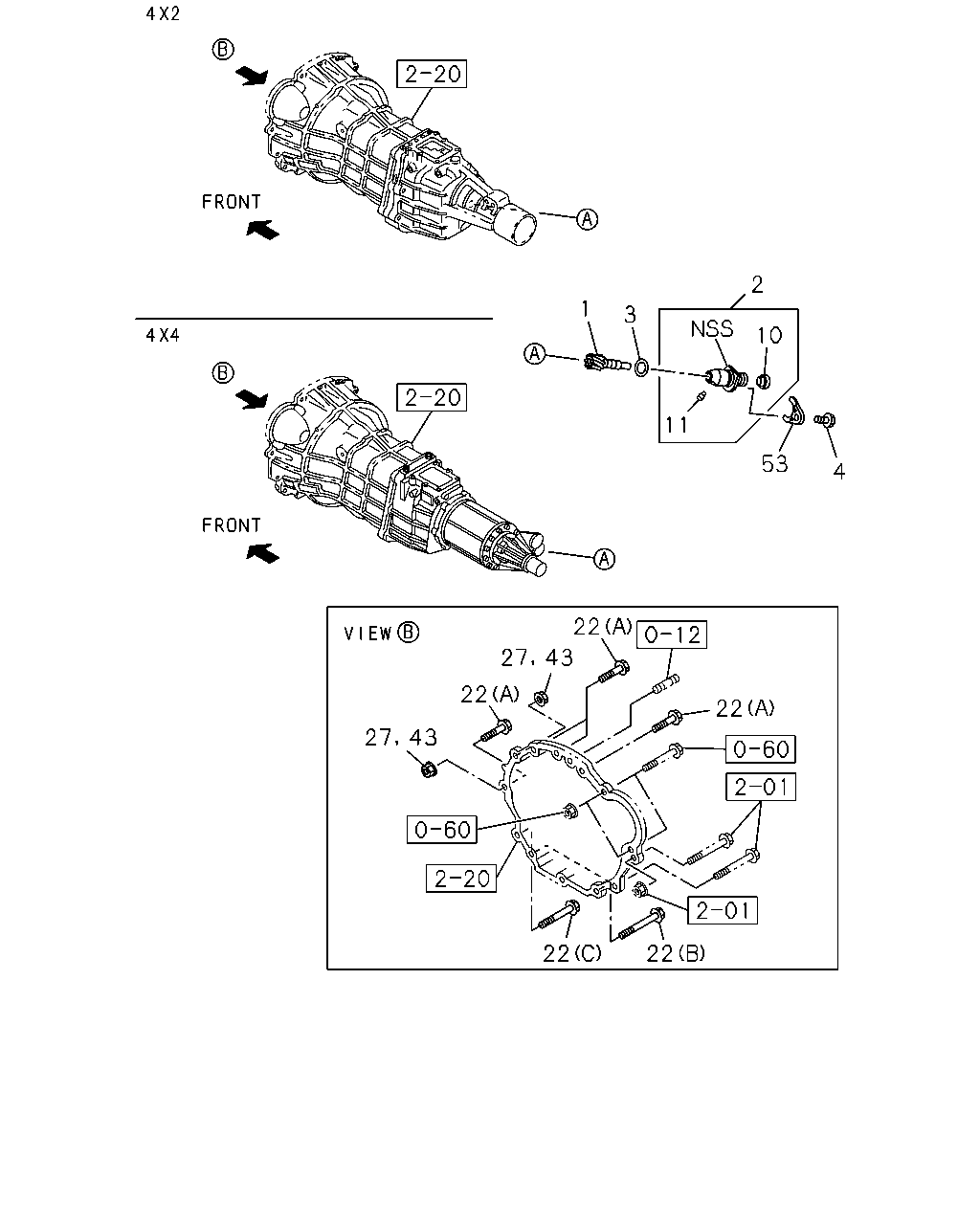

çizim 49656
2 1 3 10 11 53 4 22 22 22 22 22 43 27 43 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
4X2<TFB***> Z=17 IMA 		8-97012-085-2 01 1 0303-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> Z=16 THA 		8-97169-434-1 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> Z=16 THA 		8-97169-434-1 01 1 0501-0606 ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> Z=16 THA 		8-97169-434-1 01 1 0607- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=18 THA 		8-97238-584-2 01 1 0303-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=17 IMA 		8-97238-583-0 01 1 0409-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=18 THA 		8-97238-584-2 01 1 0607- ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=17 THA 		8-97238-587-2 01 1 0303-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> Z=17 IMA 		8-97012-085-2 01 1 0607- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0303-0408 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0409-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0501-0606 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0607- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0303-0408 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0409-0606 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0607- ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0303-0408 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0303-0408 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607- ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607- ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0303-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0303-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ● ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0607- ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0607- ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0303-0408 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0303-0408 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0409-0412 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0409-0412 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0501-0606 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0607- ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0607- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0303-0408 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0303-0408 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0409-0412 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0409-0412 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0501-0606 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0607- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (B) M10X60 FLANGE THA 		0-28051-060-0 02 1 0303-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB> (B) M10X60 FLANGE THA 		0-28051-060-0 02 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X60 FLANGE THA 		0-28051-060-0 02 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X60 FLANGE THA 		0-28051-060-0 02 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (C) M12X40 FLANGE THA 		0-28051-240-0 01 1 0303-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB> (C) M12X40 FLANGE THA 		0-28051-240-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M12X40 FLANGE THA 		0-28051-240-0 01 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (A) M10X40 FLANGE THA 		0-28051-040-0 04 1 0303-0408 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB> (A) M10X40 FLANGE THA 		0-28051-040-0 04 1 0409-0412 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X40 FLANGE THA 		0-28051-040-0 04 1 0501-0606 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X40 FLANGE THA 		0-28051-040-0 04 1 0607- ● ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (D) M12X45 FLANGE THA 		0-28051-245-0 04 1 0303-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB> (D) M12X45 FLANGE THA 		0-28051-245-0 04 1 0409- ●
27 NUT; CLU HSG TO TRANS
4JJ1 ENG<LFB> M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ●
43 NUT; TRANS CASE
4JH1 ENG<RJX> M10 FLANGE THA 		0-91180-110-0 02 1 0303-0408 ● ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0303-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0303-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0501-0606 ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0607-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0607-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0704- ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0704- ●

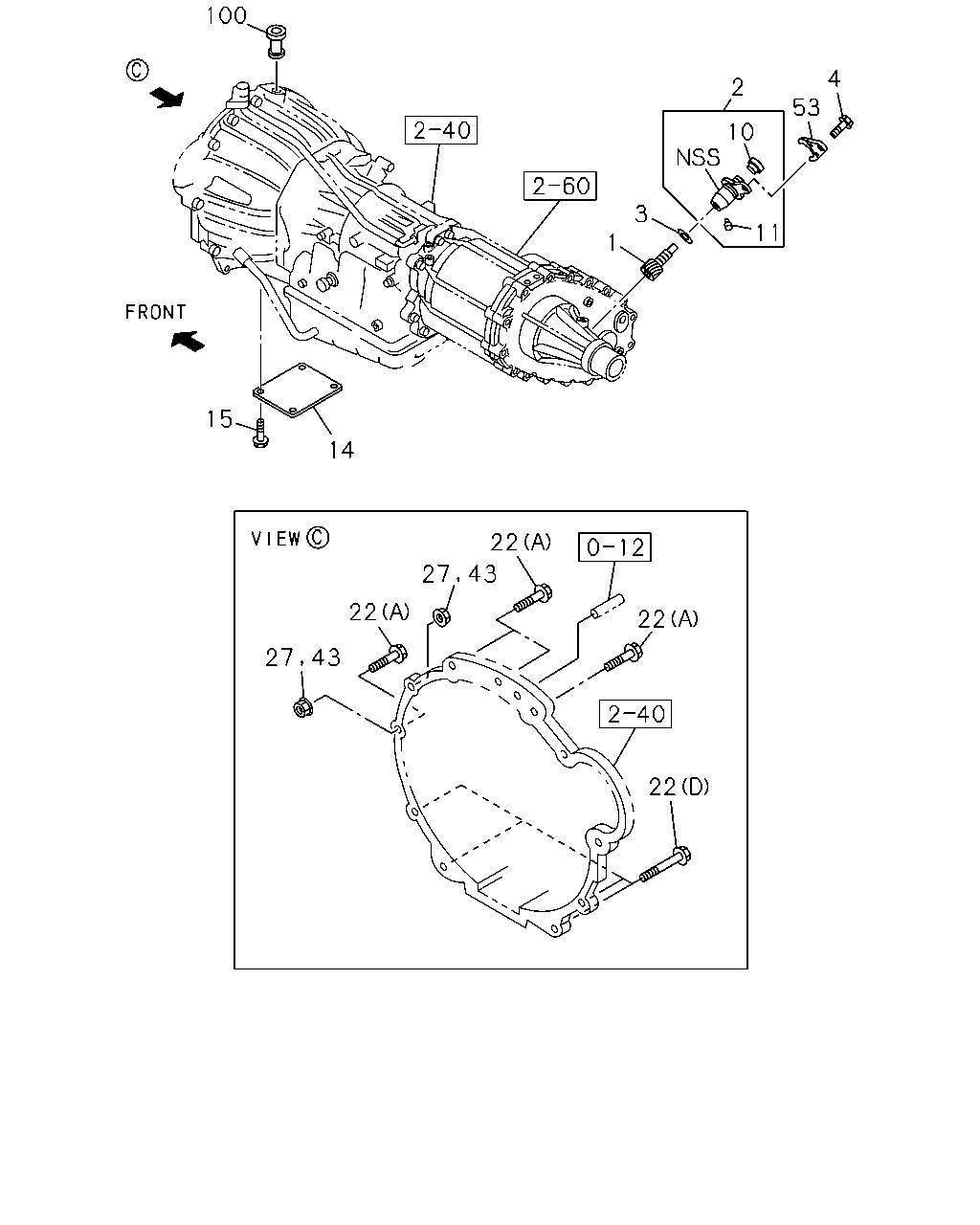

çizim 49741
100 4 53 2 10 3 11 1 15 14 22 22 22 22 43 27 43 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GEAR; DRIVEN,SPD
4X2<TFB***> Z=17 IMA 		8-97012-085-2 01 1 0303-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> Z=16 THA 		8-97169-434-1 01 1 0409-0412 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> Z=16 THA 		8-97169-434-1 01 1 0501-0606 ● ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 43/12<GM0> Z=16 THA 		8-97169-434-1 01 1 0607- ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=18 THA 		8-97238-584-2 01 1 0303-0408 ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=17 IMA 		8-97238-583-0 01 1 0409-0606 ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=18 THA 		8-97238-584-2 01 1 0607- ● ●
1 GEAR; DRIVEN,SPD
4X4<TFS***> Z=17 THA 		8-97238-587-2 01 1 0303-0408 ●
1 GEAR; DRIVEN,SPD
4X2<TFB***> FINAL GEAR RATIO 41/11<GT4> Z=17 IMA 		8-97012-085-2 01 1 0607- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0303-0408 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0409-0412 ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0501-0606 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2<TFB***> IMA 		8-97021-133-4 01 1 0607- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0303-0408 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0409-0606 ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4<TFS***> IMA 		8-97305-454-1 01 1 0607- ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0303-0408 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0303-0408 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0409-0412 ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0501-0606 ● ●
3 GASKET; BUSHING
4X4<TFS***> ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607- ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 IMA 		9-09921-100-0 01 1 0607- ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0303-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0303-0408 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0409-0412 ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0501-0606 ● ●
4 BOLT; RET,DRIVEN GEAR
4X4<TFS***> M8X20 FLANGE THA 		0-28050-820-0 01 1 0607- ●
4 BOLT; RET,DRIVEN GEAR
M8X20 FLANGE THA 		0-28050-820-0 01 1 0607- ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0303-0408 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0303-0408 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0409-0412 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0409-0412 ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0501-0606 ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0501-0606 ● ●
10 SEAL; OIL,DRIVE GEAR
4X4<TFS***> NOK IMA 		8-97131-328-1 01 1 0607- ●
10 SEAL; OIL,DRIVE GEAR
NOK IMA 		8-97131-328-1 01 1 0607- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0303-0408 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0303-0408 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0409-0412 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0409-0412 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0501-0606 ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0501-0606 ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4<TFS***> IMA 		8-94446-571-1 01 1 0607- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
IMA 		8-94446-571-1 01 1 0607- ●
14 COVER; UNDER,TRANS
4JH1 ENG<RJX> THA 		8-94375-252-0 01 1 0303-0408 ●
14 COVER; UNDER,TRANS
4JJ1 ENG<LFB> THA 		8-94375-252-0 01 1 0409-0608 ●
14 COVER; UNDER,TRANS
4JJ1 ENG<LFB> THA 		8-98049-857-0 01 1 0609- ●
15 BOLT; UNDER COVER TO TRANS
4JH1 ENG<RJX> M6X16 FLANGE THA 		0-28650-616-0 04 1 0303-0408 ●
15 BOLT; UNDER COVER TO TRANS
4JJ1 ENG<LFB> M6X16 FLANGE THA 		0-28650-616-0 04 1 0409- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (B) M10X60 FLANGE THA 		0-28051-060-0 02 1 0303-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB> (B) M10X60 FLANGE THA 		0-28051-060-0 02 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X60 FLANGE THA 		0-28051-060-0 02 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X60 FLANGE THA 		0-28051-060-0 02 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (C) M12X40 FLANGE THA 		0-28051-240-0 01 1 0303-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB> (C) M12X40 FLANGE THA 		0-28051-240-0 01 1 0409-0412 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M12X40 FLANGE THA 		0-28051-240-0 01 1 0501-0606 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (C) M12X40 FLANGE THA 		0-28051-240-0 01 1 0607- ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (A) M10X40 FLANGE THA 		0-28051-040-0 04 1 0303-0408 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB> (A) M10X40 FLANGE THA 		0-28051-040-0 04 1 0409-0412 ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X40 FLANGE THA 		0-28051-040-0 04 1 0501-0606 ● ● ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X40 FLANGE THA 		0-28051-040-0 04 1 0607- ● ●
22 BOLT; TRANS CASE TO ENG
4JH1 ENG<RJX> (D) M12X45 FLANGE THA 		0-28051-245-0 04 1 0303-0408 ●
22 BOLT; TRANS CASE TO ENG
4JJ1 ENG<LFB> (D) M12X45 FLANGE THA 		0-28051-245-0 04 1 0409- ●
27 NUT; CLU HSG TO TRANS
4JJ1 ENG<LFB> M10 FLANGE THA 		0-91180-110-0 02 1 0409-0412 ● ●
27 NUT; CLU HSG TO TRANS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0501-0606 ● ● ●
27 NUT; CLU HSG TO TRANS
4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ●
43 NUT; TRANS CASE
4JH1 ENG<RJX> M10 FLANGE THA 		0-91180-110-0 02 1 0303-0408 ● ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0303-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0303-0408 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0409-0412 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0501-0606 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0501-0606 ● ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> THA 		8-97021-019-0 01 1 0607-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
THA 		8-97021-019-0 01 1 0607-0703 ●
53 PLATE; LOCK,DRIVEN GEAR
4X4<TFS***> IMA 		8-98035-572-0 01 1 0704- ●
53 PLATE; LOCK,DRIVEN GEAR
IMA 		8-98035-572-0 01 1 0704- ●
100 PLUG; HOLE
4JJ1 ENG<LFB> THA 		8-97318-961-0 01 1 0409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
