◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11433 - FSS(BANGLADESH) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶

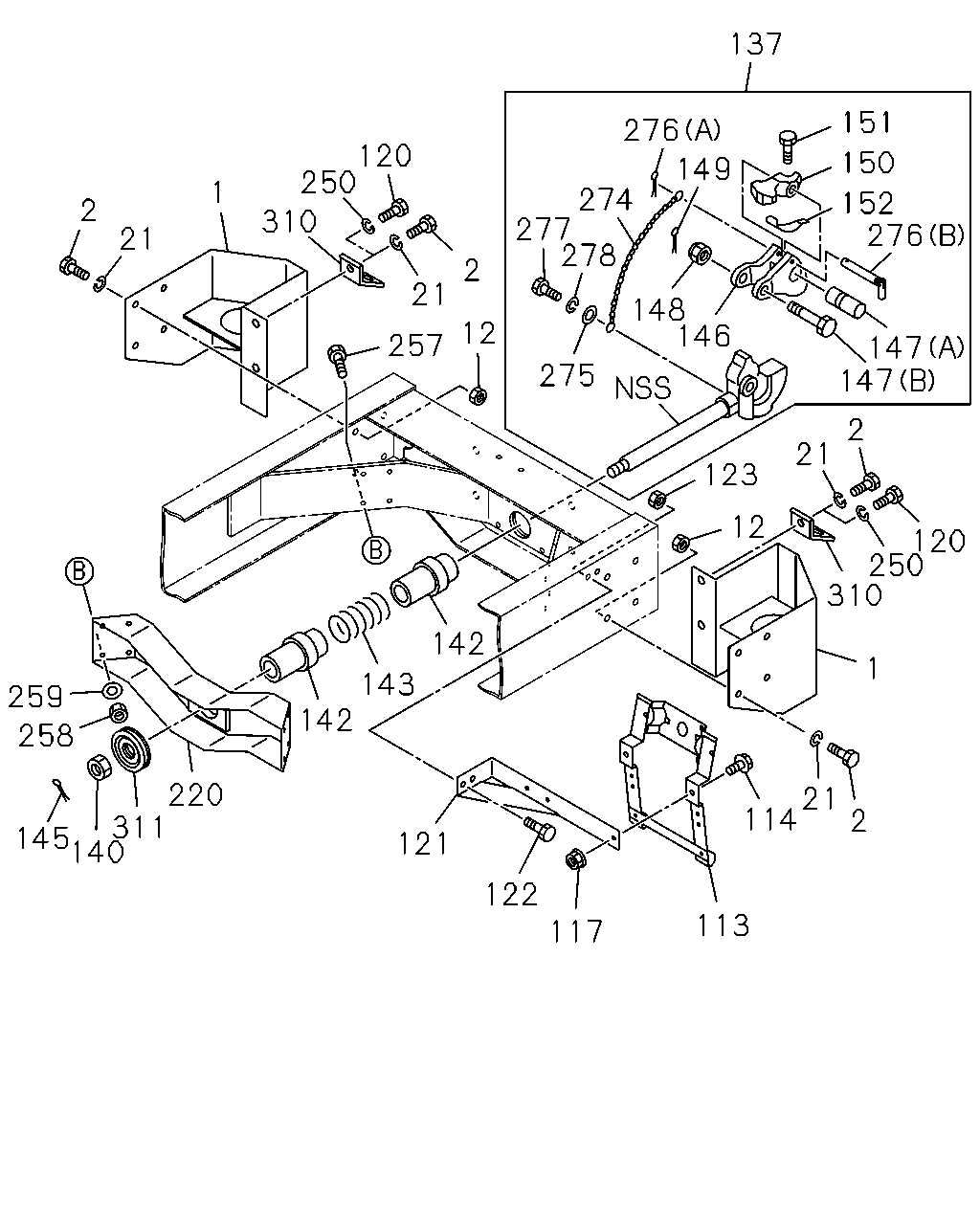

6-90 — REAR BUMPER (#40757) — 167 parça
çizim 96995
137 151 276 120 250 150 149 1 274 277 278 152 276 2 310 21 2 21 148 146 12 257 147 147 275 2 21 123 12 120 250 310 142 1 143 142 259 258 220 311 145 140 21 114 2 121 122 113 117
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER; RR
PINTLE HOOK<PP7> BAN 		1-71220-068-2 01 1 0008-
1 BUMPER; RR
PINTLE HOOK<PP7> BAN 		1-71220-069-2 01 1 0008-
2 BOLT; BACK BAR
PINTLE HOOK<PP7> M14X40 		0-20801-440-0 08 1 0008-0512
2 BOLT; BACK BAR
PINTLE HOOK<PP7> M14X40 		0-20851-440-0 08 1 0601-
2 BOLT; BACK BAR
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> M16X40 		0-20801-640-0 02 1 0008-0512
2 BOLT; BACK BAR
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> M16X40 		0-20851-640-0 02 1 0601-
2 BOLT; BACK BAR
PINTLE HOOK<PP7> EXC. RR HOOK TWO EYE<VR7> M16X40 		0-20801-640-0 04 1 0008-0512
2 BOLT; BACK BAR
PINTLE HOOK<PP7> EXC. RR HOOK TWO EYE<VR7> M16X40 		0-20851-640-0 04 1 0601-
12 NUT; BRKT
PINTLE HOOK<PP7> M14 		9-99110-414-0 08 1 0008-0512
12 NUT; BRKT
PINTLE HOOK<PP7> M14 		0-91110-514-0 08 1 0601-
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> ID=14.2 		9-09150-514-0 08 1 0008-0603
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> ID=14.2 		0-91510-514-0 08 1 0604-
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> ID=16.2 		9-09150-816-0 02 1 0008-0603
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> ID=16.2 		0-91510-816-0 02 1 0604-
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> EXC. RR HOOK TWO EYE<VR7> ID=16.2 		9-09150-816-0 04 1 0008-0603
21 WASHER; LK,BUMPER
PINTLE HOOK<PP7> EXC. RR HOOK TWO EYE<VR7> ID=16.2 		0-91510-816-0 04 1 0604-
113 BRACKET; LICENSE PLATE 1-53485-065-0 01 1 0008-0302
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 0303-
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28680-825-0 02 1 0008-0512
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
117 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0008-0602
117 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
120 BOLT
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> M16X40 		0-20801-640-0 02 1 0008-0512
120 BOLT
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> M16X40 		0-20851-640-0 02 1 0601-
121 STAY; RR LICENSE PLATE BRKT
PINTLE HOOK<PP7> 		1-53485-002-1 01 1 0008-0310
121 STAY; RR LICENSE PLATE BRKT
PINTLE HOOK<PP7> 		1-53485-075-0 01 1 0311-
122 BOLT; STAY TO FRAME
PINTLE HOOK<PP7> M12X35 FLANGE 		0-28681-235-0 02 1 0008-0512
122 BOLT; STAY TO FRAME
PINTLE HOOK<PP7> M12X35 FLANGE 		0-28651-235-0 02 1 0601-
123 NUT; STAY
PINTLE HOOK<PP7> M12 FLANGE 		0-91150-212-0 02 1 0008-0602
123 NUT; STAY
PINTLE HOOK<PP7> M12 FLANGE 		0-91180-212-0 02 1 0603-
137 HOOK ASM; PINTLE
PINTLE HOOK<PP7> 		1-57180-053-2 01 1 0008-
140 NUT; PINTLE HOOK
PINTLE HOOK<PP7> 		1-09420-006-0 01 1 0008-
142 GUIDE; HOOK SPR
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7> 		9-53522-001-0 02 1 0008-0112
142 GUIDE; HOOK SPR
USER EXP GOVERNMENT<D6M> REAR STABILIZER SHAFT<F61> PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> 		9-53522-001-0 02 1 0008-0112
142 GUIDE; HOOK SPR
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61> 		9-53522-001-0 02 1 0008-0112
142 GUIDE; HOOK SPR
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> 		9-53522-001-0 02 1 0201-0403
142 GUIDE; HOOK SPR
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		9-53522-001-0 02 1 0201-0403
142 GUIDE; HOOK SPR
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53522-001-0 02 1 0201-0403
142 GUIDE; HOOK SPR
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		9-53522-001-0 02 1 0404-0509
142 GUIDE; HOOK SPR
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53522-001-0 02 1 0404-0509
142 GUIDE; HOOK SPR
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53522-001-0 02 1 0404-0509
142 GUIDE; HOOK SPR
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> 		9-53522-001-0 02 1 0510-
142 GUIDE; HOOK SPR
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		9-53522-001-0 02 1 0510-
142 GUIDE; HOOK SPR
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> 		9-53522-001-0 02 1 0510-
142 GUIDE; HOOK SPR
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-53522-001-0 02 1 0510-
143 SPRING; COIL,PINTLE HOOK
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7> 		9-09940-078-0 01 1 0008-0112
143 SPRING; COIL,PINTLE HOOK
USER EXP GOVERNMENT<D6M> REAR STABILIZER SHAFT<F61> PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> 		9-09940-078-0 01 1 0008-0112
143 SPRING; COIL,PINTLE HOOK
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61> 		9-09940-078-0 01 1 0008-0112
143 SPRING; COIL,PINTLE HOOK
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> 		9-09940-078-0 01 1 0201-0403
143 SPRING; COIL,PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		9-09940-078-0 01 1 0201-0403
143 SPRING; COIL,PINTLE HOOK
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-09940-078-0 01 1 0201-0403
143 SPRING; COIL,PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		9-09940-078-0 01 1 0404-0509
143 SPRING; COIL,PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-09940-078-0 01 1 0404-0509
143 SPRING; COIL,PINTLE HOOK
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-09940-078-0 01 1 0404-0509
143 SPRING; COIL,PINTLE HOOK
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> 		9-09940-078-0 01 1 0510-
143 SPRING; COIL,PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		9-09940-078-0 01 1 0510-
143 SPRING; COIL,PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> 		9-09940-078-0 01 1 0510-
143 SPRING; COIL,PINTLE HOOK
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		9-09940-078-0 01 1 0510-
145 PIN; SPLIT,PINTLE HOOK
PINTLE HOOK<PP7> OD=5.7 L=65 		9-08116-065-0 01 1 0008-0606
145 PIN; SPLIT,PINTLE HOOK
PINTLE HOOK<PP7> OD=5.7 L=65 		0-81126-065-0 01 1 0607-
146 LEVER; LK,PINTLE HOOK
PINTLE HOOK<PP7> 		9-53514-001-0 01 1 0008-
147 PIN; LK LEVER
PINTLE HOOK<PP7> (A) 		9-53516-002-0 01 1 0008-
147 PIN; LK LEVER
PINTLE HOOK<PP7> (B) 		9-53516-008-0 01 1 0008-
148 NUT; LK PIN
PINTLE HOOK<PP7> M24 SLOTTED 		1-09442-020-0 01 1 0008-0805
148 NUT; LK PIN
PINTLE HOOK<PP7> M24 		1-09442-032-0 01 1 0806-
149 PIN; SPLIT,PINTLE HOOK
PINTLE HOOK<PP7> OD=2.8 L=45 		9-08113-045-0 01 1 0008-0606
149 PIN; SPLIT,PINTLE HOOK
PINTLE HOOK<PP7> OD=2.8 L=45 		0-81123-045-0 01 1 0607-
150 RATCHET; LK LEVER,PINTLE HOOK
PINTLE HOOK<PP7> 		9-53515-001-0 01 1 0008-
151 BOLT; PINTLE HOOK
PINTLE HOOK<PP7> M8X32 W/LK WASHER 		0-50040-832-0 01 1 0008-0906
151 BOLT; PINTLE HOOK
PINTLE HOOK<PP7> M8X32 W/LK WASHER 		0-50540-832-0 01 1 0907-
152 SPRING; RATCHET,PINTLE HOOK
PINTLE HOOK<PP7> 		9-53515-002-0 01 1 0008-
220 MEMBER; PINTLE HOOK
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7> 		1-57189-056-0 01 1 0008-0112
220 MEMBER; PINTLE HOOK
USER EXP GOVERNMENT<D6M> REAR STABILIZER SHAFT<F61> PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> 		1-57189-056-0 01 1 0008-0112
220 MEMBER; PINTLE HOOK
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61> 		1-57189-056-0 01 1 0008-0112
220 MEMBER; PINTLE HOOK
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> 		1-57189-056-0 01 1 0201-0403
220 MEMBER; PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		1-57189-056-0 01 1 0201-0403
220 MEMBER; PINTLE HOOK
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-57189-056-0 01 1 0201-0403
220 MEMBER; PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		1-57189-056-0 01 1 0404-0509
220 MEMBER; PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-57189-056-0 01 1 0404-0509
220 MEMBER; PINTLE HOOK
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-57189-056-0 01 1 0404-0509
220 MEMBER; PINTLE HOOK
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> 		1-57189-056-0 01 1 0510-
220 MEMBER; PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> 		1-57189-056-0 01 1 0510-
220 MEMBER; PINTLE HOOK
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> 		1-57189-056-0 01 1 0510-
220 MEMBER; PINTLE HOOK
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> 		1-57189-056-0 01 1 0510-
250 WASHER; LK,BRKT TRAILER SAFETY CHAIN
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> ID=16.2 		9-09150-816-0 02 1 0008-0603
250 WASHER; LK,BRKT TRAILER SAFETY CHAIN
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> ID=16.2 		0-91510-816-0 02 1 0604-
257 BOLT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0008-0112
257 BOLT; MEMBER
USER EXP GOVERNMENT<D6M> REAR STABILIZER SHAFT<F61> PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0008-0112
257 BOLT; MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0008-0112
257 BOLT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0201-0403
257 BOLT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0201-0403
257 BOLT; MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0201-0403
257 BOLT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0404-0509
257 BOLT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0404-0509
257 BOLT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0404-0509
257 BOLT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0510-0512
257 BOLT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0510-0512
257 BOLT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0510-0512
257 BOLT; MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50041-035-0 08 1 0510-0512
257 BOLT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50541-035-0 08 1 0601-
257 BOLT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M10X35 W/LK WASHER 		0-50541-035-0 08 1 0601-
257 BOLT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50541-035-0 08 1 0601-
257 BOLT; MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10X35 W/LK WASHER 		0-50541-035-0 08 1 0601-
258 NUT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7> M10 		9-09110-410-0 08 1 0008-0112
258 NUT; MEMBER
USER EXP GOVERNMENT<D6M> REAR STABILIZER SHAFT<F61> PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> M10 		9-09110-410-0 08 1 0008-0112
258 NUT; MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61> M10 		9-09110-410-0 08 1 0008-0112
258 NUT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> M10 		9-09110-410-0 08 1 0201-0403
258 NUT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M10 		9-09110-410-0 08 1 0201-0403
258 NUT; MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		9-09110-410-0 08 1 0201-0403
258 NUT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M10 		9-09110-410-0 08 1 0404-0509
258 NUT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		9-09110-410-0 08 1 0404-0509
258 NUT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		9-09110-410-0 08 1 0404-0509
258 NUT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> M10 		9-09110-410-0 08 1 0510-0512
258 NUT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M10 		9-09110-410-0 08 1 0510-0512
258 NUT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> M10 		9-09110-410-0 08 1 0510-0512
258 NUT; MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		9-09110-410-0 08 1 0510-0512
258 NUT; MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> M10 		0-91110-510-0 08 1 0601-
258 NUT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> M10 		0-91110-510-0 08 1 0601-
258 NUT; MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> M10 		0-91110-510-0 08 1 0601-
258 NUT; MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M10 		0-91110-510-0 08 1 0601-
259 WASHER; PL,MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7> ID=10.5 OD=18 		9-09160-510-0 08 1 0008-0112
259 WASHER; PL,MEMBER
USER EXP GOVERNMENT<D6M> REAR STABILIZER SHAFT<F61> PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> ID=10.5 OD=18 		9-09160-510-0 08 1 0008-0112
259 WASHER; PL,MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61> ID=10.5 OD=18 		9-09160-510-0 08 1 0008-0112
259 WASHER; PL,MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> ID=10.5 OD=18 		9-09160-510-0 08 1 0201-0403
259 WASHER; PL,MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> ID=10.5 OD=18 		9-09160-510-0 08 1 0201-0403
259 WASHER; PL,MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=10.5 OD=18 		9-09160-510-0 08 1 0201-0403
259 WASHER; PL,MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> ID=10.5 OD=18 		9-09160-510-0 08 1 0404-0509
259 WASHER; PL,MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=10.5 OD=18 		9-09160-510-0 08 1 0404-0509
259 WASHER; PL,MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=10.5 OD=18 		9-09160-510-0 08 1 0404-0509
259 WASHER; PL,MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> ID=10.5 OD=18 		9-09160-510-0 08 1 0510-0605
259 WASHER; PL,MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> ID=10.5 OD=18 		9-09160-510-0 08 1 0510-0605
259 WASHER; PL,MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> ID=10.5 OD=18 		9-09160-510-0 08 1 0510-0605
259 WASHER; PL,MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=10.5 OD=18 		9-09160-510-0 08 1 0510-0605
259 WASHER; PL,MEMBER
REINFORCEMENT BUMPER<VG7> EXC. USER EXP GOVERNMENT<D6M>,REAR STABILIZER SHAFT<F61>,PINTLE HOOK<PP7>,BATTERY 95E41R N100<SJ1>,BAT TERY 115E41R NS120<W73> ID=10.5 		0-91610-510-0 08 1 0606-
259 WASHER; PL,MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,REINFORCEMENT BUMPER<VG7>,BATTERY 115E41R NS120<W73> ID=10.5 		0-91610-510-0 08 1 0606-
259 WASHER; PL,MEMBER
PINTLE HOOK<PP7> REINFORCEMENT BUMPER<VG7> EXC. REAR STABILIZER SHAFT<F61>,BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=10.5 		0-91610-510-0 08 1 0606-
259 WASHER; PL,MEMBER
USER EXP GOVERNMENT<D6M> PINTLE HOOK<PP7> BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> REINFORCEMENT BUMPER<VG7> ID=10.5 		0-91610-510-0 08 1 0606-
274 CHAIN; PINTLE HOOK
PINTLE HOOK<PP7> 		9-09954-001-0 01 1 0008-
275 WASHER; PL,CHAIN
PINTLE HOOK<PP7> ID=6.4 OD=14 		9-09160-606-0 01 1 0008-0605
275 WASHER; PL,CHAIN
PINTLE HOOK<PP7> ID=6.4 		0-91610-606-0 01 1 0606-
276 PIN; SPLIT,CHAIN
PINTLE HOOK<PP7> (B) 		1-57186-011-0 01 1 0008-
276 PIN; SPLIT,CHAIN
PINTLE HOOK<PP7> (A) 		9-08113-015-0 01 1 0008-
277 SCREW; CHAIN
PINTLE HOOK<PP7> M6X12 		9-03490-612-0 01 1 0008-
278 WASHER; LK,CHAIN
PINTLE HOOK<PP7> ID=6.1 		9-09150-506-0 01 1 0008-0603
278 WASHER; LK,CHAIN
PINTLE HOOK<PP7> ID=6.1 		0-91510-506-0 01 1 0604-
310 EYE; PLATE
PINTLE HOOK<PP7> RR HOOK TWO EYE<VR7> 		1-57184-001-0 02 1 0008-
311 PLATE; ADJUSTING
PINTLE HOOK<PP7> 		1-57184-008-0 01 1 0008-
çizim 97078
136 117 133 135 134 113 114 136 133 135 134
BalonParca AdiParca NoAdetTipApplied Date
113 BRACKET; LICENSE PLATE 1-53485-065-0 01 1 0008-0302
113 BRACKET; LICENSE PLATE 1-53485-074-0 01 1 0303-
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28680-825-0 02 1 0008-0512
114 BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
117 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0008-0602
117 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
133 HOOK
EXC. PINTLE HOOK<PP7> 		1-57181-003-5 01 1 0008-
133 HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> 		1-57181-003-5 01 1 0008-
134 BOLT; HOOK
EXC. PINTLE HOOK<PP7> M14X50 		0-10811-450-0 02 1 0008-0512
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M14X50 		0-10811-450-0 02 1 0008-0512
134 BOLT; HOOK
EXC. PINTLE HOOK<PP7> M14X50 		0-10861-450-0 02 1 0601-
134 BOLT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M14X50 		0-10861-450-0 02 1 0601-
135 WASHER; LK,HOOK
EXC. PINTLE HOOK<PP7> ID=14.2 		9-09150-514-0 02 1 0008-0603
135 WASHER; LK,HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=14.2 		9-09150-514-0 02 1 0008-0603
135 WASHER; LK,HOOK
EXC. PINTLE HOOK<PP7> ID=14.2 		0-91510-514-0 02 1 0604-
135 WASHER; LK,HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=14.2 		0-91510-514-0 02 1 0604-
136 NUT; HOOK
EXC. PINTLE HOOK<PP7> M14 		9-99110-414-0 02 1 0008-0512
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M14 		9-99110-414-0 02 1 0008-0512
136 NUT; HOOK
EXC. PINTLE HOOK<PP7> M14 		0-91110-514-0 02 1 0601-
136 NUT; HOOK
REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> M14 		0-91110-514-0 02 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
