◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#4075) — 61 parça

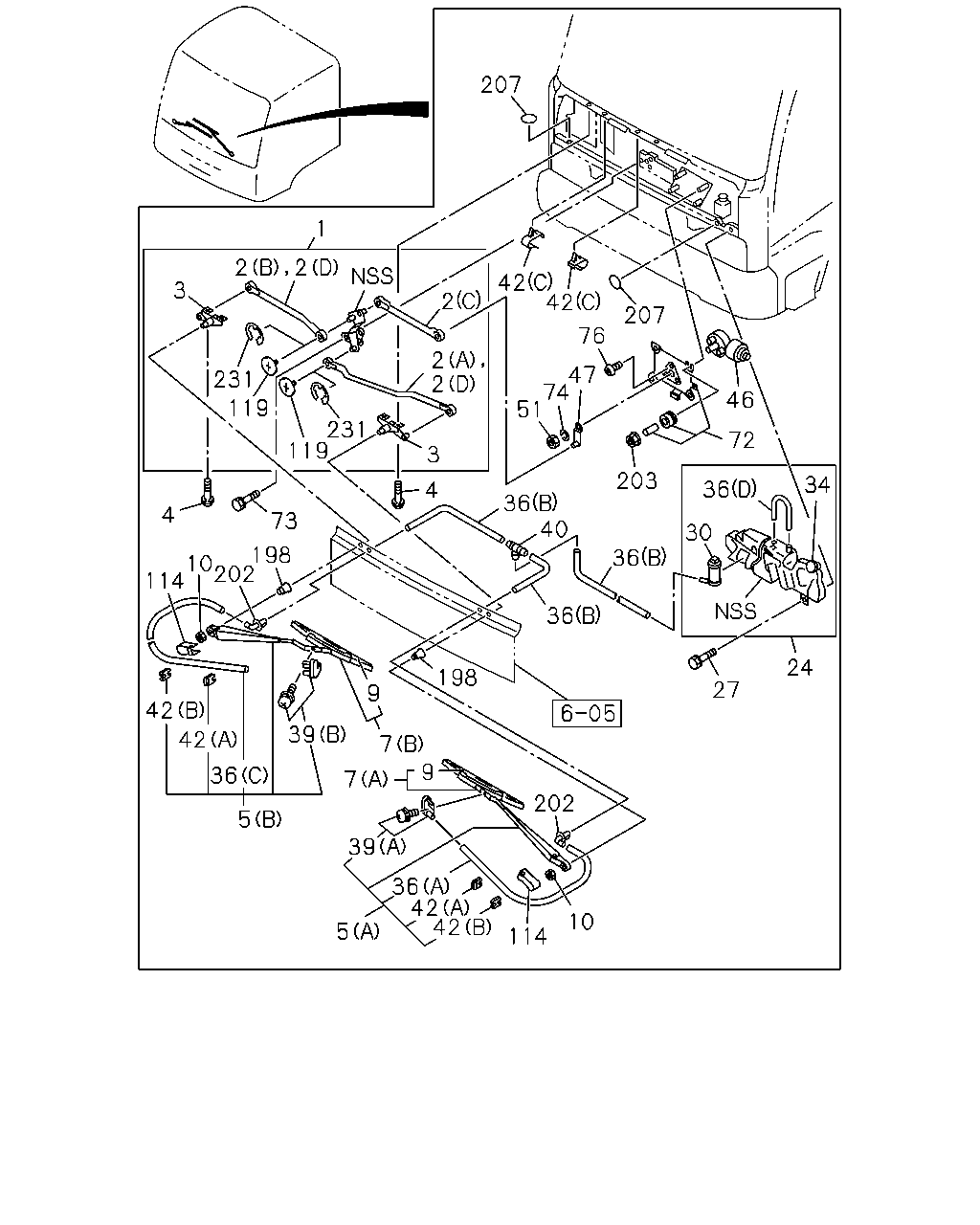

çizim 116182
207 1 42 42 2 3 207 76 2 2 47 74 51 231 46 119 231 119 72 3 203 34 36 4 36 40 4 73 30 198 10 202 114 36 36 24 198 27 9 42 39 42 7 9 36 7 202 5 39 36 42 42 10 5 114
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER
CAUTIONS ARABIAN<WJ7> 		1-83312-182-2 01 1 0306- ● ●
1 LINK ASM; FRT WIPER 1-86810-081-1 01 1 9510-9705 ● ●
1 LINK ASM; FRT WIPER 1-83312-138-1 01 1 9706-0305 ● ●
1 LINK ASM; FRT WIPER
EXC. CAUTIONS ARABIAN<WJ7> 		1-83312-138-3 01 1 0306- ● ●
2 LINK; FRT WIPER
CAUTIONS ARABIAN<WJ7> (A) 		1-83312-183-1 01 1 0306- ● ●
2 LINK; FRT WIPER
(C) 		1-86810-135-2 01 1 9510- ● ●
2 LINK; FRT WIPER
(A) 		1-86810-136-0 01 1 9510-9512 ● ●
2 LINK; FRT WIPER
(B) 		1-86810-137-0 01 1 9510-9512 ● ●
2 LINK; FRT WIPER
(D) 		1-86810-137-0 02 1 9601-9705 ● ●
2 LINK; FRT WIPER
(A) 		1-83312-147-1 01 1 9706-0305 ● ●
2 LINK; FRT WIPER
EXC. CAUTIONS ARABIAN<WJ7> (A) 		1-83312-147-2 01 1 0306- ● ●
2 LINK; FRT WIPER
(B) 		1-83312-148-2 01 1 9706- ● ●
3 PIVOT ASM; FRT WIPER 1-86810-067-2 02 1 9510- ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9510-0904 ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
5 ARM; WIPER
(A) 		1-86810-138-0 01 1 9510-0205 ● ●
5 ARM; WIPER
(A) 		1-83315-088-0 01 1 0206- ● ●
5 ARM; WIPER
(B) 		1-86810-139-0 01 1 9510-0205 ● ●
5 ARM; WIPER
(B) 		1-83315-090-0 01 1 0206- ● ●
7 BLADE; WIPER
(A),(B) BEST VALUE PARTS 		5-87610-035-0 02 1 9510- ● ●
7 BLADE; WIPER
(B) 		1-86810-019-0 01 1 9510-9703 ● ●
7 BLADE; WIPER
(B) 		1-83315-045-2 01 1 9704- ● ●
7 BLADE; WIPER
(A) 		1-86810-020-0 01 1 9510-9703 ● ●
7 BLADE; WIPER
(A) 		1-83315-046-2 01 1 9704- ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-86810-033-0 02 1 9510-9703 ● ●
9 RUBBER; FRT WIPER BLADE
L=550 		1-83355-014-0 02 1 9704- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 02 1 9510- ● ●
24 TANK ASM; WASHER 1-86815-023-3 01 1 9510- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9510- ● ●
30 MOTOR ASM; FRT WASHER TANK 1-86815-016-1 01 1 9510- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 9510- ● ●
36 HOSE; WASHER
(A) L=680 		1-86810-036-0 01 1 9510-0011 ● ●
36 HOSE; WASHER
(A) L=670 		1-86810-147-0 01 1 0012- ● ●
36 HOSE; WASHER
(C) L=660 		1-86810-037-0 01 1 9510- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 9510- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		8-94389-303-0 01 1 9510- ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-86810-040-0 01 1 9510-0205 ● ●
39 NOZZLE; WINDSHIELD WASHER
(B) 		1-83315-085-0 01 1 0206- ● ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-86810-041-0 01 1 9510-0205 ● ●
39 NOZZLE; WINDSHIELD WASHER
(A) 		1-83315-086-0 01 1 0206- ● ●
40 JOINT; WASHER HOSE
3WAY 		1-83338-005-0 01 1 9510- ● ●
42 CLIP; WASHER HOSE
(C) 		1-09987-247-0 05 1 9510- ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 02 1 9510- ● ●
42 CLIP; WASHER HOSE
(B) 		1-86810-045-0 02 1 9510- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-133-2 01 1 9510- ● ●
47 ARM; CRANK,WIPER MOTOR 1-86810-060-0 01 1 9510- ● ●
51 NUT; WIPER MOTOR LINK
M8 		1-83319-012-0 01 1 9510- ● ●
72 BRACKET; WIPER MOTOR 1-86810-131-0 01 1 9510- ● ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0904 ● ●
73 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
74 WASHER; ARM TO MOTOR
ID=8.4 OD=22 		1-83319-011-0 01 1 9510- ● ●
76 SCREW; BRKT TO WIPER MOTOR
M6X14 W/WASHER 		1-86810-062-0 03 1 9510-0012 ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-83319-043-0 03 1 0101- ● ●
114 COVER; FRT WIPER ARM 1-86810-144-0 02 1 9510- ● ●
119 STOPPER; WIPER LINK 1-86810-074-0 02 1 9706-0805 ● ●
198 COVER; PIVOT,WIPER 1-86810-016-3 02 1 9510- ● ●
202 GROMMET; WIPER 1-86815-003-2 02 1 9510- ● ●
203 NUT; WIPER MOTOR
M8 FLANGE 		8-94279-517-0 04 1 9510-9611 ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 9612- ● ●
207 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 9510- ● ●
231 RING; STOPPER 8-98120-195-0 02 1 0806- ● ●
