6-35 — FRONT DOOR TRIM (#40744) — 46 parça

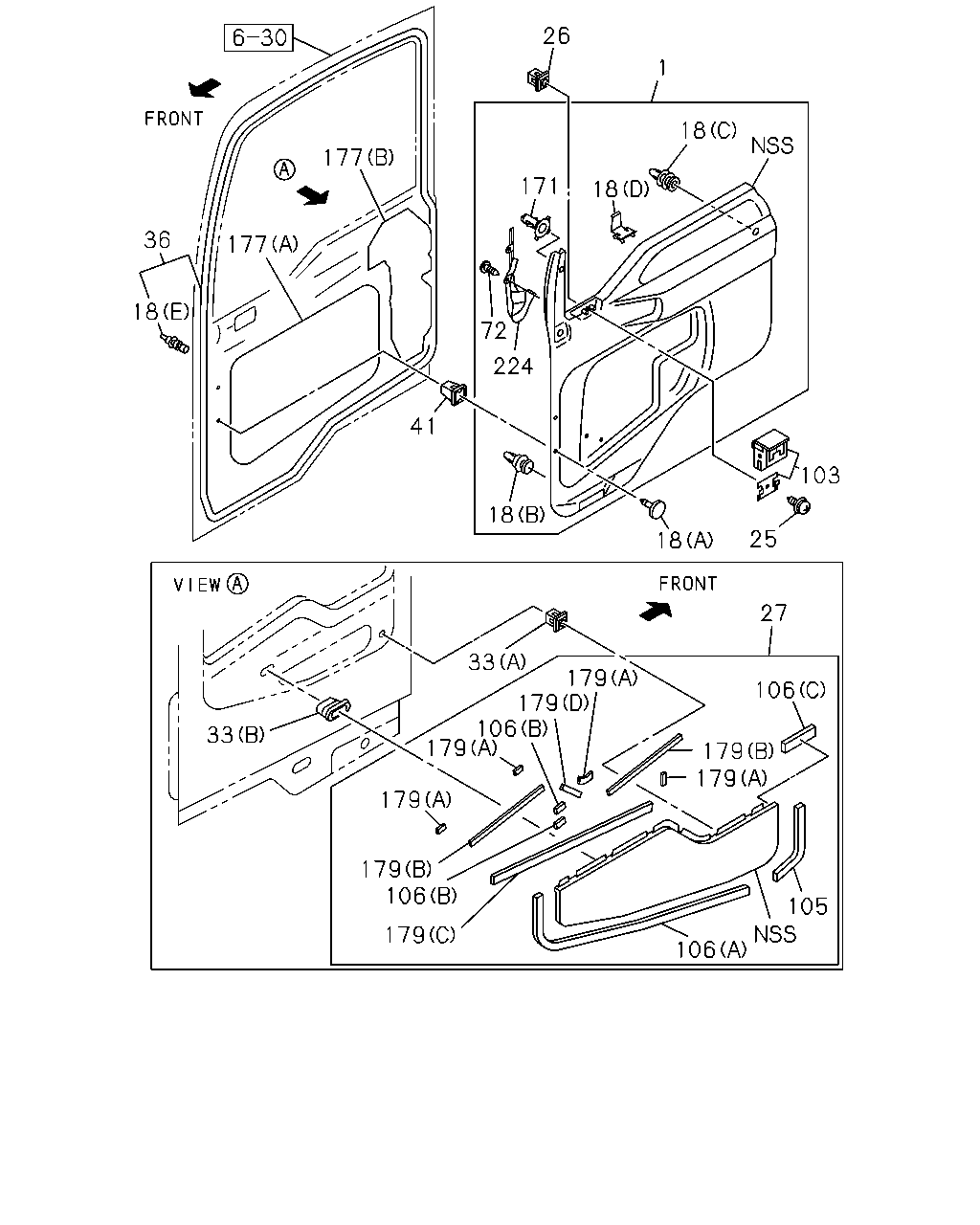

çizim 97780
26 1 18 18 171 72 224 41 18 18 25 103 27 106 179 179 105 106 179 106 179 179 179 106 179 179 33 33 18 36 177 177
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73338-449-4 01 1 0008-0012
1 PAD; TRIM,FRT DOOR 1-73338-531-1 01 1 0101-
1 PAD; TRIM,FRT DOOR 1-73338-467-4 01 1 0008-0012
1 PAD; TRIM,FRT DOOR 1-73338-535-1 01 1 0101-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 0008-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0008-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 10 1 0008-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0101-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0008-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0008-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0008-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0008-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0008-
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-125-7 01 1 0008-1210
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2> 		8-98229-329-0 01 1 1211-
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		1-76218-095-7 01 1 0008-1210
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2> 		8-98229-328-0 01 1 1211-
27 PANEL; ORNAMENT,DOOR
MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-099-7 01 1 0008-
27 PANEL; ORNAMENT,DOOR
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> 		1-76218-096-7 01 1 0008-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0008-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0008-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0008-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0008-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0008-
72 SCREW; DOOR TRIM 1-73338-527-0 08 1 0008-
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 0008-0111
103 TRAY ASM; ASH,DOOR 1-76458-084-1 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 0008-0111
103 TRAY ASM; ASH,DOOR 1-76458-083-1 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0008-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0008-
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2> (B) 		1-76218-104-0 02 1 0008-
106 SEAL; DOOR ORNAMENT
EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S RR VIEW WIDE<WU4> (B) 		1-76218-104-0 02 1 0008-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0008-
177 SEAL; WATER,DOOR
(A) 		1-76778-047-3 02 1 0008-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0008-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0008-
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 01 1 0008-
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 01 1 0008-
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 02 1 0008-
224 DEFLECTOR; DUCT 1-73338-529-0 01 1 0008-
224 DEFLECTOR; DUCT 1-73338-528-0 01 1 0008-
