0-56 — EMISSION SYSTEM (#40743) — 11 parça
çizim 9656
2 364 1 172
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.670 VALVE; VAC SW,EGR
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 03.675 		8-97171-030-0 01 1 9911-0105 ●
1 03.670 VALVE; VAC SW,EGR
LOW EMISSION VEHICLE PACKAGE<7VP> 03.675 		8-97171-030-0 01 1 0106- ●
2 03.671 BRACKET; VSV
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 		8-97218-607-0 01 1 9911-0105 ●
2 03.671 BRACKET; VSV
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97218-607-0 01 1 0106- ●
172 03.470 BOLT; BRKT
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9911-0105 ●
172 03.470 BOLT; BRKT
LOW EMISSION VEHICLE PACKAGE<7VP> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
364 03.680 SCREW; VSV
SINGAPORE EQUIPMENT(S9Y) EURO2 SPECIFICATION<7AF> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9911-0105 ●
364 03.680 SCREW; VSV
LOW EMISSION VEHICLE PACKAGE<7VP> 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 0106- ●

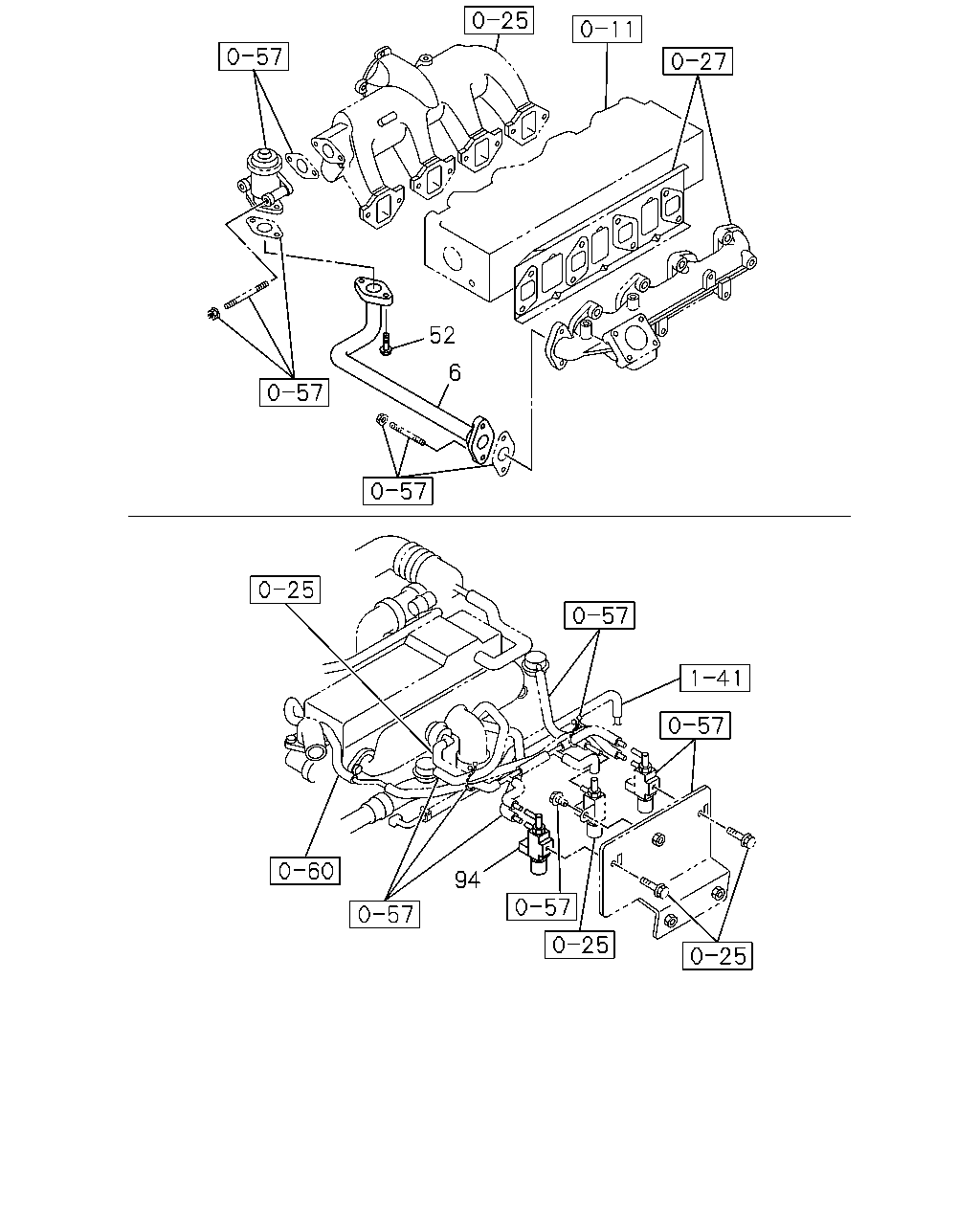

çizim 10368
52 6 94
BalonParca AdiParca NoAdetTipApplied Date A B
6 03.675 PIPE; EGR
TURBOCHARGER<K51> 		8-97208-682-1 01 1 0005- ●
52 03.680 BOLT; EGR PIPE
TURBOCHARGER<K51> 03.275 M8X30 FLANGE 		0-28080-830-0 02 1 0005- ●
94 03.670 VALVE; VAC SWITCH,FAST IDLE
TURBOCHARGER<K51> 		8-94384-335-0 01 1 0005- ●
