Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#40741) — 59 parça

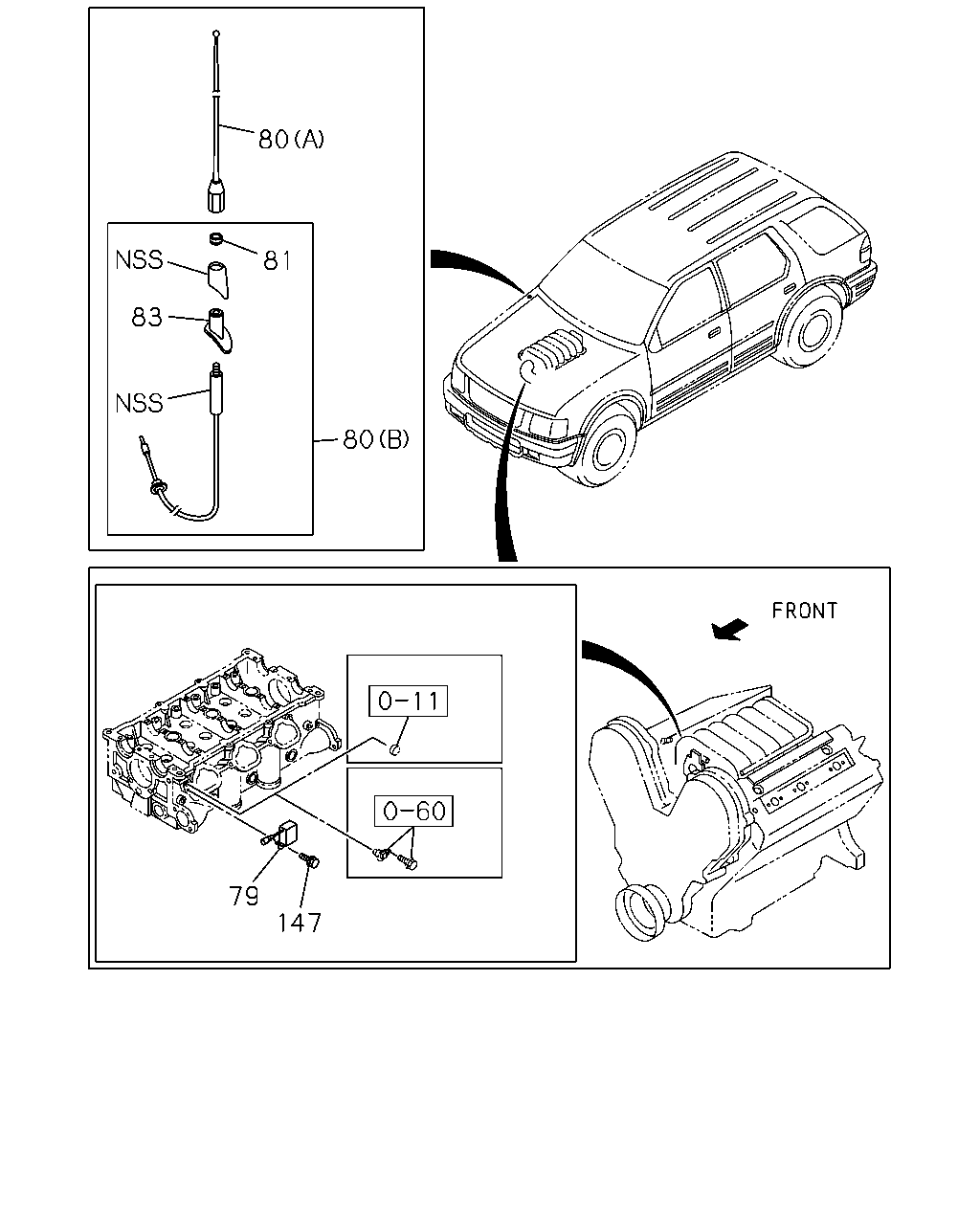

80 81 83 80 79 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	CONDENSER; RADIO	8-97174-553-1	01	1	9707-
80	ANTENNA (A)	8-15739-183-0	01	1	9707-
80	ANTENNA (B)	8-97139-529-4	01	1	9707-
81	NUT; ANTENNA POLE	8-97179-896-0	01	1	9707-
83	GROMMET; BASE,ANTENNA POLE INNER	8-97179-897-0	01	1	9707-
147	BOLT; CONDENSER M6X10 FLANGE	0-28080-610-0	01	1	9707-

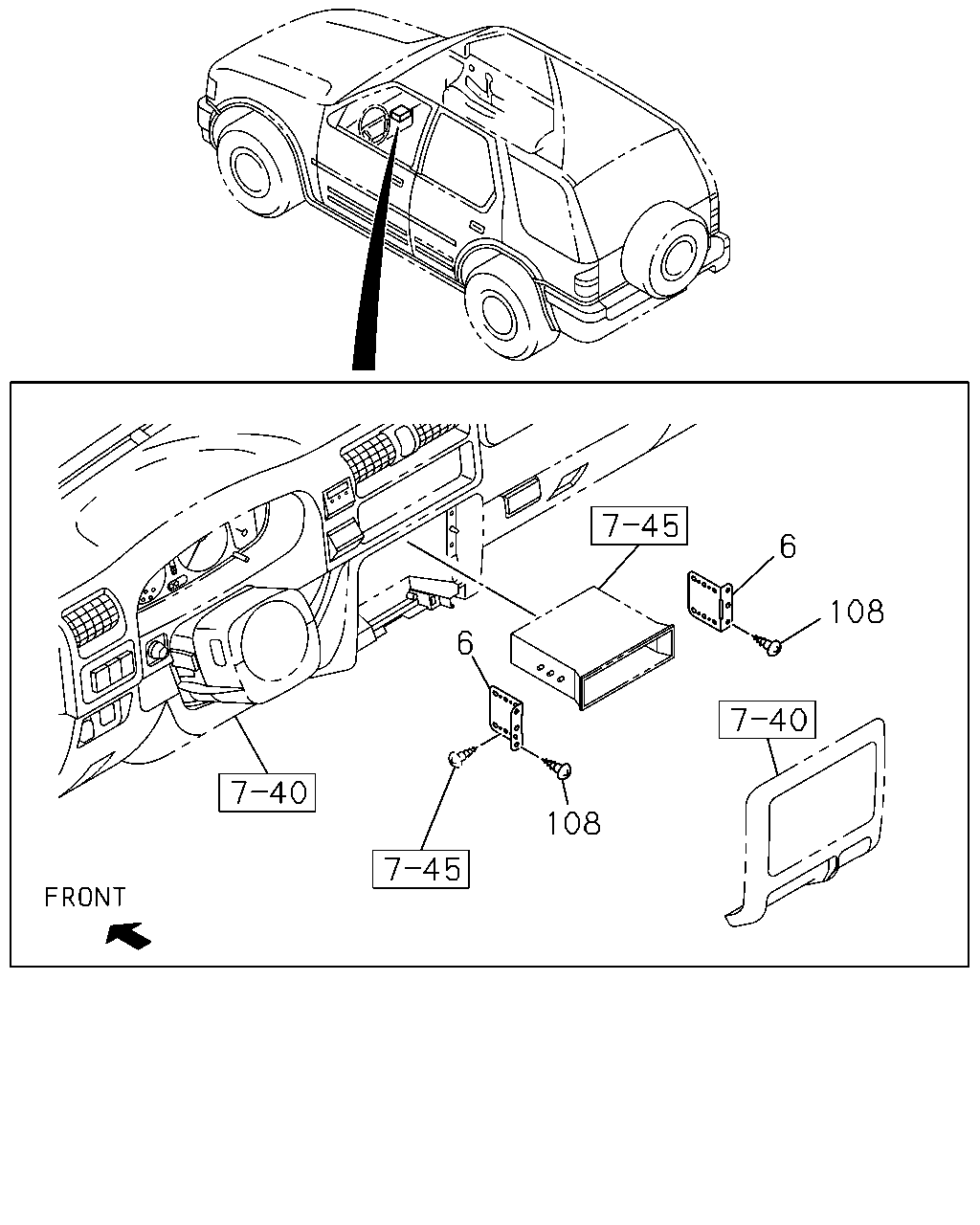

6 108 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BRACKET; RADIO TO PANEL	8-97124-657-2	02	1	9707-0101
6	BRACKET; RADIO TO PANEL EXC. IRONMAN/ANNIVERSARY EDITION<ER5>	8-97124-657-2	02	1	0102-0106
6	BRACKET; RADIO TO PANEL	8-97124-657-2	02	1	0107-
108	SCREW; BRKT M5X16	8-94295-854-0	04	1	9707-0101
108	SCREW; BRKT EXC. IRONMAN/ANNIVERSARY EDITION<ER5> M5X16	8-94295-854-0	04	1	0102-0106
108	SCREW; BRKT M5X16	8-94295-854-0	04	1	0107-

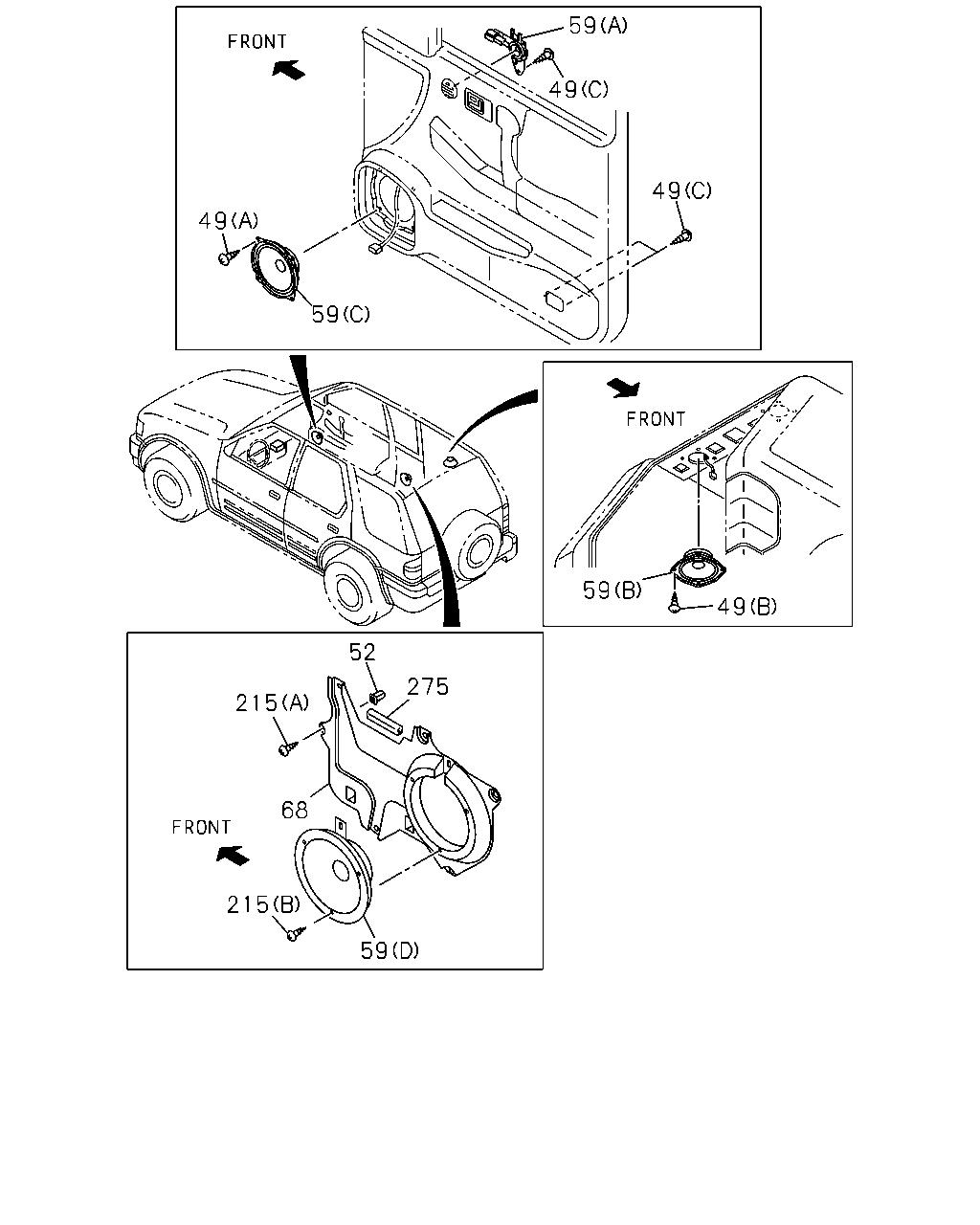

59 49 49 49 59 59 49 52 275 215 68 215 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	SCREW; SPEAKER (A) M5X12 TAPPING	9-09829-321-1	08	1	9707-0012
49	SCREW; SPEAKER IRONMAN/ANNIVERSARY EDITION<ER5> (A) M5X12 TAPPING	9-09829-321-1	08	1	0101-0106
49	SCREW; SPEAKER (A) M5X12 TAPPING	9-09829-321-1	08	1	0101-0106
49	SCREW; SPEAKER (A) M5X12 TAPPING	9-09829-321-1	08	1	0107-
49	SCREW; SPEAKER (B) M5X16 TAPPING	9-09829-323-1	08	1	9707-0007
49	SCREW; SPEAKER GRADE LS(RBB),GRADE LS/LSE(RBD) (B) M5X16 TAPPING	9-09829-323-1	08	1	0008-
49	SCREW; SPEAKER GRADE S(RBA) POWER WINDOW<A30> (C) M12X16	8-97026-494-0	04	1	9707-9807
49	SCREW; SPEAKER GRADE LS/LSE(RBD) (C) M12X16	8-97026-494-0	06	1	9707-9807
49	SCREW; SPEAKER GRADE LS/LSE(RBD) LEATHER SEAT<6TB> (C) M12X16	8-97026-494-0	06	1	9808-9908
49	SCREW; SPEAKER GRADE S(RBA) POWER WINDOW<A30> EXC. UP GRADE PACKAGE<7MA> (C) M12X16	8-97026-494-0	06	1	9808-9908
49	SCREW; SPEAKER POWER WINDOW<A30> (C) M12X16	8-97026-494-0	06	1	9909-0206
49	SCREW; SPEAKER POWER WINDOW<A30> (C) M12X16	8-97026-494-0	02	1	0207-0307
49	SCREW; SPEAKER (C) M12X16	8-97026-494-0	02	1	0308-
52	GROMMET; SCREW,SPEAKER	5-09470-001-0	12	1	0008-
59	SPEAKER; AUDIO (B)	8-97124-660-0	02	1	9707-9908
59	SPEAKER; AUDIO (B)	8-97221-500-0	02	1	9909-0007
59	SPEAKER; AUDIO (D)	8-97224-485-1	02	1	0008-0012
59	SPEAKER; AUDIO IRONMAN/ANNIVERSARY EDITION<ER5> (D)	8-97224-485-1	02	1	0101-0106
59	SPEAKER; AUDIO (D)	8-97224-485-1	02	1	0101-0106
59	SPEAKER; AUDIO (D)	8-97224-485-1	02	1	0107-
59	SPEAKER; AUDIO (C)	8-97221-501-0	02	1	9707-0007
59	SPEAKER; AUDIO (C)	8-97251-333-0	02	1	0008-0012
59	SPEAKER; AUDIO IRONMAN/ANNIVERSARY EDITION<ER5> (C)	8-97251-333-0	02	1	0101-0106
59	SPEAKER; AUDIO (C)	8-97251-333-0	02	1	0101-0106
59	SPEAKER; AUDIO (C)	8-97251-333-0	02	1	0107-0206
59	SPEAKER; AUDIO (C)	8-97321-402-0	02	1	0207-
59	SPEAKER; AUDIO GRADE LS(RBB),GRADE LS/LSE(RBD) (B)	8-97224-486-1	02	1	0008-
59	SPEAKER; AUDIO GRADE LS/LSE(RBD) (A)	8-97124-686-1	01	1	9707-9807
59	SPEAKER; AUDIO GRADE LS/LSE(RBD) LEATHER SEAT<6TB> (A)	8-97124-686-1	01	1	9808-9908
59	SPEAKER; AUDIO GRADE S(RBA) POWER WINDOW<A30> EXC. UP GRADE PACKAGE<7MA> (A)	8-97124-686-1	01	1	9808-9908
59	SPEAKER; AUDIO POWER WINDOW<A30> (A)	8-97221-508-0	01	1	9909-0007
59	SPEAKER; AUDIO POWER WINDOW<A30> (A)	8-97251-327-0	01	1	0008-0307
59	SPEAKER; AUDIO (A)	8-97251-327-0	01	1	0308-
59	SPEAKER; AUDIO GRADE LS/LSE(RBD) (A)	8-97124-661-1	01	1	9707-9807
59	SPEAKER; AUDIO GRADE LS/LSE(RBD) LEATHER SEAT<6TB> (A)	8-97124-661-1	01	1	9808-9908
59	SPEAKER; AUDIO GRADE S(RBA) POWER WINDOW<A30> EXC. UP GRADE PACKAGE<7MA> (A)	8-97124-661-1	01	1	9808-9908
59	SPEAKER; AUDIO POWER WINDOW<A30> (A)	8-97221-507-0	01	1	9909-0007
59	SPEAKER; AUDIO POWER WINDOW<A30> (A)	8-97251-328-0	01	1	0008-0307
59	SPEAKER; AUDIO (A)	8-97251-328-0	01	1	0308-
68	BRACKET; RR SPEAKER	8-97225-028-4	01	1	0008-
68	BRACKET; RR SPEAKER	8-97225-029-4	01	1	0008-
215	SCREW; BRKT,SPEAKER (A) M6X14 SELF TAPPING	9-09629-040-0	12	1	0008-
215	SCREW; BRKT,SPEAKER (B) M5X20	9-09829-324-1	06	1	0008-0012
215	SCREW; BRKT,SPEAKER IRONMAN/ANNIVERSARY EDITION<ER5> (B) M5X20	9-09829-324-1	06	1	0101-0106
215	SCREW; BRKT,SPEAKER (B) M5X20	9-09829-324-1	06	1	0101-0106
215	SCREW; BRKT,SPEAKER (B) M5X20	9-09829-324-1	06	1	0107-
275	FINISHER; EDGE,BRKT L=80	5-71997-133-0	02	1	0008-
