8-85 — REAR WIPER AND WASHER (#40740) — 78 parça

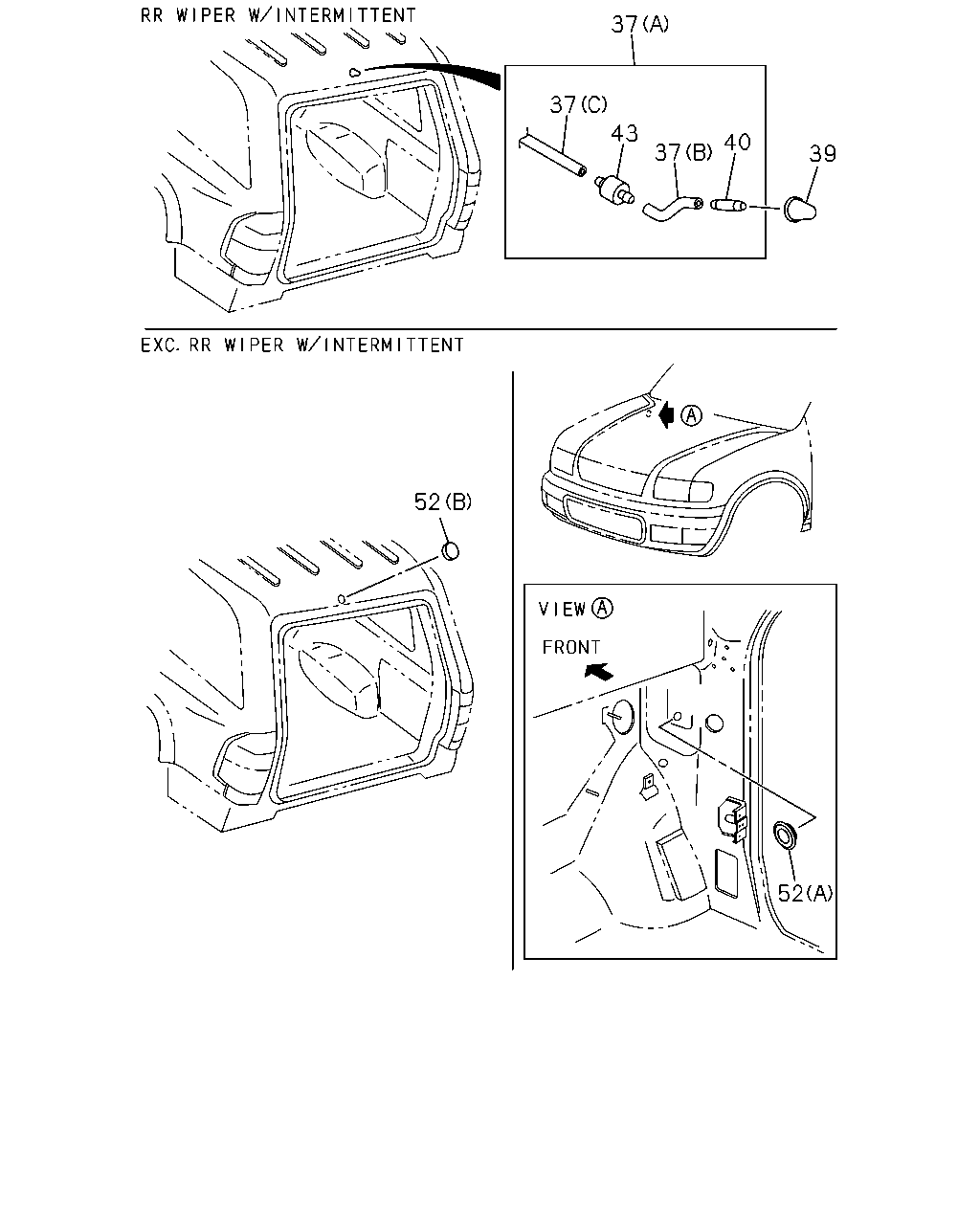

37 37 43 40 37 39 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	HOSE; WASHER TANK,RR (A)	8-97125-168-1	01	1	9707-9908
37	HOSE; WASHER TANK,RR RR WIPER W/INTERMITTENT<6WJ> (A)	8-97125-168-1	01	1	9909-0307
37	HOSE; WASHER TANK,RR (A)	8-97125-168-1	01	1	0308-
37	HOSE; WASHER TANK,RR (B)	8-97178-861-0	01	1	9707-9908
37	HOSE; WASHER TANK,RR RR WIPER W/INTERMITTENT<6WJ> (B)	8-97178-861-0	01	1	9909-0307
37	HOSE; WASHER TANK,RR (B)	8-97178-861-0	01	1	0308-
37	HOSE; WASHER TANK,RR (C)	8-97178-862-0	01	1	9707-9908
37	HOSE; WASHER TANK,RR RR WIPER W/INTERMITTENT<6WJ> (C)	8-97178-862-0	01	1	9909-0307
37	HOSE; WASHER TANK,RR (C)	8-97178-862-0	01	1	0308-
39	NOZZLE; RR WINDSHIELD,WASHER	8-97125-063-0	01	1	9707-9908
39	NOZZLE; RR WINDSHIELD,WASHER RR WIPER W/INTERMITTENT<6WJ>	8-97125-063-0	01	1	9909-0004
39	NOZZLE; RR WINDSHIELD,WASHER RR WIPER W/INTERMITTENT<6WJ>	8-97255-418-0	01	1	0005-0007
39	NOZZLE; RR WINDSHIELD,WASHER RR WIPER W/INTERMITTENT<6WJ>	8-97257-237-0	01	1	0008-0009
39	NOZZLE; RR WINDSHIELD,WASHER RR WIPER W/INTERMITTENT<6WJ>	8-97302-306-0	01	1	0010-0307
39	NOZZLE; RR WINDSHIELD,WASHER	8-97302-306-0	01	1	0308-
40	JOINT; RR WASHER TANK HOSE 2WAY	8-94239-402-0	01	1	9707-9908
40	JOINT; RR WASHER TANK HOSE RR WIPER W/INTERMITTENT<6WJ> 2WAY	8-94239-402-0	01	1	9909-0307
40	JOINT; RR WASHER TANK HOSE 2WAY	8-94239-402-0	01	1	0308-
43	VALVE; CHECK,RR WASHER TANK HOSE	8-97807-641-0	01	1	9707-9908
43	VALVE; CHECK,RR WASHER TANK HOSE RR WIPER W/INTERMITTENT<6WJ>	8-97807-641-0	01	1	9909-0307
43	VALVE; CHECK,RR WASHER TANK HOSE	8-97807-641-0	01	1	0308-
52	PLUG; RR WASHER EXC. RR WIPER W/INTERMITTENT<6WJ> (B)	8-97230-672-0	01	1	9909-0307
52	PLUG; RR WASHER EXC. RR WIPER W/INTERMITTENT<6WJ> (A)	8-97800-739-0	01	1	9909-0307

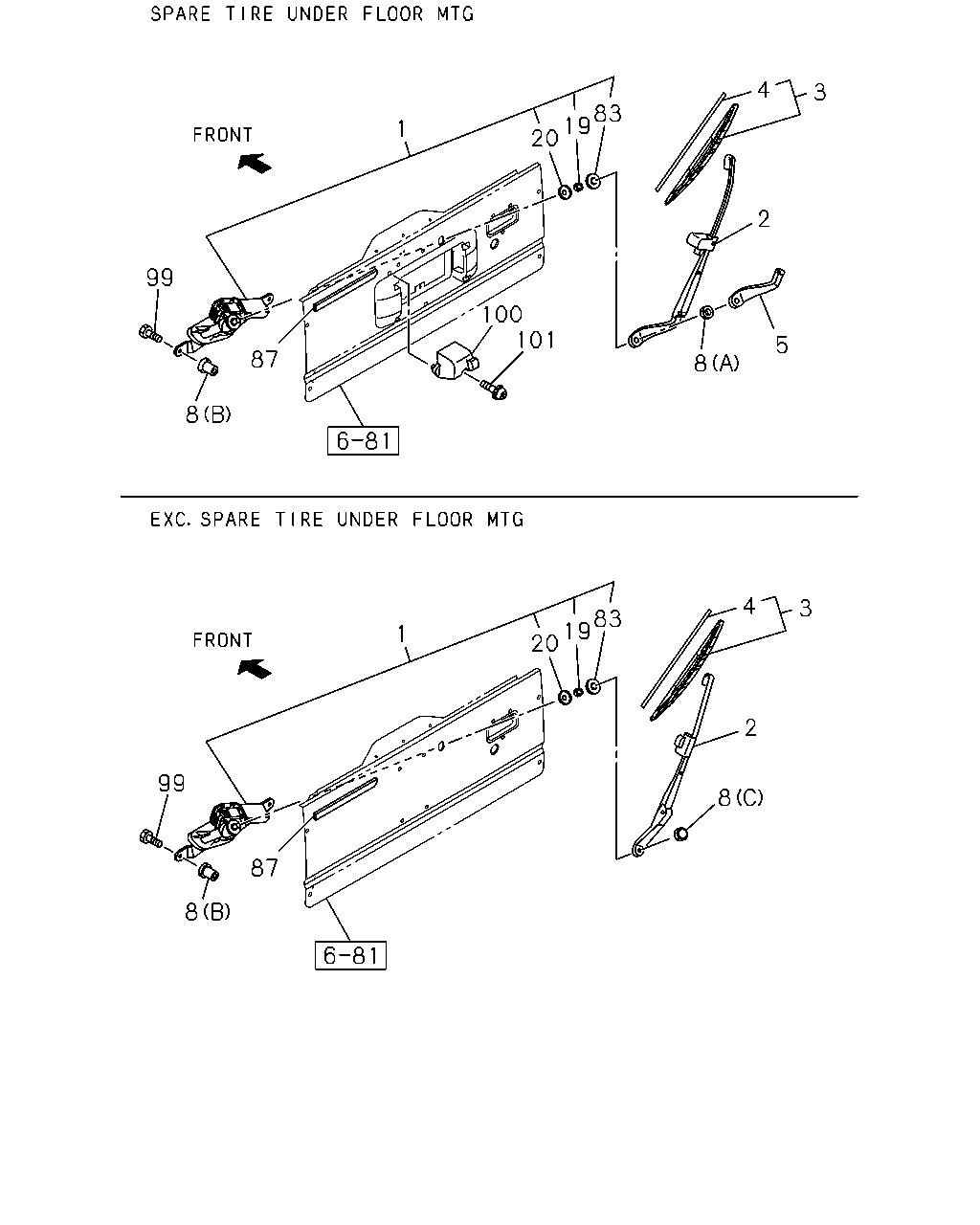

4 3 83 19 20 1 2 99 100 101 5 87 8 8 4 3 83 19 20 1 2 99 8 87 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MOTOR ASM; RR WIPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-358-2	01	1	9707-9908
1	MOTOR ASM; RR WIPER RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-358-3	01	1	9909-0307
1	MOTOR ASM; RR WIPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-358-3	01	1	0308-
1	MOTOR ASM; RR WIPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-357-2	01	1	9707-9908
1	MOTOR ASM; RR WIPER RR WIPER W/INTERMITTENT<6WJ> EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-357-3	01	1	9909-0307
1	MOTOR ASM; RR WIPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-357-3	01	1	0308-
2	ARM ASM; REAR WIPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-851-0	01	1	9707-9908
2	ARM ASM; REAR WIPER RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-851-1	01	1	9909-0307
2	ARM ASM; REAR WIPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-851-1	01	1	0308-
2	ARM ASM; REAR WIPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-850-0	01	1	9707-9908
2	ARM ASM; REAR WIPER RR WIPER W/INTERMITTENT<6WJ> EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-850-0	01	1	9909-0307
2	ARM ASM; REAR WIPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-850-0	01	1	0308-
3	BLADE ASM; REAR WIPER	8-97178-853-0	01	1	9707-9908
3	BLADE ASM; REAR WIPER RR WIPER W/INTERMITTENT<6WJ> EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-853-0	01	1	9909-0307
3	BLADE ASM; REAR WIPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-853-0	01	1	0308-
3	BLADE ASM; REAR WIPER RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF>	8-97240-959-0	01	1	9909-0209
3	BLADE ASM; REAR WIPER RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF>	8-97358-111-0	01	1	0210-0307
3	BLADE ASM; REAR WIPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97358-111-0	01	1	0308-
4	RUBBER; BLADE,RR WIPER	8-97178-848-0	01	1	9707-9908
4	RUBBER; BLADE,RR WIPER RR WIPER W/INTERMITTENT<6WJ> EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-848-0	01	1	9909-0307
4	RUBBER; BLADE,RR WIPER EXC. SPARE TIRE UNDER FLOOR MTG<7PF>	8-97178-848-0	01	1	0308-
4	RUBBER; BLADE,RR WIPER RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF>	8-97245-027-0	01	1	9909-0209
4	RUBBER; BLADE,RR WIPER RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF>	8-97358-107-0	01	1	0210-0307
4	RUBBER; BLADE,RR WIPER SPARE TIRE UNDER FLOOR MTG<7PF>	8-97358-107-0	01	1	0308-
5	COVER; REAR WIPER ARM SPARE TIRE UNDER FLOOR MTG<7PF>	8-97179-496-0	01	1	9707-9908
5	COVER; REAR WIPER ARM RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF>	8-97179-496-0	01	1	9909-0307
5	COVER; REAR WIPER ARM SPARE TIRE UNDER FLOOR MTG<7PF>	8-97179-496-0	01	1	0308-
8	NUT; RR WIPER ARM TO WIPER MOTOR (B)	8-97138-431-0	02	1	9707-9908
8	NUT; RR WIPER ARM TO WIPER MOTOR RR WIPER W/INTERMITTENT<6WJ> (B)	8-97138-431-0	02	1	9909-0307
8	NUT; RR WIPER ARM TO WIPER MOTOR (B)	8-97138-431-0	02	1	0308-
8	NUT; RR WIPER ARM TO WIPER MOTOR SPARE TIRE UNDER FLOOR MTG<7PF> (A) M8	9-09110-408-0	01	1	9707-9908
8	NUT; RR WIPER ARM TO WIPER MOTOR RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF> (A) M8	9-09110-408-0	01	1	9909-0307
8	NUT; RR WIPER ARM TO WIPER MOTOR SPARE TIRE UNDER FLOOR MTG<7PF> (A) M8	9-09110-408-0	01	1	0308-
8	NUT; RR WIPER ARM TO WIPER MOTOR EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (C) M8 FLANGE	1-09984-126-0	01	1	9707-9908
8	NUT; RR WIPER ARM TO WIPER MOTOR RR WIPER W/INTERMITTENT<6WJ> EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (C) M8 FLANGE	1-09984-126-0	01	1	9909-0307
8	NUT; RR WIPER ARM TO WIPER MOTOR EXC. SPARE TIRE UNDER FLOOR MTG<7PF> (C) M8 FLANGE	1-09984-126-0	01	1	0308-
19	NUT; LOCK,PIVOT RR WIPER W/INTERMITTENT<6WJ>	8-97255-297-0	01	1	9909-0307
19	NUT; LOCK,PIVOT	8-97255-297-0	01	1	0308-
20	WASHER; PIVOT,WIPER MOTOR RR WIPER W/INTERMITTENT<6WJ>	8-97255-296-0	01	1	9909-0307
20	WASHER; PIVOT,WIPER MOTOR	8-97255-296-0	01	1	0308-
83	COVER; LOCK NUT RR WIPER W/INTERMITTENT<6WJ>	8-97255-298-0	01	1	9909-0307
83	COVER; LOCK NUT	8-97255-298-0	01	1	0308-
87	SEAL; PROTECT,RR WIPER BLADE	8-97140-753-0	01	1	9707-9809
87	SEAL; PROTECT,RR WIPER BLADE	8-97218-449-1	01	1	9810-9908
87	SEAL; PROTECT,RR WIPER BLADE RR WIPER W/INTERMITTENT<6WJ>	8-97218-449-1	01	1	9909-0307
87	SEAL; PROTECT,RR WIPER BLADE	8-97218-449-1	01	1	0308-
99	BOLT; WIPER MOTOR M6X25 FLANGE	0-28680-625-0	02	1	9707-9908
99	BOLT; WIPER MOTOR RR WIPER W/INTERMITTENT<6WJ> M6X25 FLANGE	0-28680-625-0	02	1	9909-0307
99	BOLT; WIPER MOTOR M6X25 FLANGE	0-28680-625-0	02	1	0308-
100	LIFTER; WIPER ARM SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-893-0	01	1	9707-9908
100	LIFTER; WIPER ARM RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-893-0	01	1	9909-0307
100	LIFTER; WIPER ARM SPARE TIRE UNDER FLOOR MTG<7PF>	8-97138-893-0	01	1	0308-
101	SCREW; LIFTER SPARE TIRE UNDER FLOOR MTG<7PF> M6X30	8-94279-327-0	01	1	9707-9908
101	SCREW; LIFTER RR WIPER W/INTERMITTENT<6WJ> SPARE TIRE UNDER FLOOR MTG<7PF> M6X30	8-94279-327-0	01	1	9909-0307
101	SCREW; LIFTER SPARE TIRE UNDER FLOOR MTG<7PF> M6X30	8-94279-327-0	01	1	0308-
