8-75 — CONDENSER (#40738) — 65 parça

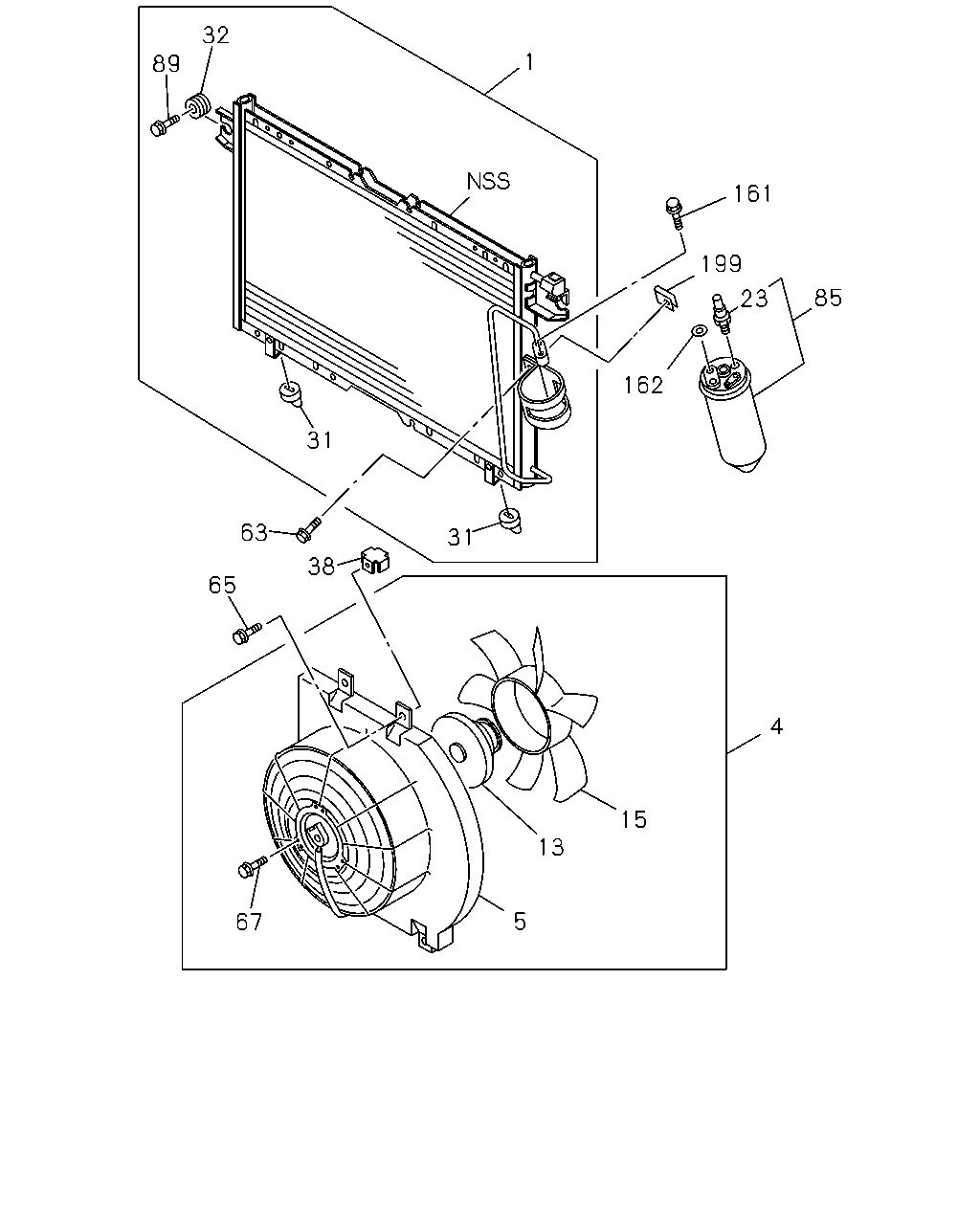

çizim 19279
32 1 89 161 199 85 23 162 31 63 31 38 65 4 15 13 5 67
BalonParca AdiParca NoAdetTipApplied Date
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97178-753-1 01 1 9707-9807
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97205-078-0 01 1 9808-0001
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97288-835-0 01 1 0002-0007
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97289-321-0 01 1 0008-0106
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97305-005-1 01 1 0107-0307
1 CONDENSER; A/C 8-97305-005-1 01 1 0308-
4 MOTOR ASM; FAN
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-255-0 01 1 9707-0206
4 MOTOR ASM; FAN
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-255-0 01 1 0207-0307
4 MOTOR ASM; FAN 8-97143-255-0 01 1 0308-
5 SHROUD; FAN MOTOR
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-256-0 01 1 9707-0206
5 SHROUD; FAN MOTOR
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-256-0 01 1 0207-0307
5 SHROUD; FAN MOTOR 8-97143-256-0 01 1 0308-
13 MOTOR; FAN
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-257-0 01 1 9707-0206
13 MOTOR; FAN
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-257-0 01 1 0207-0307
13 MOTOR; FAN 8-97143-257-0 01 1 0308-
15 FAN; MOTOR
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-258-0 01 1 9707-0007
15 FAN; MOTOR
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-258-0 01 1 0008-0206
15 FAN; MOTOR
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97143-258-0 01 1 0207-0307
15 FAN; MOTOR 8-97143-258-0 01 1 0308-
23 SWITCH; PRESSURE,CONDENSER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97093-509-0 01 1 9707-0007
23 SWITCH; PRESSURE,CONDENSER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97234-542-0 01 1 0008-0206
23 SWITCH; PRESSURE,CONDENSER
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97234-542-0 01 1 0207-0307
23 SWITCH; PRESSURE,CONDENSER 8-97234-542-0 01 1 0308-
23 SWITCH; PRESSURE,CONDENSER
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9707-9807
23 SWITCH; PRESSURE,CONDENSER
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97205-077-0 01 1 9808-0206
23 SWITCH; PRESSURE,CONDENSER
M/T MUA 5 SPEED 5C(RSN) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97205-077-0 01 1 0207-0307
31 RUBBER; MTG,CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-97018-673-0 02 1 9707-0307
31 RUBBER; MTG,CONDENSER 8-97018-673-0 02 1 0308-
32 GROMMET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-94481-685-1 02 1 9707-0307
32 GROMMET; CONDENSER
"R-134A" 		8-94481-685-1 02 1 0308-
38 PLATE; CONDENSER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97049-267-0 04 1 9707-9807
38 PLATE; CONDENSER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97049-267-0 03 1 9808-0106
38 PLATE; CONDENSER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97304-017-0 03 1 0107-0206
38 PLATE; CONDENSER
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97304-017-0 03 1 0207-0307
38 PLATE; CONDENSER 8-97304-017-0 03 1 0308-
63 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) M6X25 		8-97095-660-0 01 1 9707-0307
63 BOLT; RECEIVER TANK
M6X25 		8-97095-660-0 01 1 0308-
65 BOLT; SHROUD
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) M5X35 TAPPING 		8-97071-786-0 04 1 9707-9807
65 BOLT; SHROUD
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) M5X35 TAPPING 		8-97071-786-0 03 1 9808-9908
65 BOLT; SHROUD
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97229-559-0 03 1 9909-0001
65 BOLT; SHROUD
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97288-836-0 03 1 0002-0007
65 BOLT; SHROUD
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97289-326-0 03 1 0008-0106
65 BOLT; SHROUD
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97304-018-0 03 1 0107-0206
65 BOLT; SHROUD
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97304-018-0 03 1 0207-0307
65 BOLT; SHROUD 8-97304-018-0 03 1 0308-
67 SCREW; COVER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97178-754-0 03 1 9707-0206
67 SCREW; COVER
A/T AISIN(RMD) AIR CONDITIONER MANUAL CONT(C60) 		8-97178-754-0 03 1 0207-0307
67 SCREW; COVER 8-97178-754-0 03 1 0308-
85 DRYER; RECEIVER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97167-840-0 01 1 9707-9807
85 DRYER; RECEIVER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97205-074-0 01 1 9808-9908
85 DRYER; RECEIVER
A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97223-874-0 01 1 9909-0007
85 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97322-738-0 01 1 0008-0106
85 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97322-731-0 01 1 0107-0307
85 DRYER; RECEIVER 8-97322-731-0 01 1 0308-
85 DRYER; RECEIVER
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) 		8-97167-841-0 01 1 9707-9807
85 DRYER; RECEIVER
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) 		8-97205-075-0 01 1 9808-9908
85 DRYER; RECEIVER
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) 		8-97223-875-0 01 1 9909-0007
89 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60) 		8-97049-255-0 02 1 9707-0307
89 BOLT; CONDENSER TO BODY 8-97049-255-0 02 1 0308-
161 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60) M6X25 		8-97095-660-0 01 1 9707-0307
161 BOLT; PIPE
M6X25 		8-97095-660-0 01 1 0308-
162 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60) 		8-97161-776-0 01 1 9707-0307
162 GASKET; PIPE TO DRYER 8-97161-776-0 01 1 0308-
199 NUT; CLIP
AIR CONDITIONER MANUAL CONT(C60) 		8-97223-869-0 01 1 9808-0307
199 NUT; CLIP 8-97223-869-0 01 1 0308-
