8-74 — EVAPORATOR (#40737) — 160 parça

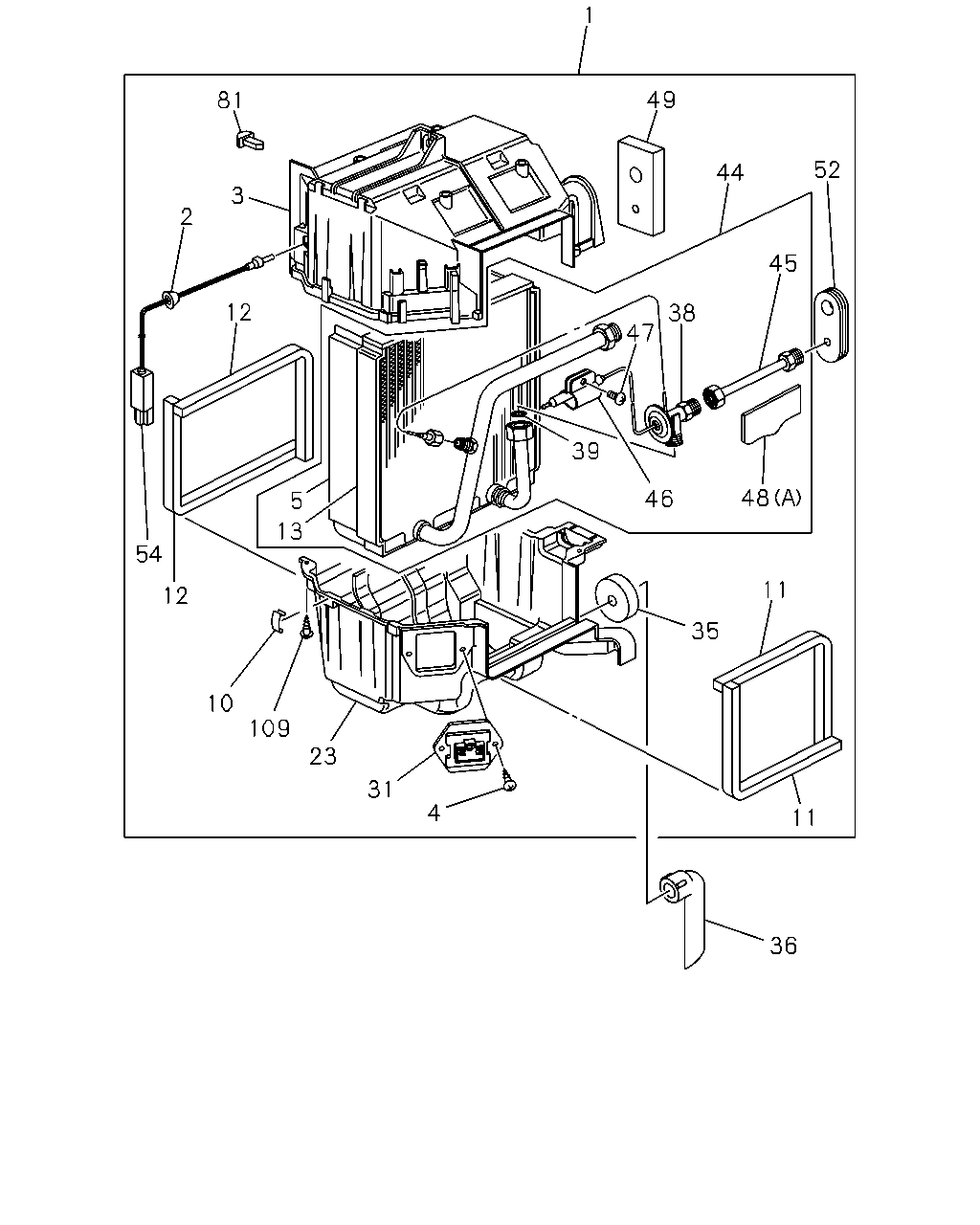

1 49 81 52 44 3 2 45 12 38 47 39 48 46 5 13 54 11 12 35 10 109 23 31 4 11 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97167-318-0	01	1	9707-9807
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97201-423-1	01	1	9808-9908
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97226-357-1	01	1	9909-0004
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97259-147-1	01	1	0005-0307
1	EVAPORATOR ASM	8-97259-147-1	01	1	0308-
2	GROMMET; CASE,EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94380-565-0	01	1	9707-9807
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97074-686-0	01	1	9707-9807
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97202-942-0	01	1	9808-0307
3	CASE; EVAP,UPR	8-97202-942-0	01	1	0308-
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60)	8-94248-807-0	02	1	9707-0307
4	SCREW; RESISTOR TO CASE	8-94248-807-0	02	1	0308-
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97167-819-0	01	1	9707-9807
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97202-945-0	01	1	9808-0208
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97357-692-0	01	1	0209-0307
5	EVAPORATOR	8-97357-692-0	01	1	0308-
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60)	8-94387-062-0	03	1	9707-0307
10	CLIP; EVAP CASE	8-94387-062-0	03	1	0308-
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97094-796-0	02	1	9707-9807
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97202-936-0	01	1	9808-0307
11	LINING; EVAP A/C "R-134A"	8-97202-936-0	01	1	0308-
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97094-797-0	02	1	9707-9807
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97202-937-0	01	1	9808-0307
12	LINING; EVAP "R-134A"	8-97202-937-0	01	1	0308-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) UNDER	8-97184-909-0	01	1	9707-9807
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) SIDE AND TOP	8-97184-910-0	03	1	9707-9807
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97217-292-0	01	1	9808-0307
13	SEAL; EVAP	8-97217-292-0	01	1	0308-
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97074-687-0	01	1	9707-9807
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97202-943-0	01	1	9808-0307
23	CASE; EVAP,LWR	8-97202-943-0	01	1	0308-
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97078-452-1	01	1	9707-0003
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97240-741-0	01	1	0004-0004
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97260-283-0	01	1	0005-0307
31	RESISTOR; POWER EVAP	8-97260-283-0	01	1	0308-
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97074-696-0	01	1	9707-9807
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97202-938-0	01	1	9808-0307
35	GROMMET; EVAP,LOW	8-97202-938-0	01	1	0308-
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94371-554-0	01	1	9707-0307
36	HOSE; DRAIN EVAP	8-94371-554-0	01	1	0308-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97105-823-0	01	1	9707-9807
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97217-290-0	01	1	9808-9908
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97229-628-0	01	1	9909-0307
38	VALVE; EXPANSION	8-97229-628-0	01	1	0308-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9707-9807
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97202-946-0	01	1	9808-0307
39	GASKET; EVAP	8-97202-946-0	01	1	0308-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97167-820-0	01	1	9707-9807
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97202-944-0	01	1	9808-9908
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97229-627-0	01	1	9909-0208
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97289-144-1	01	1	0209-0307
44	EVAPORATOR ASM; A/C	8-97289-144-1	01	1	0308-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97167-821-0	01	1	9707-0307
45	PIPE; EXPANSION VLV	8-97167-821-0	01	1	0308-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-94387-053-0	01	1	9707-9807
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) ID=8X2	8-94344-881-1	01	1	9808-0003
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97288-860-0	01	1	0004-0004
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97289-146-0	01	1	0005-0307
46	CLIP; EXPANSION VLV	8-97289-146-0	01	1	0308-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9707-9807
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9808-0003
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	0004-0307
47	SCREW; EVAP M5X14	8-94244-002-0	01	1	0308-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) T=3.0	5-83569-104-0	02	1	9707-9807
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) T=3.0	5-83569-104-0	01	1	9808-9908
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	5-83561-104-0	01	1	9909-0307
48	INSULATOR; EVAP (B)	5-83561-104-0	01	1	0308-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (C)	8-97103-725-0	01	1	9808-0307
48	INSULATOR; EVAP (C)	8-97103-725-0	01	1	0308-
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97074-695-0	01	1	9707-0307
49	GROMMET; EVAP	8-97074-695-0	01	1	0308-
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-94387-061-0	01	1	9707-0307
52	GROMMET; EVAP,A/C "R-134A"	8-94387-061-0	01	1	0308-
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97160-958-0	01	1	9707-9807
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97217-293-0	01	1	9808-9908
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97225-240-0	01	1	9909-0003
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97258-296-0	01	1	0004-0208
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97326-184-0	01	1	0209-0307
54	THERMOSTAT; A/C	8-97326-184-0	01	1	0308-
81	CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9707-9807
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	04	1	9707-0307
109	BOLT; EVAP M4X16	8-94324-850-0	04	1	0308-

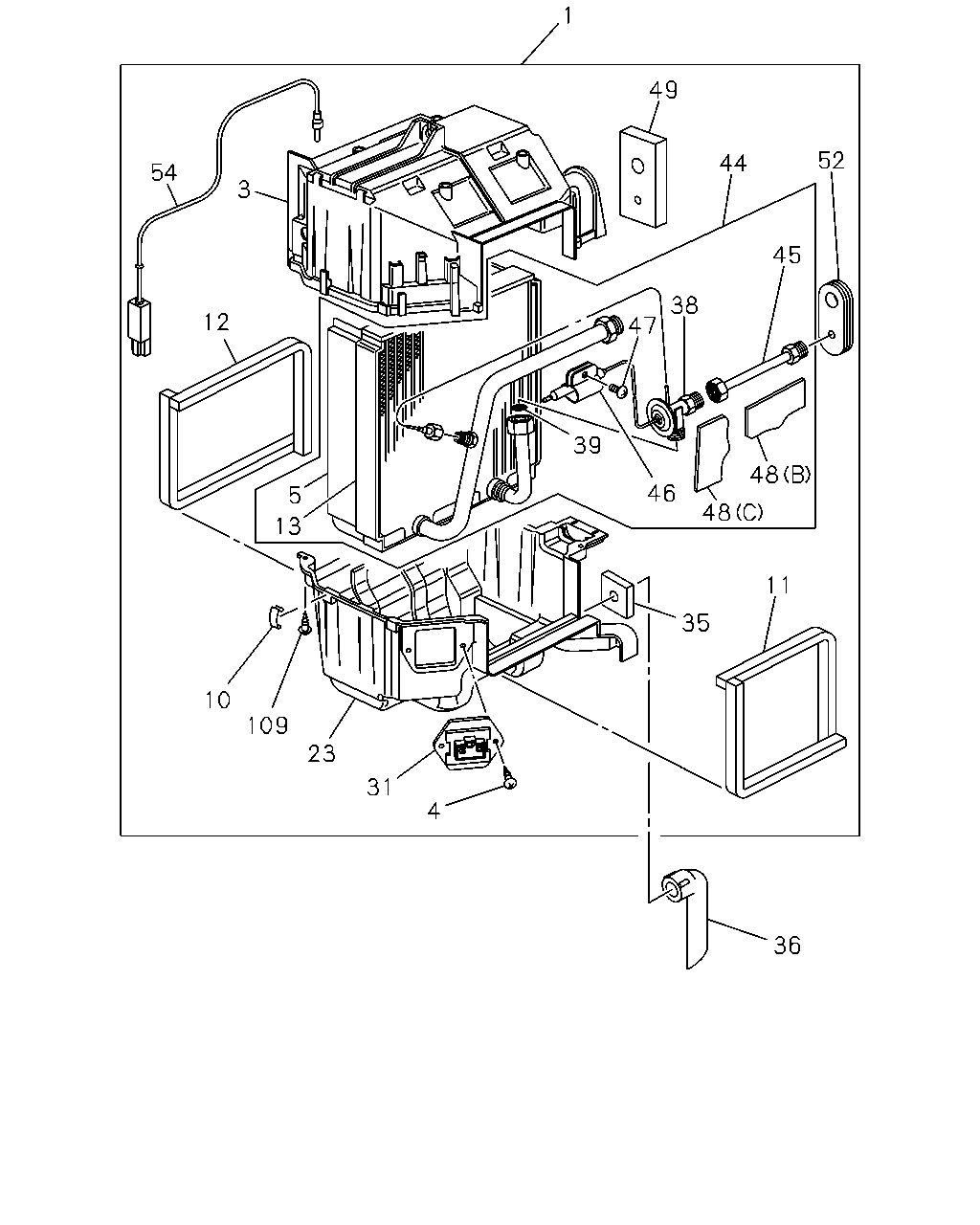

1 49 52 44 54 3 45 38 12 47 39 48 46 5 48 13 11 35 10 109 23 31 4 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97167-318-0	01	1	9707-9807
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97201-423-1	01	1	9808-9908
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97226-357-1	01	1	9909-0004
1	EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60)	8-97259-147-1	01	1	0005-0307
1	EVAPORATOR ASM	8-97259-147-1	01	1	0308-
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97074-686-0	01	1	9707-9807
3	CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60)	8-97202-942-0	01	1	9808-0307
3	CASE; EVAP,UPR	8-97202-942-0	01	1	0308-
4	SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60)	8-94248-807-0	02	1	9707-0307
4	SCREW; RESISTOR TO CASE	8-94248-807-0	02	1	0308-
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97167-819-0	01	1	9707-9807
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97202-945-0	01	1	9808-0208
5	EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97357-692-0	01	1	0209-0307
5	EVAPORATOR	8-97357-692-0	01	1	0308-
10	CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60)	8-94387-062-0	03	1	9707-0307
10	CLIP; EVAP CASE	8-94387-062-0	03	1	0308-
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97094-796-0	02	1	9707-9807
11	LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97202-936-0	01	1	9808-0307
11	LINING; EVAP A/C "R-134A"	8-97202-936-0	01	1	0308-
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97094-797-0	02	1	9707-9807
12	LINING; EVAP AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97202-937-0	01	1	9808-0307
12	LINING; EVAP "R-134A"	8-97202-937-0	01	1	0308-
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) UNDER	8-97184-909-0	01	1	9707-9807
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) SIDE AND TOP	8-97184-910-0	03	1	9707-9807
13	SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97217-292-0	01	1	9808-0307
13	SEAL; EVAP	8-97217-292-0	01	1	0308-
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97074-687-0	01	1	9707-9807
23	CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60)	8-97202-943-0	01	1	9808-0307
23	CASE; EVAP,LWR	8-97202-943-0	01	1	0308-
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97078-452-1	01	1	9707-0003
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97240-741-0	01	1	0004-0004
31	RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97260-283-0	01	1	0005-0307
31	RESISTOR; POWER EVAP	8-97260-283-0	01	1	0308-
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97074-696-0	01	1	9707-9807
35	GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60)	8-97202-938-0	01	1	9808-0307
35	GROMMET; EVAP,LOW	8-97202-938-0	01	1	0308-
36	HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94371-554-0	01	1	9707-0307
36	HOSE; DRAIN EVAP	8-94371-554-0	01	1	0308-
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97105-823-0	01	1	9707-9807
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97217-290-0	01	1	9808-9908
38	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97229-628-0	01	1	9909-0307
38	VALVE; EXPANSION	8-97229-628-0	01	1	0308-
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9707-9807
39	GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97202-946-0	01	1	9808-0307
39	GASKET; EVAP	8-97202-946-0	01	1	0308-
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97167-820-0	01	1	9707-9807
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97202-944-0	01	1	9808-9908
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97229-627-0	01	1	9909-0208
44	EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97289-144-1	01	1	0209-0307
44	EVAPORATOR ASM; A/C	8-97289-144-1	01	1	0308-
45	PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97167-821-0	01	1	9707-0307
45	PIPE; EXPANSION VLV	8-97167-821-0	01	1	0308-
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-94387-053-0	01	1	9707-9807
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) ID=8X2	8-94344-881-1	01	1	9808-0003
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97288-860-0	01	1	0004-0004
46	CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60)	8-97289-146-0	01	1	0005-0307
46	CLIP; EXPANSION VLV	8-97289-146-0	01	1	0308-
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9707-9807
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9808-0003
47	SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	0004-0307
47	SCREW; EVAP M5X14	8-94244-002-0	01	1	0308-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) T=3.0	5-83569-104-0	02	1	9707-9807
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (B) T=3.0	5-83569-104-0	01	1	9808-9908
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (B)	5-83561-104-0	01	1	9909-0307
48	INSULATOR; EVAP (B)	5-83561-104-0	01	1	0308-
48	INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60) (C)	8-97103-725-0	01	1	9808-0307
48	INSULATOR; EVAP (C)	8-97103-725-0	01	1	0308-
49	GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97074-695-0	01	1	9707-0307
49	GROMMET; EVAP	8-97074-695-0	01	1	0308-
52	GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-94387-061-0	01	1	9707-0307
52	GROMMET; EVAP,A/C "R-134A"	8-94387-061-0	01	1	0308-
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97160-958-0	01	1	9707-9807
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97217-293-0	01	1	9808-9908
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97225-240-0	01	1	9909-0003
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97258-296-0	01	1	0004-0208
54	THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60)	8-97326-184-0	01	1	0209-0307
54	THERMOSTAT; A/C	8-97326-184-0	01	1	0308-
109	BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) M4X16	8-94324-850-0	04	1	9707-0307
109	BOLT; EVAP M4X16	8-94324-850-0	04	1	0308-
