8-65 — CONTROL LEVER; HEATER AND AIR CON (#40734) — 43 parça

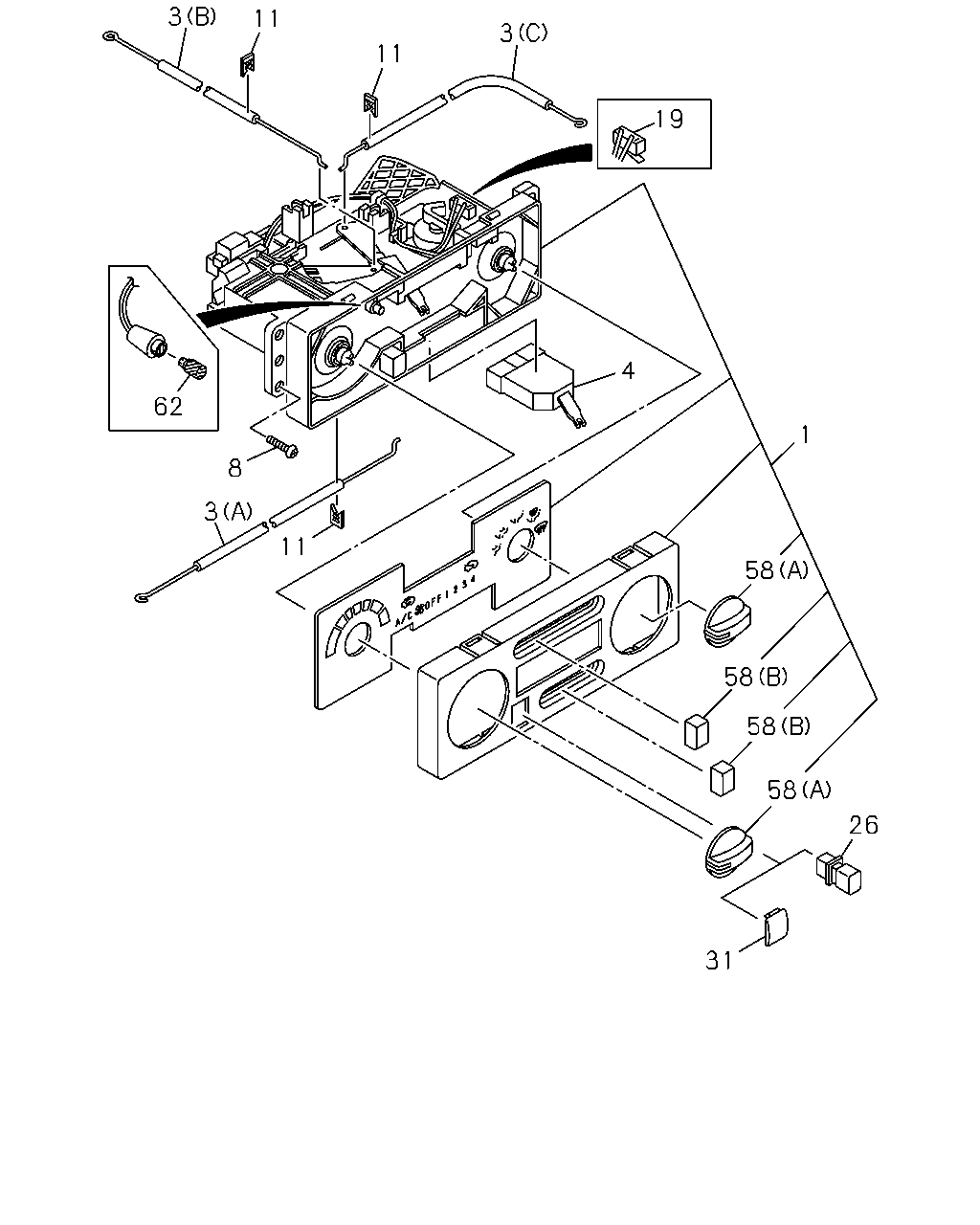

çizim 72130
3 11 3 11 19 4 62 1 8 3 11 58 58 58 58 26 31
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER SUB ASM; HTR CONT 8-97184-443-0 01 1 9707-9901
1 LEVER SUB ASM; HTR CONT 8-97223-871-0 01 1 9902-9908
1 LEVER SUB ASM; HTR CONT 8-97231-909-1 01 1 9909-
3 CABLE; HTR CONT LVR
(A) MODE 		8-97184-439-0 01 1 9707-9901
3 CABLE; HTR CONT LVR
(A) MODE 		8-97223-873-0 01 1 9902-9908
3 CABLE; HTR CONT LVR
(A) MODE 		8-97248-162-0 01 1 9909-0106
3 CABLE; HTR CONT LVR
(A) MODE 		8-97313-646-0 01 1 0107-
3 CABLE; HTR CONT LVR
(B) TEMP 		8-97184-440-0 01 1 9707-
3 CABLE; HTR CONT LVR
(C) INTAKE 		8-97184-441-0 01 1 9707-9908
4 SWITCH; FAN,HTR CONT LVR 8-97189-389-0 01 1 9707-9807
4 SWITCH; FAN,HTR CONT LVR 8-97189-389-0 01 1 9808-
8 SCREW; CONT LVR TO INST PNL
M5X16 		8-94295-854-0 04 1 9707-
11 CLIP; CABLE,HTR CONT LVR 8-97184-442-0 03 1 9707-0008
11 CLIP; CABLE,HTR CONT LVR 8-97184-442-0 04 1 0009-
19 SWITCH; MICRO 8-97211-579-0 01 1 9808-9908
19 SWITCH; MICRO 8-97231-910-0 01 1 9909-
26 SWITCH; A/C,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) 		8-97178-789-0 01 1 9707-0307
26 SWITCH; A/C,HTR CONT LVR 8-97178-789-0 01 1 0308-
31 COVER; HOLE,CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97178-788-0 01 1 9707-0307
58 KNOB; LVR,HTR CONT LVR
(A) 		8-97189-390-0 02 1 9707-
58 KNOB; LVR,HTR CONT LVR
(B) 		8-97189-391-0 02 1 9707-
62 BULB; HTR CONT LVR 8-97184-447-0 02 1 9707-9908

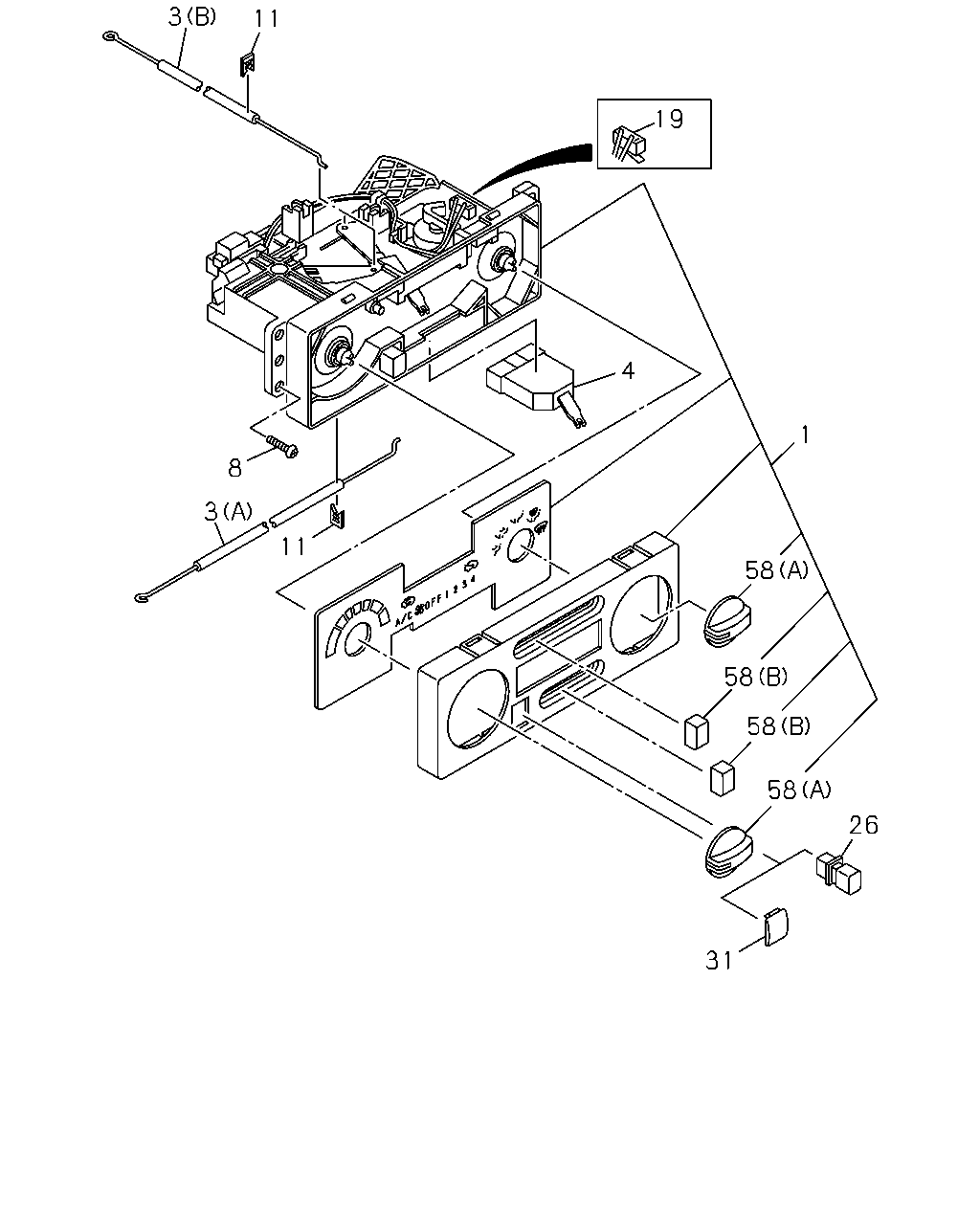

çizim 72398
3 11 19 4 1 8 3 11 58 58 58 58 26 31
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER SUB ASM; HTR CONT 8-97184-443-0 01 1 9707-9901
1 LEVER SUB ASM; HTR CONT 8-97223-871-0 01 1 9902-9908
1 LEVER SUB ASM; HTR CONT 8-97231-909-1 01 1 9909-
3 CABLE; HTR CONT LVR
(A) MODE 		8-97184-439-0 01 1 9707-9901
3 CABLE; HTR CONT LVR
(A) MODE 		8-97223-873-0 01 1 9902-9908
3 CABLE; HTR CONT LVR
(A) MODE 		8-97248-162-0 01 1 9909-0106
3 CABLE; HTR CONT LVR
(A) MODE 		8-97313-646-0 01 1 0107-
3 CABLE; HTR CONT LVR
(B) TEMP 		8-97184-440-0 01 1 9707-
3 CABLE; HTR CONT LVR
(C) INTAKE 		8-97184-441-0 01 1 9707-9908
4 SWITCH; FAN,HTR CONT LVR 8-97189-389-0 01 1 9707-9807
4 SWITCH; FAN,HTR CONT LVR 8-97189-389-0 01 1 9808-
8 SCREW; CONT LVR TO INST PNL
M5X16 		8-94295-854-0 04 1 9707-
11 CLIP; CABLE,HTR CONT LVR 8-97184-442-0 03 1 9707-0008
11 CLIP; CABLE,HTR CONT LVR 8-97184-442-0 04 1 0009-
19 SWITCH; MICRO 8-97211-579-0 01 1 9808-9908
19 SWITCH; MICRO 8-97231-910-0 01 1 9909-
26 SWITCH; A/C,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) 		8-97178-789-0 01 1 9707-0307
26 SWITCH; A/C,HTR CONT LVR 8-97178-789-0 01 1 0308-
31 COVER; HOLE,CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97178-788-0 01 1 9707-0307
58 KNOB; LVR,HTR CONT LVR
(A) 		8-97189-390-0 02 1 9707-
58 KNOB; LVR,HTR CONT LVR
(B) 		8-97189-391-0 02 1 9707-
