◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50754 - UES(4DOOR)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#40733) — 96 parça

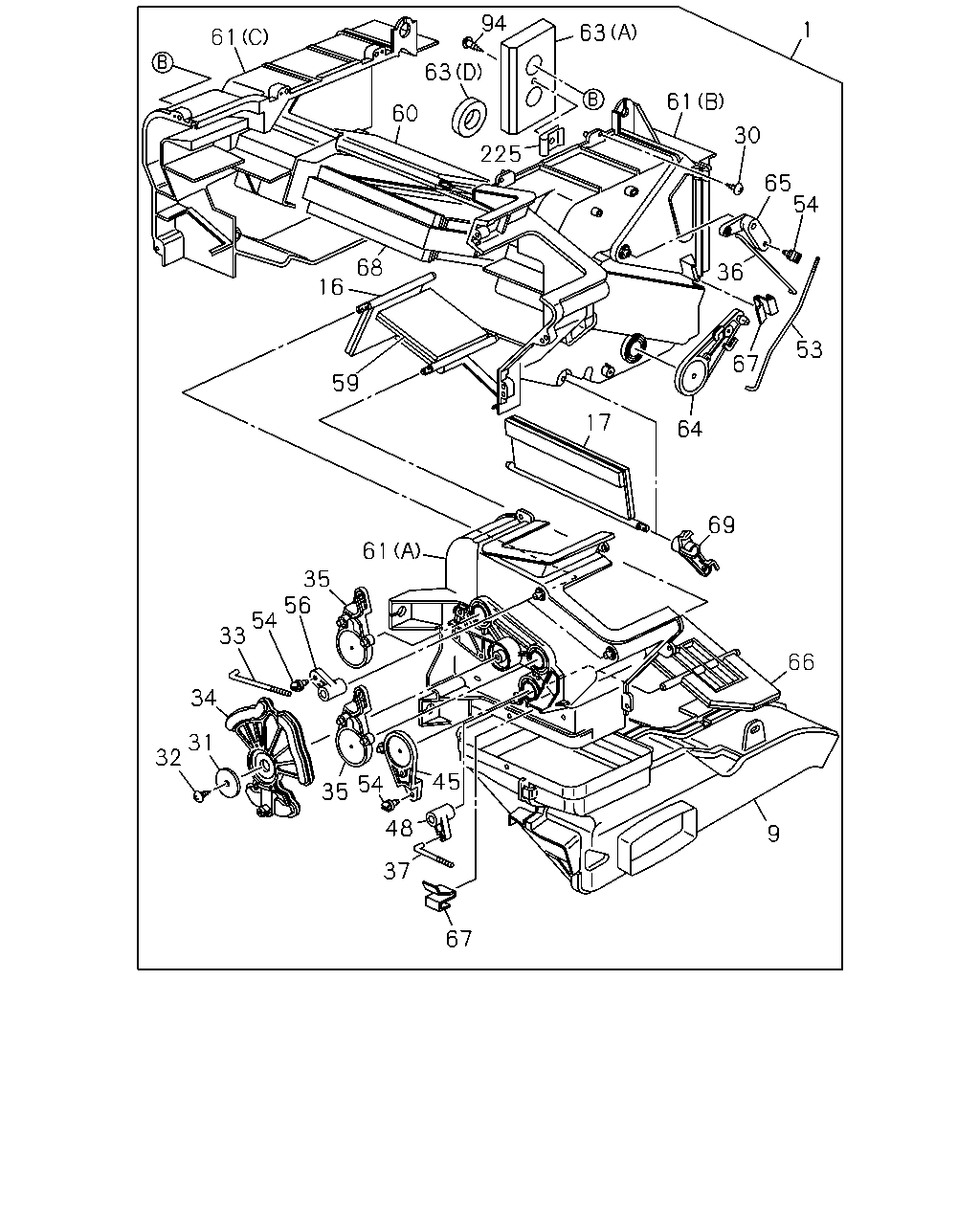

çizim 19196
94 1 63 61 63 61 60 30 225 65 54 68 36 16 53 67 59 17 64 69 61 35 56 54 33 66 34 31 32 45 54 35 48 9 37 67
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-97143-206-0 01 1 9707-9807
1 HEATER UNIT 8-97201-421-0 01 1 9808-9908
1 HEATER UNIT 8-97208-702-4 01 1 9909-0007
1 HEATER UNIT 8-97258-071-0 01 1 0008-
9 DUCT; HTR UNIT 8-97143-253-1 01 1 9707-
16 SHUTTER; HTR UNIT,CENTER UPR 8-94387-019-0 01 1 9707-0001
16 SHUTTER; HTR UNIT,CENTER UPR 8-97261-886-0 01 1 0002-
17 SHUTTER; HTR UNIT,CENTER 8-94387-016-0 01 1 9707-0001
17 SHUTTER; HTR UNIT,CENTER 8-97261-883-0 01 1 0002-
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 14 1 9707-9807
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 13 1 9808-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9707-
32 SCREW; HTR UNIT
M5X16 		8-94387-032-0 01 1 9707-9908
32 SCREW; HTR UNIT
M5X16 TAPPING 		9-09829-323-1 01 1 9909-
33 ROD; SHUTTER LEVER 8-94387-031-0 02 1 9707-
34 LEVER; SHUTTER,HTR UNIT 8-97143-254-0 01 1 9707-9807
34 LEVER; SHUTTER,HTR UNIT 8-97202-940-0 01 1 9808-9908
34 LEVER; SHUTTER,HTR UNIT 8-97143-234-0 01 1 9909-0007
34 LEVER; SHUTTER,HTR UNIT 8-97289-109-0 01 1 0008-
35 LEVER; SHUTTER,HTR UNIT 8-94387-025-0 02 1 9707-
36 ROD; HTR UNIT 8-94387-029-0 01 1 9707-
37 ROD; LEVER 8-94387-030-0 01 1 9707-
45 LEVER; SHUTTER,HTR UNIT 8-94387-026-0 01 1 9707-
48 LEVER; HTR UNIT 8-94387-024-0 01 1 9707-
53 ROD; SHUTTER LEVER 8-94387-028-0 01 1 9707-
54 CLIP; SHUTTER LEVER 8-94248-794-0 04 1 9707-
56 LEVER; SHUTTER,HTR UNIT 8-94387-023-0 02 1 9707-
59 SHUTTER; HTR UNIT,SIDE 8-94387-017-0 01 1 9707-0001
59 SHUTTER; HTR UNIT,SIDE 8-97261-884-0 01 1 0002-
60 DOOR; MIX,HTR UNIT 8-94387-015-0 01 1 9707-0001
60 DOOR; MIX,HTR UNIT 8-97261-882-0 01 1 0002-
61 CASE; HTR UNIT
(A) 		8-94387-012-0 01 1 9707-
61 CASE; HTR UNIT
(B) 		8-97149-512-0 01 1 9707-
61 CASE; HTR UNIT
(C) 		8-97149-513-0 01 1 9707-
63 LINING; HTR UNIT
(A) 		8-97083-212-0 01 1 9707-
63 LINING; HTR UNIT
(B) 		8-97167-329-0 01 1 9707-9807
63 LINING; HTR UNIT
(C) 		8-97202-934-0 01 1 9808-9908
63 LINING; HTR UNIT
(D) 		8-97081-291-1 01 1 9909-
64 LEVER; MIX,DOOR 8-94387-022-0 01 1 9707-
65 LEVER; MIX,DOOR 8-94387-020-0 01 1 9707-
66 SHUTTER; HTR UNIT,CENTER LWR 8-94387-018-0 01 1 9707-0001
66 SHUTTER; HTR UNIT,CENTER LWR 8-97261-885-0 01 1 0002-
67 CLIP; HTR UNIT 8-94337-654-0 02 1 9707-
68 CORE; HTR UNIT 8-97165-535-0 01 1 9707-9908
68 CORE; HTR UNIT 8-97229-561-0 01 1 9909-
69 LEVER; SHUTTER,HTR UNIT 8-94387-021-0 01 1 9707-
94 SCREW; TAPPING
M4X16 		8-94324-850-0 01 1 9909-
225 NUT; CLIP 8-97229-562-0 01 1 9909-

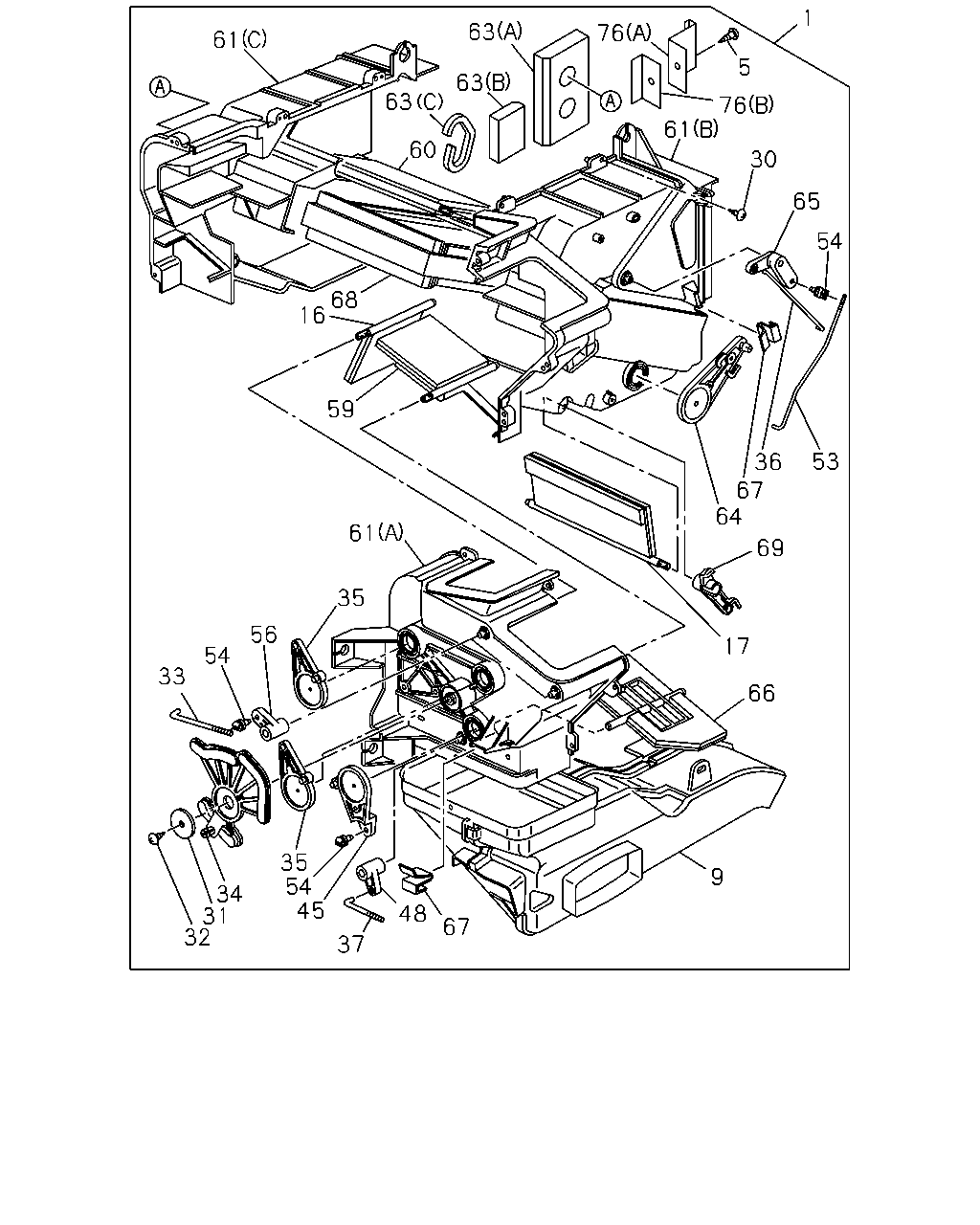

çizim 19197
1 63 76 61 5 63 63 76 61 60 30 65 54 68 16 59 5 36 67 64 61 69 35 56 17 54 33 66 35 54 45 9 34 31 32 48 67 37
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 8-97143-206-0 01 1 9707-9807
1 HEATER UNIT 8-97201-421-0 01 1 9808-9908
1 HEATER UNIT 8-97208-702-4 01 1 9909-0007
1 HEATER UNIT 8-97258-071-0 01 1 0008-
5 SCREW; BRKT
M5X12 TAPPING 		9-07076-512-0 01 1 9707-9908
9 DUCT; HTR UNIT 8-97143-253-1 01 1 9707-
16 SHUTTER; HTR UNIT,CENTER UPR 8-94387-019-0 01 1 9707-0001
16 SHUTTER; HTR UNIT,CENTER UPR 8-97261-886-0 01 1 0002-
17 SHUTTER; HTR UNIT,CENTER 8-94387-016-0 01 1 9707-0001
17 SHUTTER; HTR UNIT,CENTER 8-97261-883-0 01 1 0002-
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 14 1 9707-9807
30 SCREW; HTR UNIT
M4X16 		8-94324-850-0 13 1 9808-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 9707-
32 SCREW; HTR UNIT
M5X16 		8-94387-032-0 01 1 9707-9908
32 SCREW; HTR UNIT
M5X16 TAPPING 		9-09829-323-1 01 1 9909-
33 ROD; SHUTTER LEVER 8-94387-031-0 02 1 9707-
34 LEVER; SHUTTER,HTR UNIT 8-97143-254-0 01 1 9707-9807
34 LEVER; SHUTTER,HTR UNIT 8-97202-940-0 01 1 9808-9908
34 LEVER; SHUTTER,HTR UNIT 8-97143-234-0 01 1 9909-0007
34 LEVER; SHUTTER,HTR UNIT 8-97289-109-0 01 1 0008-
35 LEVER; SHUTTER,HTR UNIT 8-94387-025-0 02 1 9707-
36 ROD; HTR UNIT 8-94387-029-0 01 1 9707-
37 ROD; LEVER 8-94387-030-0 01 1 9707-
45 LEVER; SHUTTER,HTR UNIT 8-94387-026-0 01 1 9707-
48 LEVER; HTR UNIT 8-94387-024-0 01 1 9707-
54 CLIP; SHUTTER LEVER 8-94248-794-0 04 1 9707-
56 LEVER; SHUTTER,HTR UNIT 8-94387-023-0 02 1 9707-
59 SHUTTER; HTR UNIT,SIDE 8-94387-017-0 01 1 9707-0001
59 SHUTTER; HTR UNIT,SIDE 8-97261-884-0 01 1 0002-
60 DOOR; MIX,HTR UNIT 8-94387-015-0 01 1 9707-0001
60 DOOR; MIX,HTR UNIT 8-97261-882-0 01 1 0002-
61 CASE; HTR UNIT
(A) 		8-94387-012-0 01 1 9707-
61 CASE; HTR UNIT
(B) 		8-97149-512-0 01 1 9707-
61 CASE; HTR UNIT
(C) 		8-97149-513-0 01 1 9707-
63 LINING; HTR UNIT
(A) 		8-97083-212-0 01 1 9707-
63 LINING; HTR UNIT
(B) 		8-97167-329-0 01 1 9707-9807
63 LINING; HTR UNIT
(C) 		8-97202-934-0 01 1 9808-9908
63 LINING; HTR UNIT
(D) 		8-97081-291-1 01 1 9909-
64 LEVER; MIX,DOOR 8-94387-022-0 01 1 9707-
65 LEVER; MIX,DOOR 8-94387-020-0 01 1 9707-
66 SHUTTER; HTR UNIT,CENTER LWR 8-94387-018-0 01 1 9707-0001
66 SHUTTER; HTR UNIT,CENTER LWR 8-97261-885-0 01 1 0002-
67 CLIP; HTR UNIT 8-94337-654-0 02 1 9707-
68 CORE; HTR UNIT 8-97165-535-0 01 1 9707-9908
68 CORE; HTR UNIT 8-97229-561-0 01 1 9909-
69 LEVER; SHUTTER,HTR UNIT 8-94387-021-0 01 1 9707-
76 BRACKET; HTR UNIT
(A) 		8-97167-324-0 01 1 9707-9908
76 BRACKET; HTR UNIT
(B) 		8-97167-325-0 01 1 9707-9908
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
