◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#40731) — 397 parça

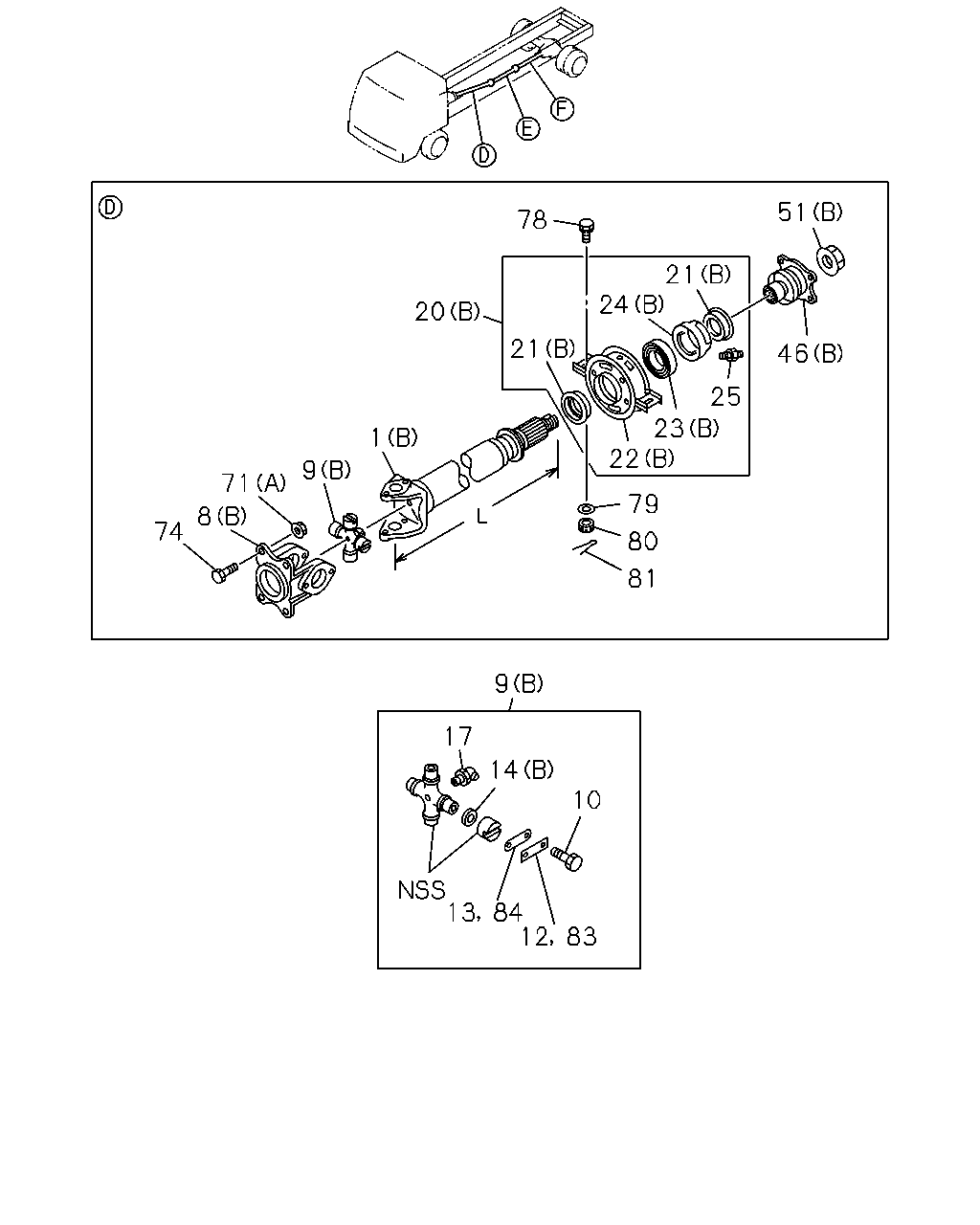

çizim 110463
51 78 21 24 20 21 46 25 23 22 1 9 71 79 8 74 80 81 9 17 14 10 13 84 12 83
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (A) L=1249 		8-98091-270-0 01 1 1112-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1112-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) L=1274 		8-98091-219-0 01 1 1112-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1329 		8-98121-836-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (E) L=1339 		8-98121-834-0 01 1 1112-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1219 		8-98090-948-0 01 1 1112-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (E) L=1229 		8-98090-949-0 01 1 1112-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (F) L=1234 		8-98069-590-0 01 1 1112-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (D) L=1321 		8-98090-990-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-056-3 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 2ND 		1-37211-056-3 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98048-925-0 AR 1 1112-
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1112-
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1112-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1112-
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1112-
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1112-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1112-
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1112-
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1112-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1112-
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1112-
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1112-
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST 		8-98020-889-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 2ND 		8-98020-889-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1112-
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1112-
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1112-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1112-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1112-
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1112-
71 NUT; YOKE
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 1112-
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1112-
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 1112-
74 BOLT; YOKE,TRANS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1112-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 1112-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1112-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 1112-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1112-
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1112-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		0-91116-516-0 02 1 1112-1204
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1205-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1112-
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1112-
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1112-

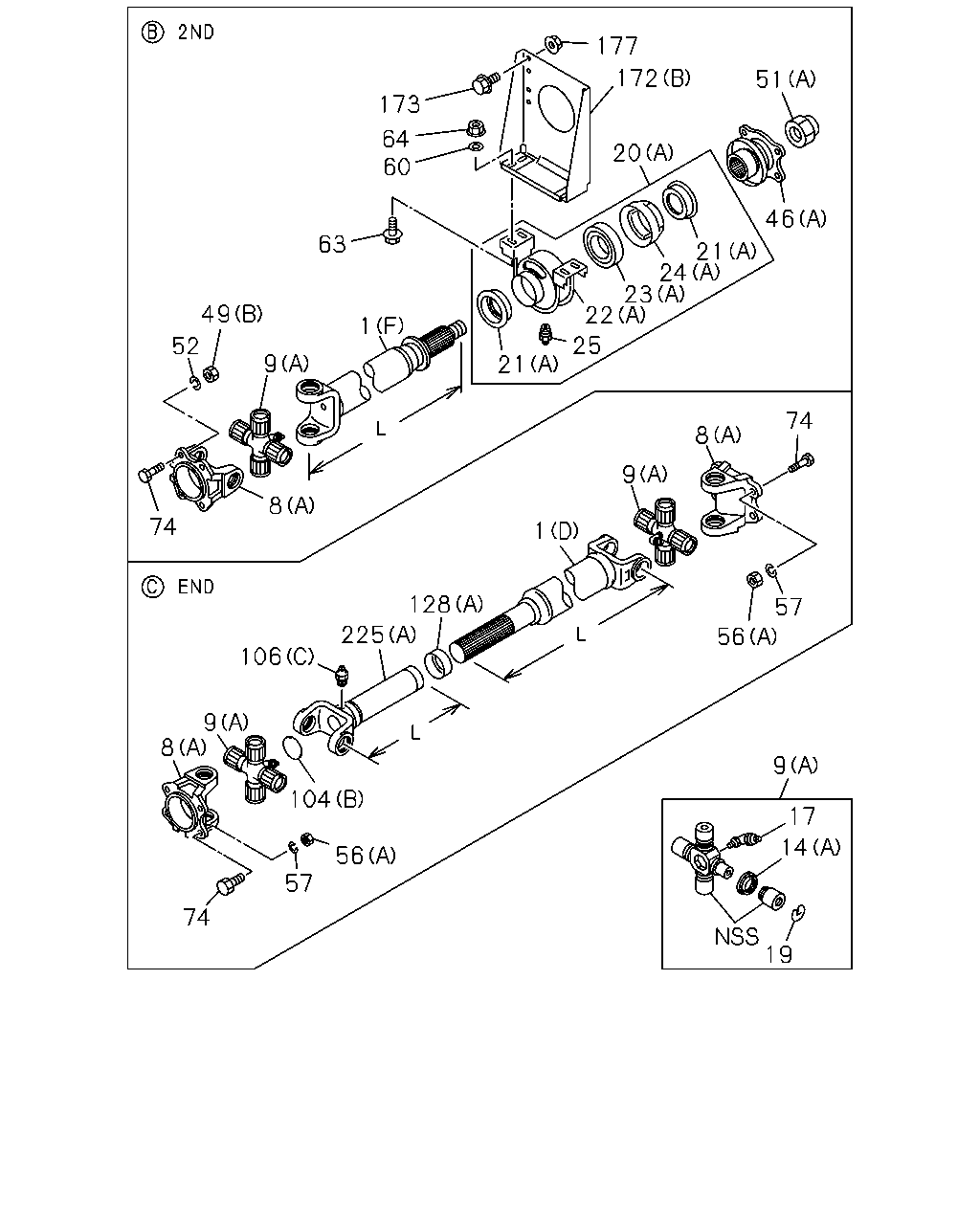

çizim 110468
177 172 51 173 64 60 20 46 63 21 24 23 22 49 1 25 52 9 21 74 8 9 8 74 1 128 57 225 56 106 9 8 9 104 17 14 56 57 74 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (A) L=1249 		8-98091-270-0 01 1 1112-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1112-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) L=1274 		8-98091-219-0 01 1 1112-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1329 		8-98121-836-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (E) L=1339 		8-98121-834-0 01 1 1112-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1219 		8-98090-948-0 01 1 1112-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (E) L=1229 		8-98090-949-0 01 1 1112-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (F) L=1234 		8-98069-590-0 01 1 1112-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (D) L=1321 		8-98090-990-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-056-3 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 2ND 		1-37211-056-3 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98048-925-0 AR 1 1112-
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1112-
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1112-
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST 		8-98020-889-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 2ND 		8-98020-889-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1112-
49 NUT; YOKE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1112-
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1112-
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1112-
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1112-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1112-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1112-
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1112-
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1112-
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1112-
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 08 1 1112-
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1112-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1112-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1112-
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1112-
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1112-
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 1112-
74 BOLT; YOKE,TRANS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1112-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 1112-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1112-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 1112-
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (B) 		1-09600-064-0 01 1 1112-
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (A) 		1-09600-067-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1112-
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1112-
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 1112-
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-127-0 01 1 1112-
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1112-
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1112-
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1112-

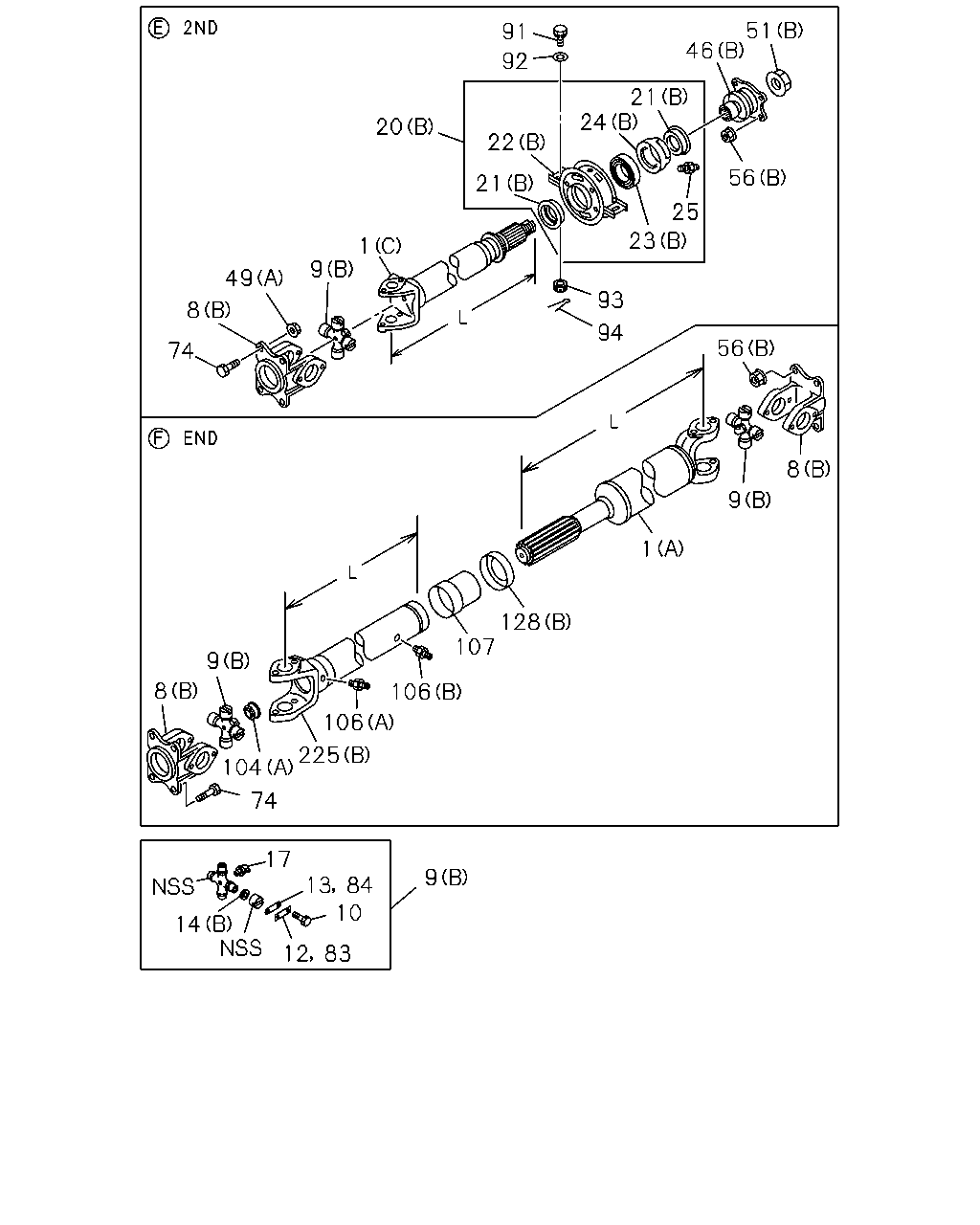

çizim 110470
51 46 91 92 21 24 20 22 56 21 25 23 1 9 49 93 8 94 56 74 8 9 1 128 107 9 8 106 106 225 104 74 17 9 10 14 12 83 13 84
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (A) L=1249 		8-98091-270-0 01 1 1112-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1112-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) L=1274 		8-98091-219-0 01 1 1112-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1329 		8-98121-836-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (E) L=1339 		8-98121-834-0 01 1 1112-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1219 		8-98090-948-0 01 1 1112-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (E) L=1229 		8-98090-949-0 01 1 1112-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (F) L=1234 		8-98069-590-0 01 1 1112-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (D) L=1321 		8-98090-990-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-056-3 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 2ND 		1-37211-056-3 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98048-925-0 AR 1 1112-
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1112-
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1112-
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1112-
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1112-
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1112-
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1112-
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1112-
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1112-
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1112-
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1112-
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1112-
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST 		8-98020-889-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 2ND 		8-98020-889-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1112-
49 NUT; YOKE
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1112-
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1112-
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1112-
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1112-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1112-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1112-
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1112-
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1112-
74 BOLT; YOKE,TRANS
FULLER FSO5206B OD M/T(Y4V) M16X48 		1-09000-383-0 04 1 1112-
74 BOLT; YOKE,TRANS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 04 1 1112-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 04 1 1112-
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) M14X37 		1-09000-121-0 08 1 1112-
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) M16X48 		1-09000-383-0 08 1 1112-
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1112-
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1112-
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1112-
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1112-
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		0-91116-516-0 02 1 1112-1204
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1205-
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1112-
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (B) 		1-09600-064-0 01 1 1112-
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (A) 		1-09600-067-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (C) M6 STRAIGHT 		0-90301-406-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1112-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1112-
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1112-
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1112-

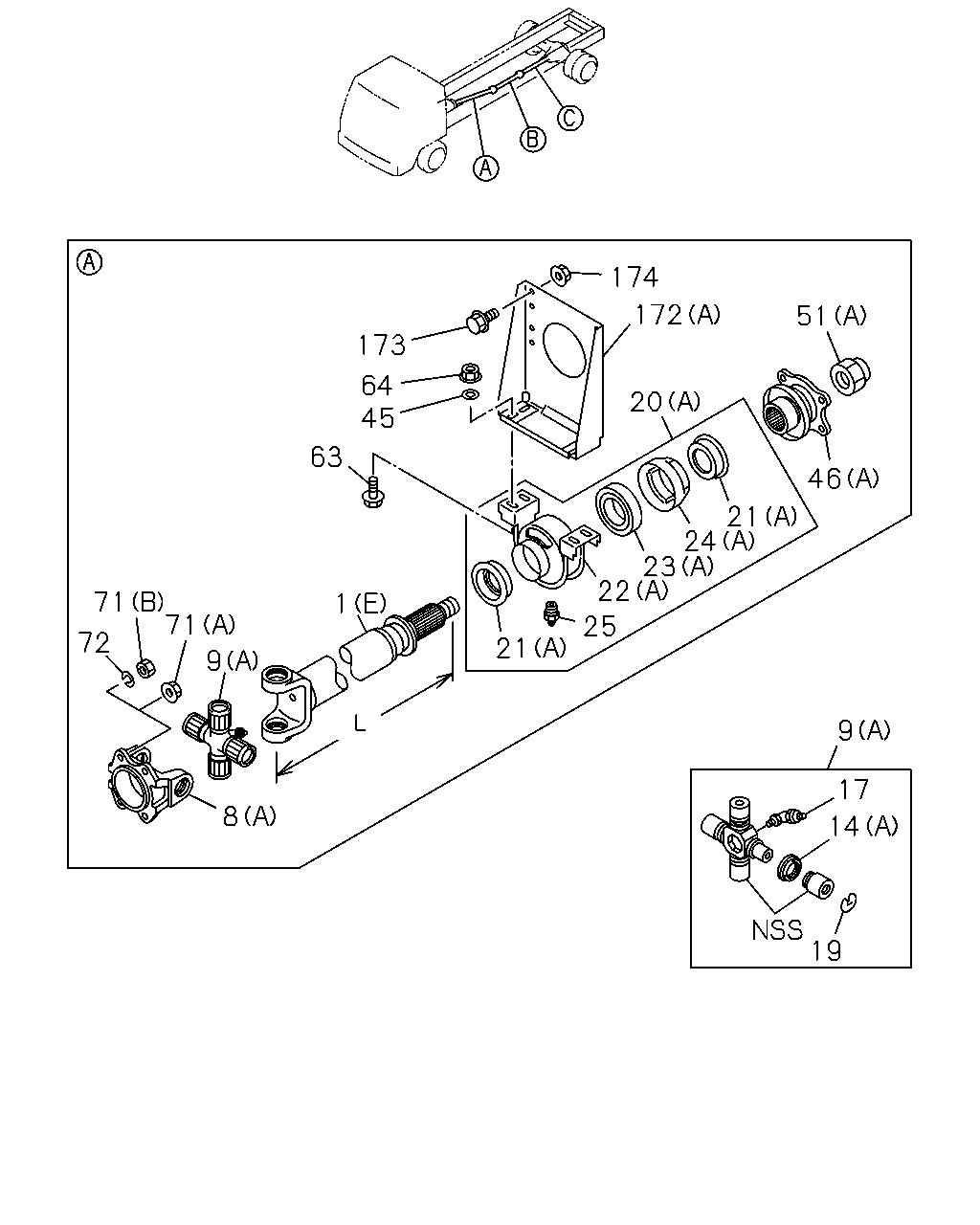

çizim 110477
174 172 51 173 64 45 20 63 46 21 24 23 22 71 71 1 25 72 21 9 9 17 8 14 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
FINAL GEAR 39/7 16.5"(W3B),FINAL GEAR 43/7 16.5"(W3L) P60 PROP SHAFT(C2M) (A) L=1249 		8-98091-270-0 01 1 1112-
1 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) P60 PROP SHAFT(C2M) (A) L=1214 		1-37124-501-0 01 1 1112-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) L=1274 		8-98091-219-0 01 1 1112-
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) L=1229 		8-98091-222-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T(Y2C) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1329 		8-98121-836-0 01 1 1112-
1 SHAFT; PROP
MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (E) L=1339 		8-98121-834-0 01 1 1112-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) L=1219 		8-98090-948-0 01 1 1112-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (E) L=1229 		8-98090-949-0 01 1 1112-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (F) L=1234 		8-98069-590-0 01 1 1112-
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (D) L=1321 		8-98090-990-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37211-072-1 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) END 		1-37211-056-3 02 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 1ST 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 1ST 		1-37211-056-3 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 2ND 		1-37211-056-3 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 		1-37300-094-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 		1-37300-095-1 AR 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 01 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-0 02 1 1112-
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98048-925-0 AR 1 1112-
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1112-
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1112-
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1112-
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 PT1/8 ELBOW 		0-90301-610-0 02 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1112-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1112-
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1112-
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1112-
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1112-
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1112-
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1112-
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT 		1-09380-006-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 1ST 		8-98020-889-0 01 1 1112-
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) 2ND 		8-98020-889-0 01 1 1112-
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1112-
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1112-
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1112-
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1112-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1112-
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1112-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1112-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1112-
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1112-
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1112-
71 NUT; YOKE
P60 PROP SHAFT(C2M) (A) M16 FLANGE 		1-09449-065-0 04 1 1112-
71 NUT; YOKE
P46 PROP SHAFT(C4Z) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE 		1-09449-065-0 04 1 1112-
71 NUT; YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) (B) M14 		0-91110-514-0 04 1 1112-
72 WASHER; LK,YOKE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1112-
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 1112-
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-127-0 01 1 1112-
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1112-
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1112-
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
