3-78 — FIXING PARTS; AIR PIPING (#40730) — 128 parça

81 172 81 172 172 81 174 71 173 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1112-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	08	1	1112-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=170	1-47479-380-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) L=65 B=25	8-98135-584-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98186-380-0	01	1	1112-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98177-873-0	04	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98177-873-0	02	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98182-331-0	01	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98182-760-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	1-47477-514-3	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=225	1-47477-646-3	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=60 H=30	1-47477-716-1	05	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	8-98031-420-2	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98166-032-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98169-222-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J)	8-98177-873-0	02	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98182-331-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98182-760-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (H) L=65 B=25	8-98135-584-0	01	1	1112-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1112-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1112-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1112-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1112-
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	12	1	1112-
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1112-

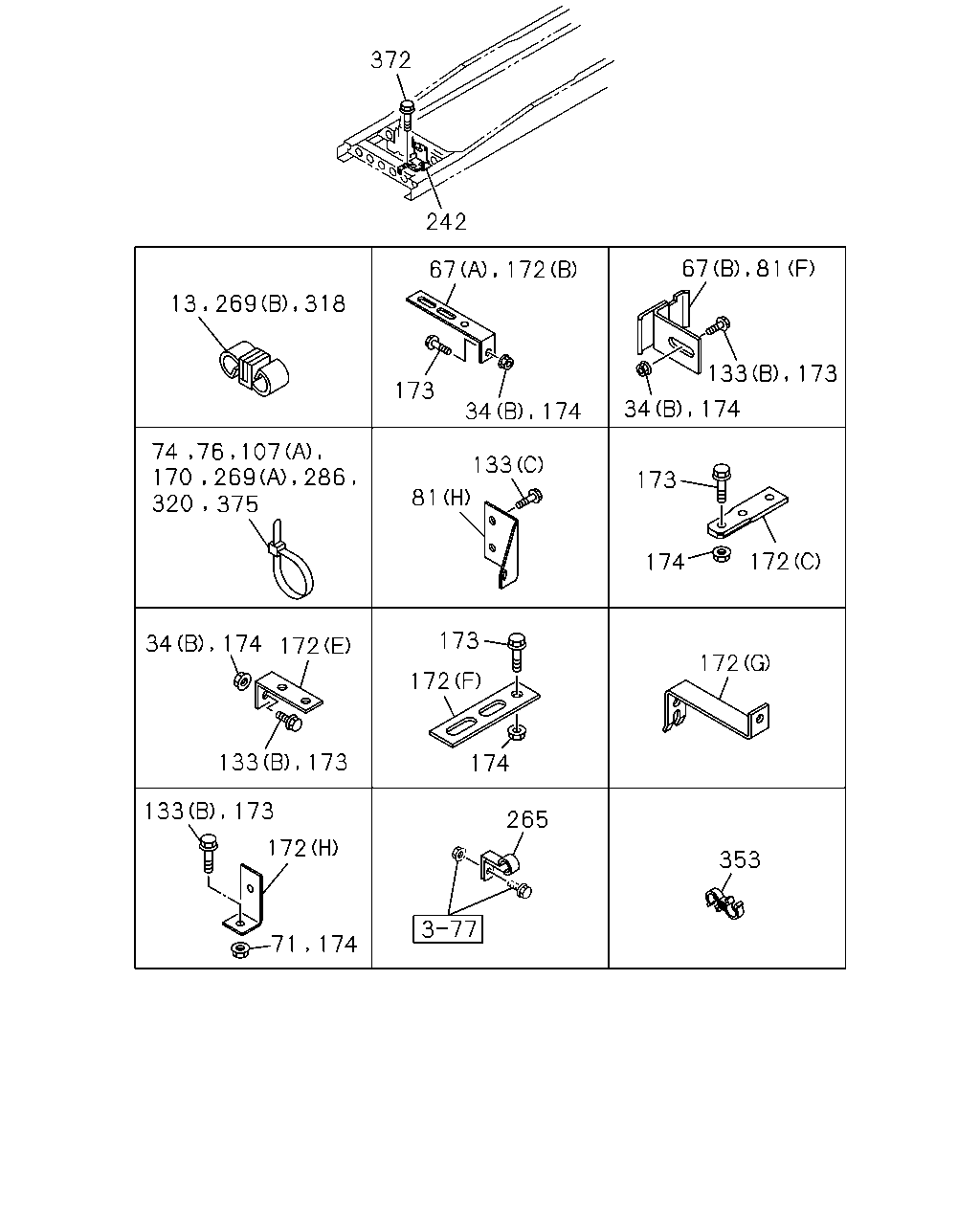

372 242 67 172 133 173 173 34 174 34 174 133 173 81 172 174 173 34 174 172 172 172 133 173 174 133 173 265 172 353 71 174 67 81 13 269 318 74 76 107 170 269 286 320 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	1112-
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1112-
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	1112-
67	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 H=30	1-47477-629-2	01	1	1112-
67	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47479-693-0	01	1	1112-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1112-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	08	1	1112-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1112-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	03	1	1112-
74	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	13	1	1112-
76	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	01	1	1112-
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=170	1-47479-380-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) L=65 B=25	8-98135-584-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98186-380-0	01	1	1112-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98177-873-0	04	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98177-873-0	02	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98182-331-0	01	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98182-760-0	01	1	1112-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	42	1	1112-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1112-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1112-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28650-820-0	02	1	1112-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1112-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	1112-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	1112-
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	02	1	1112-
133	BOLT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	03	1	1112-
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	27	1	1112-
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	1-47477-514-3	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=225	1-47477-646-3	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=60 H=30	1-47477-716-1	05	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	8-98031-420-2	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98166-032-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98169-222-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J)	8-98177-873-0	02	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98182-331-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98182-760-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (H) L=65 B=25	8-98135-584-0	01	1	1112-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1112-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1112-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1112-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1112-
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	12	1	1112-
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1112-
242	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98106-046-0	01	1	1112-
265	CLIP; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1112-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	03	1	1112-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (B) ID=12 & 15	1-09709-281-1	01	1	1112-
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	1112-
286	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1112-
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	1112-
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	1112-
320	CLIP; BAND,FLEX FIX L=250	5-09707-030-1	01	1	1112-
353	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=18 & 18	8-94323-068-0	01	1	1112-
372	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1112-
375	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	01	1	1112-
375	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1112-

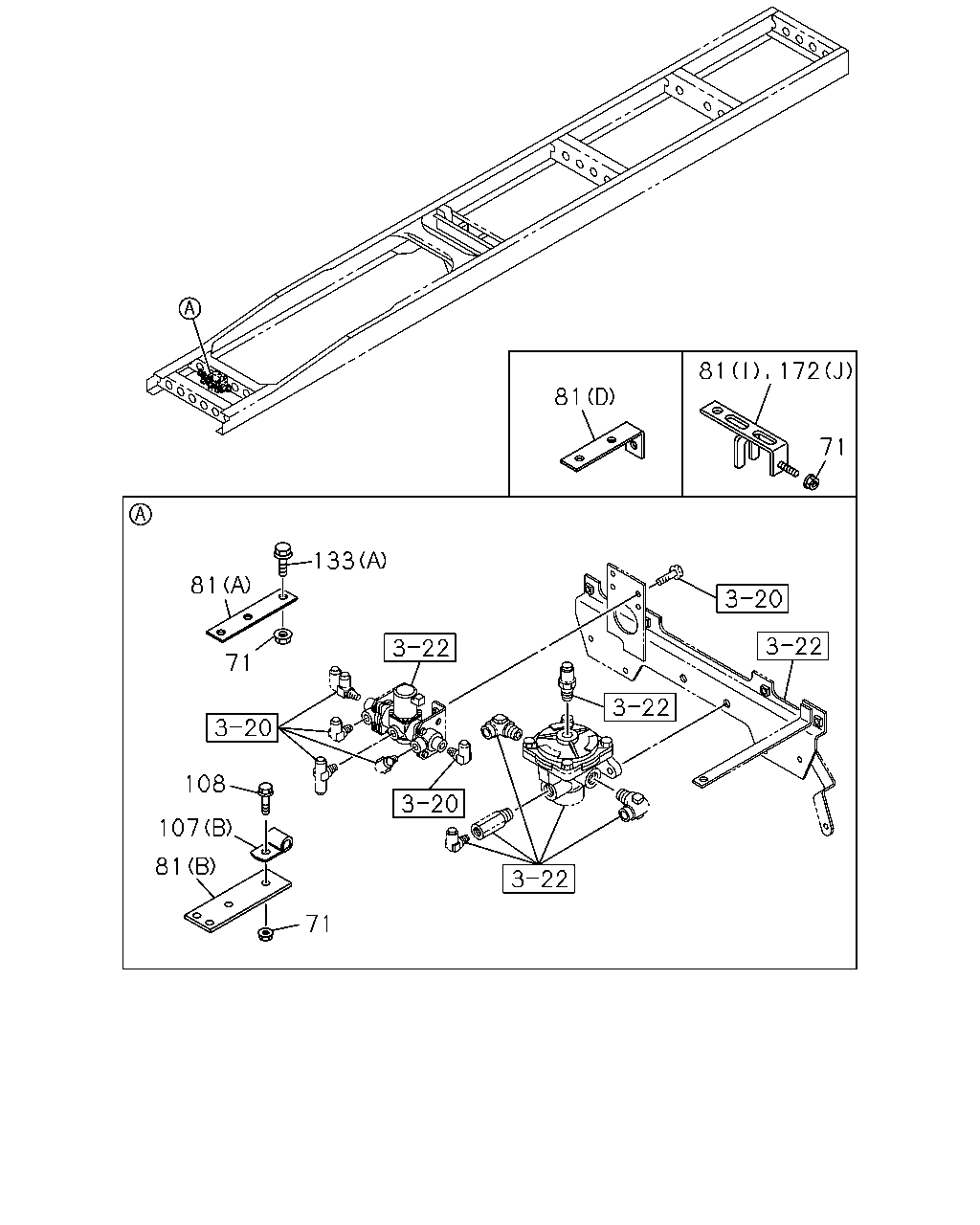

81 172 81 71 133 81 71 108 107 81 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1112-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	08	1	1112-
71	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=170	1-47479-380-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) L=65 B=25	8-98135-584-0	01	1	1112-
81	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G)	8-98186-380-0	01	1	1112-
81	BRACKET; CLIP FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98177-873-0	04	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98177-873-0	02	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98182-331-0	01	1	1112-
81	BRACKET; CLIP MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98182-760-0	01	1	1112-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	42	1	1112-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	1112-
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	1112-
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	01	1	1112-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X20 FLANGE	0-28650-820-0	02	1	1112-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	01	1	1112-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	1112-
133	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	1112-
133	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	02	1	1112-
133	BOLT; BRKT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 FLANGE	0-28650-830-0	03	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	1-47477-514-3	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=225	1-47477-646-3	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=60 H=30	1-47477-716-1	05	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	8-98031-420-2	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98166-032-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98169-222-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J)	8-98177-873-0	02	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98182-331-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98182-760-0	01	1	1112-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (H) L=65 B=25	8-98135-584-0	01	1	1112-

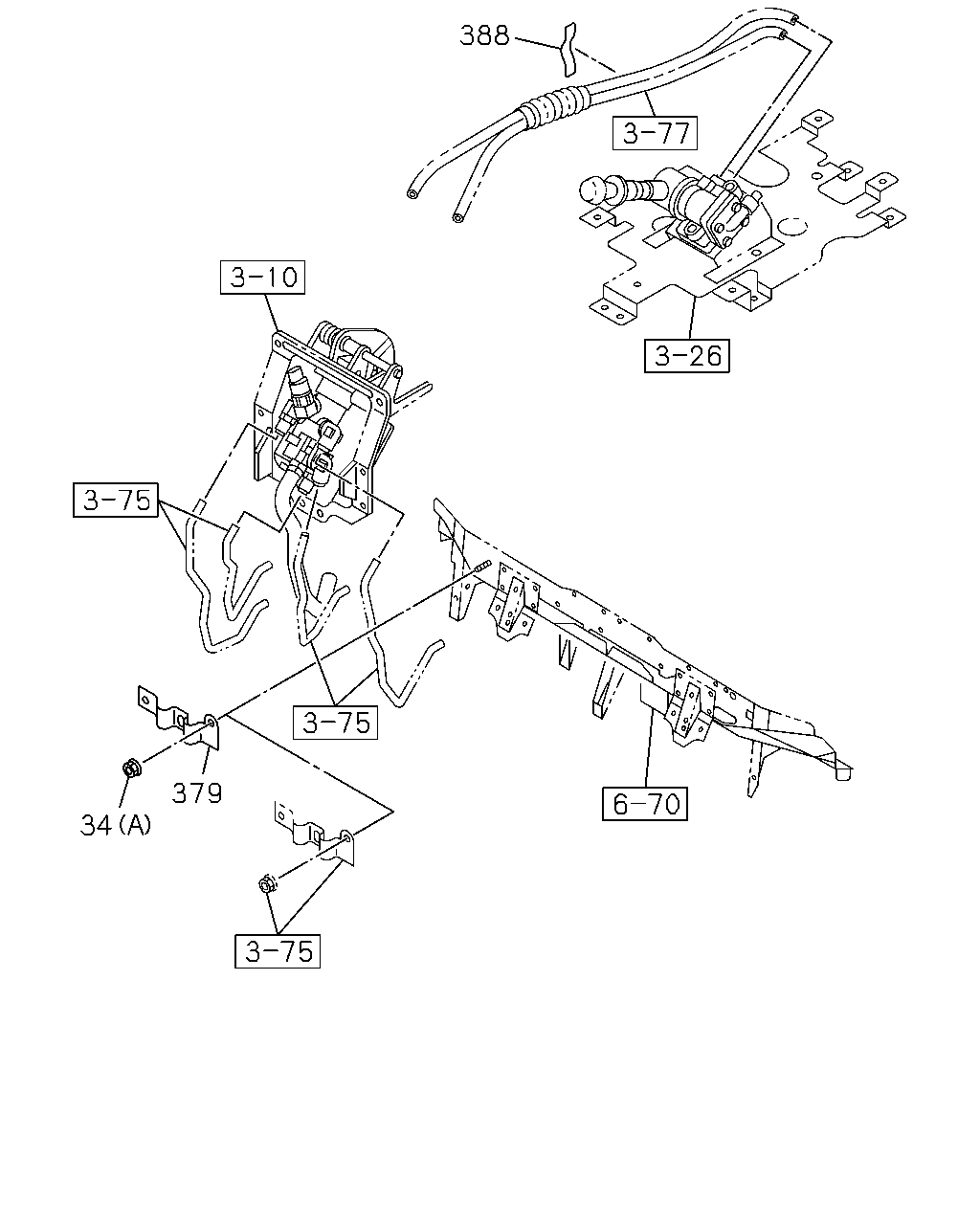

388 379 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1112-
34	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	1112-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98044-013-0	01	1	1112-
388	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	03	1	1112-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
