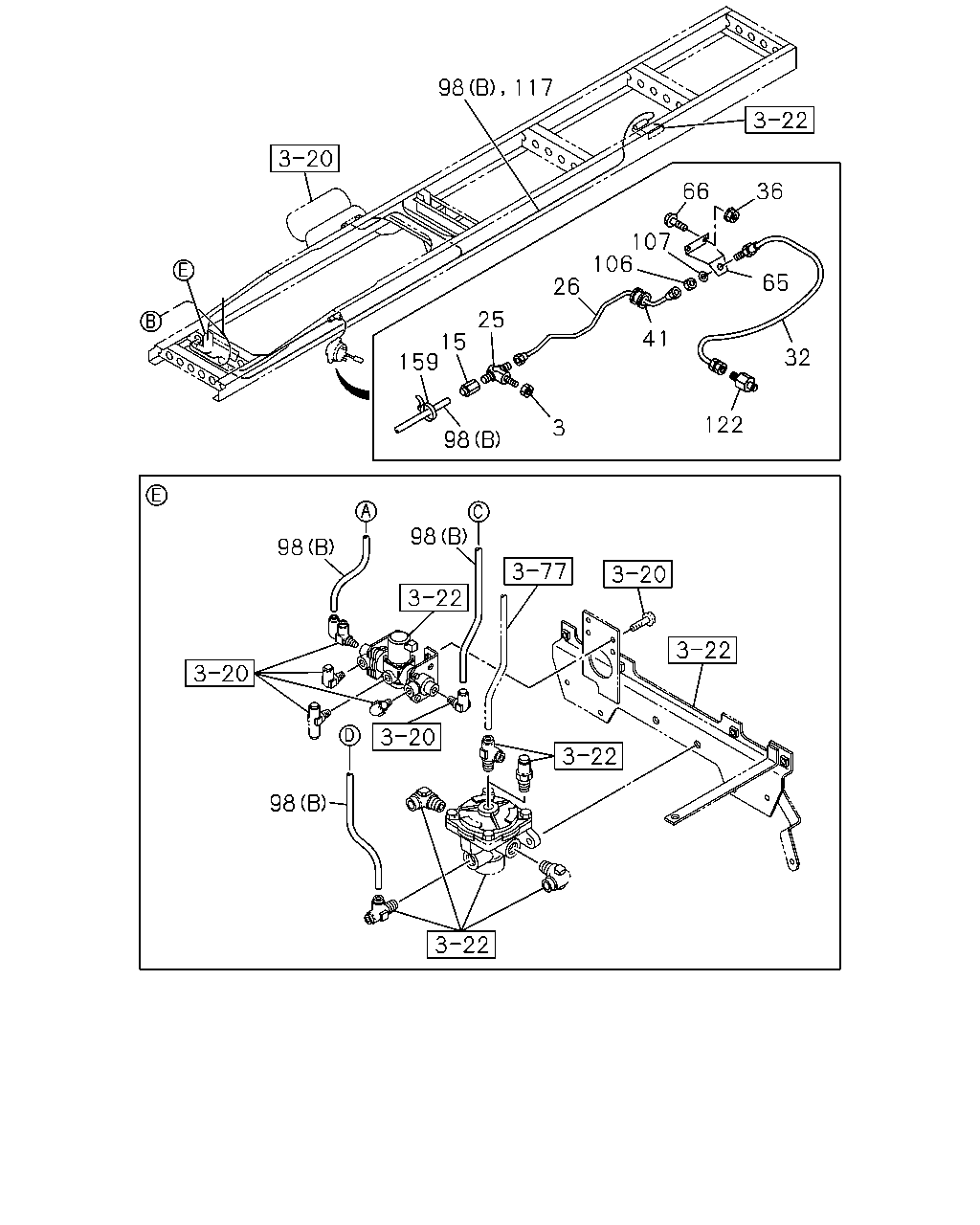

3 |
NUT; PIPE UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
0-91111-512-0 |
02 |
1 |
1112- |
| |
15 |
CONNECTOR; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
DIN12 & M16 STRAIGHT
|
1-09660-876-0 |
02 |
1 |
1112- |
| |
25 |
UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
1-09654-148-1 |
02 |
1 |
1112- |
| |
26 |
PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=500
|
8-98091-274-1 |
01 |
1 |
1112- |
| |
26 |
PIPE; AIR,UNION TO FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=657
|
8-98126-150-1 |
01 |
1 |
1112- |
| |
32 |
HOSE; FLEX,FRT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-98090-844-0 |
02 |
1 |
1112- |
| |
36 |
NUT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1112- |
| |
41 |
GROMMET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=28 OD=35 T=25
|
1-09332-011-1 |
02 |
1 |
1112- |
| |
65 |
BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47476-210-0 |
01 |
1 |
1112- |
| |
65 |
BRACKET; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47476-211-0 |
01 |
1 |
1112- |
| |
66 |
BOLT; HOSE BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1112- |
| |
98 |
TUBE; NYLON
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION
RIGID<W71>
(A)
|
8-97625-675-0 |
01 |
1 |
1112- |
| |
98 |
TUBE; NYLON
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION
RIGID<W71>
(A)
|
8-98091-308-0 |
01 |
1 |
1112- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=4000 OD=6
|
1-87411-002-0 |
AR |
1 |
1112- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=2000 OD=8
|
1-87411-006-0 |
AR |
1 |
1112- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=8000 OD=8
|
1-87411-009-0 |
AR |
1 |
1112- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=12000 OD=8
|
1-87411-010-0 |
AR |
1 |
1112- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=2000 OD=12
|
1-87411-011-0 |
AR |
1 |
1112- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=6000 OD=12
|
1-87411-013-0 |
AR |
1 |
1112- |
| |
98 |
TUBE; NYLON
(B)
SERVICED BY L=8000 OD=12
|
1-87411-014-0 |
AR |
1 |
1112- |
| |
106 |
NUT; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
0-91111-516-0 |
02 |
1 |
1112- |
| |
107 |
WASHER; LK,FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16.2
|
0-91510-816-0 |
02 |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=7
|
1-87411-016-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
|
1-87411-019-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
|
1-87411-022-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
|
1-87411-025-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
|
1-87411-027-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
|
1-87411-029-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
|
1-87411-033-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=4000 ID=28
|
1-87411-034-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
|
1-87411-035-0 |
AR |
1 |
1112- |
| |
117 |
TUBE; CORRUGATE
SERVICED BY L=4000 ID=32
|
1-87411-036-0 |
AR |
1 |
1112- |
| |
122 |
CONNECTOR; FLEX HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16 & PT3/8 STRAIGHT
|
1-09650-179-1 |
02 |
1 |
1112- |
| |
159 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=350
|
1-09707-183-0 |
01 |
1 |
1112- |
