3-40 — FRONT BRAKE POWER CHAMBER (#40720) — 12 parça

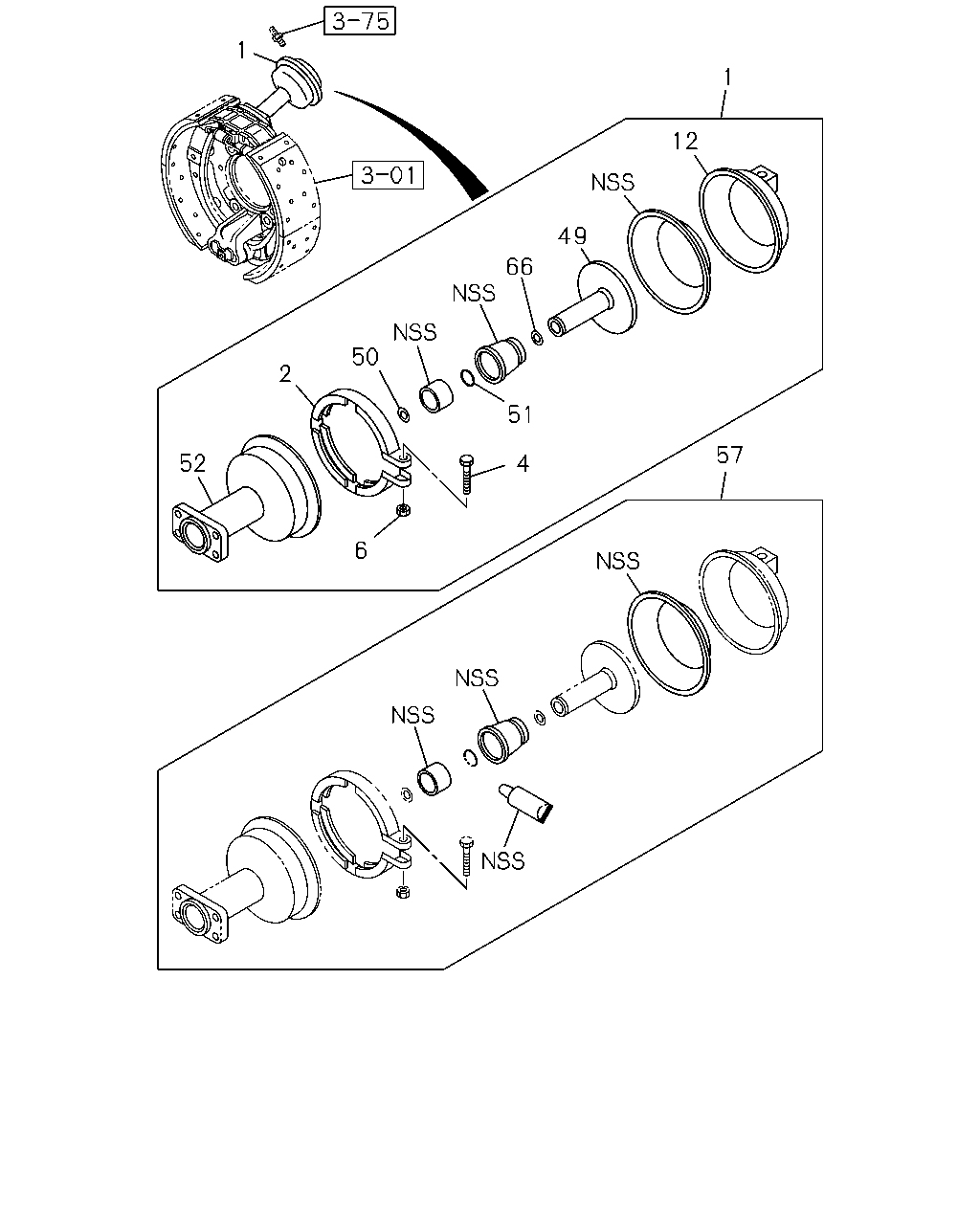

çizim 110436
1 1 12 49 66 50 2 51 57 52 4 6
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98145-680-1 02 1 1112-
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-256-0 02 1 1112-
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-257-0 02 1 1112-
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-147-0 02 1 1112-
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-103-0 02 1 1112-
49 ROD; PUSH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-969-1 02 1 1112-
50 GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-963-1 02 1 1112-
51 RING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-966-0 02 1 1112-
52 HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-195-1 02 1 1112-1403
52 HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98248-793-0 02 1 1404-
57 REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-978-0 02 1 1112-
66 SHIM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-965-0 AR 1 1112-
