Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#40715) — 267 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1112-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	06	1	1112-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1112-

3 366 10 28 80 366 366 38 38 366 9 126 41 104 185 104 126 45 45 9 7 6 366 42 1 369 366 366 10 80 28 38 9 38 126 366 126 9 366 3 10 45 45 1 7 366 175 174 126 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-500-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48370-501-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48370-181-1	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98184-783-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-48370-181-1	02	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48320-031-1	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1112-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	02	1	1112-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5	8-97609-249-0	04	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	03	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT3/8	9-09204-517-0	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-53318-338-6	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	1-48317-601-5	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98048-199-0	01	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98048-200-2	01	1	1112-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	1112-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	1112-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1112-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1112-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1112-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	02	1	1112-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	01	1	1112-
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	12	1	1112-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	06	1	1112-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	1112-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) M12X35 FLANGE	0-28651-235-0	04	1	1112-
104	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	06	1	1112-
104	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> M12 FLANGE	0-91180-212-0	02	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09661-027-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98166-517-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (J) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (L) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98166-127-0	01	1	1112-
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1112-
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1112-
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1112-
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1112-
366	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1112-
366	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1112-
366	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1112-
366	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1112-
369	CONNECTOR; 3WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB>	8-98166-127-0	01	1	1112-

38 126 3 10 126 126 38 9 185 126 28 126 185 126 9 37 42 28 45 45 7 126 41 6 64 42 41 43 126 126 126 43 64 10 43 38 9 38 126 126 126 9 126 10 126 45 45 10 7 1 175 174 126 3 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-500-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48370-501-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48370-181-1	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98184-783-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-48370-181-1	02	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48320-031-1	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1112-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	02	1	1112-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5	8-97609-249-0	04	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	03	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT3/8	9-09204-517-0	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-53318-338-6	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	1-48317-601-5	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98048-199-0	01	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98048-200-2	01	1	1112-
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1112-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	06	1	1112-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1112-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	1112-
38	BAND; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	1112-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> OD=10 L=60	0-82254-060-0	02	1	1112-
41	PIN; BAND FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-09744-068-0	01	1	1112-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1112-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	02	1	1112-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	01	1	1112-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1112-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	04	1	1112-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M8X25 FLANGE	0-28650-825-0	06	1	1112-
45	NUT; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	12	1	1112-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48317-349-0	01	1	1112-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-53318-293-1	01	1	1112-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	1-48317-607-0	01	1	1112-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-691-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09661-027-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98166-517-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (J) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (L) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98166-127-0	01	1	1112-
174	COCK; AIR,INFLATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1112-
175	CAP; AIR COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1112-
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	02	1	1112-
185	PIN; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=32.6	8-98062-280-0	01	1	1112-

80 172 28 104 104 43 208 136 178 209 80 172 104 28 64 136 136 104 136 54 80 80 67 64 119 43 136 80 10 5 1 126 9 166 126 126 1 7 6 5 10 7 9 58 42 42 6 126 58 126 58 42 42 58 58 58 58 58 126 213 3 213 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-500-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48370-501-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48370-181-1	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	8-98184-783-0	01	1	1112-
1	TANK ASM; AIR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	1-48370-181-1	02	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48320-031-1	01	1	1112-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1112-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1112-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09661-027-0	01	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	1-48312-015-0	05	1	1112-
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB>	1-48312-015-0	04	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	05	1	1112-
7	GASKET; DRAIN COCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=14	1-09630-145-0	04	1	1112-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	02	1	1112-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5	8-97609-249-0	04	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	03	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> VIN MODEL YEAR 2011<VZB> (B) PT3/8	9-09204-517-0	01	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. TIRE INFLATOR DEVICE<SG4> (B) PT3/8	9-09204-517-0	02	1	1112-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT3/8	9-09204-517-0	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-53318-338-6	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	1-48317-601-5	02	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)	8-98048-199-0	01	1	1112-
28	BRACKET; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98048-200-2	01	1	1112-

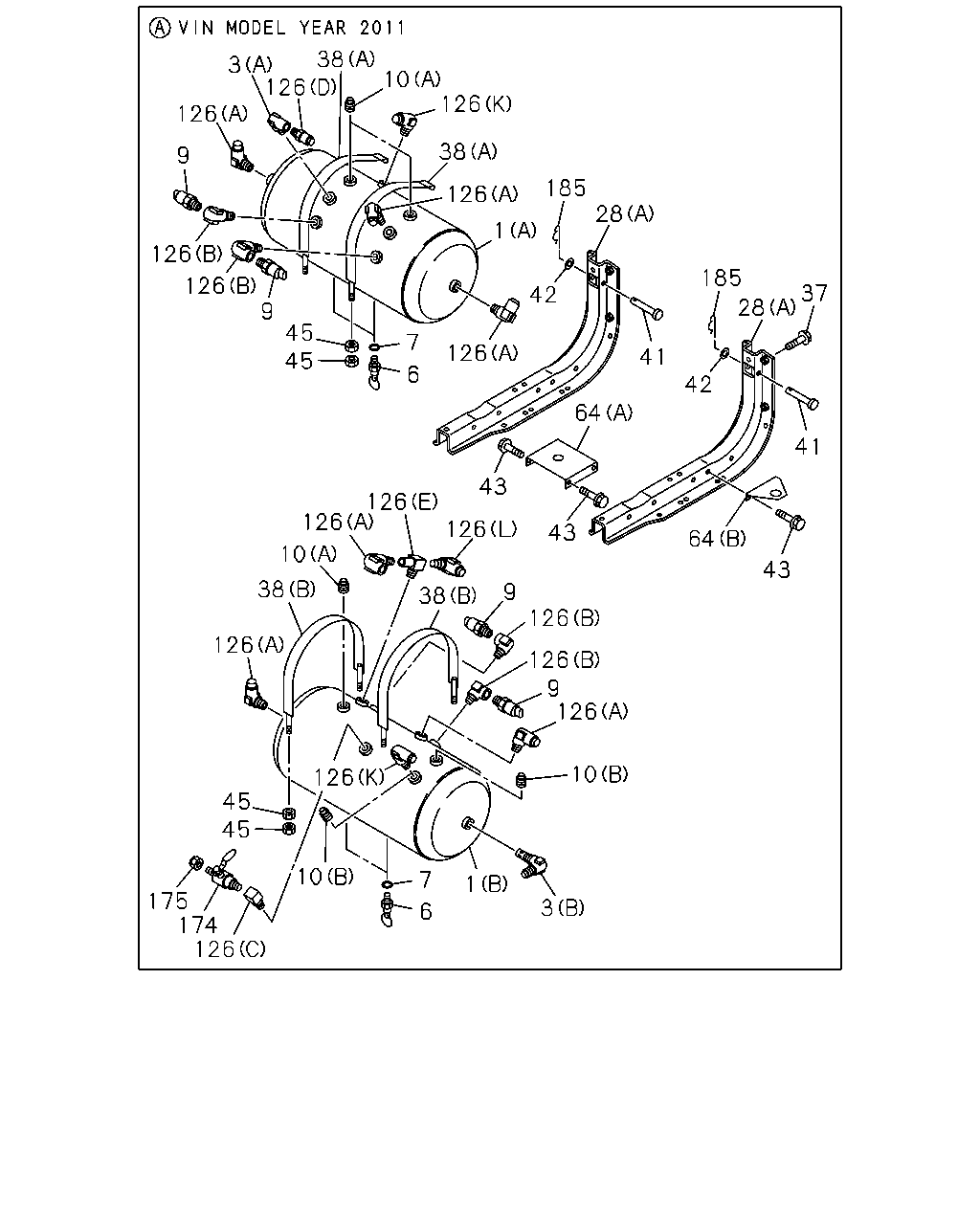

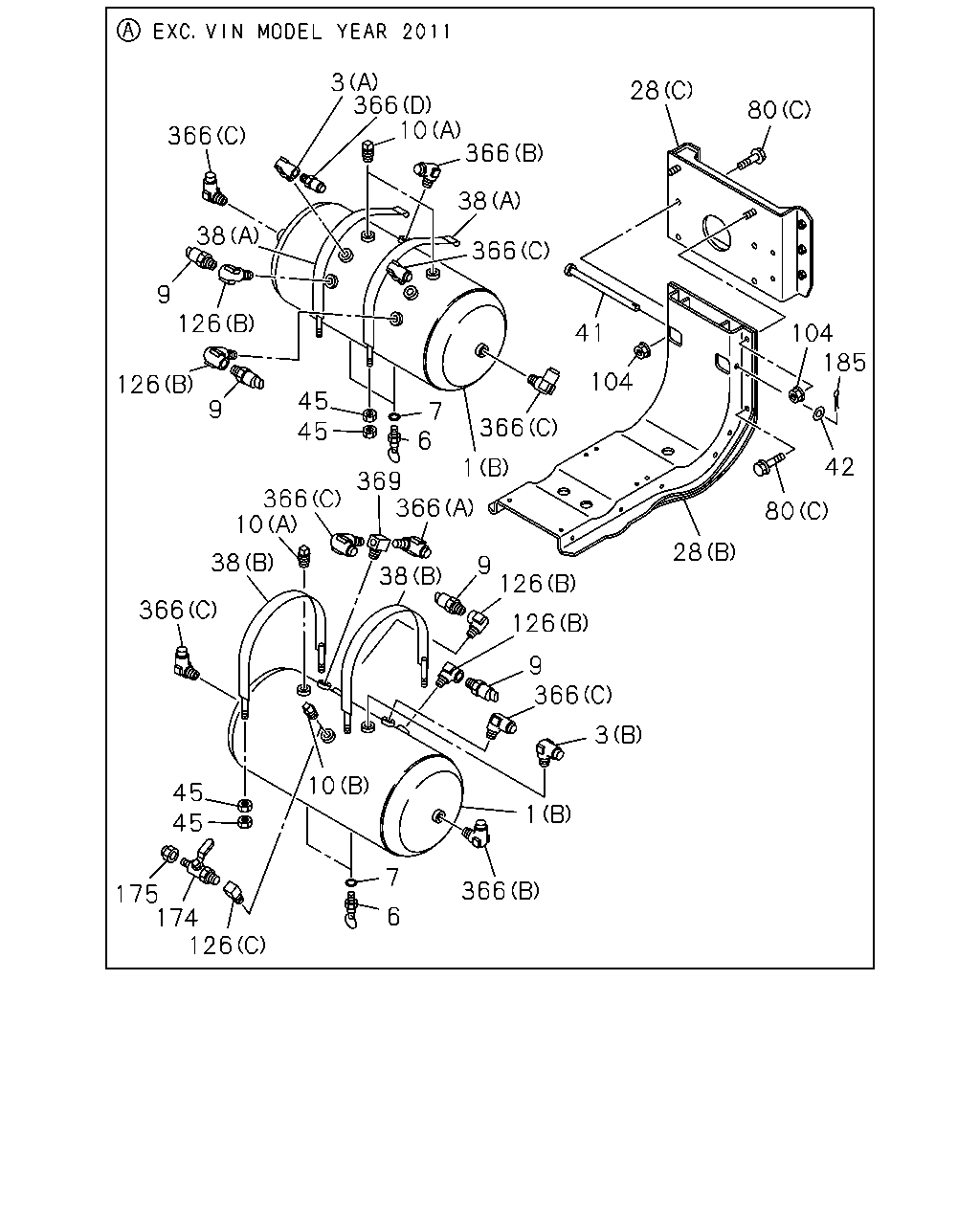

42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1112-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	02	1	1112-
42	WASHER; PL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> ID=10.5	0-91614-510-0	01	1	1112-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1112-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	04	1	1112-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M8X25 FLANGE	0-28650-825-0	06	1	1112-

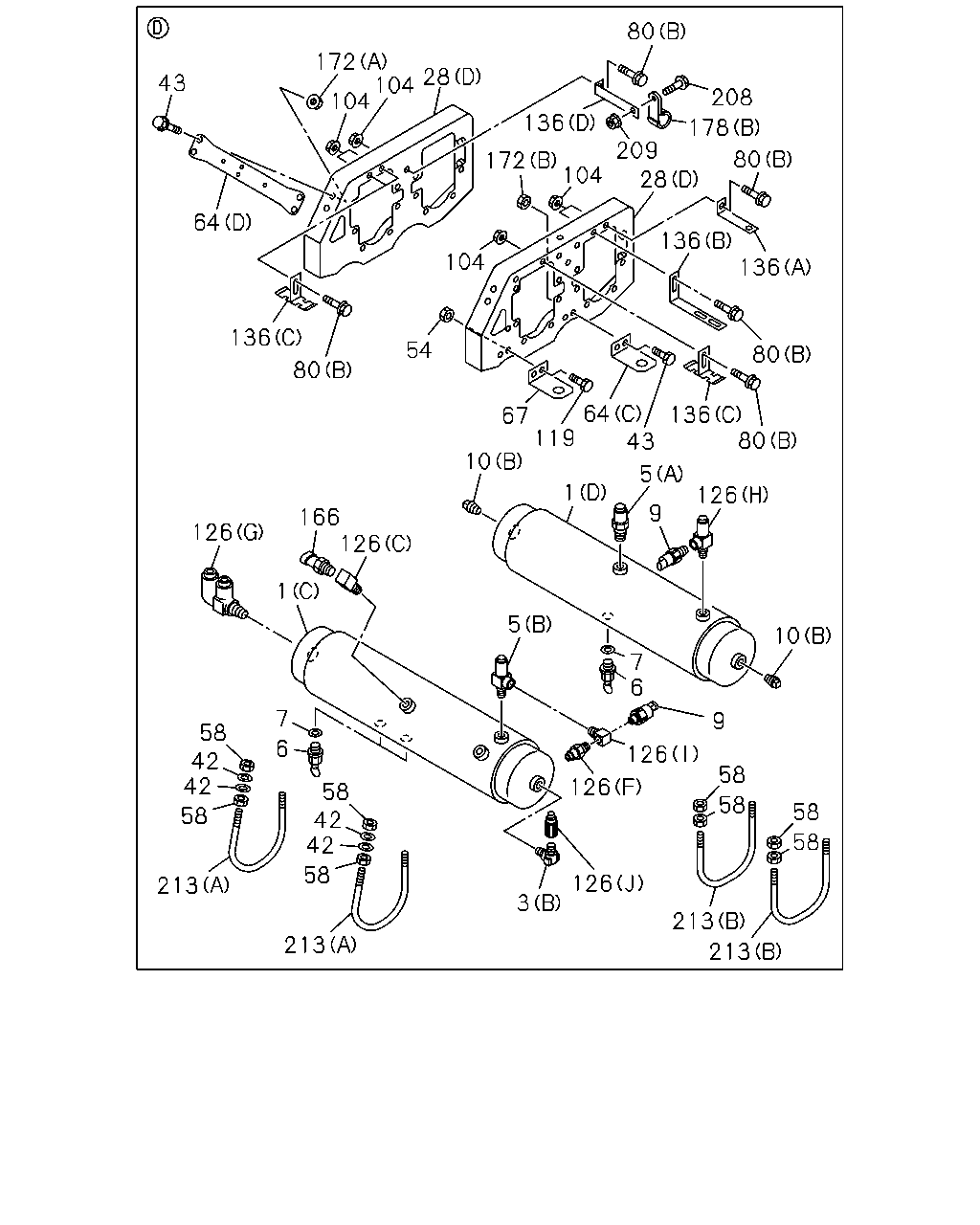

54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1112-
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	16	1	1112-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48317-349-0	01	1	1112-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-53318-293-1	01	1	1112-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A)	1-48317-607-0	01	1	1112-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B)	1-48317-691-0	01	1	1112-
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	1112-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	06	1	1112-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	1112-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) M12X35 FLANGE	0-28651-235-0	04	1	1112-
104	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	06	1	1112-
104	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> M12 FLANGE	0-91180-212-0	02	1	1112-
119	BOLT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09661-027-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98166-517-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (J) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (L) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98166-127-0	01	1	1112-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=90 B=25	1-47475-530-0	01	1	1112-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=112	1-47475-694-1	01	1	1112-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=150 H=30	1-47477-629-2	01	1	1112-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47479-693-0	03	1	1112-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1112-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8 FLANGE	0-91180-108-0	02	1	1112-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10 FLANGE	0-91180-210-0	04	1	1112-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1112-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1112-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1112-
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	01	1	1112-
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1112-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	1112-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	1112-

145 138 237 125 145 138 238 145 239 125 145 140 178 139 153 240 81 151 151 86 152 148 126 37 83 80 271 178 177 223 137 79 223 223 83 82 223 223

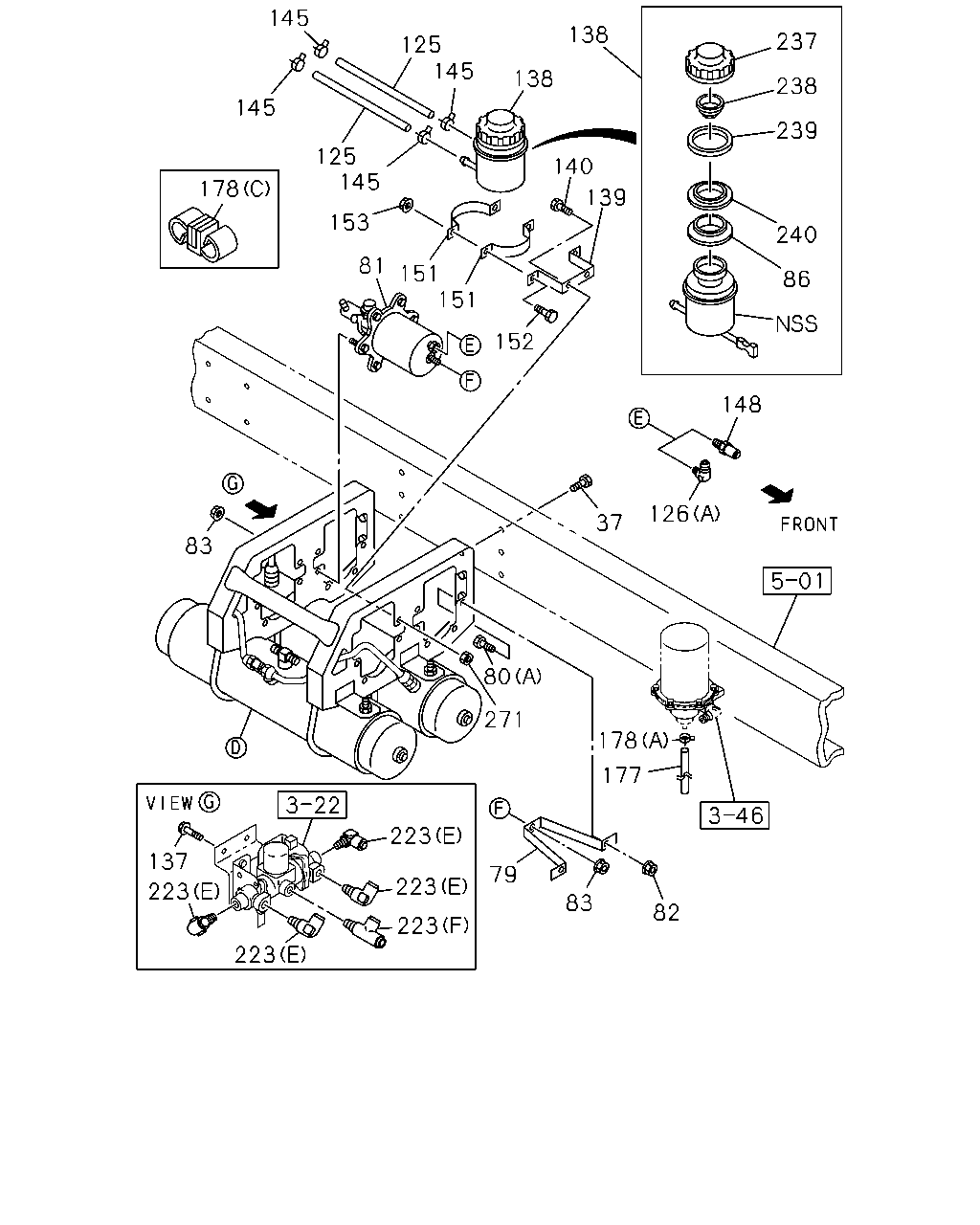

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

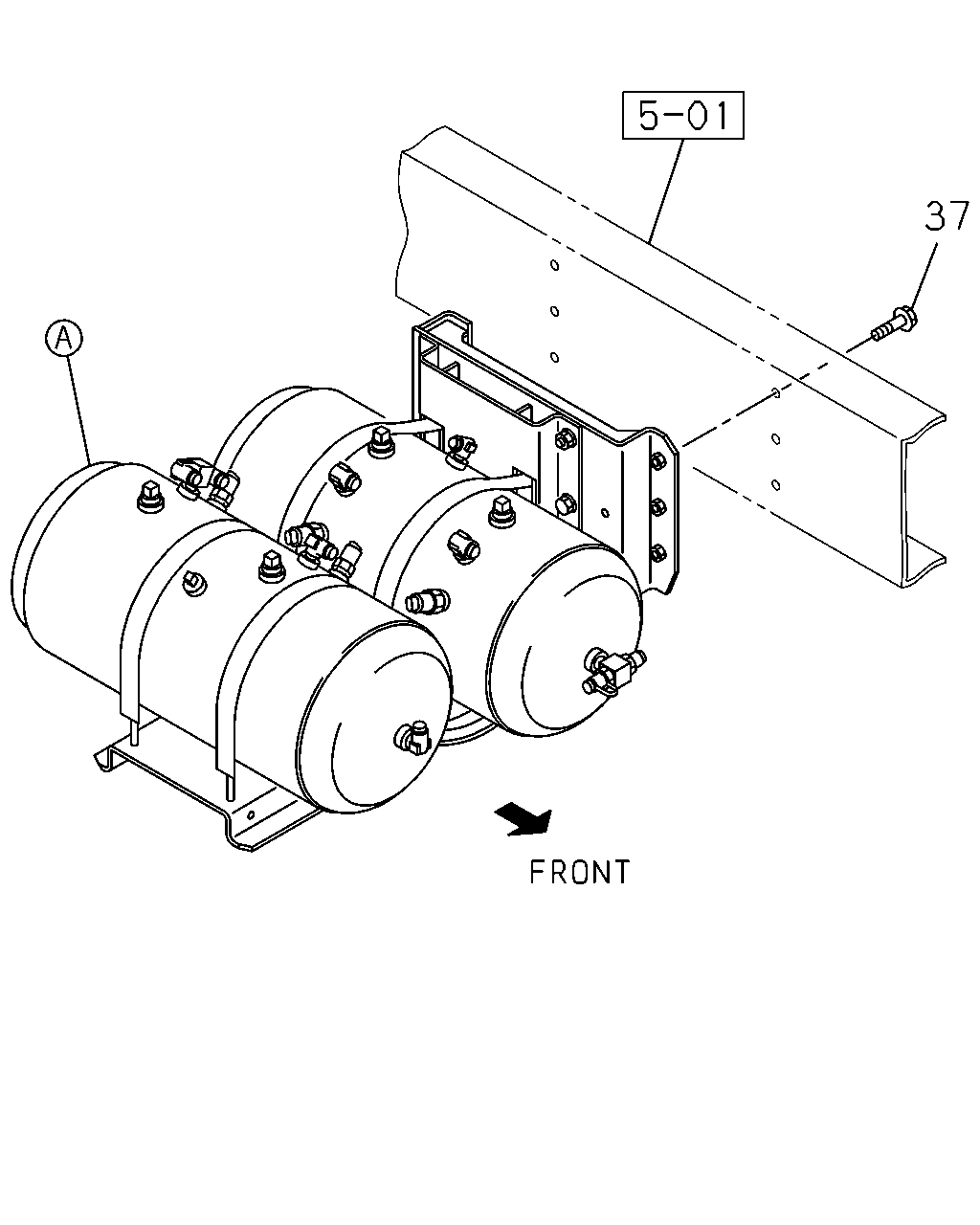

37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1112-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	06	1	1112-
37	BOLT; AIR TANK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> M12X40 FLANGE	0-28651-240-0	08	1	1112-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-254-0	02	1	1112-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20 FLANGE	0-28650-820-0	06	1	1112-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X25 FLANGE	0-28651-025-0	04	1	1112-
80	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) M12X35 FLANGE	0-28651-235-0	04	1	1112-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47800-663-1	02	1	1112-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	1112-
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	10	1	1112-
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	1112-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1112-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98098-558-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TIRE INFLATOR DEVICE<SG4> (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	1-09661-027-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98166-517-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (J) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/4 2WAY	1-09660-693-0	04	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (L) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (K) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1112-
126	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (E)	8-98166-127-0	01	1	1112-
137	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1112-
137	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1112-
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	1112-
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	1112-
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	1112-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	1112-
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1112-
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	1112-
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1112-
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1112-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1112-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1112-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1112-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1112-
223	UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1112-
223	UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1112-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1112-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1112-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1112-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (C)	1-09661-073-0	01	1	1112-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	1112-
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	1112-
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	1112-
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	1112-
271	NUT; BRKT,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	1112-

223 137 223 223 178 223 223 223 177

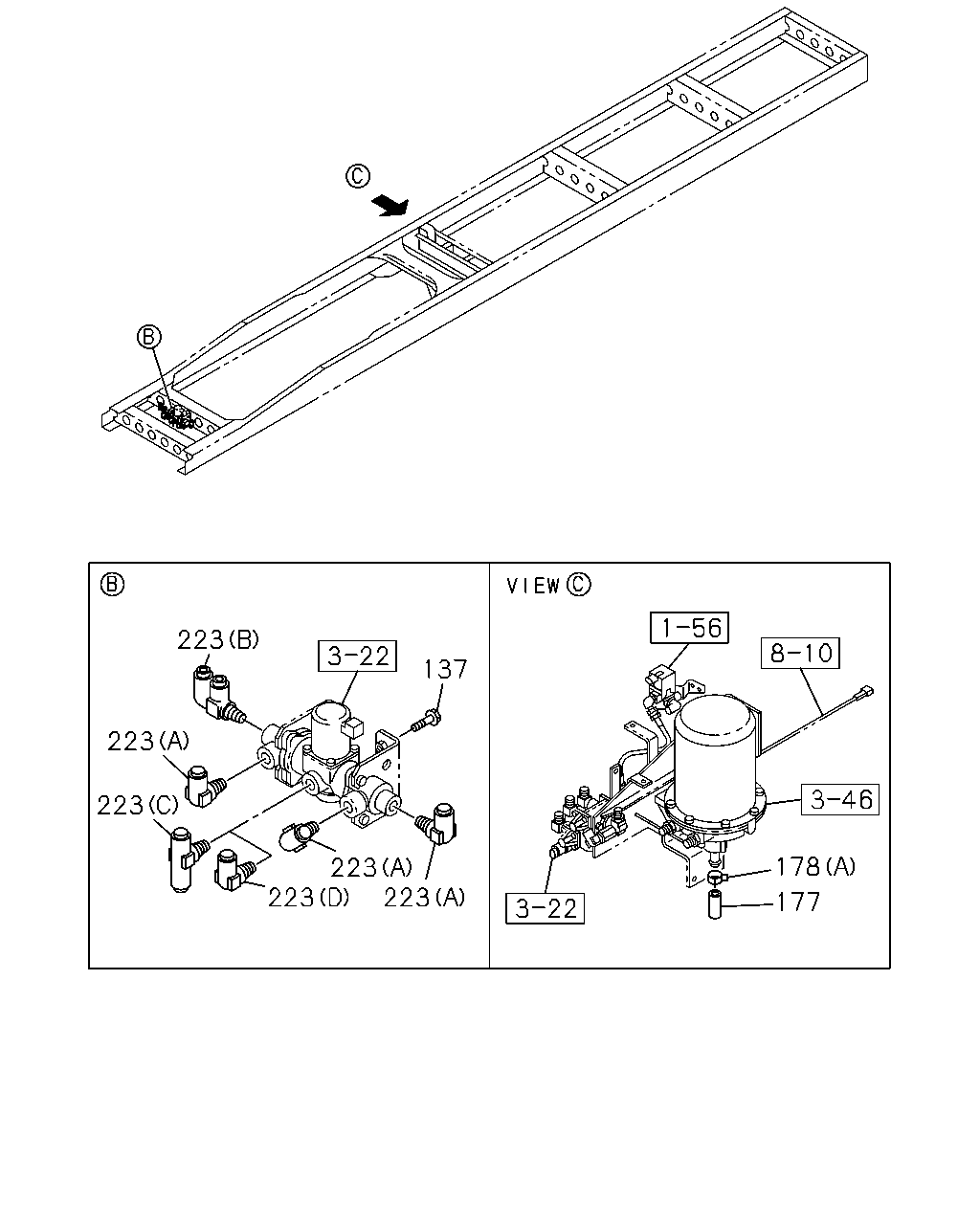

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	02	1	1112-
137	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1112-
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1112-
178	CLIP; HOSE AIR DRYER<PS7> (A) ID=21	8-94242-034-0	01	1	1112-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1112-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-09917-171-0	01	1	1112-
223	UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (E) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1112-
223	UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1112-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1112-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1112-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1112-
223	UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> EXC. RIGID SEAT WO/ARM REST<TAZ> (C)	1-09661-073-0	01	1	1112-

241

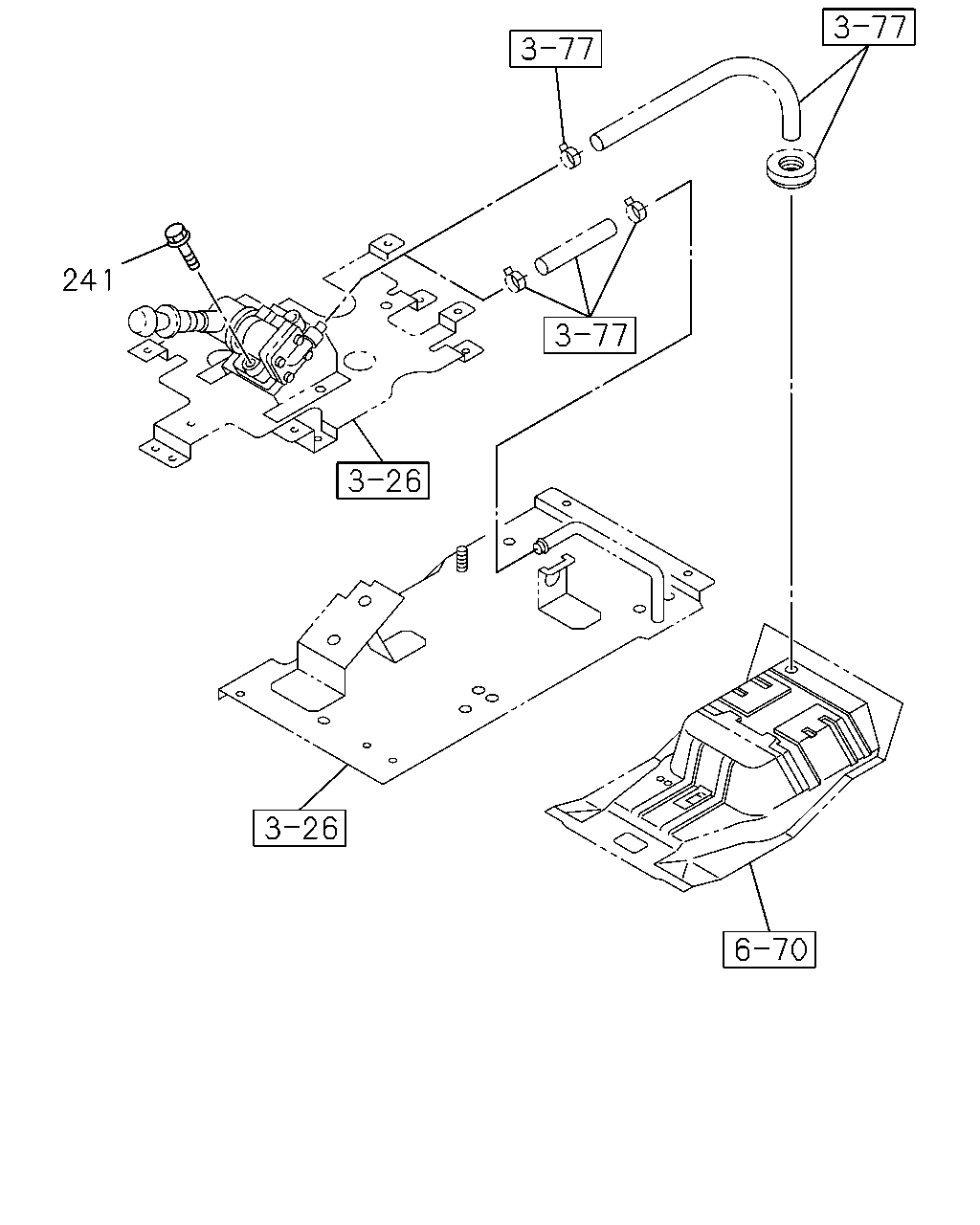

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1112-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
