◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#40706) — 29 parça

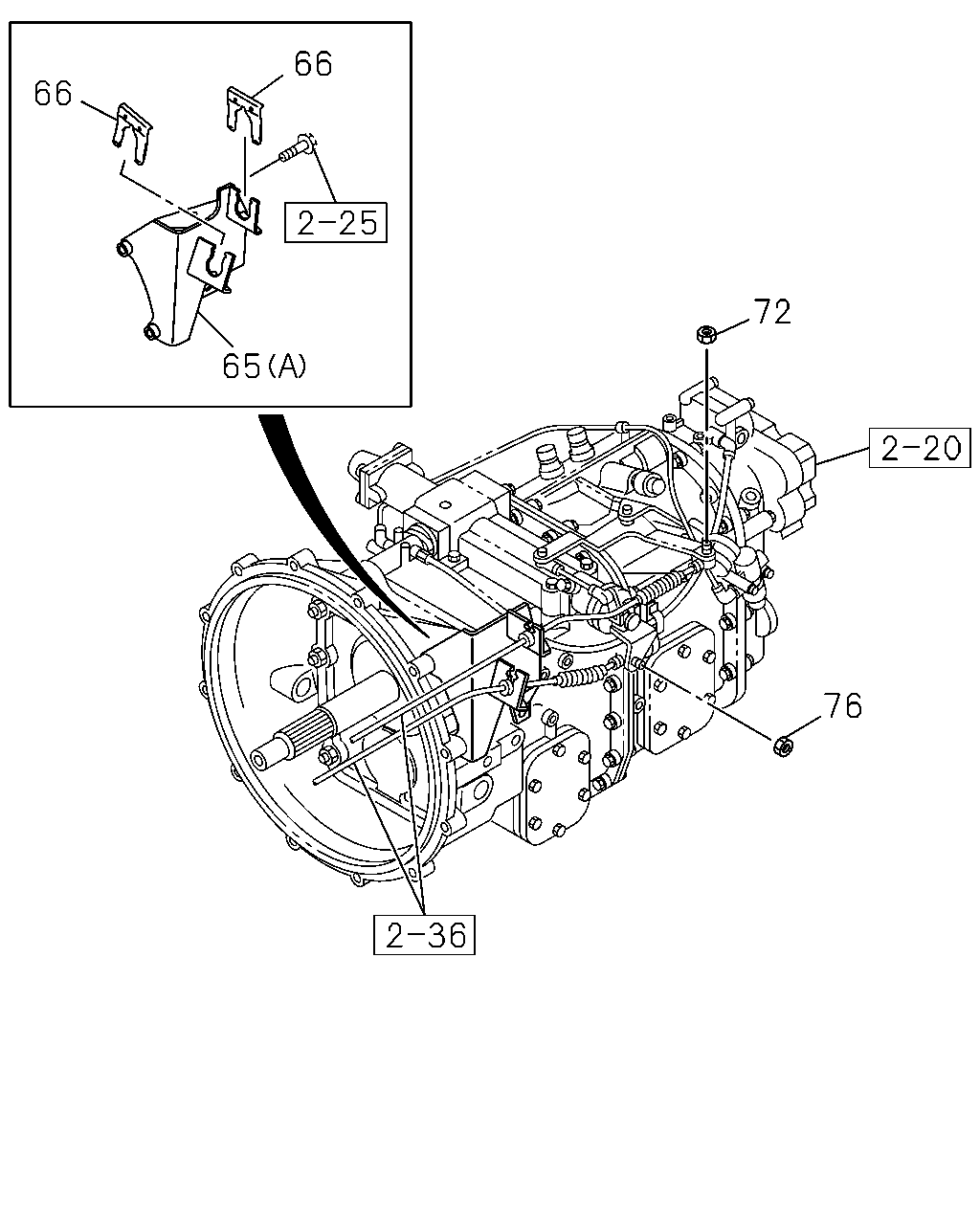

çizim 110378
66 66 72 65 76
BalonParca AdiParca NoAdetTipApplied Date
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (A) 		8-98131-609-0 01 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33657-677-0 01 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33657-672-1 01 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98010-160-0 01 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98017-428-0 01 1 1112-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1112-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1112-
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 1112-

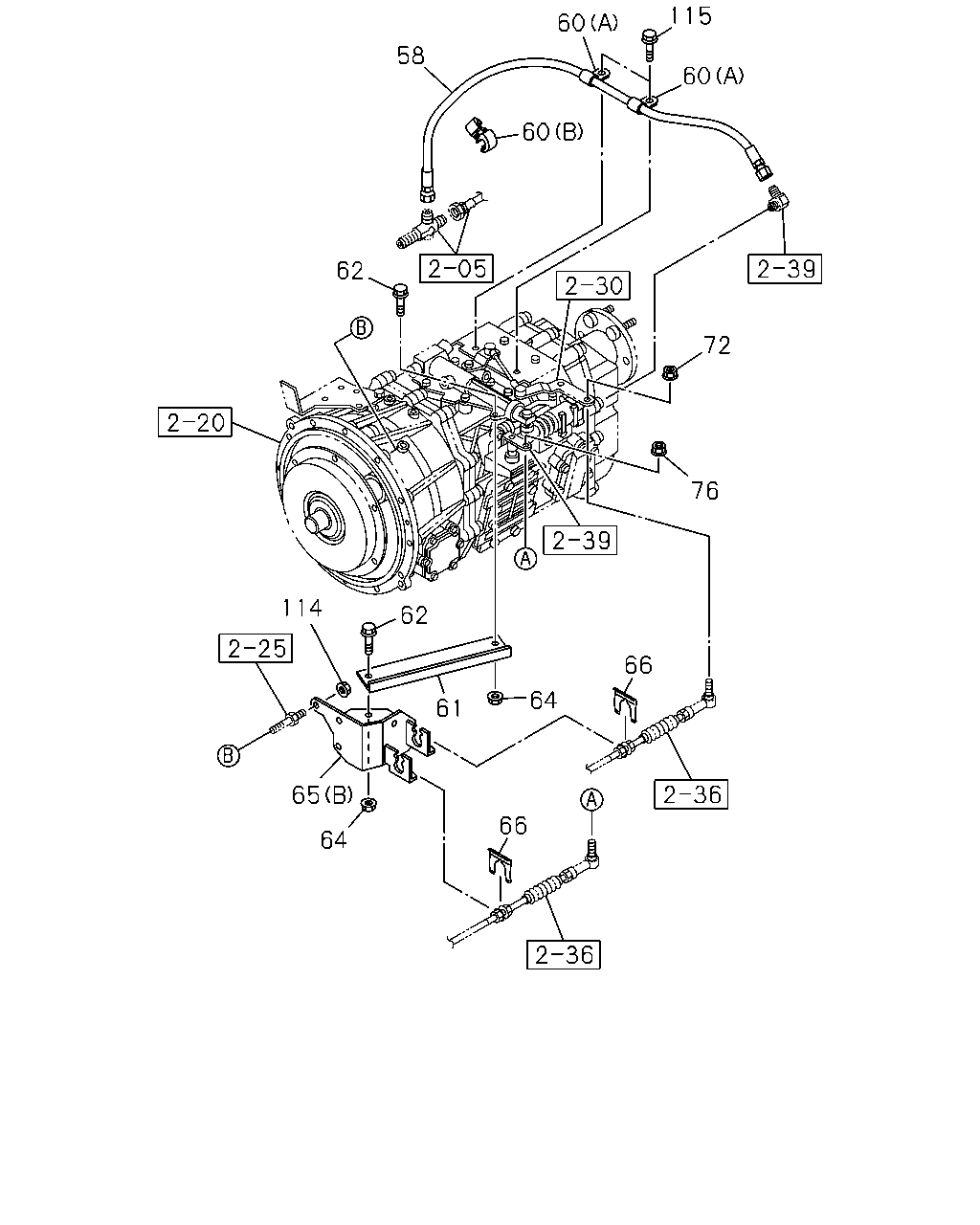

çizim 110387
115 60 58 60 60 62 72 76 114 62 66 64 61 65 66 64
BalonParca AdiParca NoAdetTipApplied Date
58 HOSE; FLEX,POWER ASSISTOR
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 1112-
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1112-
60 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1112-
60 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1112-
61 STAY; BRKT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 1112-
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		1-33657-267-0 01 1 1112-
61 STAY; BRKT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-267-0 01 1 1112-
62 BOLT; STAY
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 1112-
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 1112-
62 BOLT; STAY
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 1112-
64 NUT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10 FLANGE 		0-91180-210-0 02 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) (A) 		8-98131-609-0 01 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33657-677-0 01 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33657-672-1 01 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98010-160-0 01 1 1112-
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98017-428-0 01 1 1112-
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1112-
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1112-
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 1112-
114 NUT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10 FLANGE 		0-91180-210-0 02 1 1112-
115 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1112-
