◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#40705) — 68 parça

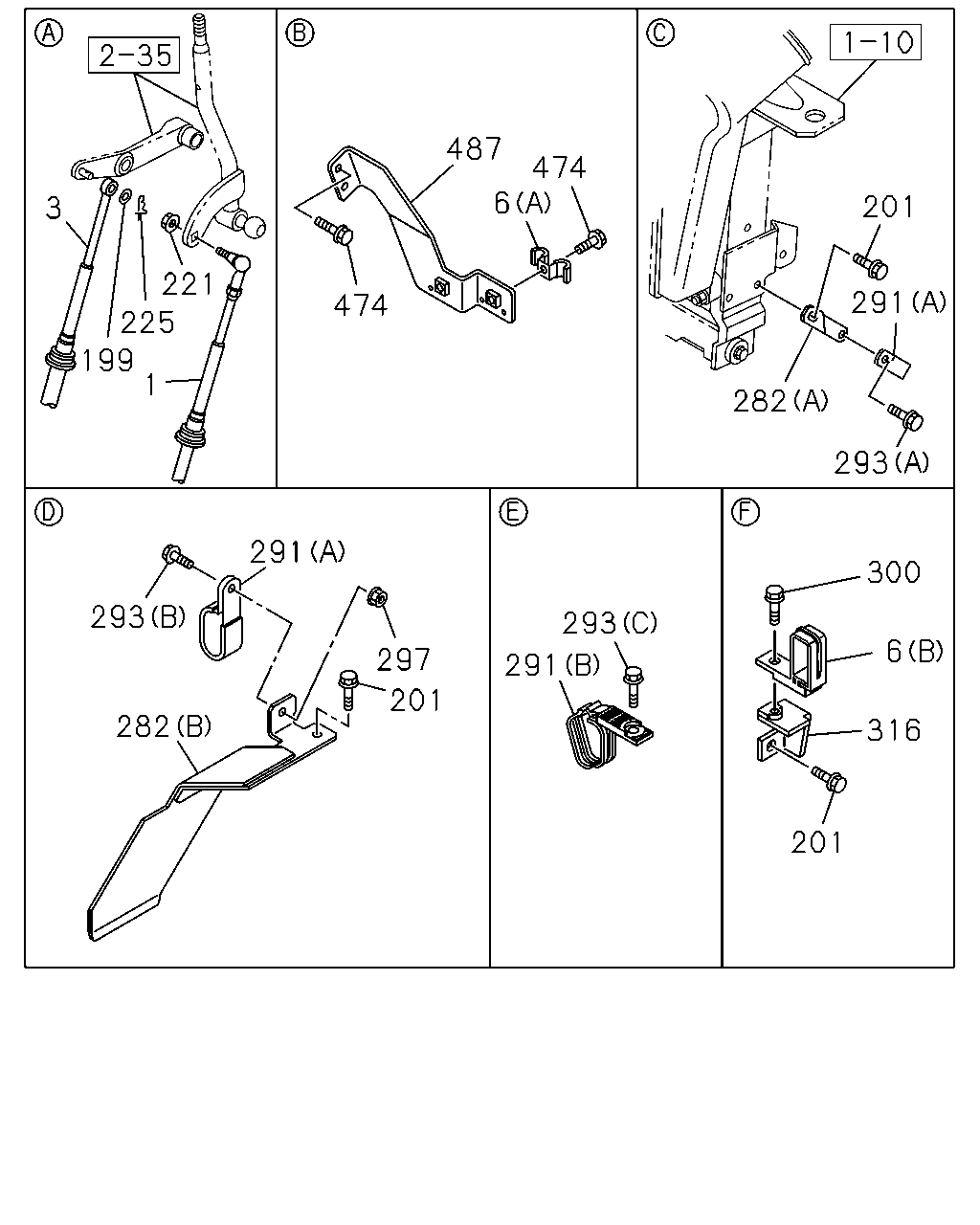

çizim 110377
487 474 6 201 3 221 291 474 225 199 1 282 293 291 300 293 293 6 297 291 201 282 316 201
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3545 		8-98047-799-3 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3525 		8-98113-108-2 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-073-4 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1112-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3725 		8-98047-813-2 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3630 		8-98113-109-1 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98121-074-3 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1112-
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1112-
6 CLIP; CABLE
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1112-
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1112-
6 CLIP; CABLE
FULLER FSO5206B OD M/T(Y4V) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1112-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1112-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1112-
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1112-
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1112-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) M8X16 FLANGE 		0-28050-816-0 01 1 1112-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1112-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) M12X35 FLANGE 		0-28151-235-0 01 1 1112-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1112-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1112-
282 BRACKET; TRANS SIDE
(A) 		8-98010-418-0 01 1 1112-
282 BRACKET; TRANS SIDE
(B) 		8-98171-762-0 01 1 1112-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 02 1 1112-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1112-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1112-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1112-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1112-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1112-
300 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1112-
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1112-
300 BOLT; CLIP
FULLER FSO5206B OD M/T(Y4V) M8X20 FLANGE 		0-28650-820-0 01 1 1112-
316 BRACKET; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98086-439-0 01 1 1112-
316 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V) 		8-98086-439-0 01 1 1112-
316 BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 1112-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 1112-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 1112-
487 BRACKET; CONT CABLE 8-98183-009-0 01 1 1112-

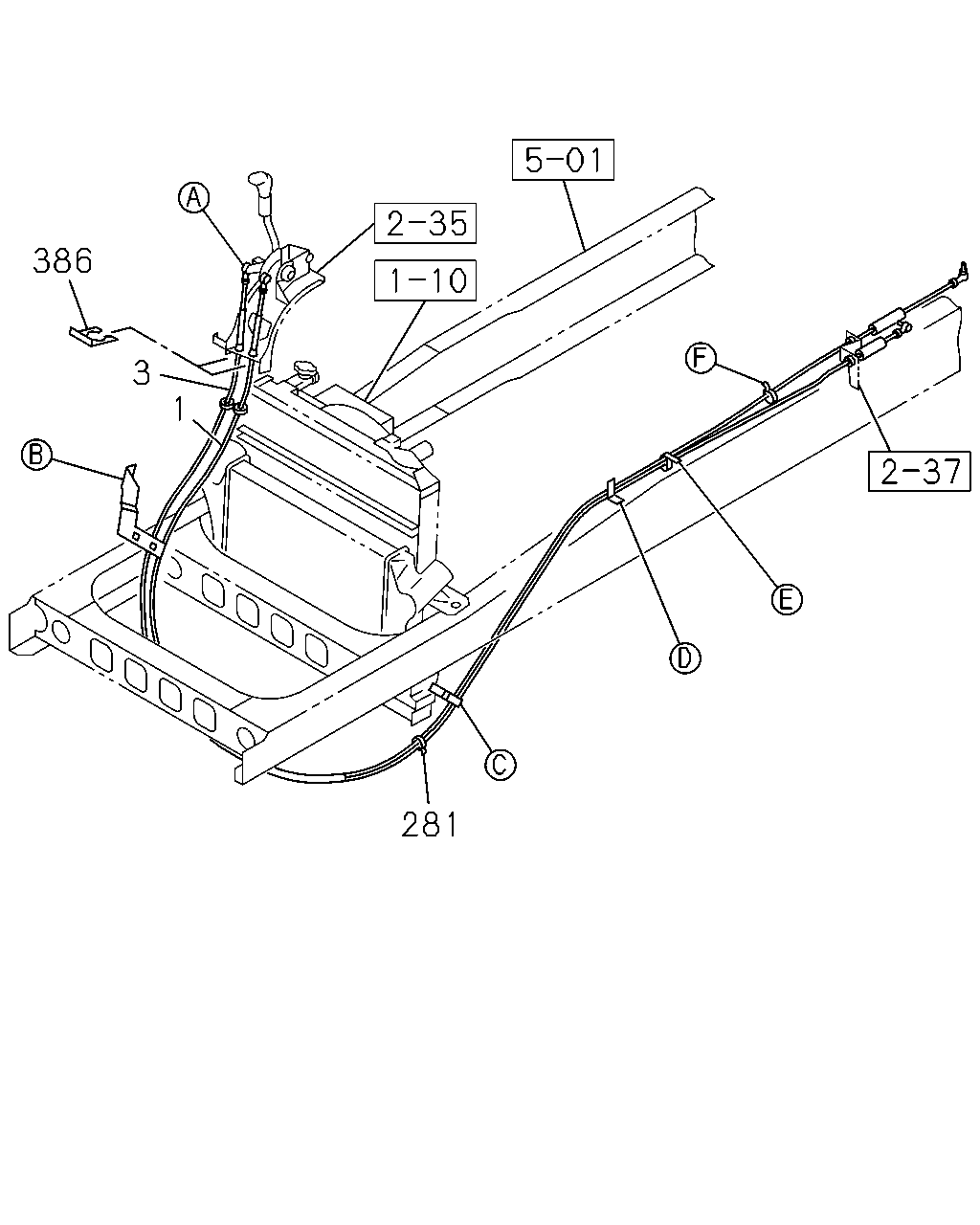

çizim 110379
386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3545 		8-98047-799-3 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3525 		8-98113-108-2 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-073-4 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1112-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3725 		8-98047-813-2 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3630 		8-98113-109-1 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98121-074-3 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1112-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 1112-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1112-

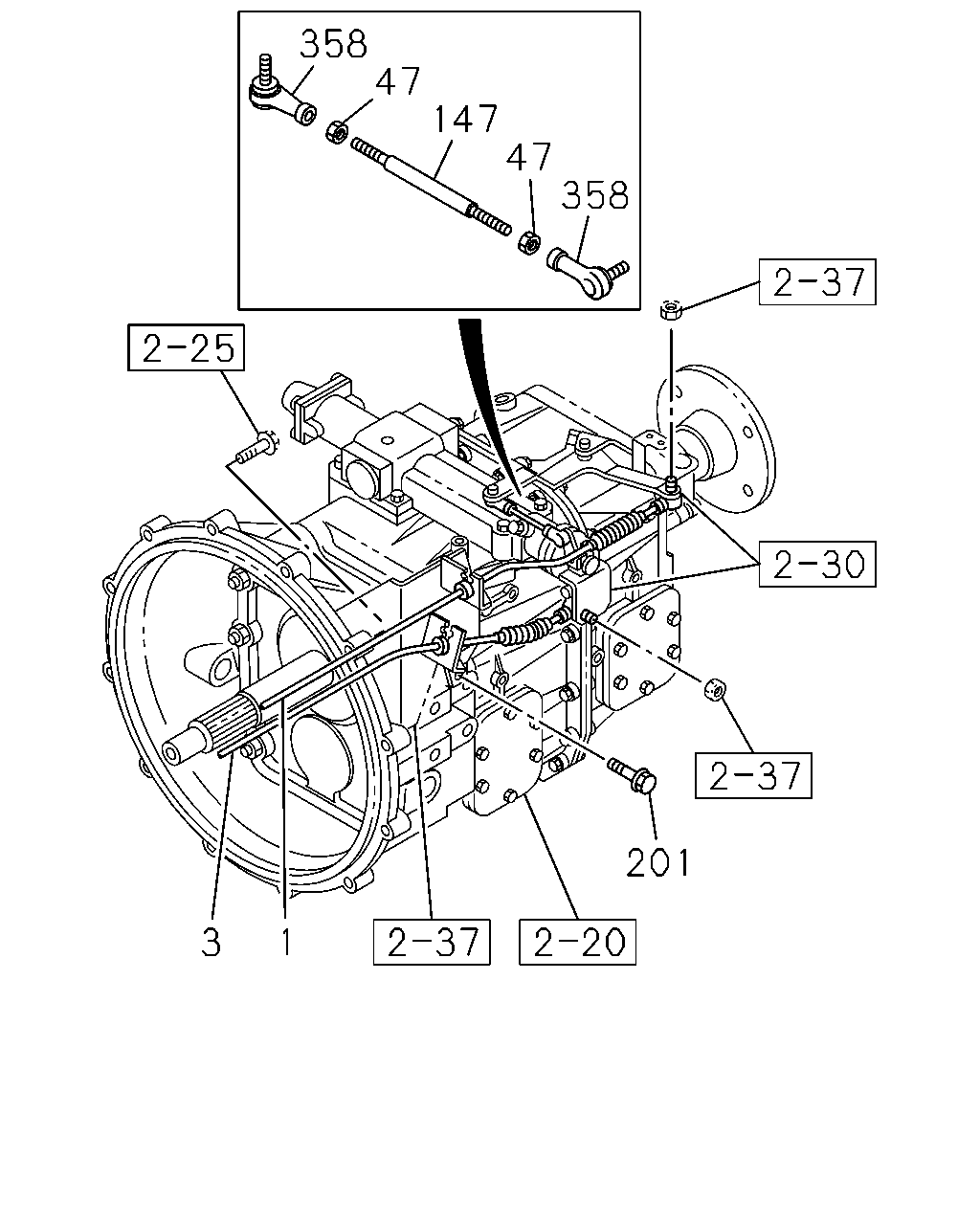

çizim 110384
358 47 147 47 358 201 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3545 		8-98047-799-3 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3525 		8-98113-108-2 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3555 		8-98121-073-4 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3485 		8-98010-434-4 01 1 1112-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3510 		8-98017-469-4 01 1 1112-
3 CABLE; SELECT,TRANS CONT
FULLER FSO5206B OD M/T(Y4V) L=3725 		8-98047-813-2 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3630 		8-98113-109-1 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3665 		8-98121-074-3 01 1 1112-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3690 		8-98010-474-2 01 1 1112-
47 NUT; LK,LINK ROD
FULLER FSO5206B OD M/T(Y4V) M8 		0-91111-508-0 02 1 1112-
147 ROD; LINK
FULLER FSO5206B OD M/T(Y4V) 		0-84000-808-0 01 1 1112-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 1112-
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1112-
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 1112-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) M8X16 FLANGE 		0-28050-816-0 01 1 1112-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1112-
201 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) M12X35 FLANGE 		0-28151-235-0 01 1 1112-
358 ROD END; SCREW
FULLER FSO5206B OD M/T(Y4V) L=45.5 		1-09760-118-1 02 1 1112-
