0-13B — OIL PAN AND LEVEL GAUGE (#407) — 57 parça

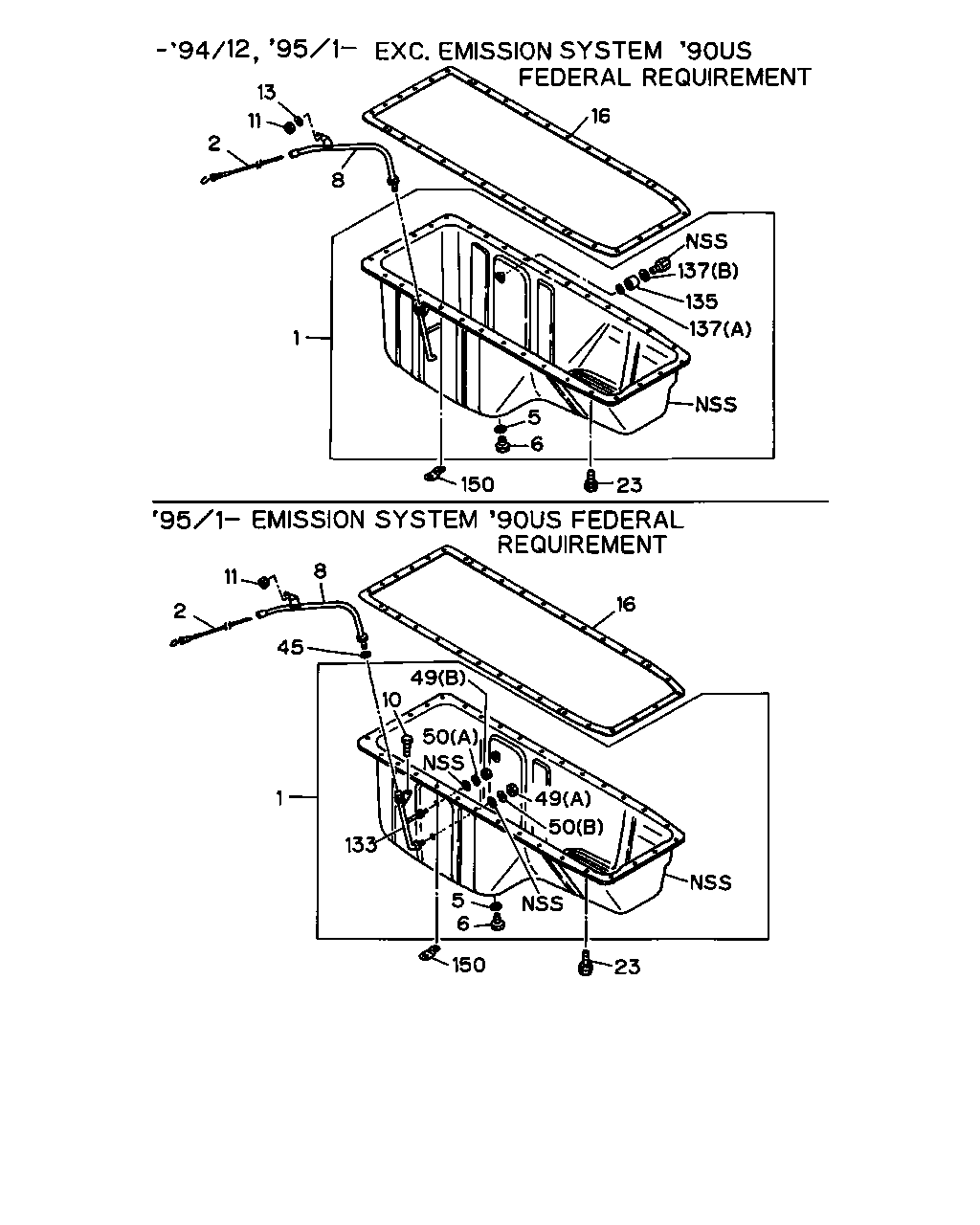

13 2 11 16 137 137 135 5 150 8 6 1 23 8 11 2 16 45 49 10 50 1 133 49 50 5 6 150 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	1-11360-648-2	01	1	8712-9001	●
1	PAN ASM; OIL	1-11360-715-1	01	1	9002-9412		●
1	PAN ASM; OIL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11360-715-2	01	1	9501-		●
1	PAN ASM; OIL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11360-694-2	01	1	9501-		●
2	GAUGE; OIL LEVEL W/CAP	1-11760-311-0	01	1	8712-9001	●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	9-09920-605-0	01	1	8712-9001	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-		●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	8712-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-312-0	01	1	8712-9001	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-		●
10	BOLT; GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X16 W/LK WASHER	0-50040-816-0	01	1	9501-		●
11	NUT; GUIDE,OIL LEVEL GAUGE M8	9-09110-408-0	01	1	8712-9001	●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-		●
13	WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE ID=8.4 OD=18	9-09164-608-0	01	1	8712-9306	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-020-0	01	1	8712-8801	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	8802-9504	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-		●
23	BOLT; OIL PAN M8X90	9-01065-890-0	20	1	8712-9001	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	8712-	●	●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-		●
45	GASKET; GUIDE TUBE ALSO INCLUDED IN GASKET SET(ENGINE). EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=10.8	1-09623-274-0	01	1	9501-		●
49	NUT; GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) M22	9-09111-422-0	01	1	9501-		●
49	NUT; GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) M14	9-99111-414-0	01	1	9501-		●
50	WASHER; PL,GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) ID=15 OD=30	9-09160-614-0	01	1	9501-		●
50	WASHER; PL,GUIDE TUBE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A) ID=23 OD=44	9-09160-622-0	01	1	9501-		●
133	TUBE ASM; OIL PAN EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11766-300-0	01	1	9501-		●
135	ADAPTER; GUIDE TUBE	1-11369-126-0	01	1	9308-9412		●
135	ADAPTER; GUIDE TUBE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11369-126-0	01	1	9501-		●
137	GASKET; ADAPTER (A)	1-09623-185-0	01	1	9308-9412		●
137	GASKET; ADAPTER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-09623-185-0	01	1	9501-		●
137	GASKET; ADAPTER (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9308-9412		●
137	GASKET; ADAPTER EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) ID=14.2 OD=19.2	1-09630-085-0	01	1	9501-		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	8712-	●	●

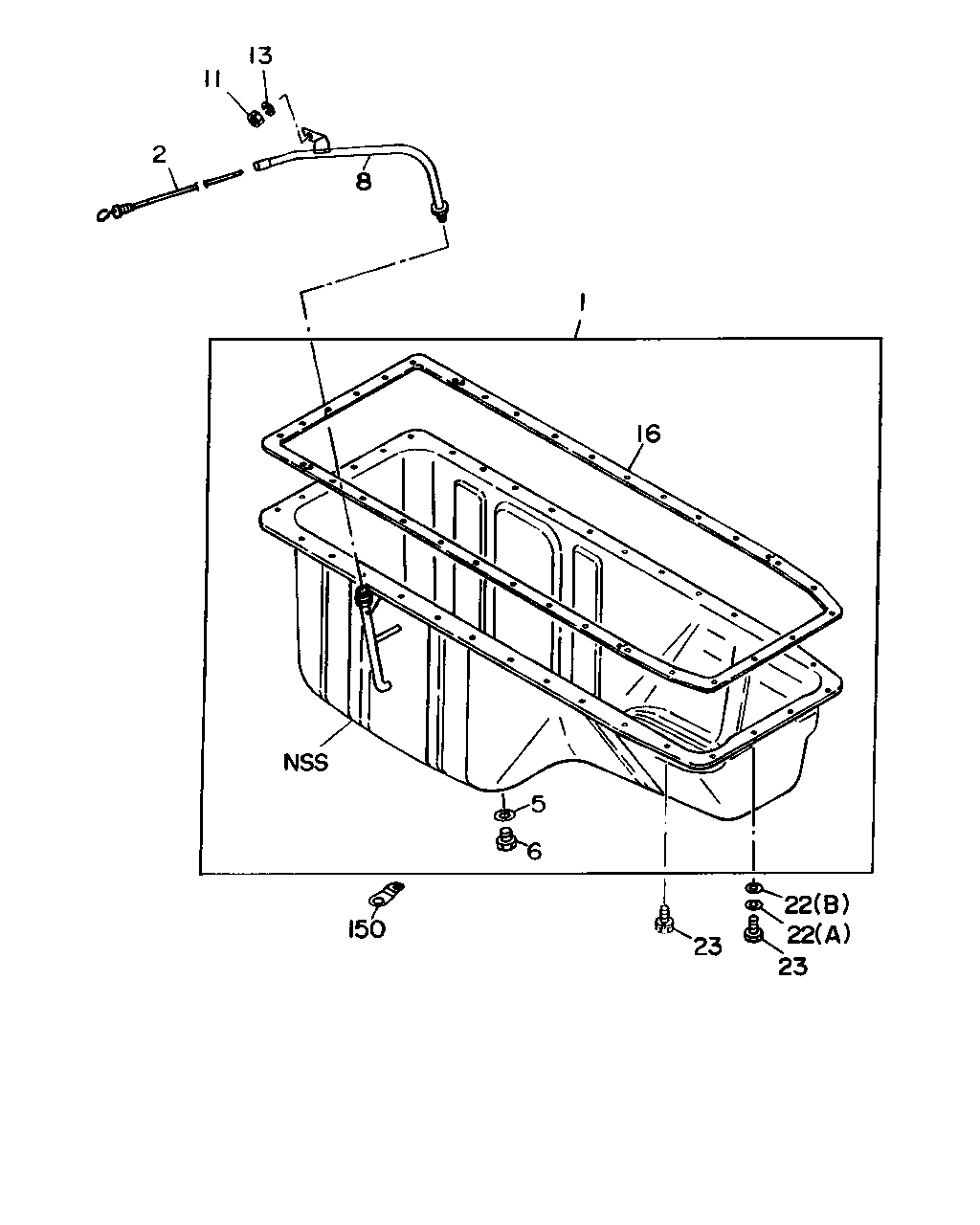

13 11 2 8 1 16 150 5 6 23 22 22 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PAN ASM; OIL	1-11360-648-2	01	1	8712-9001	●
1	PAN ASM; OIL	1-11360-715-1	01	1	9002-9412		●
1	PAN ASM; OIL EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11360-715-2	01	1	9501-		●
1	PAN ASM; OIL EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-11360-694-2	01	1	9501-		●
2	GAUGE; OIL LEVEL W/CAP	1-11760-311-0	01	1	8712-9001	●
2	GAUGE; OIL LEVEL	1-11760-300-2	01	1	9002-		●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	9-09920-605-0	01	1	8712-9001	●
5	GASKET; PLUG,OIL DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	9002-		●
6	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-064-1	01	1	8712-	●	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-312-0	01	1	8712-9001	●
8	TUBE; GUIDE,OIL LEVEL GAUGE	1-11766-293-1	01	1	9002-		●
11	NUT; GUIDE,OIL LEVEL GAUGE M8	9-09110-408-0	01	1	8712-9001	●
11	NUT; GUIDE,OIL LEVEL GAUGE M8 FLANGE	0-91150-108-0	01	1	9002-		●
13	WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE ID=8.4 OD=18	9-09164-608-0	01	1	8712-9306	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-020-0	01	1	8712-8801	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-091-1	01	1	8802-9504	●	●
16	GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11367-105-0	01	1	9505-		●
22	WASHER; LK,OIL PAN (A) SP WASHER	9-09150-508-0	10	1	8712-8912	●
22	WASHER; LK,OIL PAN (B) PL WASHER	9-09160-508-0	10	1	8712-8912	●
23	BOLT; OIL PAN M8X90	9-01065-890-0	20	1	8712-9001	●
23	BOLT; OIL PAN M8X18 W/LK&PL WASHER	1-09030-004-0	22	1	8712-	●	●
23	BOLT; OIL PAN M8X90 W/LK&PL WASHER	1-09030-078-0	10	1	9002-		●
150	CLIP; WATER,OIL DRAIN	9-11229-070-0	01	1	8712-	●	●
