2-05 — CLUTCH PIPING (#40691) — 94 parça

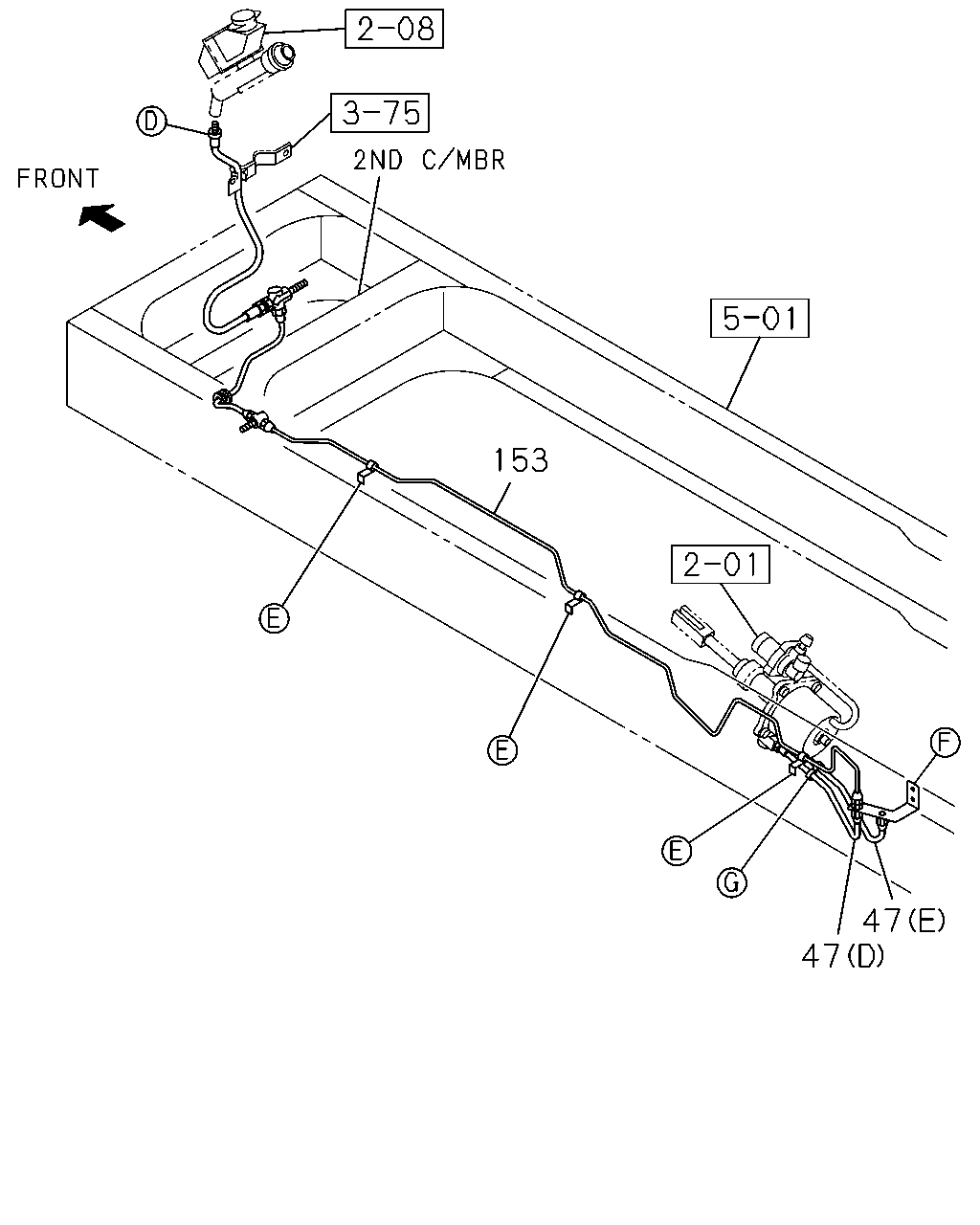

48 101 34 50 239 35 160 234 33 104 180 124 153 106 9 45 51 153 54 45 115 44 49 42 16 43 47 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	1112-
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	1112-
33	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35	1-09701-247-1	03	1	1112-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1112-
33	CLIP; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=6.35	1-09701-247-1	05	1	1112-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	1112-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	1112-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	1112-
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-98105-654-0	01	1	1112-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	1112-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1112-
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V) M12	9-09840-280-0	02	1	1112-
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1112-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (E) L=430	1-09363-726-0	01	1	1112-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) L=375	1-09364-407-0	01	1	1112-
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	1112-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=239	1-49117-401-0	01	1	1112-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1112-
50	NUT; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	1112-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1112-
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	1112-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1112-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1112-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=554	8-98114-452-0	01	1	1112-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1112-
106	UNION; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> M12 3WAY	8-98051-113-0	01	1	1112-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V) M14	0-91111-514-0	01	1	1112-
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1112-
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2749	8-98152-243-0	01	1	1112-
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1112-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1112-
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1112-
234	CONNECTOR; ELBOW MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1112-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V)	8-98107-850-0	01	1	1112-
239	UNION; CLU HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	1112-

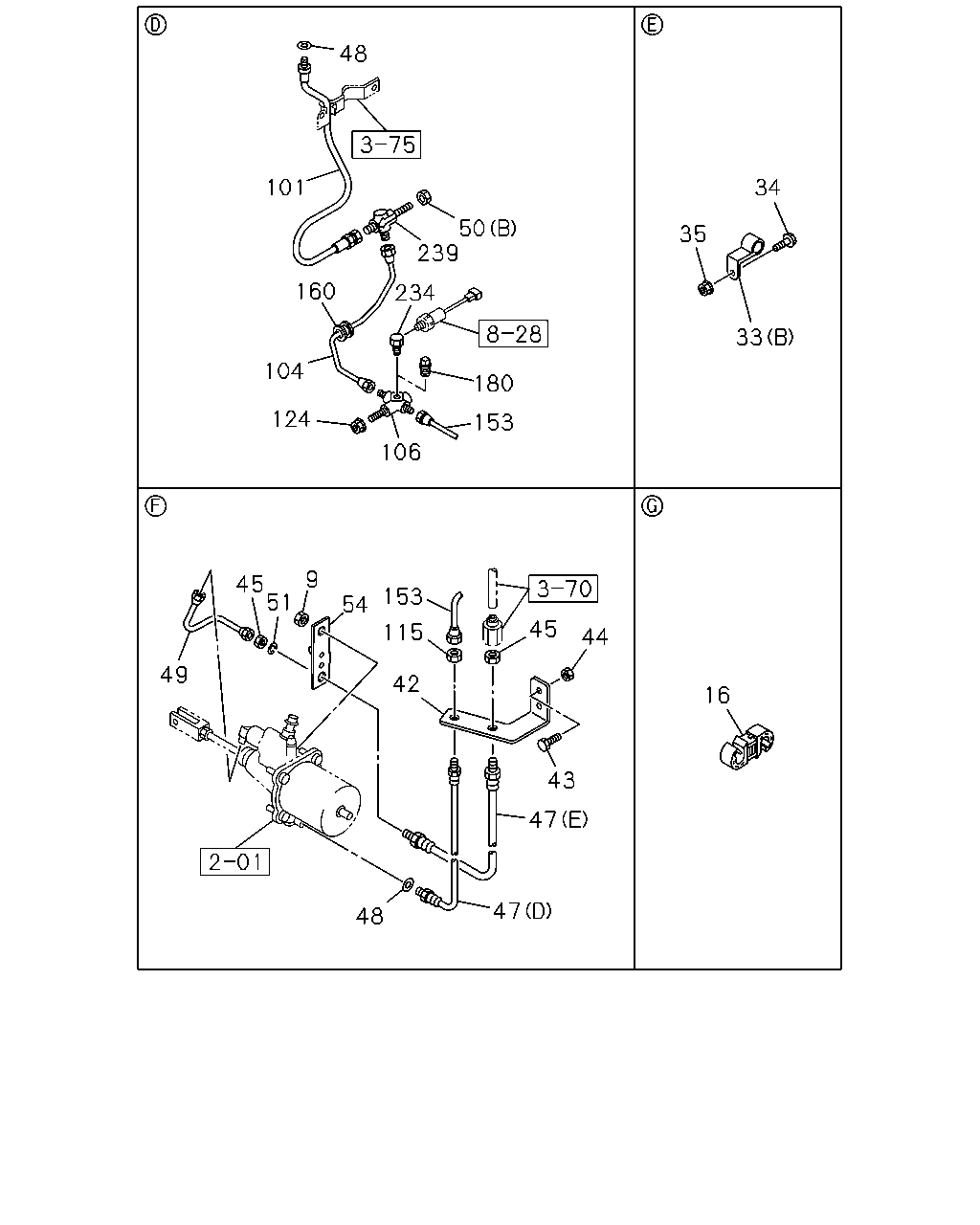

153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (E) L=430	1-09363-726-0	01	1	1112-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) L=375	1-09364-407-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2749	8-98152-243-0	01	1	1112-

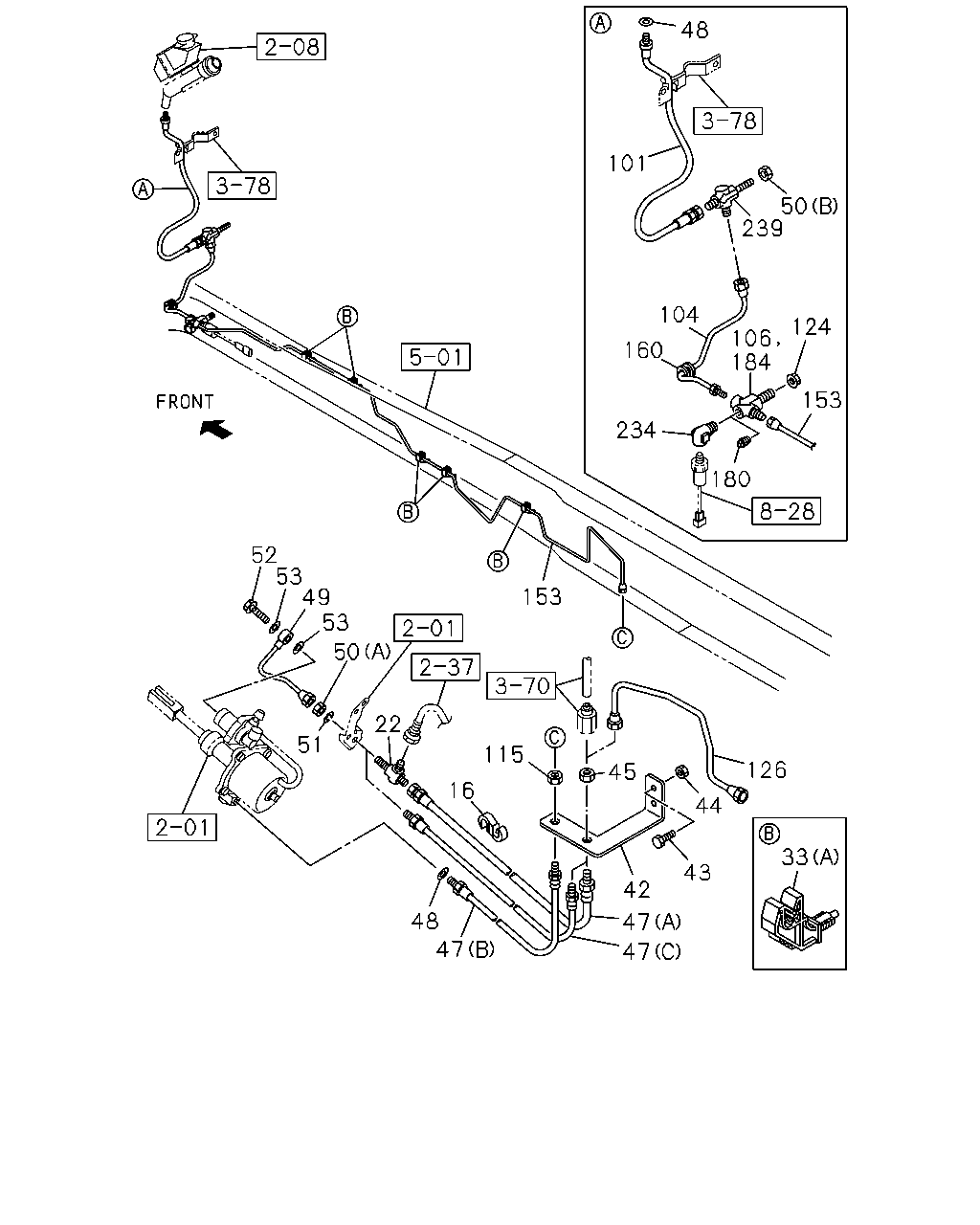

48 101 50 239 104 124 106 184 160 153 234 180 52 53 49 53 153 50 22 51 115 126 45 16 44 33 43 42 48 47 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	1112-
22	UNION; CLU PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1112-
33	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35	1-09701-247-1	03	1	1112-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1112-
33	CLIP; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=6.35	1-09701-247-1	05	1	1112-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	1112-
42	BRACKET; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-98105-654-0	01	1	1112-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	1112-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	1112-
45	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V) M12	9-09840-280-0	02	1	1112-
45	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1112-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (E) L=430	1-09363-726-0	01	1	1112-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> (A) L=380	1-09363-884-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1112-
47	HOSE; FLEX,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) L=375	1-09364-407-0	01	1	1112-
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	1112-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	1112-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=239	1-49117-401-0	01	1	1112-
50	NUT; UNION (B) M12	0-91111-512-0	01	1	1112-
50	NUT; UNION MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (A) M12	9-09840-280-0	01	1	1112-
51	WASHER; LK ID=12.2	0-91510-812-0	01	1	1112-
52	BOLT; EYE,AIR PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M14X27 FLANGE	1-09675-086-0	01	1	1112-
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=14.2 OD=19.2	1-09630-085-0	02	1	1112-1312
53	GASKET; JOINT BOLT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1112-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1112-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) L=554	8-98114-452-0	01	1	1112-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1112-
106	UNION; OIL PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> M12 3WAY	8-98051-113-0	01	1	1112-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V) M14	0-91111-514-0	01	1	1112-
115	NUT; FLEX HOSE,CLU CONT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12	9-09840-280-0	01	1	1112-
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	1112-
126	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	8-98110-637-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2686	8-98185-616-0	01	1	1112-
153	PIPE ASM; CLU,UNION TO FLEX MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=2749	8-98152-243-0	01	1	1112-
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	1112-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1112-
184	UNION; FLEX HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1112-
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1112-
234	CONNECTOR; ELBOW MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> PT1/8 ELBOW	8-94338-418-1	01	1	1112-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V)	8-98107-850-0	01	1	1112-
239	UNION; CLU HOSE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M12 2WAY	1-09654-059-2	01	1	1112-
