◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#4069) — 68 parça

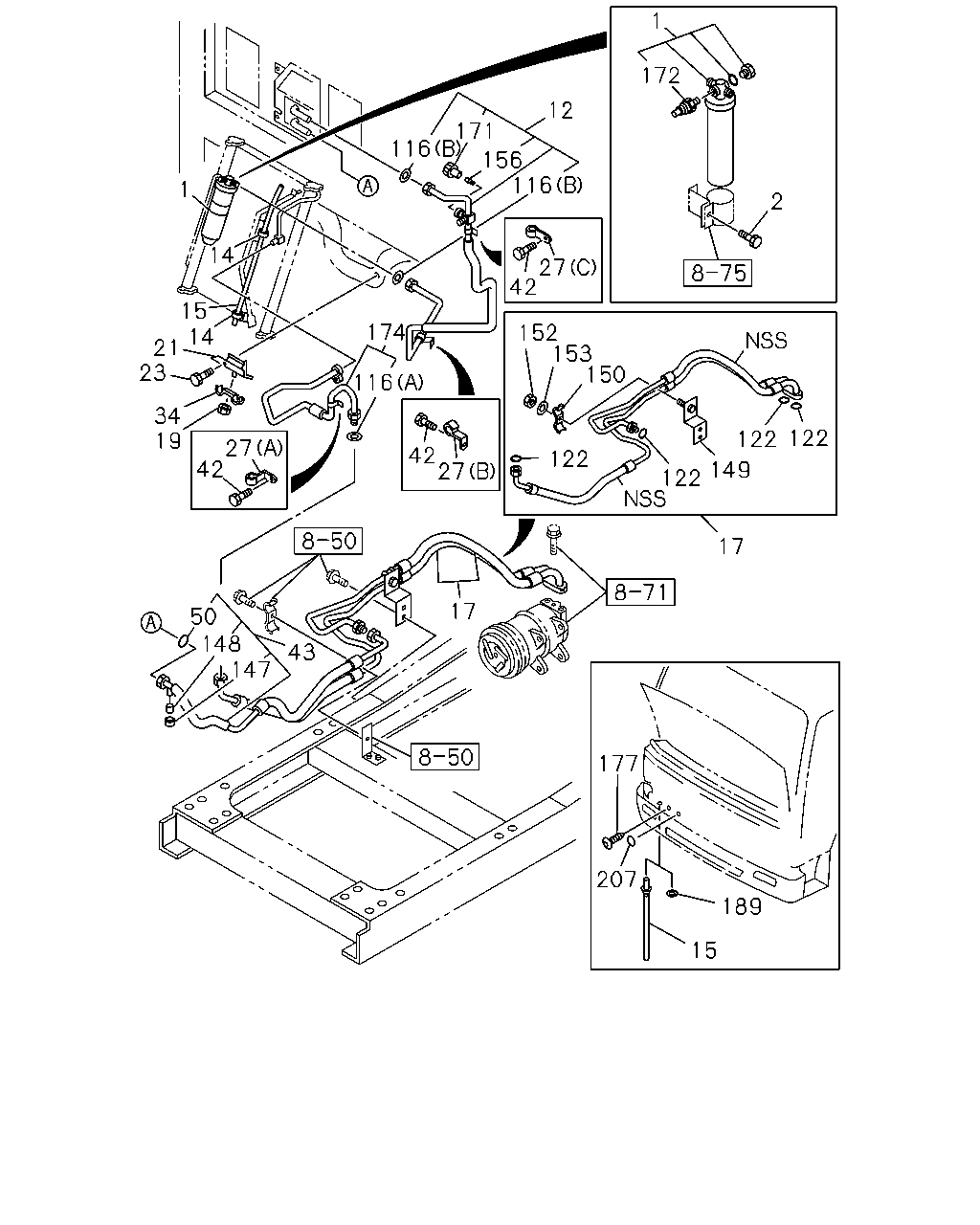

çizim 116159
1 172 12 171 116 156 116 1 2 14 27 42 15 14 174 152 153 150 21 23 116 34 19 122 122 27 42 42 27 122 149 122 17 17 50 148 147 43 177 207 189 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-078-0 01 1 9510-0004 ● ●
1 TANK; RECEIVER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-088-0 01 1 0005- ● ●
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9510-0607 ● ●
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0608- ●
2 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB COOLER COMPRESSOR<WS4> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0608- ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-544-0 01 1 9510-0004 ● ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-684-0 01 1 0005- ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 9510-0607 ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0608- ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83566-903-3 01 1 9510-9702 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-411-0 01 1 9703-9904 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-635-0 01 1 9905- ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83566-904-2 01 1 9510-9702 ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-83572-412-0 01 1 9703- ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-266-1 01 1 9510-0004 ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-669-1 01 1 0005-0302 ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-959-0 01 1 0303-0307 ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-988-0 01 1 0308- ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9510-9606 ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 9607-0602 ● ●
19 NUT; CLIP FIX
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-928-2 01 1 9510- ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9802-0512 ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 9510-9902 ● ●
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=12 L=20 		1-09701-274-0 01 1 9903-0004 ● ●
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=13 H=18 L=20 		1-09700-813-0 01 1 0005- ● ●
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9510-0707 ● ●
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708- ● ●
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20 		9-09525-235-0 01 1 9510-0606 ● ●
27 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13 L=20 		0-95235-235-0 01 1 0607- ● ●
34 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=12.2 & 16.2 		1-83574-190-0 01 1 9510- ● ●
42 SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9510-0904 ● ●
42 SCREW; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
43 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-083-2 01 1 9510-0004 ● ●
43 HOSE; FLEX,A/C,EVAP TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-666-2 01 1 0005- ● ●
50 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=13.9 		8-94113-330-0 02 1 9510-0004 ● ●
50 GASKET; FLEX HOSE,A/C
AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3 		8-97161-778-0 02 1 0005- ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=6 		8-94481-700-0 02 1 9510-0004 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97161-776-0 02 1 0005- ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5 		8-97161-777-0 01 1 0005- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=10.8 		8-94113-331-0 02 1 9510-0004 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=15.5 		8-97161-777-0 02 1 0005- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=11.0 		8-94461-900-0 01 1 9510-0004 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3 		8-97161-778-0 02 1 0005-0607 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=18.3 		8-97161-778-0 01 1 0608- ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) ID=14.8 		8-94461-901-0 01 1 9510-0004 ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97083-102-0 01 1 9510- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9510-0109 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-892-0 01 1 0110-0209 ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 0210- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-878-0 01 1 9510-0004 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83574-165-0 01 1 9510-0004 ● ●
152 NUT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 01 1 9510-9805 ● ●
152 NUT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M6 		9-09110-406-0 01 1 9806-0004 ● ●
153 WASHER
AIR CONDITIONER MANUAL CONTROL(C60) ID=6.1 		9-09150-506-0 01 1 9510-0004 ● ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97083-100-0 01 1 9510- ● ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97083-101-0 01 1 9510- ● ●
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83544-047-0 01 1 0005- ● ●
172 SWITCH; PRESS,RECEIVER TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97085-786-0 01 1 9510-0004 ● ●
174 PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-543-0 01 1 9510-0004 ● ●
174 PIPE; COOLER,CONDENSER TO FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-683-0 01 1 0005- ● ●
177 PLUG; CLIP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK 		8-94279-804-0 02 1 9510-9803 ● ●
177 PLUG; CLIP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9804-9804 ● ●
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		9-09575-397-0 01 1 9510- ● ●
207 SEAL; FLEX HOSE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9903- ● ●
