◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#40686) — 27 parça
çizim 110335
82 81 80 83 71 42 74 6
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE 8-98054-173-6 01 1 1112-1302
6 VALVE; EXH BRAKE 8-98233-801-0 01 1 1303-
42 HOSE; FLEX,EXH BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=540 		1-09363-612-1 01 1 1112-
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=310 		1-09363-713-0 01 1 1112-
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=370 		1-09363-771-0 01 1 1112-
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=360 		1-09363-637-0 01 1 1112-
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=480 		1-09363-659-0 01 1 1112-
71 BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28650-825-0 01 1 1112-
74 CONNECTOR; EXH BRK VLV
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1112-
74 CONNECTOR; EXH BRK VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
74 CONNECTOR; EXH BRK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
74 CONNECTOR; EXH BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
80 BRACKET; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98140-791-0 01 1 1112-
81 BOLT; HOSE BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE 		0-28051-035-0 01 1 1112-
82 NUT; HOSE BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE 		0-91180-210-0 01 1 1112-
83 CLIP; FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 		1-09701-030-1 01 1 1112-

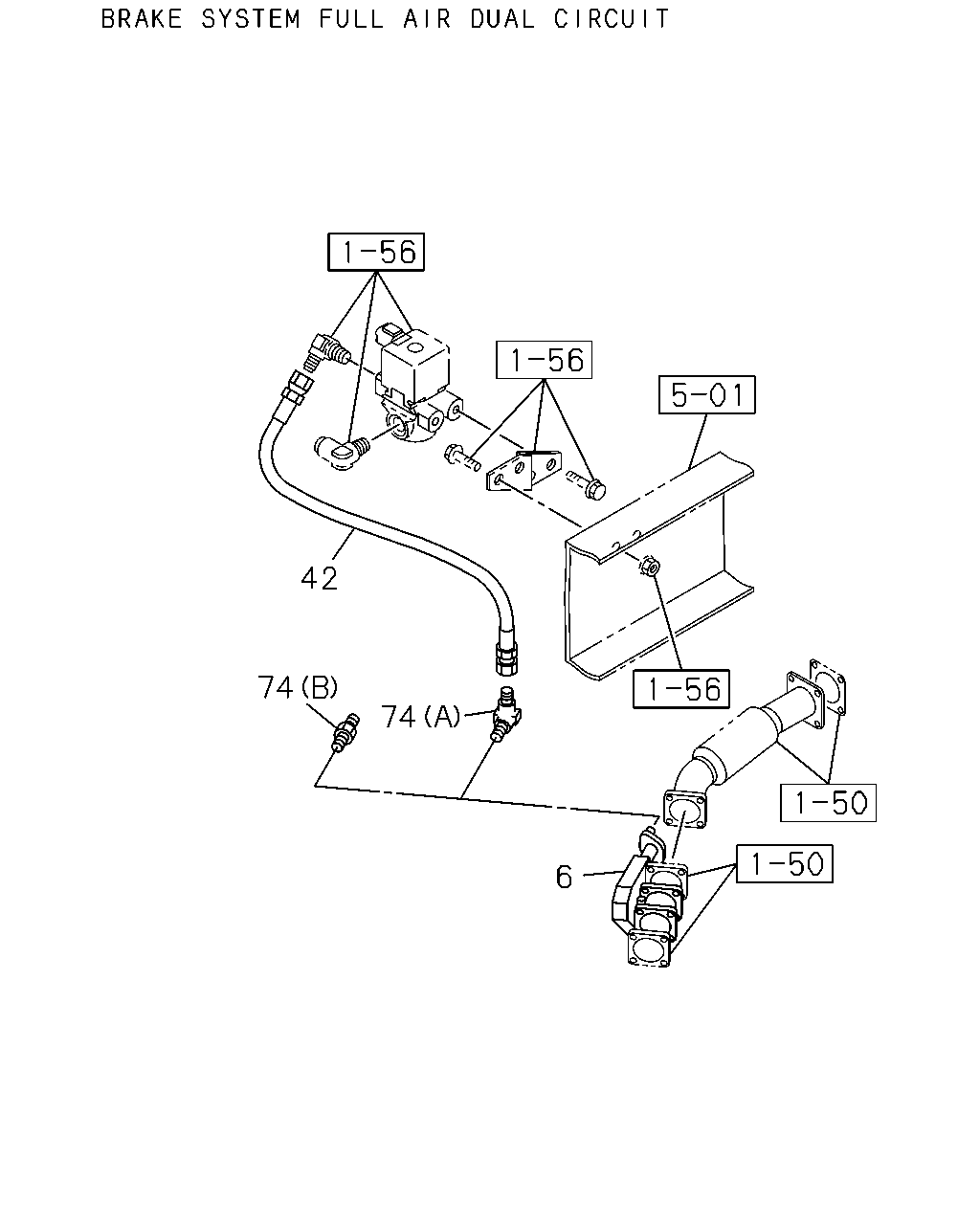

çizim 110337
42 74 74 6
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE 8-98054-173-6 01 1 1112-1302
6 VALVE; EXH BRAKE 8-98233-801-0 01 1 1303-
42 HOSE; FLEX,EXH BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=540 		1-09363-612-1 01 1 1112-
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=310 		1-09363-713-0 01 1 1112-
42 HOSE; FLEX,EXH BRK
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=370 		1-09363-771-0 01 1 1112-
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=360 		1-09363-637-0 01 1 1112-
42 HOSE; FLEX,EXH BRK
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> L=480 		1-09363-659-0 01 1 1112-
74 CONNECTOR; EXH BRK VLV
FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1112-
74 CONNECTOR; EXH BRK VLV
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
74 CONNECTOR; EXH BRK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
74 CONNECTOR; EXH BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
