1-50 — EXHAUST PIPE AND SILENCER (#40685) — 138 parça

126 94 22 94 105 105 22 56 81 226 107 62 226 121 70 118 60 105 70 107 81 60 22 22 94 56 75 62 75 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1112-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1112-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1112-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1112-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	1112-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1112-1309
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1112-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	1112-
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	1112-
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	1112-
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1112-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1112-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1112-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1112-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	02	1	1306-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1112-
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1112-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1112-
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1112-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1112-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1112-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1112-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1112-
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	1112-
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	1112-
126	PIPE; EXH,RR	8-98069-920-0	01	1	1112-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1112-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1112-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1112-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1112-

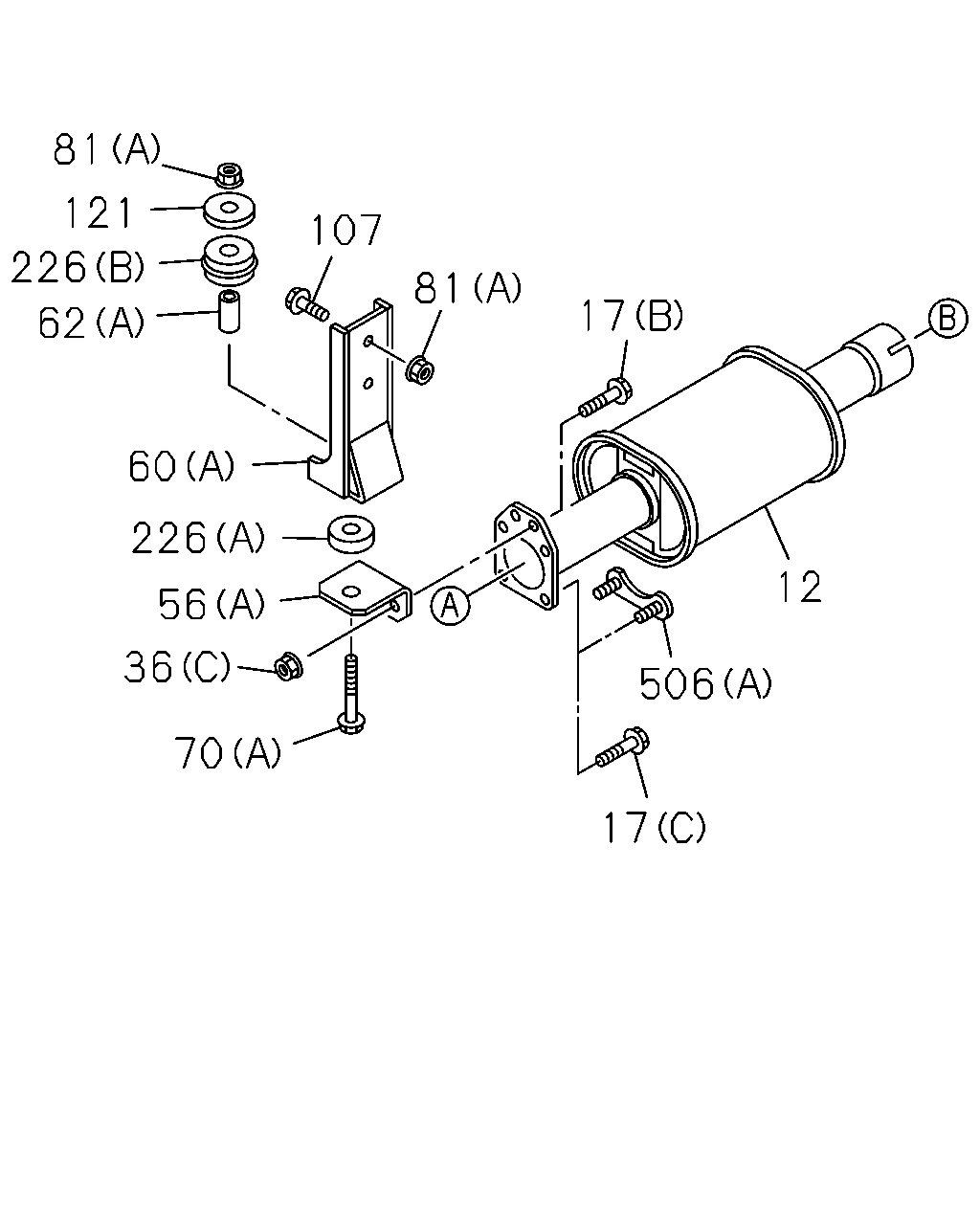

81 121 226 62 107 81 17 12 506 17 70 36 226 56 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	8-98101-274-1	01	1	1112-
17	BOLT; EXH PIPE (C) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1112-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1112-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1112-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1112-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1112-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1112-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1112-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	1112-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1112-1309
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1112-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	1112-
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	1112-
62	TUBE; DIST,BRKT (A)	8-98060-852-0	01	1	1112-
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1112-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1112-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1112-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	02	1	1306-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1112-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1112-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1112-
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	1112-
121	WASHER; PL,BRKT ID=8.4 OD=22	1-09503-154-2	01	1	1112-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1112-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1112-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1112-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1112-
506	BRACKET; STUD (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	1112-1203

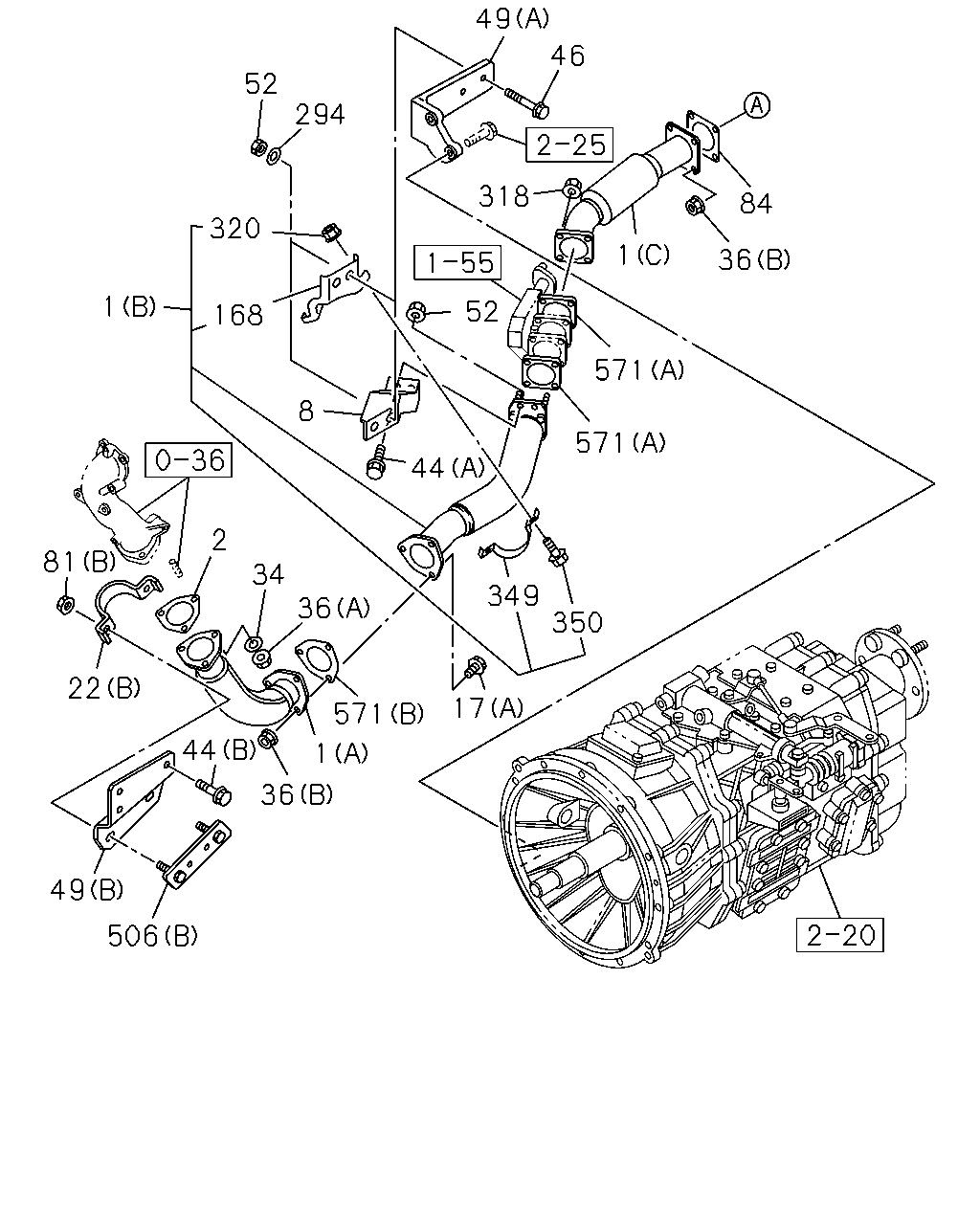

52 320 1 168 8 294 49 318 52 46 84 36 1 571 571 349 17 350 44 2 34 36 571 1 36 44 22 49 506 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A)	8-98073-006-1	01	1	1112-
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V) (B)	8-98060-615-0	01	1	1112-1309
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V) (B)	8-98245-500-0	01	1	1310-
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V) (C)	8-98090-386-0	01	1	1112-
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C)	8-98096-668-1	01	1	1112-
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B)	8-98119-515-0	01	1	1112-1209
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B)	8-98230-001-0	01	1	1210-1309
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B)	8-98245-502-0	01	1	1310-1406
1	PIPE; EXH MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B)	8-98234-516-0	01	1	1407-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-98043-481-0	01	1	1112-
8	BRACKET; EXH PIPE FULLER FSO5206B OD M/T(Y4V)	8-98069-914-0	01	1	1112-
17	BOLT; EXH PIPE (C) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1112-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1112-
22	CLAMP; EXH PIPE (B)	8-97615-334-0	01	1	1305-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1112-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1112-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1112-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1112-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1112-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1112-
44	BOLT; BRKT (B) M10X20 FLANGE	0-28751-020-0	03	1	1305-
44	BOLT; BRKT FULLER FSO5206B OD M/T(Y4V) (A) M10X35 FLANGE	0-28651-035-0	02	1	1112-
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1112-
49	BRACKET; EXH PIPE TO TRANS (B)	8-97629-970-0	01	1	1305-
49	BRACKET; EXH PIPE TO TRANS FULLER FSO5206B OD M/T(Y4V) (A)	8-98123-995-0	01	1	1112-
49	BRACKET; EXH PIPE TO TRANS MLD6W M/T(Y2C) (A)	8-98113-012-0	01	1	1112-
49	BRACKET; EXH PIPE TO TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-98120-493-0	01	1	1112-
52	NUT; BRKT FULLER FSO5206B OD M/T(Y4V) M10 FLANGE	0-91180-210-0	02	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1306-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1112-
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	1112-1304
81	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	02	1	1306-
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1112-
168	BRACKET; EXH PIPE,FRT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-98071-144-0	01	1	1112-1209
168	BRACKET; EXH PIPE,FRT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-98221-369-1	01	1	1210-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1112-
318	NUT; EXH PIPE,FRT M10 FLANGE	0-91180-210-0	04	1	1112-
320	NUT; CLAMP,EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	02	1	1112-
349	CLAMP; EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C)	8-98115-162-0	01	1	1112-
350	BOLT; CLAMP,EXH PIPE MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) M10X30 FLANGE	0-28651-030-0	02	1	1112-
506	BRACKET; STUD (B)	8-97615-333-1	01	1	1305-
506	BRACKET; STUD (A) M12X35	1-22131-963-0	02	1	1112-1203
571	GASKET (A)	1-22116-043-0	02	1	1112-
571	GASKET (B)	8-98043-481-0	01	1	1112-
