1-41 — FUEL PIPING; CHASSIS (#40683) — 69 parça

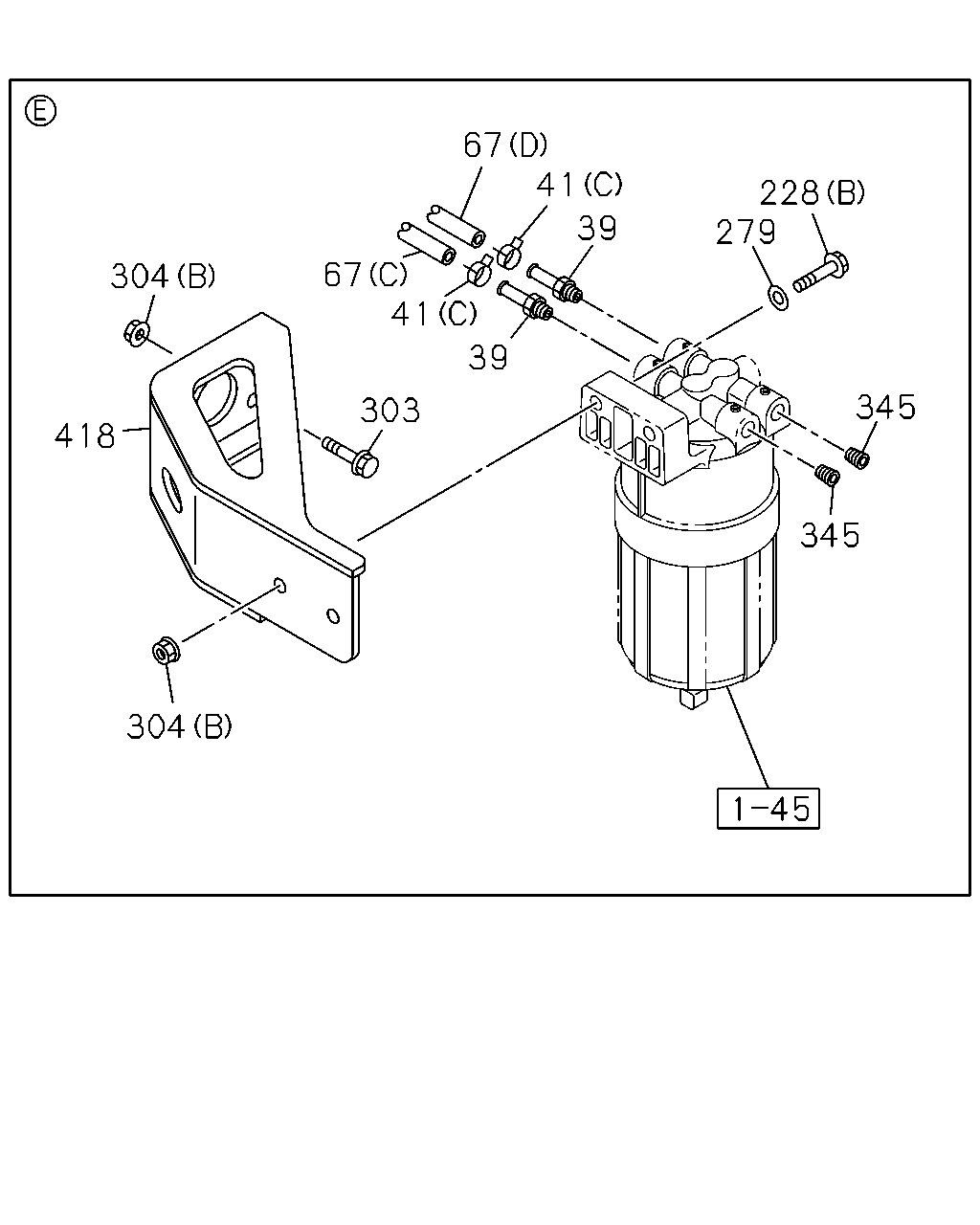

çizim 110328
228 279 345 345 39 41 67 39 41 67 303 304 418 304
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1112-
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98157-879-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1112-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1112-
228 BOLT; BRKT,SEDIMENTER
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1112-
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1112-
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1112-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1112-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1112-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1112-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1112-
418 BRACKET; PRE FUEL FILTER 8-98128-254-0 01 1 1112-

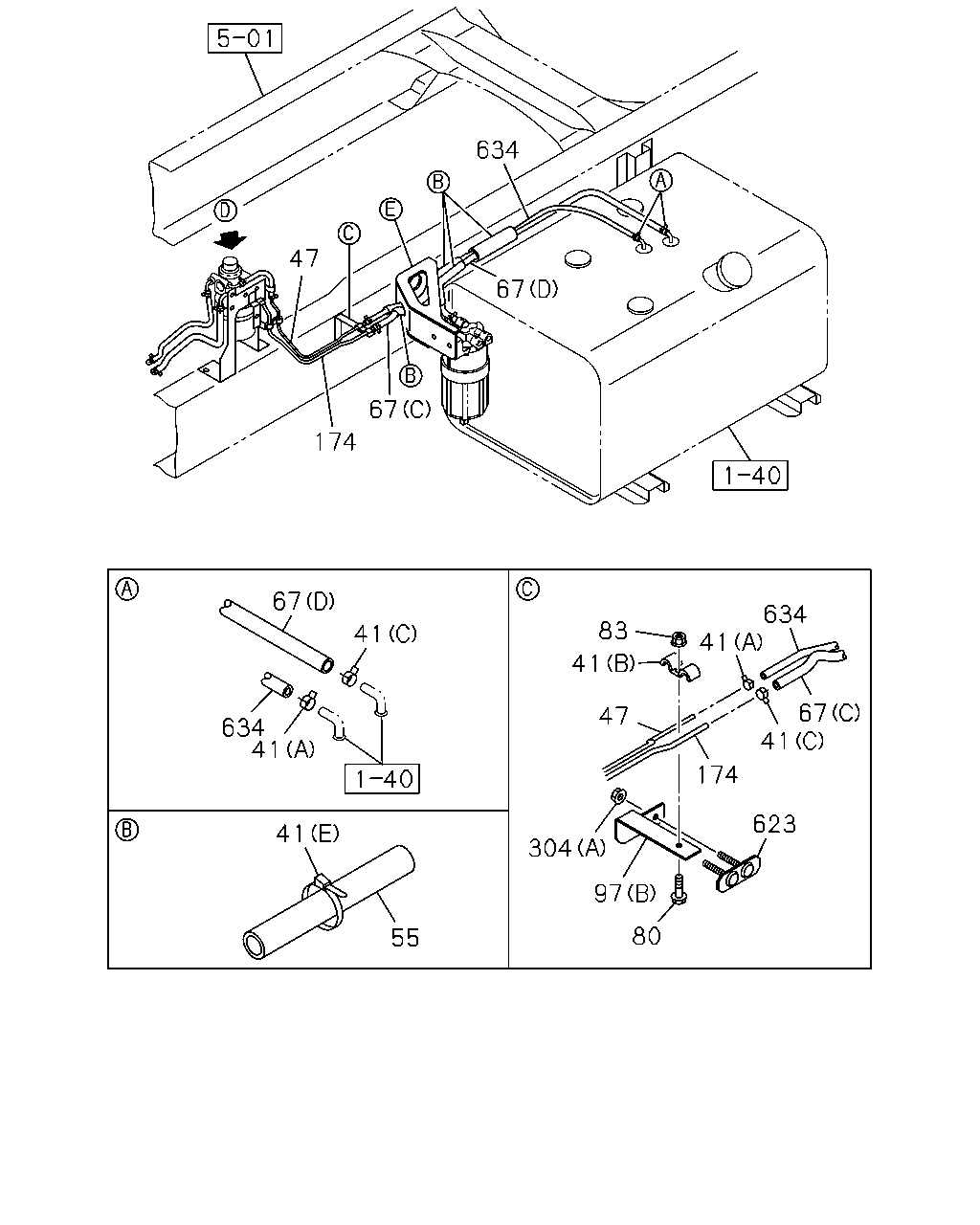

çizim 110330
47 634 67 67 174 634 41 67 41 174 623 80 97 304 47 41 83 41 67 634 41 41 55
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1112-
47 PIPE; FUEL,RETURN
L=539 		8-98117-709-0 01 1 1112-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1112-
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98157-879-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1112-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1112-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1112-
97 BRACKET; CLIP
(A) 		8-98053-654-0 01 1 1112-
97 BRACKET; CLIP
(B) 		8-98126-612-0 01 1 1112-
174 PIPE; FUEL,FEED,FRT
L=548 		8-98117-708-0 01 1 1112-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1112-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1112-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1112-
623 PLATE; STUD BOLT 8-98126-633-0 01 1 1112-
634 HOSE; RUBBER RETURN
L=1050 		8-98128-212-0 01 1 1112-

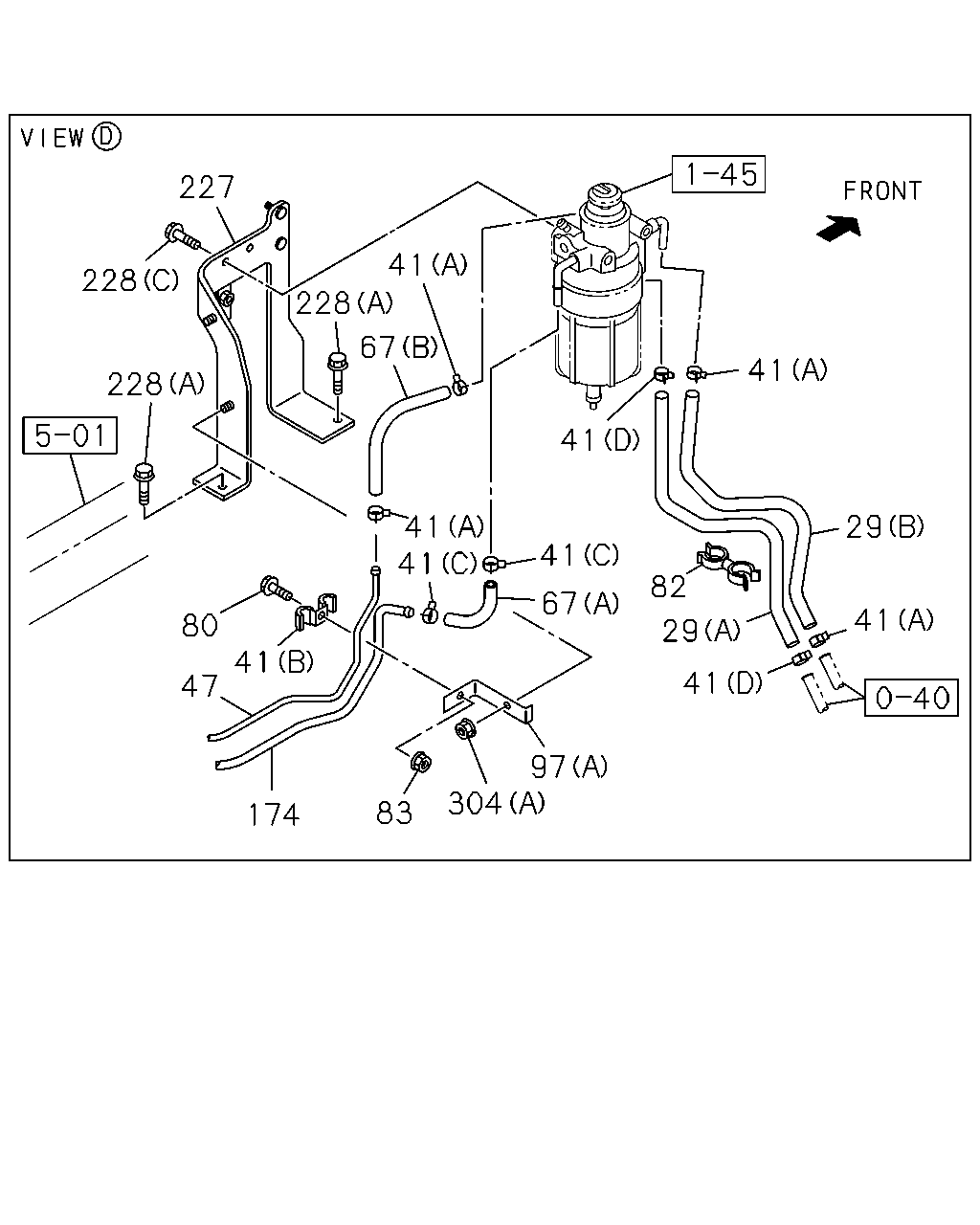

çizim 110336
227 228 228 80 47 174 83 97 304 41 29 82 67 41 41 41 29 41 41 41 67 41 228 41
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1112-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1112-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1112-
47 PIPE; FUEL,RETURN
L=539 		8-98117-709-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98157-879-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1112-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 1112-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1112-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1112-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1112-
97 BRACKET; CLIP
(A) 		8-98053-654-0 01 1 1112-
97 BRACKET; CLIP
(B) 		8-98126-612-0 01 1 1112-
174 PIPE; FUEL,FEED,FRT
L=548 		8-98117-708-0 01 1 1112-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1112-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1112-
228 BOLT; BRKT,SEDIMENTER
(B) M10X50 FLANGE 		0-28051-050-0 02 1 1112-
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1112-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 01 1 1112-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1112-
