1-31 — AIR DUCT (#40680) — 43 parça

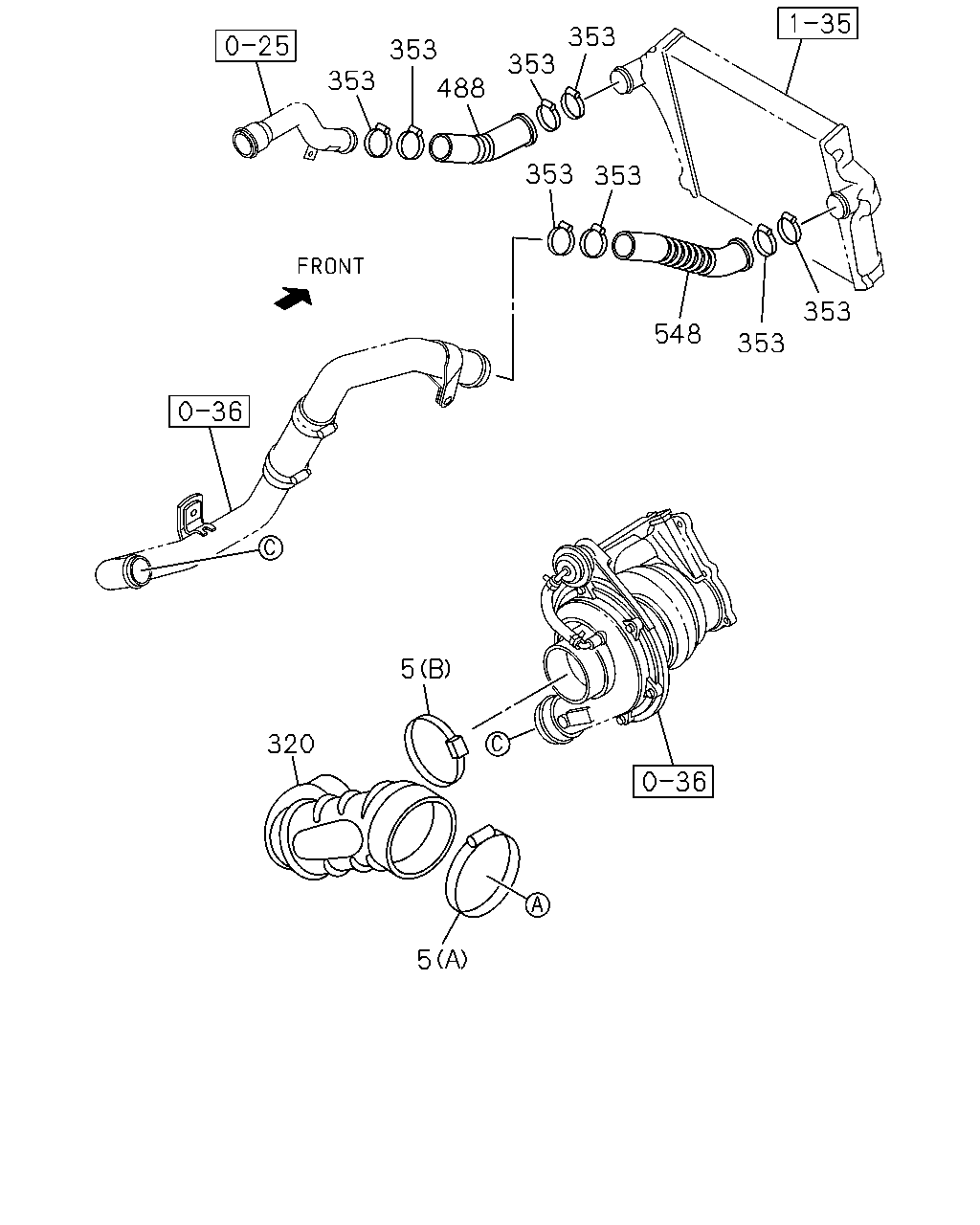

çizim 110327
353 353 353 353 488 353 353 353 548 353 5 320 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1112-
5 CLIP; AIR DUCT
(B) ID=90-110 		8-98133-365-0 01 1 1112-
320 HOSE; CONN,ACL 8-98073-257-0 01 1 1112-
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 1112-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1112-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98181-974-1 01 1 1112-

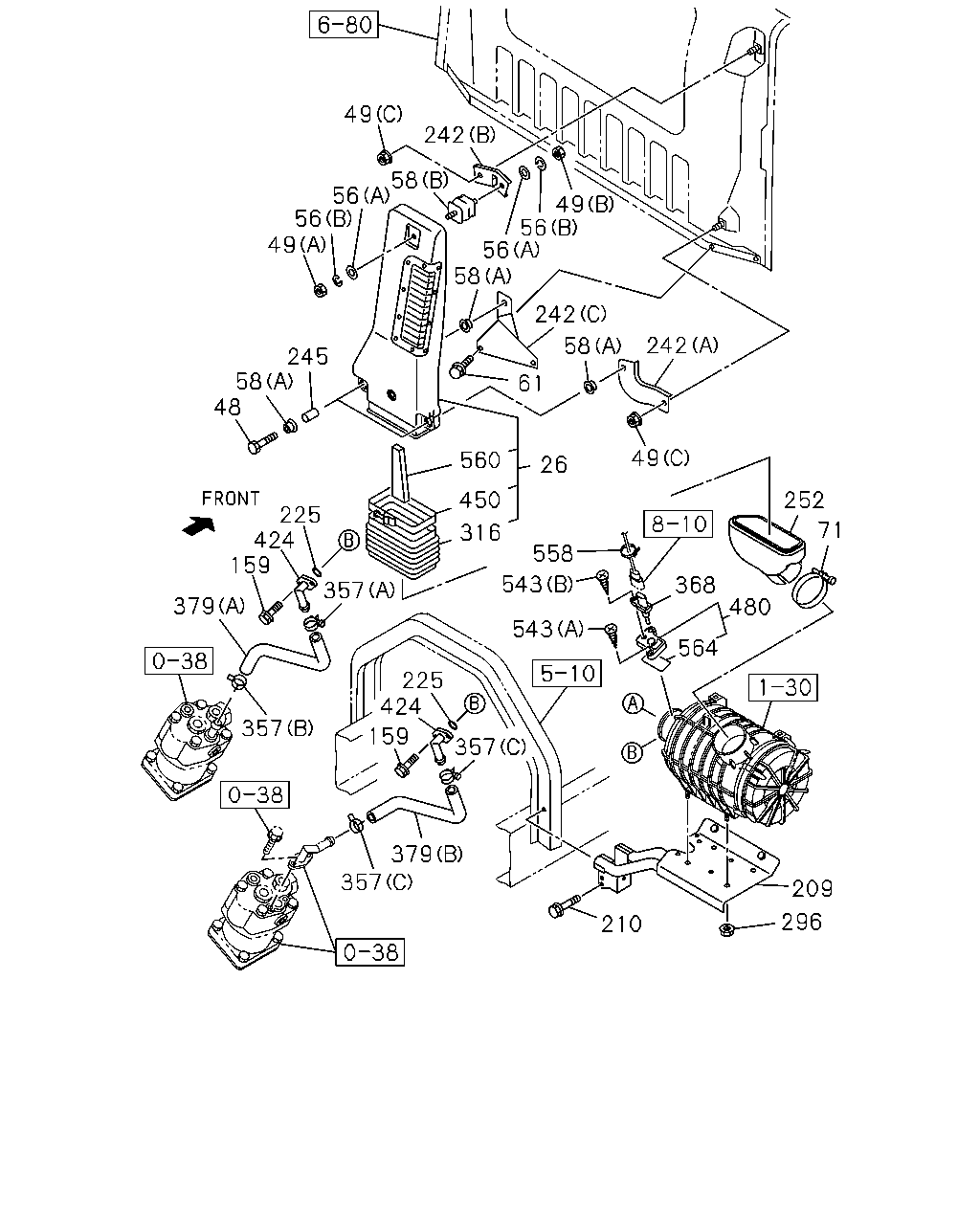

çizim 110331
49 242 58 56 56 49 49 56 56 58 242 242 58 245 61 58 48 49 560 26 450 252 225 424 159 71 316 558 543 368 357 379 480 543 564 225 424 357 159 357 379 357 209 296 210
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1112-
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1112-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1112-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1112-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1112-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1112-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1112-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1112-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1112-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1112-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1112-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1112-
209 BRACKET; ACL 8-98021-995-1 01 1 1112-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1112-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1112-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1112-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1112-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1112-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1112-
252 DUCT; AIR INT 8-98012-861-1 01 1 1112-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1112-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1112-
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1112-
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1112-
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=26 		1-09707-091-0 02 1 1112-
368 SENSOR; TEMP 8-98065-377-0 01 1 1112-
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97619-194-0 01 1 1112-
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98077-469-0 01 1 1112-
424 PIPE; AIR,INL 8-98081-834-0 01 1 1112-
450 CLAMP; HOSE 9-09915-504-1 01 1 1112-
480 ADAPTER 8-98086-417-0 01 1 1112-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1112-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1112-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1112-
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1112-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1112-
564 GASKET; ADAPTER 8-98071-416-0 01 1 1112-
