◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#40673) — 70 parça

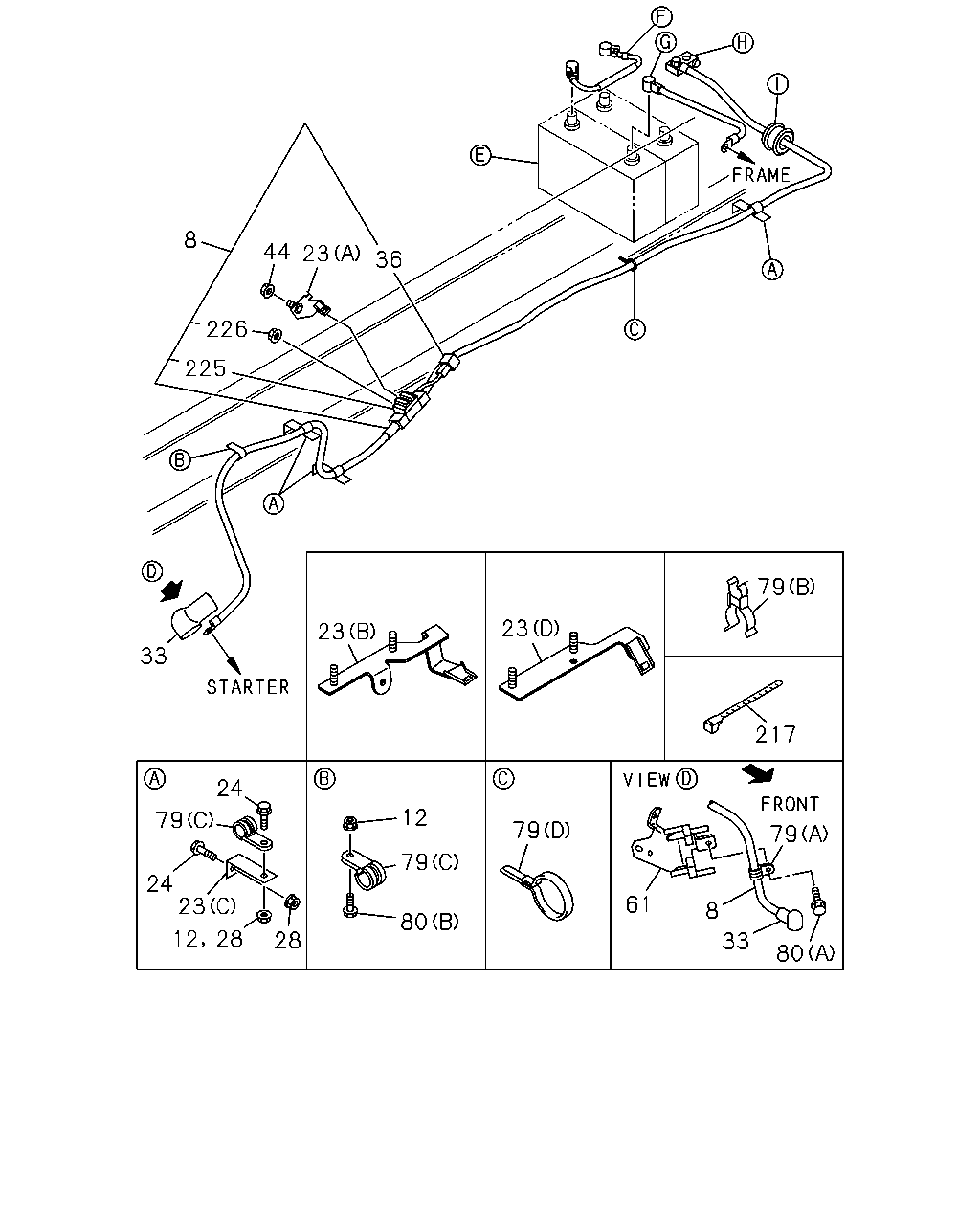

8 44 23 36 226 225 79 23 23 33 217 24 12 79 79 79 79 24 23 61 8 80 12 28 28 33 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA> L=2920	8-98159-420-0	01	1	1112-
8	CABLE; BATTERY,STARTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2720	8-98159-419-0	01	1	1112-
8	CABLE; BATTERY,STARTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> VIN MODEL YEAR 2011<VZB> L=2770	8-98174-091-0	01	1	1112-
8	CABLE; BATTERY,STARTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1112-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB>	8-98159-437-0	01	1	1112-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. VIN MODEL YEAR 2011<VZB>	8-98159-436-0	01	1	1112-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. VIN MODEL YEAR 2011<VZB> L=2830	8-98159-430-0	01	1	1112-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB> L=3030	8-98159-431-0	01	1	1112-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	1112-
12	NUT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1112-
12	NUT; BATTERY CABLE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1112-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	03	1	1112-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1112-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=95	1-82699-085-0	01	1	1112-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98201-024-0	01	1	1112-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=95	1-82699-085-0	02	1	1112-
23	BRACKET; CABLE CLIP TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98201-025-0	01	1	1112-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	03	1	1112-
24	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	1112-
24	BOLT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1112-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-
28	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1112-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1112-
28	NUT; BRKT TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1112-
33	CAP; INSULATOR	1-82699-431-0	01	1	1112-
36	FUSIBLE LINK; BATTERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA>	8-97615-498-1	01	1	1112-
36	FUSIBLE LINK; BATTERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> VIN MODEL YEAR 2011<VZB>	8-97615-498-1	01	1	1112-
36	FUSIBLE LINK; BATTERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB>	8-97615-498-1	01	1	1112-
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1112-
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1112-
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1112-
79	CLIP; BATTERY CABLE (B) ID=13-18 L=26	1-09709-293-0	02	1	1112-
79	CLIP; BATTERY CABLE (C) ID=21 L=24	8-98019-191-0	03	1	1112-
79	CLIP; BATTERY CABLE (D) ID=20 L=50	9-09917-430-0	01	1	1112-
79	CLIP; BATTERY CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=21 L=24	8-98019-191-0	01	1	1112-
79	CLIP; BATTERY CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=21 L=24	8-98019-191-0	02	1	1112-
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1112-
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1112-
80	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28650-825-0	01	1	1112-
80	BOLT; BATTERY CABLE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	02	1	1112-
217	CLIP; BAND,CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	01	1	1112-
225	BLOCK; TERMINAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA>	8-98029-689-0	01	1	1112-
225	BLOCK; TERMINAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> VIN MODEL YEAR 2011<VZB>	8-98029-689-0	01	1	1112-
225	BLOCK; TERMINAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB>	8-98029-689-0	01	1	1112-
226	NUT; FUSIBLE LINK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M6 W/LK WASHER	8-94424-179-0	01	1	1112-
226	NUT; FUSIBLE LINK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> VIN MODEL YEAR 2011<VZB> M6 W/LK WASHER	8-94424-179-0	01	1	1112-
226	NUT; FUSIBLE LINK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB> M6 W/LK WASHER	8-94424-179-0	01	1	1112-

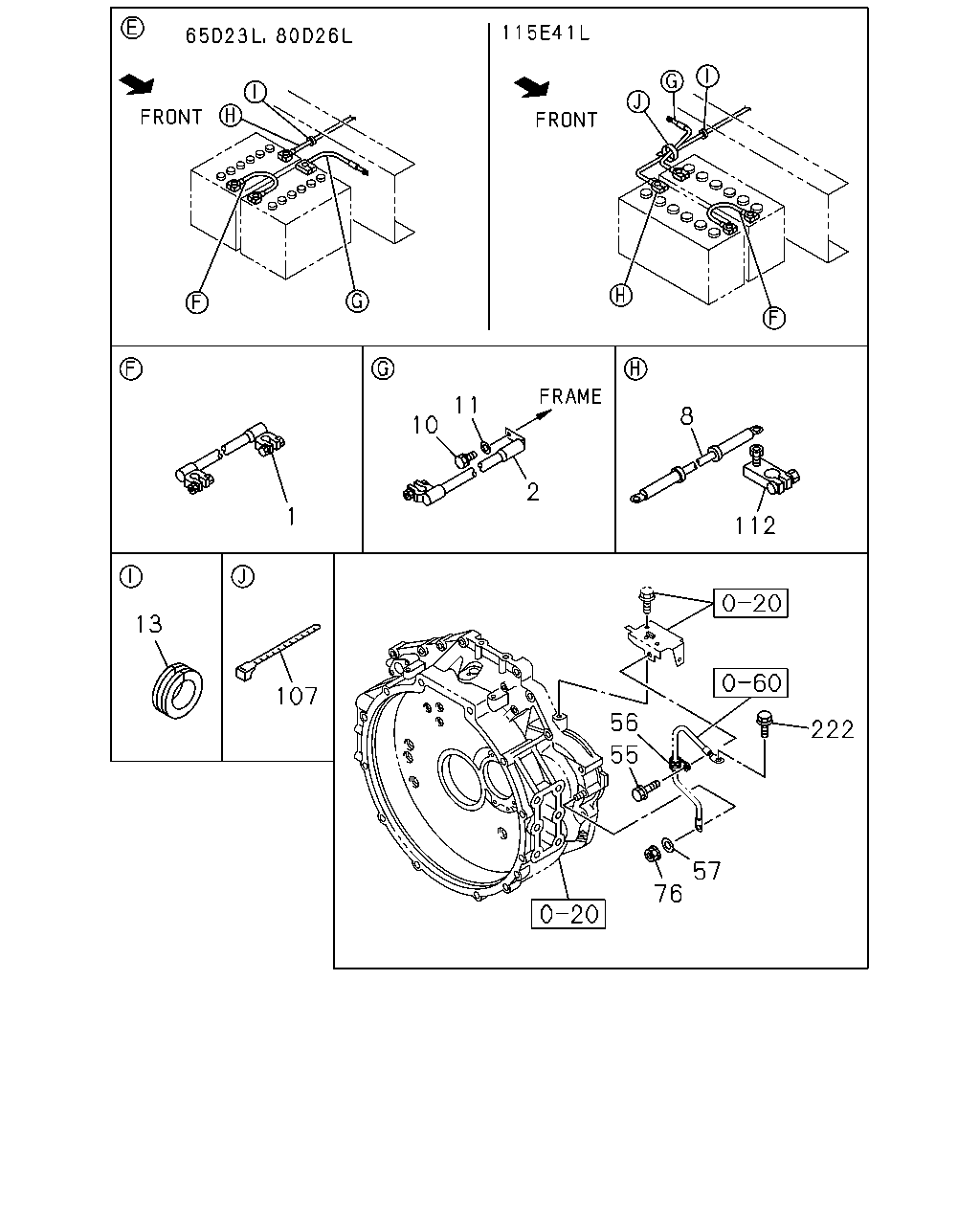

11 8 10 2 1 112 13 107 56 222 55 57 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1112-
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-1	01	1	1112-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	1112-
8	CABLE; BATTERY,STARTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA> L=2920	8-98159-420-0	01	1	1112-
8	CABLE; BATTERY,STARTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2720	8-98159-419-0	01	1	1112-
8	CABLE; BATTERY,STARTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> VIN MODEL YEAR 2011<VZB> L=2770	8-98174-091-0	01	1	1112-
8	CABLE; BATTERY,STARTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1112-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB>	8-98159-437-0	01	1	1112-
8	CABLE; BATTERY,STARTER FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. VIN MODEL YEAR 2011<VZB>	8-98159-436-0	01	1	1112-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. VIN MODEL YEAR 2011<VZB> L=2830	8-98159-430-0	01	1	1112-
8	CABLE; BATTERY,STARTER MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB> L=3030	8-98159-431-0	01	1	1112-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1112-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1112-
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	1112-
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1112-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1112-
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1112-
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1112-
107	CLIP; BAND L=140	5-09707-031-1	01	1	1112-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1112-1408
112	TERMINAL; BATTERY	8-98290-356-0	01	1	1409-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1112-
