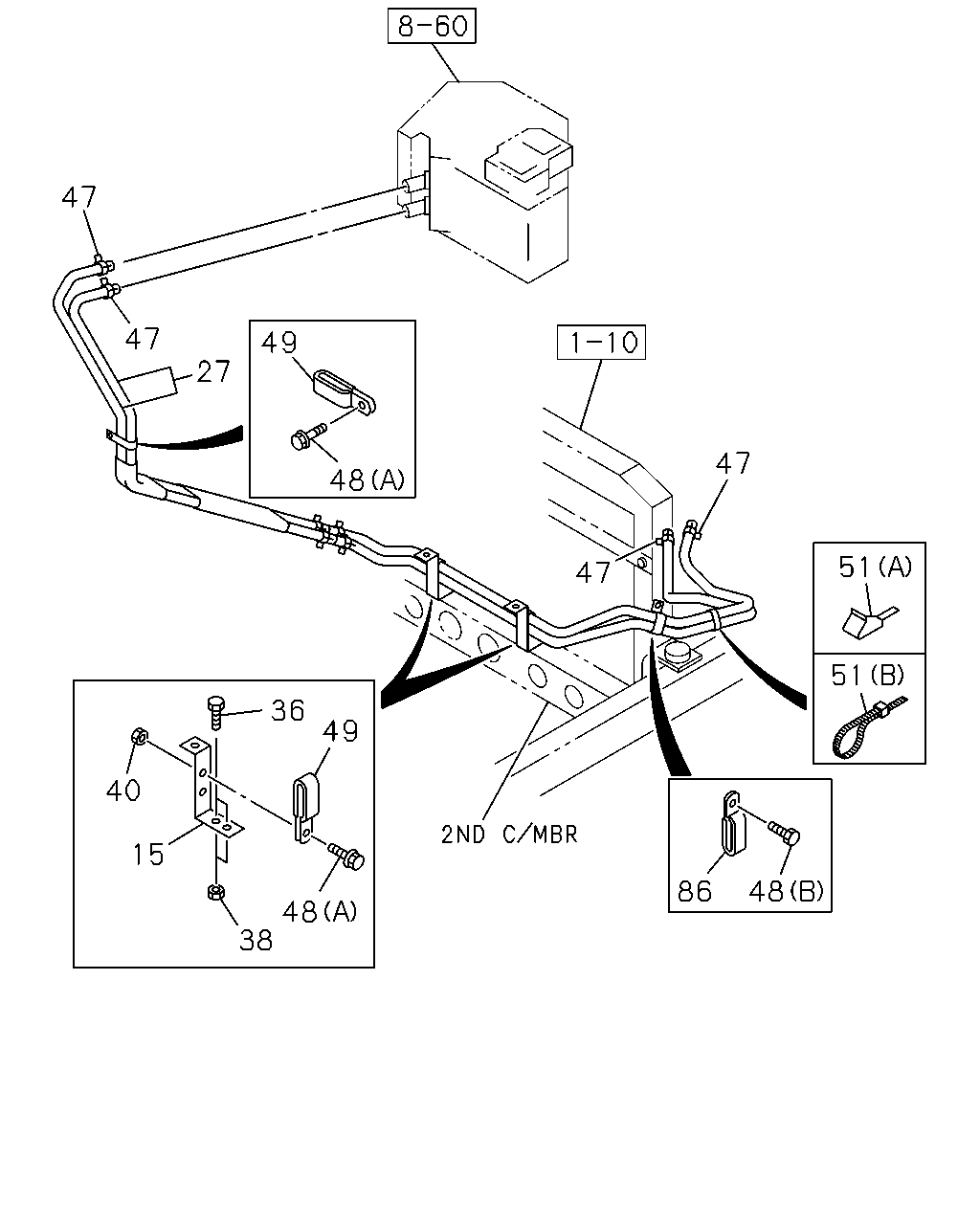

8-45 — HEATER PIPING (#4067) — 66 parça

47 47 49 27 47 48 51 47 51 36 49 40 15 48 86 48 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-927-1	01	1	9510-9607	●	●
15	BRACKET; WATER HOSE	1-83571-927-1	01	1	9510-9607	●	●
15	BRACKET; WATER HOSE	1-83571-927-1	02	1	9608-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-716-2	01	1	0608-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-630-2	01	1	9510-0004	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-630-2	01	1	0005-0302	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83565-630-2	01	1	0005-0302		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	0005-0302		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-630-2	01	1	0005-0302		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-630-2	01	1	0303-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HH1 STD 4VALVE ENG(1A6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83565-630-2	01	1	0303-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	0303-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HH1 STD ENG(65L),6HE1 TCC ENG(76L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-630-2	01	1	0303-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN>	1-83565-630-2	01	1	0303-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83565-737-0	01	1	0005-0302		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN>	1-83565-737-0	01	1	0303-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN>	1-83565-741-0	01	1	0005-		●
36	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
36	BOLT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9607	●	●
36	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9608-9801	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	9802-0512	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
38	NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9510-9606	●	●
38	NUT; BRKT M8	9-09110-408-0	02	1	9510-9606	●	●
38	NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9607	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9608-9802	●	●
38	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9803-0602	●	●
38	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9510-9606	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9510-9606	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-94382-401-0	04	1	9510-0611	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0612-	●	●
48	BOLT; CLIP FIX 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	01	1	0608-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-0512	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-0512	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	9510-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9801	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28680-820-0	01	1	9802-9901	●	●
49	CLIP; WATER HOSE,HTR 6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	0608-		●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9510-9607	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9510-9607	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9902-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9902-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	02	1	9608-9901	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	1-83574-139-0	01	1	9510-9802	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	1-83574-139-0	01	1	9803-0607	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	1-83574-139-0	01	1	9803-0607	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	1-83574-139-0	01	1	0608-1205	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	1-83574-139-0	01	1	0608-1205	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	1-83574-139-0	01	1	0608-1205		●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	8-98166-021-0	01	1	1206-	●	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	8-98166-021-0	01	1	1206-	●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) L=170	8-98166-021-0	01	1	1206-		●
51	CLIP; WATER HOSE,HTR 6HE1 TC ENG(57L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<THN> (A) L=500	1-09707-082-1	01	1	0005-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-049-1	01	1	9510-	●	●
