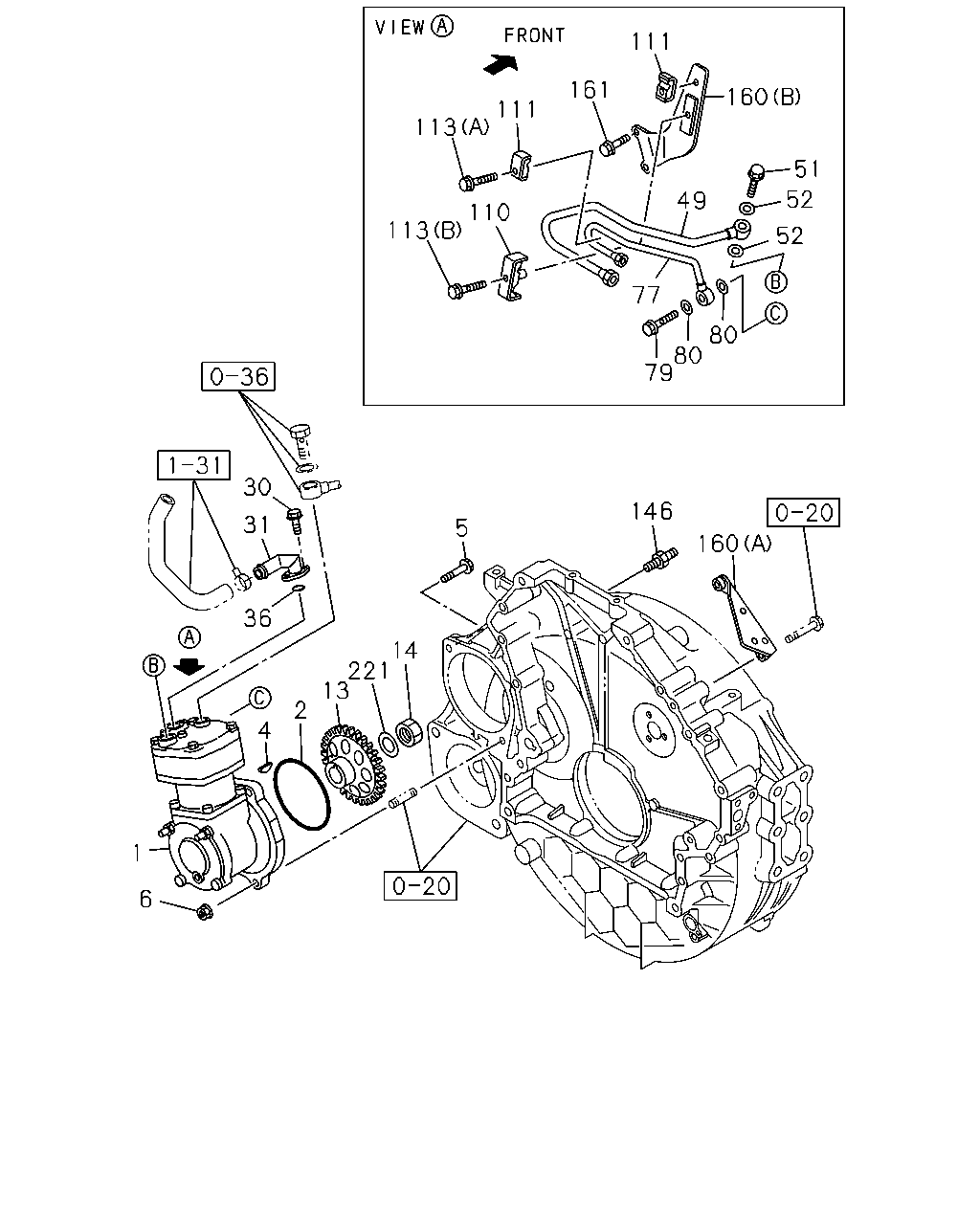

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#40664) — 28 parça
çizim 110300
111 161 160 111 113 51 52 49 110 113 52 77 80 80 79 30 146 31 5 160 36 14 221 13 2 4 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98187-299-0 01 1 1112-
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98187-301-0 01 1 1112-
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6 		1-09623-570-0 01 1 1112-
4 KEY; INJ PUMP GEAR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-08055-516-0 01 1 1112-
5 BOLT; AIR CMPR FIX
M12X70 FLANGE 		0-28151-270-0 02 1 1112-
6 NUT; AIR CMPR
M12 FLANGE 		0-91180-212-0 01 1 1112-
13 GEAR; AIR CMPR DRIVE
Z=49 		8-94394-511-4 01 1 1112-
14 NUT; GEAR
M20 		0-91110-520-0 01 1 1112-
30 BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
31 PIPE; AIR,AIR CMPR SUCTION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97620-948-0 01 1 1112-
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24.4 		1-09623-057-0 01 1 1112-
49 PIPE; AIR,CHARGE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97618-722-0 01 1 1112-
49 PIPE; AIR,CHARGE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97618-723-0 01 1 1112-
51 BOLT; EYE,AIR PIPE TO CMPR
M24X39 		1-09675-175-2 01 1 1112-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 1112-
77 PIPE; AIR,GOV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97618-724-0 01 1 1112-
77 PIPE; AIR,GOV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97618-725-0 01 1 1112-
79 BOLT; EYE,AIR PIPE TO CMPR
M10X23 		8-98037-824-0 01 1 1112-
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1112-
110 CLIP; AIR PIPE 8-94393-037-0 01 1 1112-
111 CLIP; AIR PIPE 8-98029-953-1 02 1 1112-
113 BOLT; CLIP,AIR PIPE
(B) M6X40 FLANGE 		0-28050-640-0 01 1 1112-
113 BOLT; CLIP,AIR PIPE
(A) M6X40 FLANGE 		0-28650-640-0 01 1 1112-
146 STUD; AIR CMPR
M10X16,M12X70 L=97.7 		1-09049-038-1 01 1 1112-
160 BRACKET; AIR PIPE
(A) 		8-97614-182-2 01 1 1112-
160 BRACKET; AIR PIPE
(B) 		8-98074-255-0 01 1 1112-
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1112-
221 WASHER; PL,GEAR
ID=21 		0-91610-520-0 01 1 1112-
