◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11463 - FVR(MALAYSIA) 240PS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#40653) — 22 parça

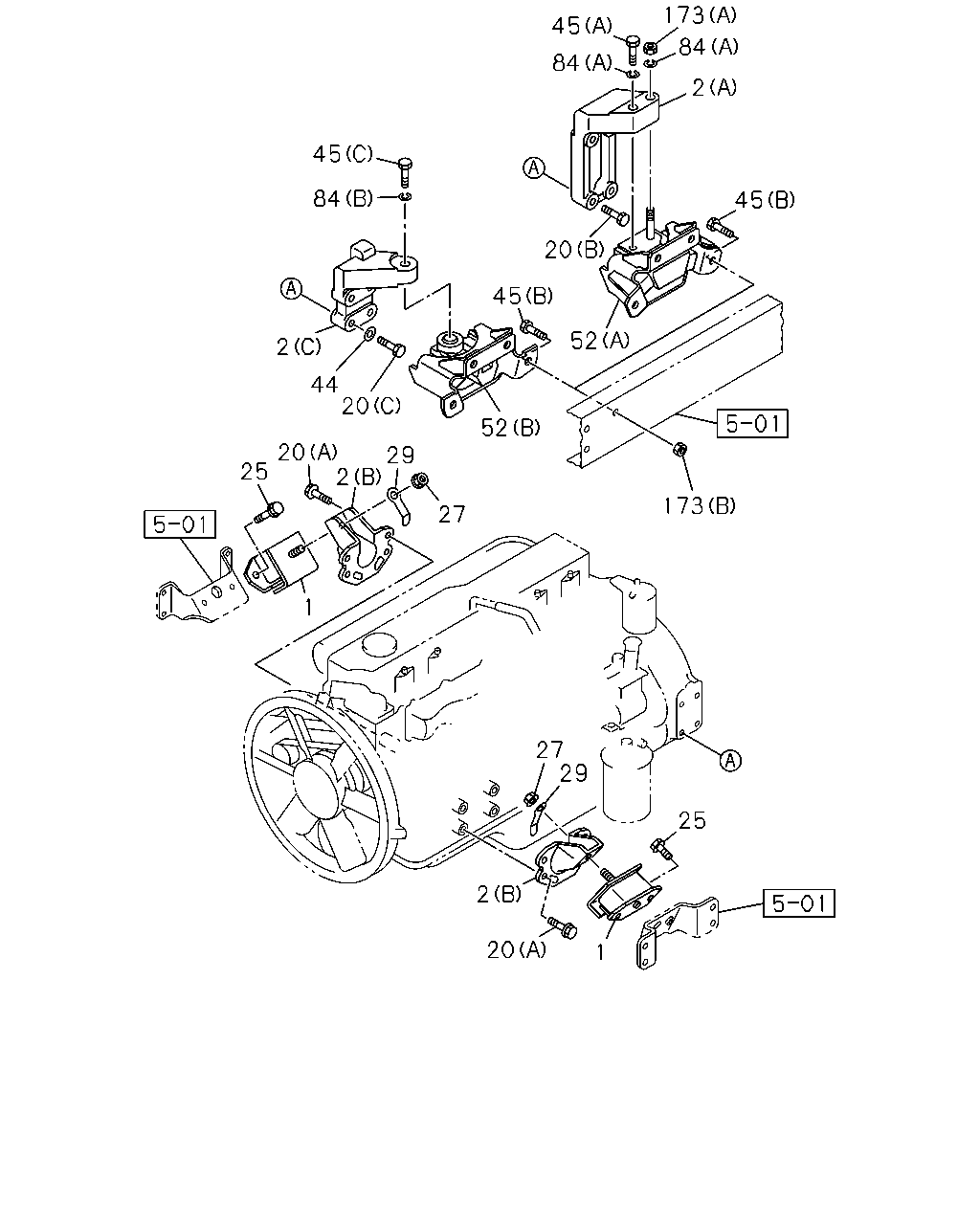

çizim 110279
45 84 2 44 20 29 2 20 25 1 27 52 45 52 20 84 45 173 84 2 45 173 25 29 27 2 20 1
BalonParca AdiParca NoAdetTipApplied Date
1 RUBBER; ENG FOOT,FRT 1-53215-172-0 02 1 1112-
2 FOOT; ENG
(B) 		8-97602-589-1 02 1 1112-
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97611-990-0 01 1 1112-
2 FOOT; ENG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97611-991-0 01 1 1112-
2 FOOT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C) 		8-97611-988-0 01 1 1112-
2 FOOT; ENG
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C) 		8-97611-989-0 01 1 1112-
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 1112-
20 BOLT; ENG FOOT
FULLER FSO5206B OD M/T(Y4V) (B) M12X55 		8-94399-884-1 08 1 1112-
20 BOLT; ENG FOOT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C) M12X50 		0-16956-250-0 08 1 1112-
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 1112-
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 1112-
29 PLATE; LK,CUSHION RUBBER,FRT 8-98010-312-0 02 1 1112-
44 WASHER; LK,ENG FOOT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) ID=12.5 		0-91614-512-0 08 1 1112-
45 BOLT; CUSHION RUBBER TO FRAME
(B) M14X50 		0-29261-450-0 08 1 1112-
45 BOLT; CUSHION RUBBER TO FRAME
FULLER FSO5206B OD M/T(Y4V) (A) M16X60 		0-10956-660-0 02 1 1112-
45 BOLT; CUSHION RUBBER TO FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (C) M18X65 		8-94393-260-1 02 1 1112-
52 RUBBER; CUSHION,ENG MTG,RR
FULLER FSO5206B OD M/T(Y4V) (A) 		8-98013-022-1 02 1 1112-
52 RUBBER; CUSHION,ENG MTG,RR
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) 		8-98013-021-1 02 1 1112-
84 WASHER; PL,ENG MTG RR TO FRAME
FULLER FSO5206B OD M/T(Y4V) (A) ID=17 		9-09164-516-0 04 1 1112-
84 WASHER; PL,ENG MTG RR TO FRAME
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6W M/T(Y2C) (B) ID=19 OD=36 		0-91614-618-0 02 1 1112-
173 NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE 		0-91180-214-0 08 1 1112-
173 NUT; ENG MTG RR TO FRAME
FULLER FSO5206B OD M/T(Y4V) (A) M16 		0-91110-516-0 02 1 1112-
