◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11427 - FXR/GXR(AUST)JNLT05 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#40643) — 441 parça

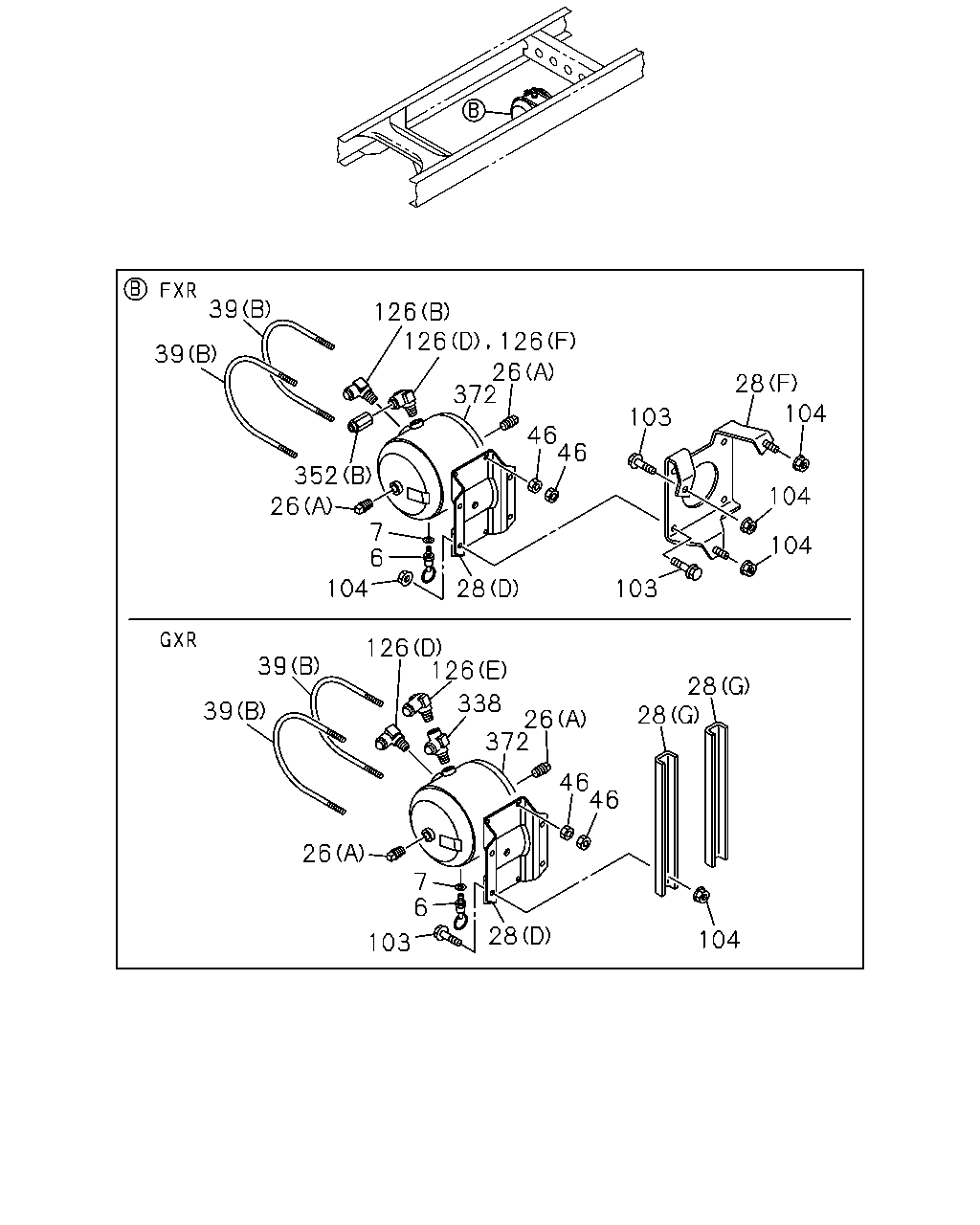

çizim 112556
39 126 126 126 39 26 372 28 104 103 46 46 352 104 26 7 6 104 104 28 103 126 126 39 28 28 338 39 26 372 46 46 26 7 6 28 104 103
BalonParca AdiParca NoAdetTipApplied Date A B C
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 0801-0803 ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801- ● ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806 ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807- ● ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0801- ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 0801- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0801-0803 ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0801-0803 ● ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0801- ● ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 04 1 0801- ● ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 0801- ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0801-0803 ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0804- ● ● ●
103 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0801- ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0801-0805 ● ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0806- ● ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0801- ● ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 0801- ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0801-0805 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0801-0804 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0805- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1002- ●
338 CONNECTOR; 3WAY VLV
DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0801- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 0801- ●
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 0801- ● ● ●

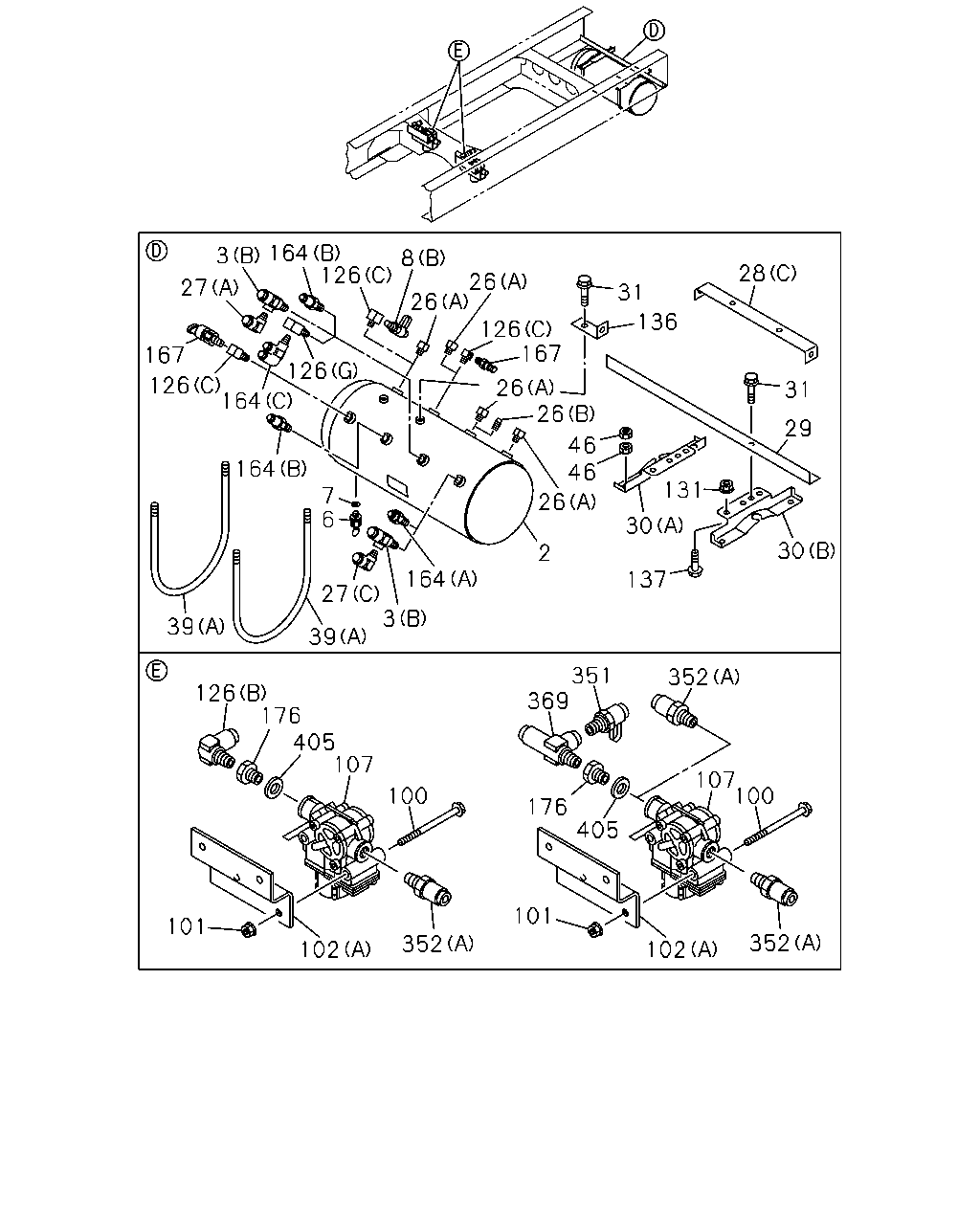

çizim 112559
164 8 126 3 28 26 27 31 26 136 126 167 167 126 126 164 26 26 31 29 46 46 131 164 7 6 26 30 30 2 164 137 27 3 39 39 351 369 352 126 176 405 107 107 100 100 176 405 101 101 352 352 102 102
BalonParca AdiParca NoAdetTipApplied Date A B C
2 TANK; AIR 8-97617-855-1 01 1 0801-1106 ● ● ●
2 TANK; AIR 8-98187-713-0 01 1 1107- ● ● ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 0801- ● ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 02 1 0801-1001 ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1002- ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 0801-0803 ●
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801- ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-1001 ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801- ● ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806 ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807- ● ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0801- ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 0801- ●
29 BRACKET; AIR TANK 8-97620-998-0 01 1 0801- ● ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0801- ● ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0801- ● ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0801-0803 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801- ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98059-827-0 01 1 0801- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1002- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 03 1 0801- ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 02 1 0801- ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 0801- ● ● ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 04 1 0801- ● ●
137 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 02 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(A) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801- ●
164 CONNECTOR; SUB AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1002- ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0801- ● ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0801- ● ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ●
351 CONNECTOR; TEST
ANTILOCK BRAKE SYSTEM(BFA) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0801- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 0801- ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 0801- ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0801- ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ●

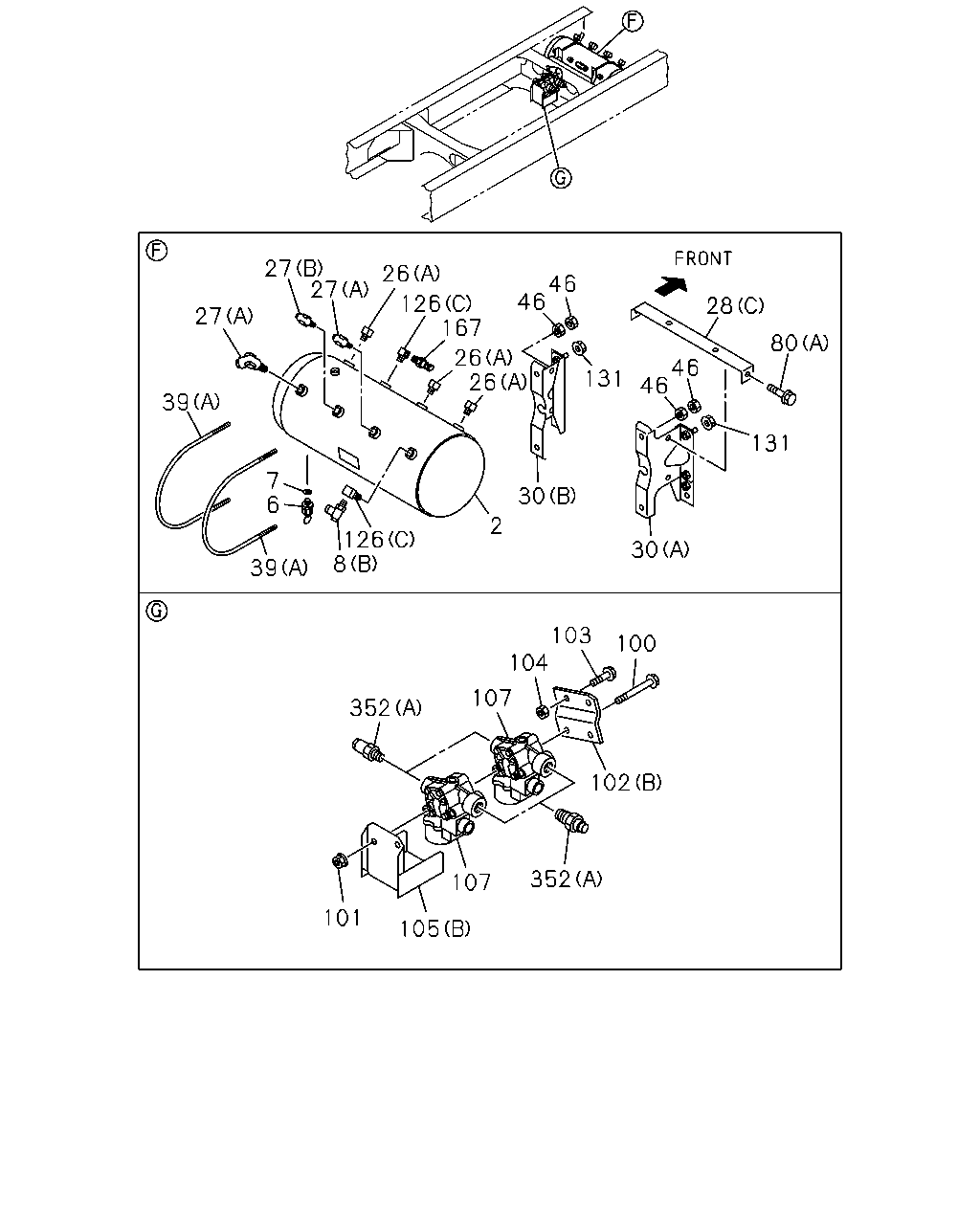

çizim 112563
27 27 26 46 46 126 167 28 27 80 26 26 46 46 131 39 131 7 6 30 2 126 8 30 39 103 104 100 107 352 102 352 107 101 105
BalonParca AdiParca NoAdetTipApplied Date A B C
2 TANK; AIR 8-97617-855-1 01 1 0801-1106 ● ● ●
2 TANK; AIR 8-98187-713-0 01 1 1107- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801-0803 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0804- ● ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 0801-0803 ●
27 UNION; ELBOW,AIR TANK
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0801- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801- ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801-1001 ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801- ● ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806 ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807- ● ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0801- ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 0801- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 0801- ● ● ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0801-0803 ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0804- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 24 1 0801- ● ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 16 1 0801-0803 ●
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ●
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0801- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801- ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-180-0 01 1 0801- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98059-827-0 01 1 0801- ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0801-0803 ● ●
103 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0801- ● ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE 		0-28650-825-0 04 1 0801- ● ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 0801- ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0801-0803 ●
103 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0804- ● ● ●
103 BOLT; BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0801- ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0801-0805 ● ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0806- ● ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0801- ● ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 0801- ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0801-0805 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0801-0804 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0805- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-388-0 01 1 0801-0810 ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 0811- ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98049-454-0 01 1 0801-0803 ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 0804- ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47479-792-0 01 1 0801- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 01 1 0801- ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1002- ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 03 1 0801- ● ●
131 NUT; BRKT FIX
M12 FLANGE 		0-91180-212-0 02 1 0801- ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 		8-97609-249-0 01 1 0801- ● ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0801- ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 01 1 0801- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & M22 STRAIGHT 		1-09661-050-0 04 1 0801- ●

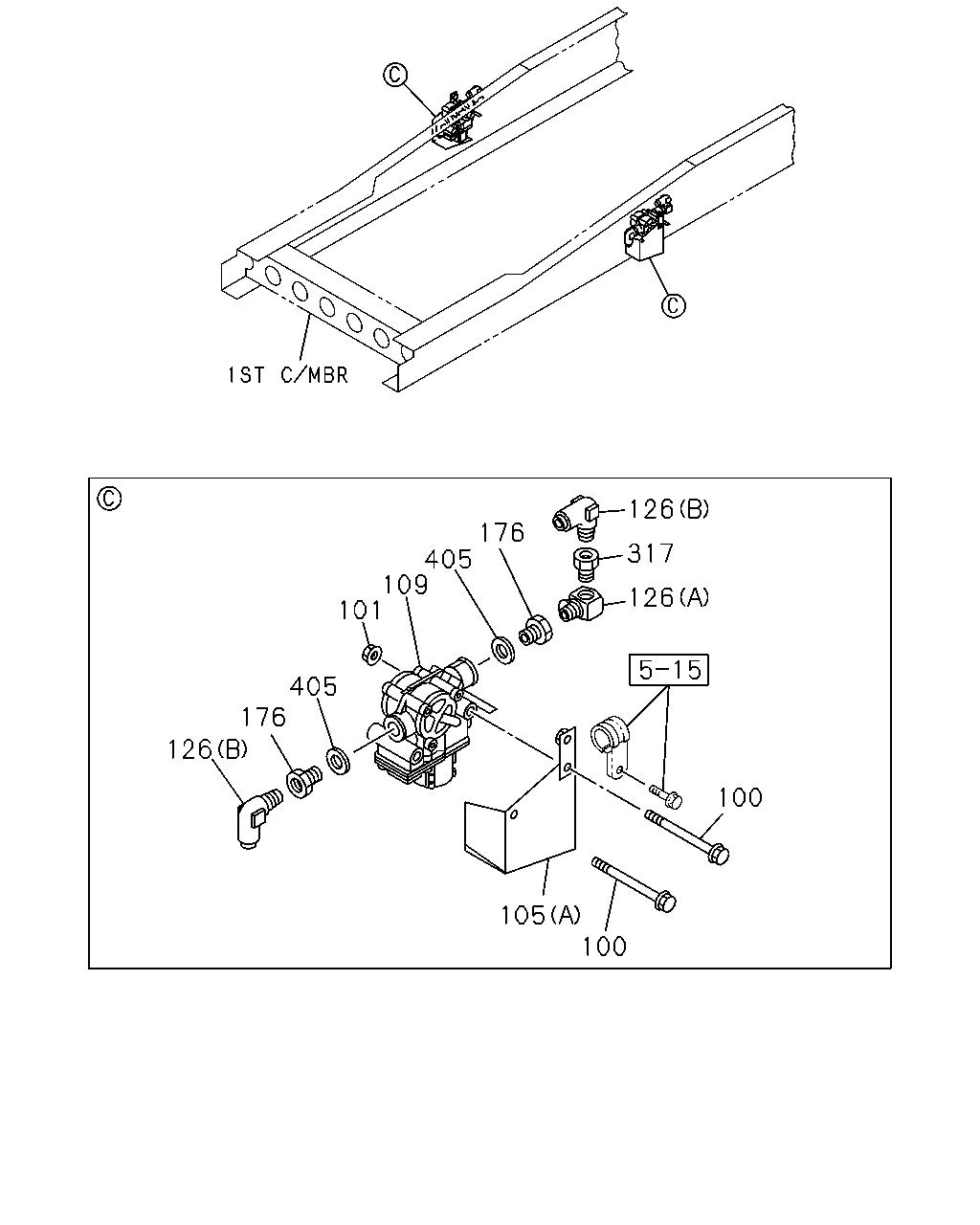

çizim 112564
126 176 405 109 101 317 126 405 176 126 100 105 100
BalonParca AdiParca NoAdetTipApplied Date A B C
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 04 1 0801- ● ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE 		0-28050-880-0 02 1 0801- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE 		0-28055-814-0 02 1 0801- ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47471-388-0 01 1 0801-0810 ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 0811- ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98049-454-0 01 1 0801-0803 ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 0804- ● ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-47479-792-0 01 1 0801- ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) 		1-48240-115-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1002- ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0801- ● ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0801- ●
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 0804- ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 04 1 0801- ● ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 		9-09571-422-0 01 1 0801- ●

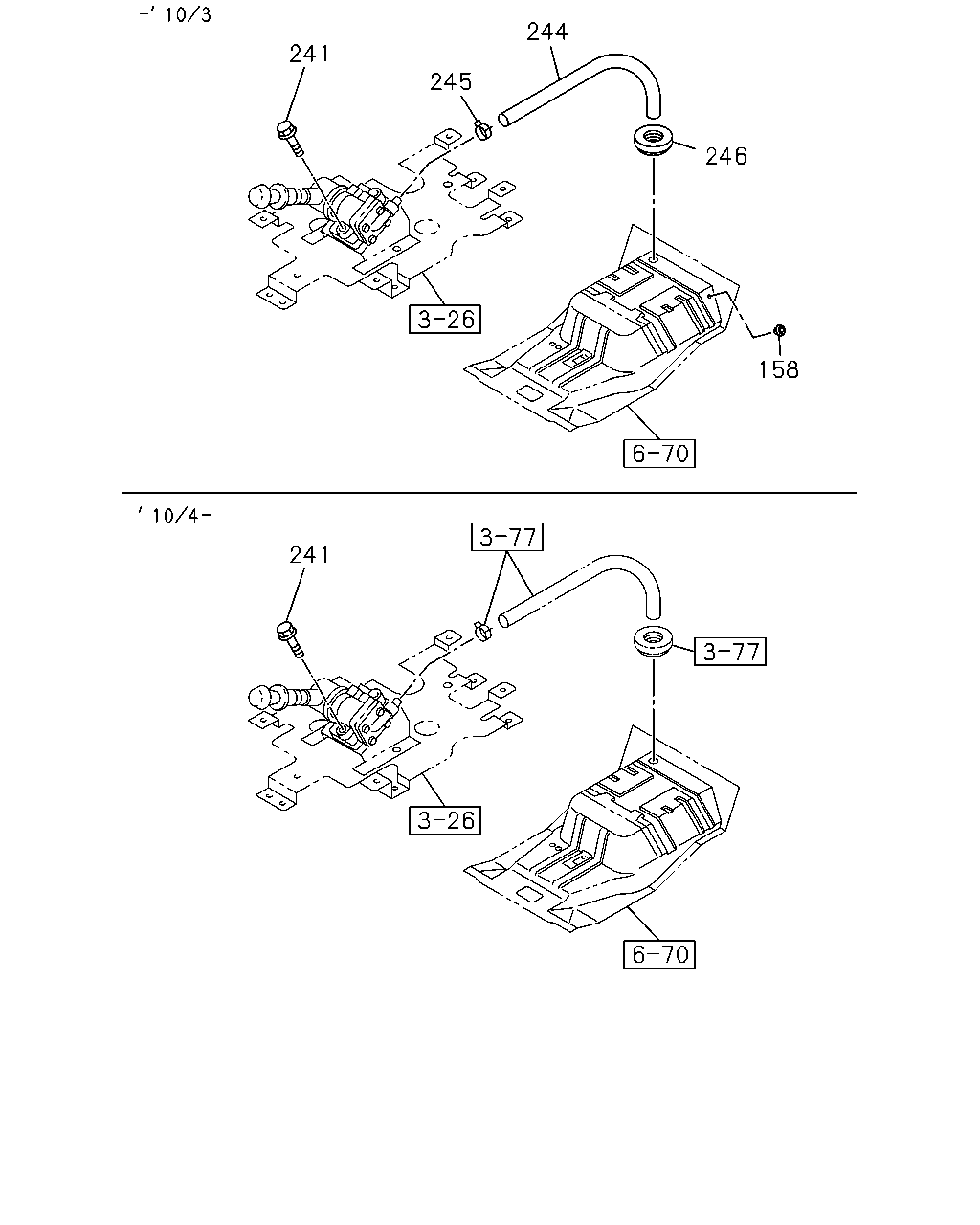

çizim 112579
244 241 245 246 158 241
BalonParca AdiParca NoAdetTipApplied Date A B C
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 0801- ● ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0801- ● ● ●
241 BOLT; SET,CONT VLV
M10X20 FLANGE 		0-28051-020-0 02 1 0801- ●
244 PIPE; VINYL,EXH
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0801-1003 ● ●
244 PIPE; VINYL,EXH
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 0801-1003 ●
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 01 1 0801-1003 ● ●
245 CLIP; VINYL PIPE
ID=14 		8-94238-572-0 02 1 0801-1003 ●
246 GROMMET; VINYL PIPE
OD=24 		9-61166-007-0 01 1 0801-1003 ● ●

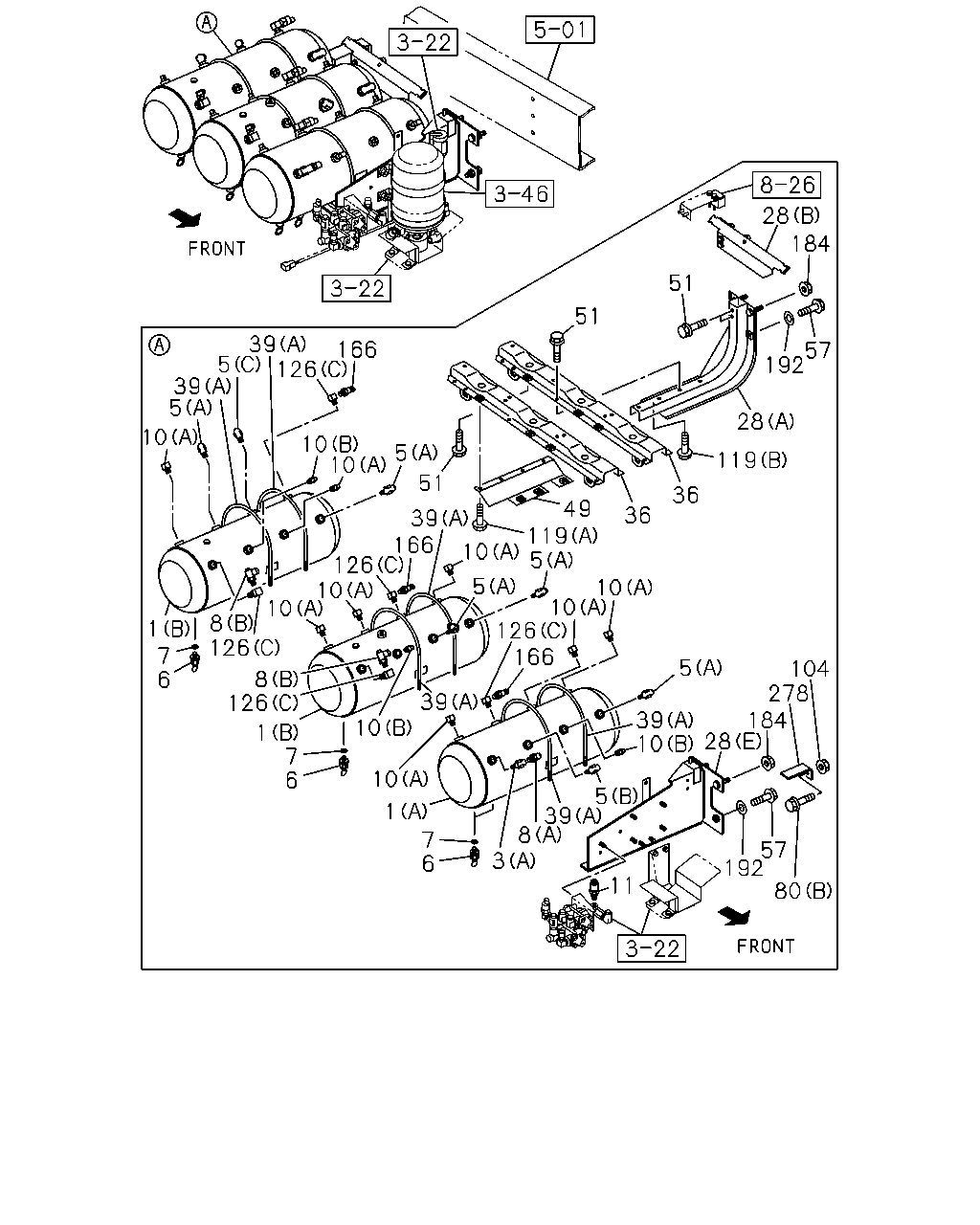

çizim 112588
28 184 51 51 39 166 5 126 39 5 57 192 28 10 10 10 5 119 51 36 49 11 5 36 39 166 126 10 10 5 10 10 126 166 10 8 126 1 7 6 5 104 278 184 28 8 126 39 10 39 10 1 7 6 10 5 1 39 8 3 7 6 57 192 11 80
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 0801-1106 ● ● ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107- ● ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-1106 ● ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 0801-1106 ● ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107- ● ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107- ● ● ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 0801- ● ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 02 1 0801-1001 ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1002- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801- ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801- ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0801- ● ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ● ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0801-0803 ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 0801-0803 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0801-0803 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 0801-0803 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0804- ● ● ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
8 CONNECTOR; AIR TANK
(B) R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0801- ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 0801- ● ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 0801- ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801- ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801- ● ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 0801- ● ● ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(F) 		8-98100-984-0 01 1 0801- ● ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(B) 		8-97620-996-0 01 1 0801-0806 ● ● ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 0807- ● ● ●
28 BRACKET; AIR TANK
(D) 		8-98092-756-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 0801- ● ● ●
28 BRACKET; AIR TANK
(C) 		8-97621-120-1 01 1 0801- ●
28 BRACKET; AIR TANK
(G) 		8-98100-973-1 02 1 0801- ●
36 STAY; MAIN TANK 8-97618-091-1 02 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 0801- ● ● ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0801- ● ● ●
49 BRACKET; AIR TANK 8-98110-683-0 01 1 0801- ● ● ●
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 0801- ● ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 0801- ● ● ●
80 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ● ●
80 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0801- ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0801-0805 ● ●
104 NUT; BRKT
M10 		0-91110-510-0 04 1 0806- ● ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0801- ● ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ● ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 0801- ●
104 NUT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 0801- ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0801-0805 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0801-0804 ●
104 NUT; BRKT
M12 FLANGE 		0-91180-212-0 02 1 0805- ●
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0801- ● ● ●
119 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0801- ● ●
126 CONNECTOR; ELBOW
(F) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0804- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0803 ● ● ●
126 CONNECTOR; ELBOW
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0804- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW 		1-09660-696-0 02 1 0801- ● ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 0801- ● ● ●
126 CONNECTOR; ELBOW
(E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0801- ●
126 CONNECTOR; ELBOW
(G) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 01 1 1002- ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801- ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801- ● ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 		8-97609-249-0 01 1 0801- ● ● ●
184 NUT; BRKT
M14 		1-09440-072-0 04 1 0801- ● ● ●
192 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0801- ● ● ●
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 0801- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
