◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10703 - FTR(LHD) EXC.EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#4064) — 37 parça

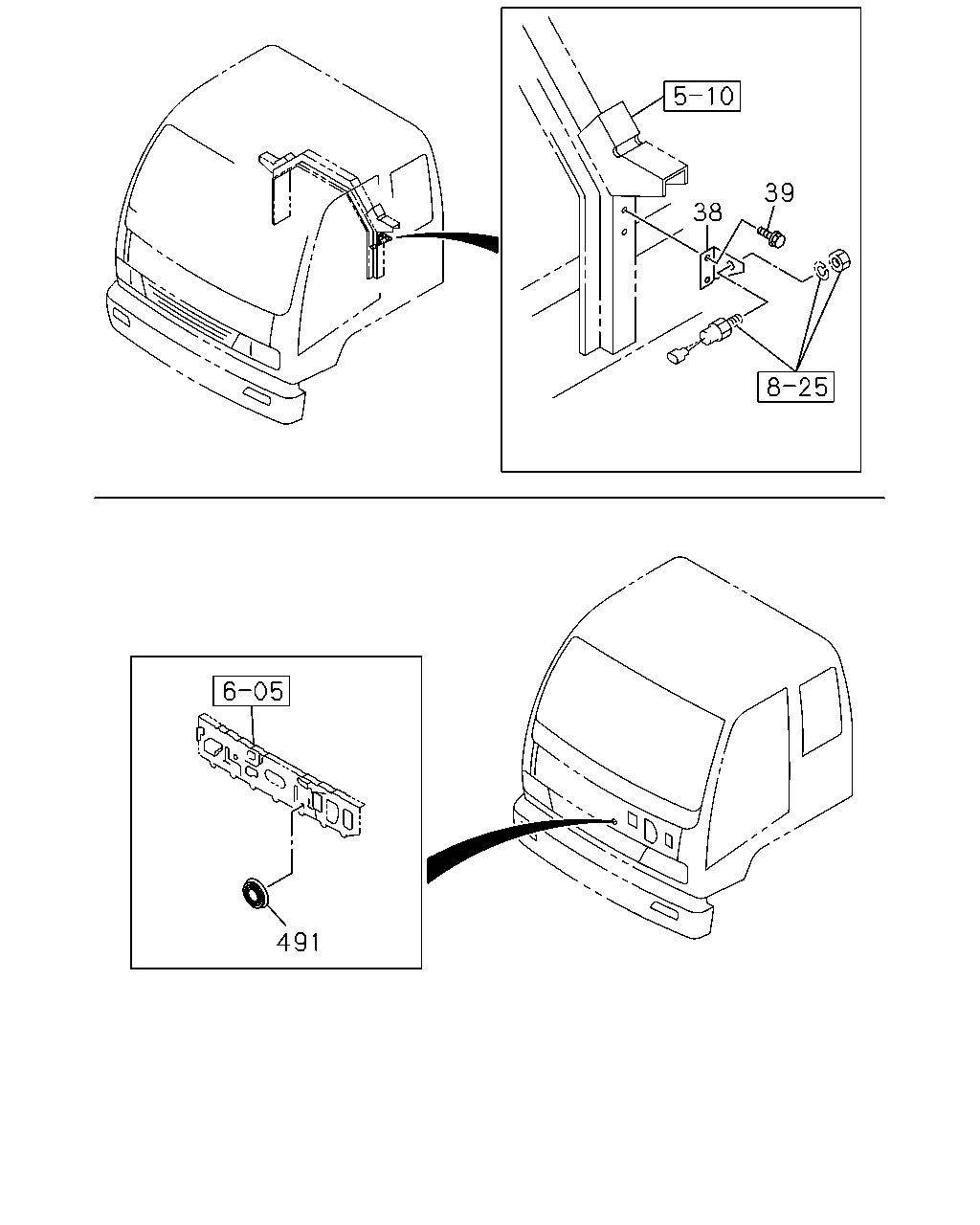

çizim 116154
39 38 491
BalonParca AdiParca NoAdetTipApplied Date A B
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9510-0211 ● ●
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0212- ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801 ● ●
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0211 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512 ● ●
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9510-9709 ● ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9710-0302 ●
491 PLUG; HOLE,CONT UNIT
EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 9710-0302 ●
491 PLUG; HOLE,CONT UNIT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) OD=54.5 		1-73907-309-0 01 1 0303-0607 ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=54.5 		1-73907-309-0 01 1 0303-0607 ●
491 PLUG; HOLE,CONT UNIT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0303-0607 ●
491 PLUG; HOLE,CONT UNIT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0303-0607 ●
491 PLUG; HOLE,CONT UNIT
6HE1 TC ENG(57L),6HH1 STD ENG(65L) OD=54.5 		1-73907-309-0 01 1 0608- ●
491 PLUG; HOLE,CONT UNIT
6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> OD=54.5 		1-73907-309-0 01 1 0608- ●
491 PLUG; HOLE,CONT UNIT
6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0608- ●
491 PLUG; HOLE,CONT UNIT
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> EXC. CHILE EQUIPMENT(TDK) OD=54.5 		1-73907-309-0 01 1 0608- ●
491 PLUG; HOLE,CONT UNIT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EURO2 SPECIFICATION<THN> OD=54.5 		1-73907-309-0 01 1 0608- ●

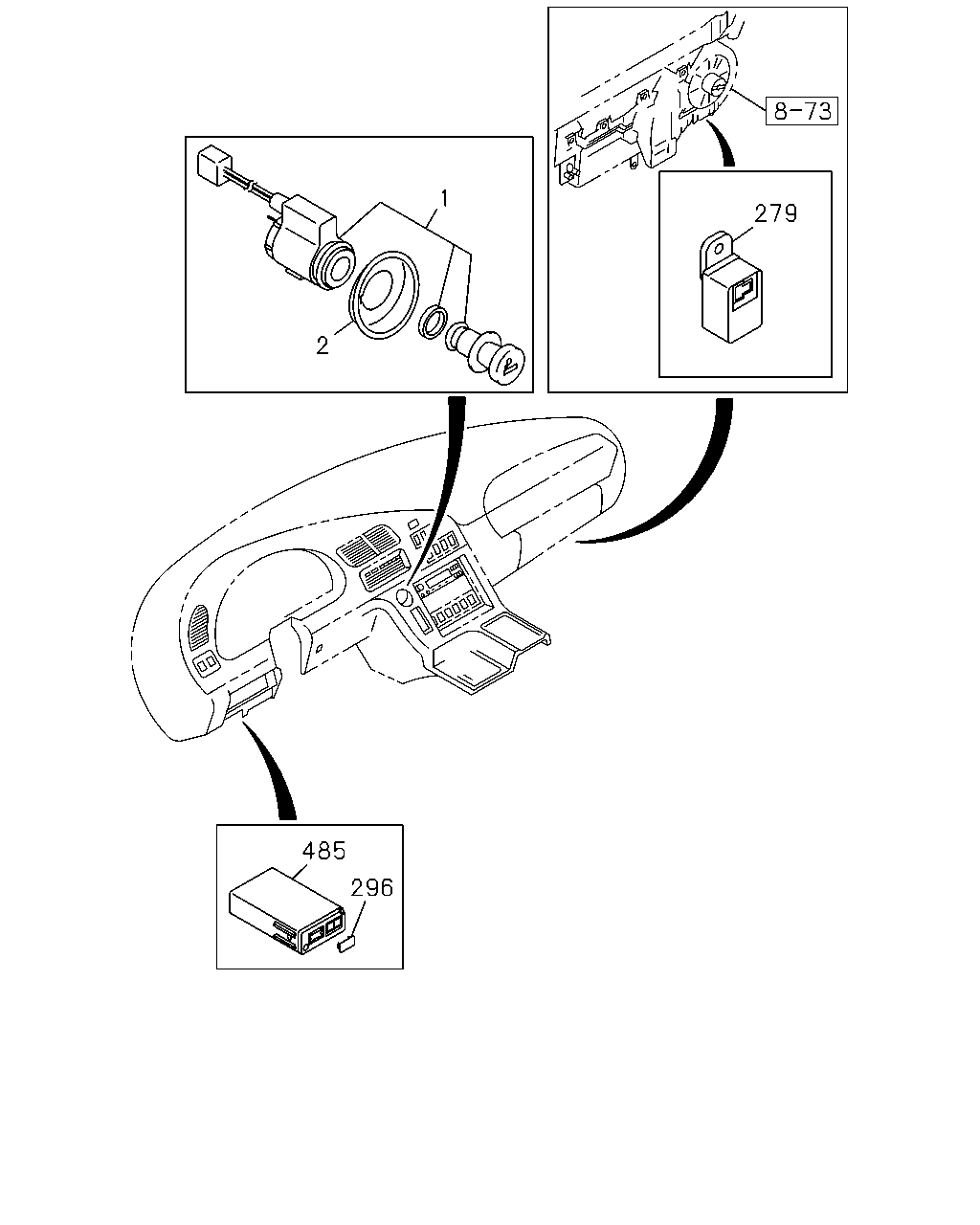

çizim 116164
1 279 2 485 296
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9510-0108 ● ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9510- ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9510-0210 ● ●
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 0211- ●
296 COVER; CONT UNIT 1-82549-010-0 01 1 9803-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9510-0004 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0402 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410 ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411- ● ●

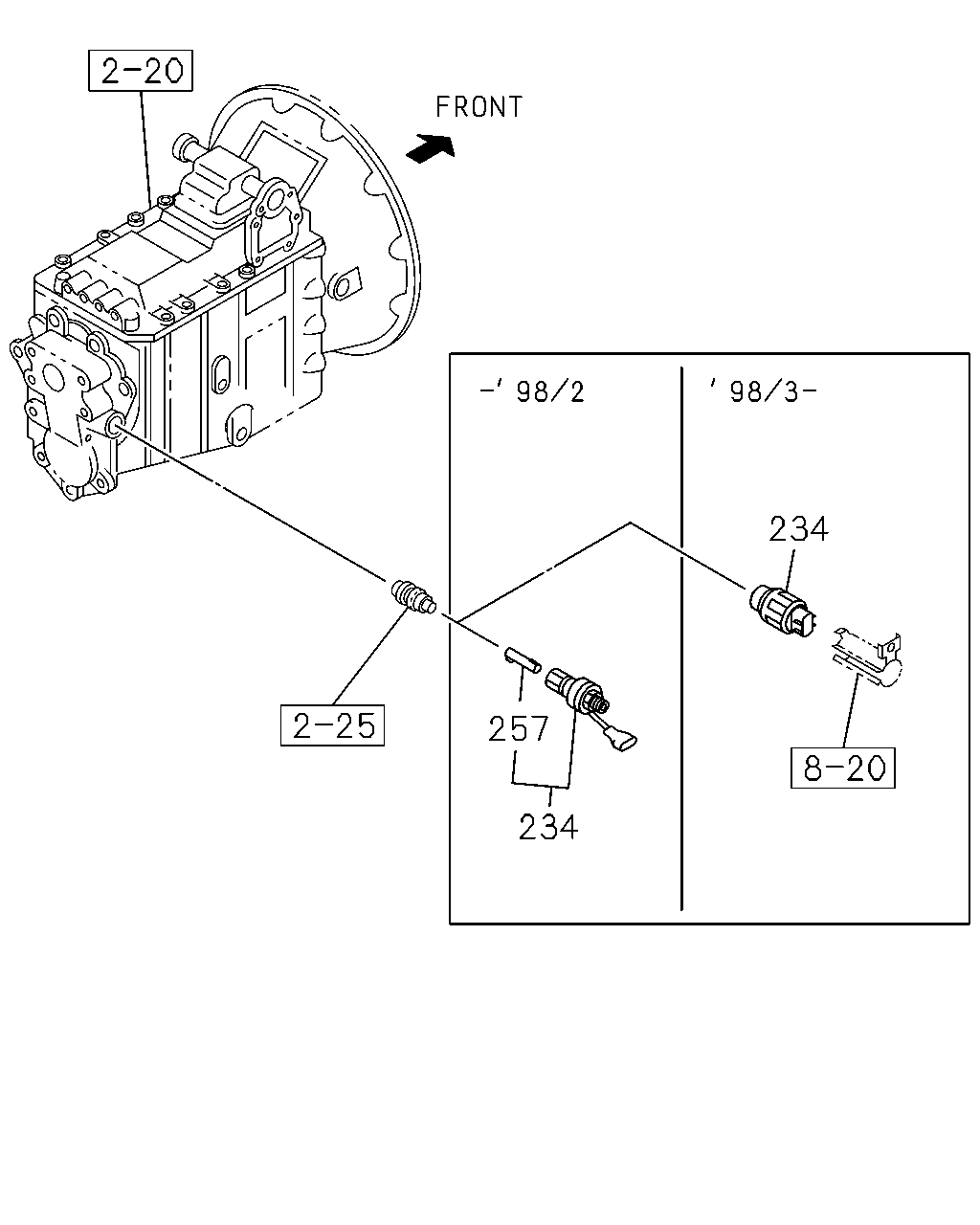

çizim 116208
234 257 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD 1-83127-241-1 01 1 9510-9802 ● ●
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 9803-0202 ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203- ● ●
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9510-9802 ● ●

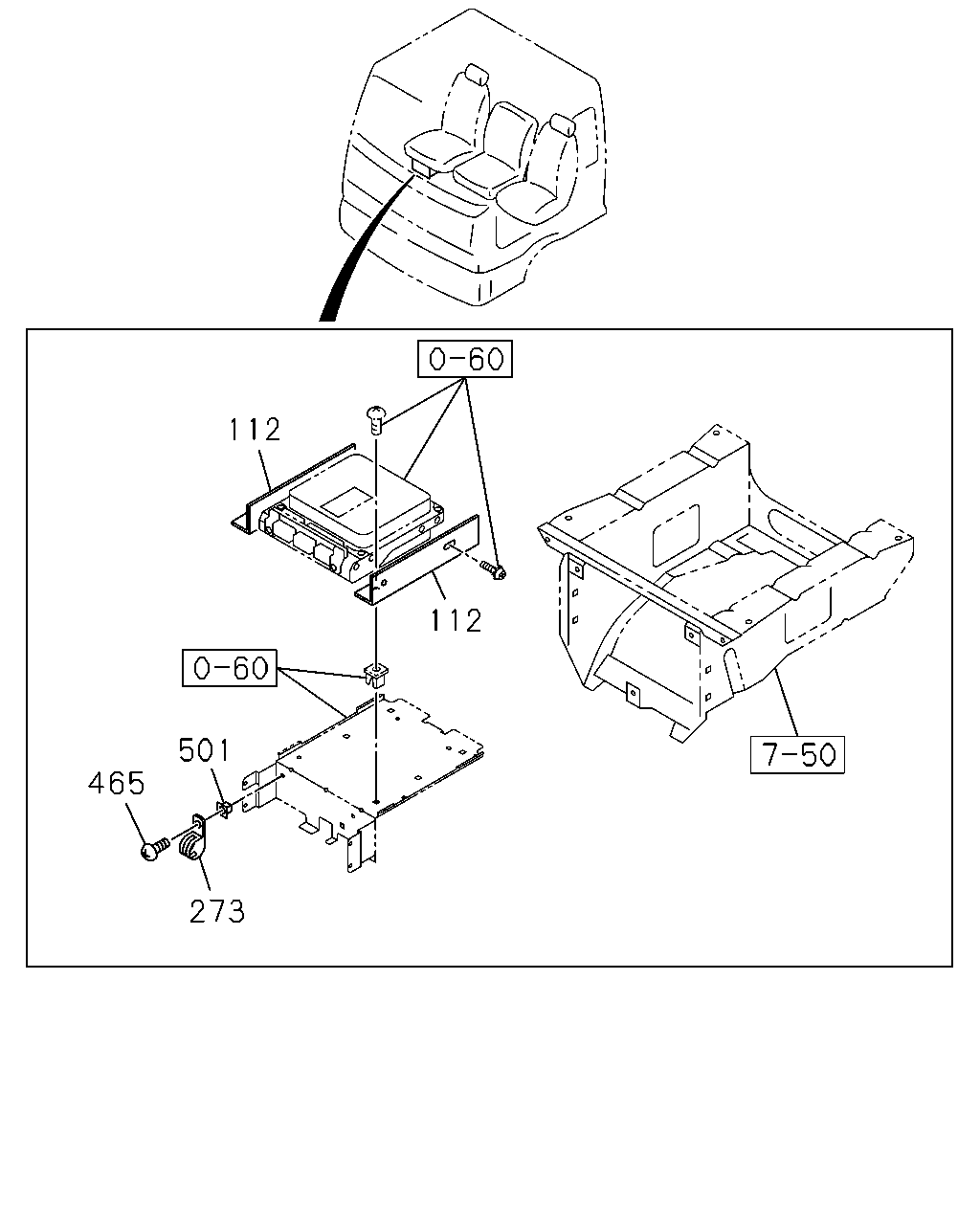

çizim 116239
112 112 501 465 273
BalonParca AdiParca NoAdetTipApplied Date A B
112 BRACKET; CONT UNIT
EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> 		1-75558-566-0 02 1 0608- ●
273 CLIP; HARNESS
6HK1 TCC ENG(81L) ID=35 L=35 		1-09700-726-0 01 1 0608- ●
465 BOLT; CLIP
6HK1 TCC ENG(81L) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0608- ●
501 GROMMET; SCREW
6HK1 TCC ENG(81L) D=9.7X9.7 L=8 		8-94222-314-0 01 1 0608- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
