Isuzu WW
▶
TRUCKS
▶
FXR
▶
11427 - FXR/GXR(AUST)JNLT05
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#40637) — 35 parça
Tümü
A - FGD5MX
B - FGR5MX
C - GGD5MX
◀
[236A] BRACKET AND CLIP (23 parça)
[236A] CABLE;TRANS CONT (12 parça)
▶
296
3
316
3
474
1
221
225
199
1
296
296
3
310
310
474
474
1
316
474
300
49
310
6
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CABLE; SHIFT,TRANS CONT
SHIFT PATTERN SINGLE-H<EDY> L=3205
8-98054-888-2
01
1
0801-1101
●
●
●
1
CABLE; SHIFT,TRANS CONT
L=3205
8-98054-888-2
01
1
1102-1311
●
●
●
1
CABLE; SHIFT,TRANS CONT
L=3205
8-98246-040-0
01
1
1312-
●
●
●
3
CABLE; SELECT,TRANS CONT
SHIFT PATTERN SINGLE-H<EDY> L=3105
8-98054-894-3
01
1
0801-1101
●
●
●
3
CABLE; SELECT,TRANS CONT
L=3105
8-98054-894-3
01
1
1102-
●
●
●
6
CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
0801-
●
●
●
6
CLIP; CABLE
(B) ID=10 & 10 M8
1-09701-220-0
01
1
0801-
●
●
●
49
WASHER; LK
ID=14.2
0-91510-614-0
01
1
0806-
●
●
●
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
0801-
●
●
●
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-049-0
01
1
0801-1011
●
●
●
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1012-
●
●
●
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
0801-
●
●
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE
0-28050-820-0
03
1
0801-
●
●
●
300
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
01
1
0801-
●
●
●
310
CLIP; TUBE
SHIFT PATTERN SINGLE-H<EDY> (A) L=100
5-09707-036-1
01
1
0801-
●
●
●
310
CLIP; TUBE
SHIFT PATTERN SINGLE-H<EDY> (B) ID=12
8-94218-436-0
01
1
0801-
●
●
●
310
CLIP; TUBE
SHIFT PATTERN SINGLE-H<EDY> (C) ID=6 & 10-13
8-97069-515-0
01
1
0801-
●
●
●
316
BRACKET; CLIP
(A)
8-98055-446-1
01
1
0801-
●
●
●
316
BRACKET; CLIP
(B)
8-98056-946-0
01
1
0801-
●
●
●
474
BOLT; BRKT
(A) M14X45
0-20801-445-0
01
1
0801-
●
●
●
474
BOLT; BRKT
(B) M8X20 FLANGE
0-28050-820-0
02
1
0801-
●
●
●
474
BOLT; BRKT
(C) M8X30 FLANGE
0-28050-830-0
01
1
0801-
●
●
●
474
BOLT; BRKT
(D) M8X25 W/WASHER
0-51640-825-0
01
1
0801-
●
●
●

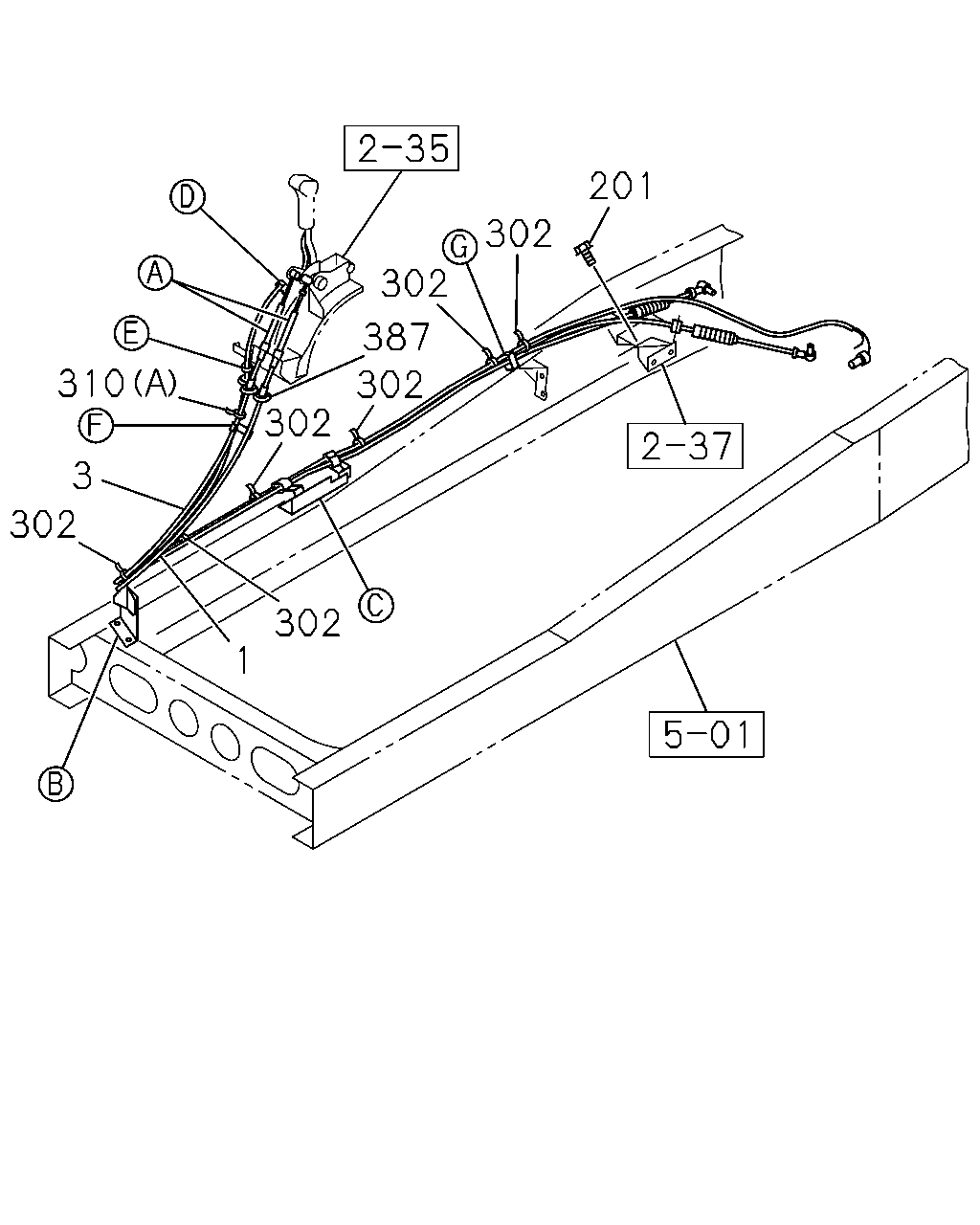

201
302
302
387
302
302
302
1
302
3
310
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CABLE; SHIFT,TRANS CONT
SHIFT PATTERN SINGLE-H<EDY> L=3205
8-98054-888-2
01
1
0801-1101
●
●
●
1
CABLE; SHIFT,TRANS CONT
L=3205
8-98054-888-2
01
1
1102-1311
●
●
●
1
CABLE; SHIFT,TRANS CONT
L=3205
8-98246-040-0
01
1
1312-
●
●
●
3
CABLE; SELECT,TRANS CONT
SHIFT PATTERN SINGLE-H<EDY> L=3105
8-98054-894-3
01
1
0801-1101
●
●
●
3
CABLE; SELECT,TRANS CONT
L=3105
8-98054-894-3
01
1
1102-
●
●
●
201
BOLT; BRKT
SHIFT PATTERN SINGLE-H<EDY> M8X16 FLANGE
0-28050-816-0
01
1
0801-1101
●
●
●
201
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1102-
●
●
●
302
CLIP; BAND
SHIFT PATTERN SINGLE-H<EDY> L=140
5-09707-031-1
07
1
0801-
●
●
●
310
CLIP; TUBE
SHIFT PATTERN SINGLE-H<EDY> (A) L=100
5-09707-036-1
01
1
0801-
●
●
●
310
CLIP; TUBE
SHIFT PATTERN SINGLE-H<EDY> (B) ID=12
8-94218-436-0
01
1
0801-
●
●
●
310
CLIP; TUBE
SHIFT PATTERN SINGLE-H<EDY> (C) ID=6 & 10-13
8-97069-515-0
01
1
0801-
●
●
●
387
GROMMET; CONT TUBE,FULLER
SHIFT PATTERN SINGLE-H<EDY>
1-09332-135-0
01
1
0801-
●
●
●
