4-42 — POWER STEERING OIL PUMP (#40625) — 67 parça

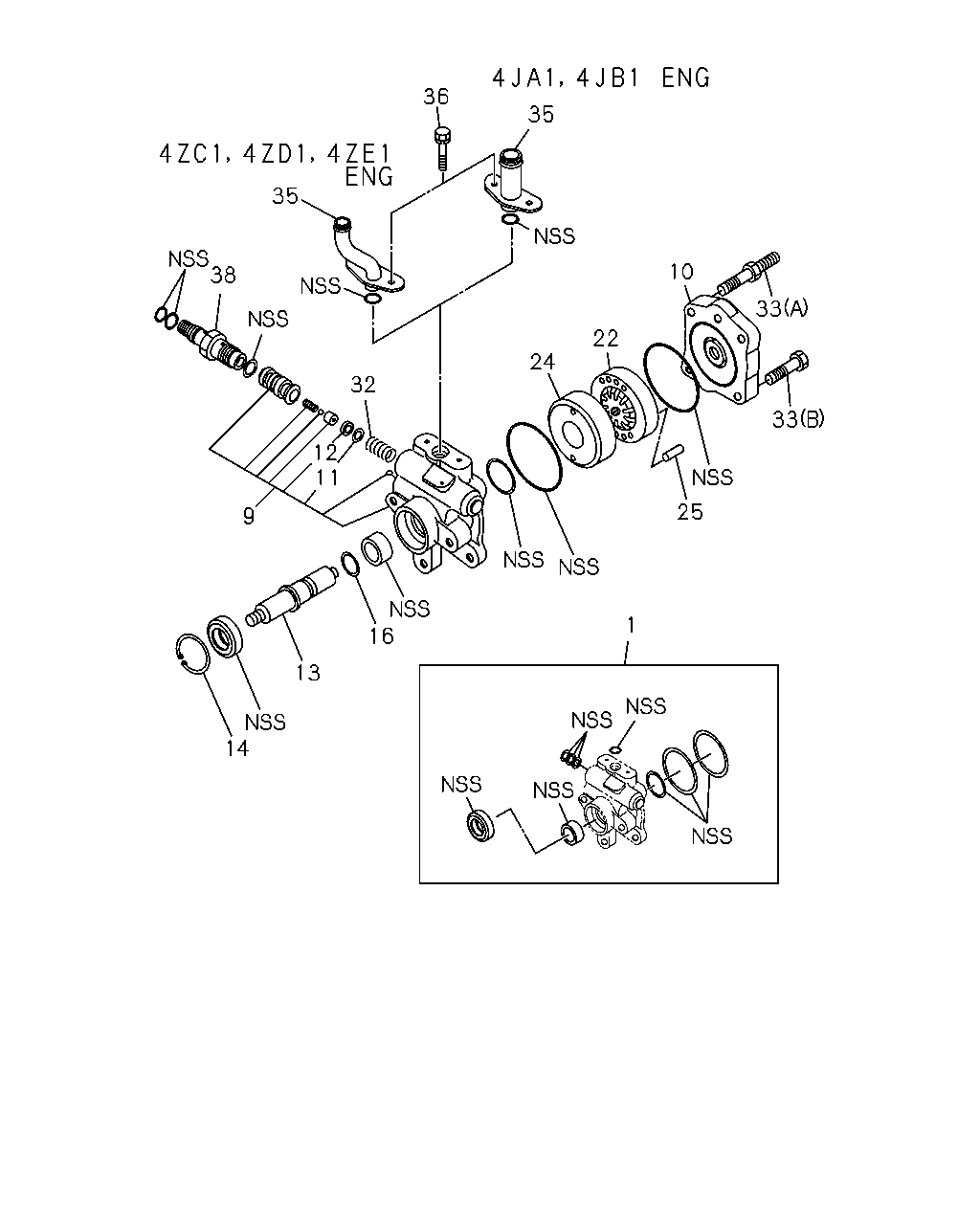

33 25 33 10 22 24 16 13 14 9 11 12 32 38 35 35 36 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97104-020-0, 97104020	8-94311-983-1	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97081-867-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97131-341-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97061-642-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97100-391-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97104-020-0, 97104020	8-97105-554-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: A = 8-97104-020-0, 97104020	8-94382-178-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97061-638-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97102-303-0	01	1	-
11	06.616 RING; RET,OIL TANK ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94175-185-0	01	1	-
12	06.616 FILTER; OIL PUMP 06.630 ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94175-184-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97104-020-0, 97104020	8-94475-373-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-97129-593-3, 97129593	8-97061-633-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-97185-604-0, 97185604	8-97102-304-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97061-636-0	01	1	-
14	06.616 RING; RET,OIL PUMP 06.840, OD=37.8 ASM PART: A = 8-97104-020-0, 97104020	9-09180-135-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97104-020-0, 97104020	8-94475-374-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97061-637-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97104-020-0, 97104020	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97110-274-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97188-367-0	01	1	-
24	06.612 PLATE ASM; THRUST 06.609 ASM PART: B = 8-97129-593-3, 97129593	8-97063-133-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-97185-604-0, 97185604	8-97081-859-0	02	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: A = 8-97104-020-0, 97104020	8-94311-982-1	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: B = 8-97129-593-3, 97129593	8-94475-381-0	03	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97104-020-0, 97104020	8-94475-381-0	02	1	-
33	06.606 BOLT; COVER ASM PART: C = 8-97185-604-0, 97185604	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97129-593-3, 97129593	8-97131-502-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97104-020-0, 97104020	8-94311-986-2	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-94461-138-2	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94461-139-1	02	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94311-981-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97081-865-0	01	1	-

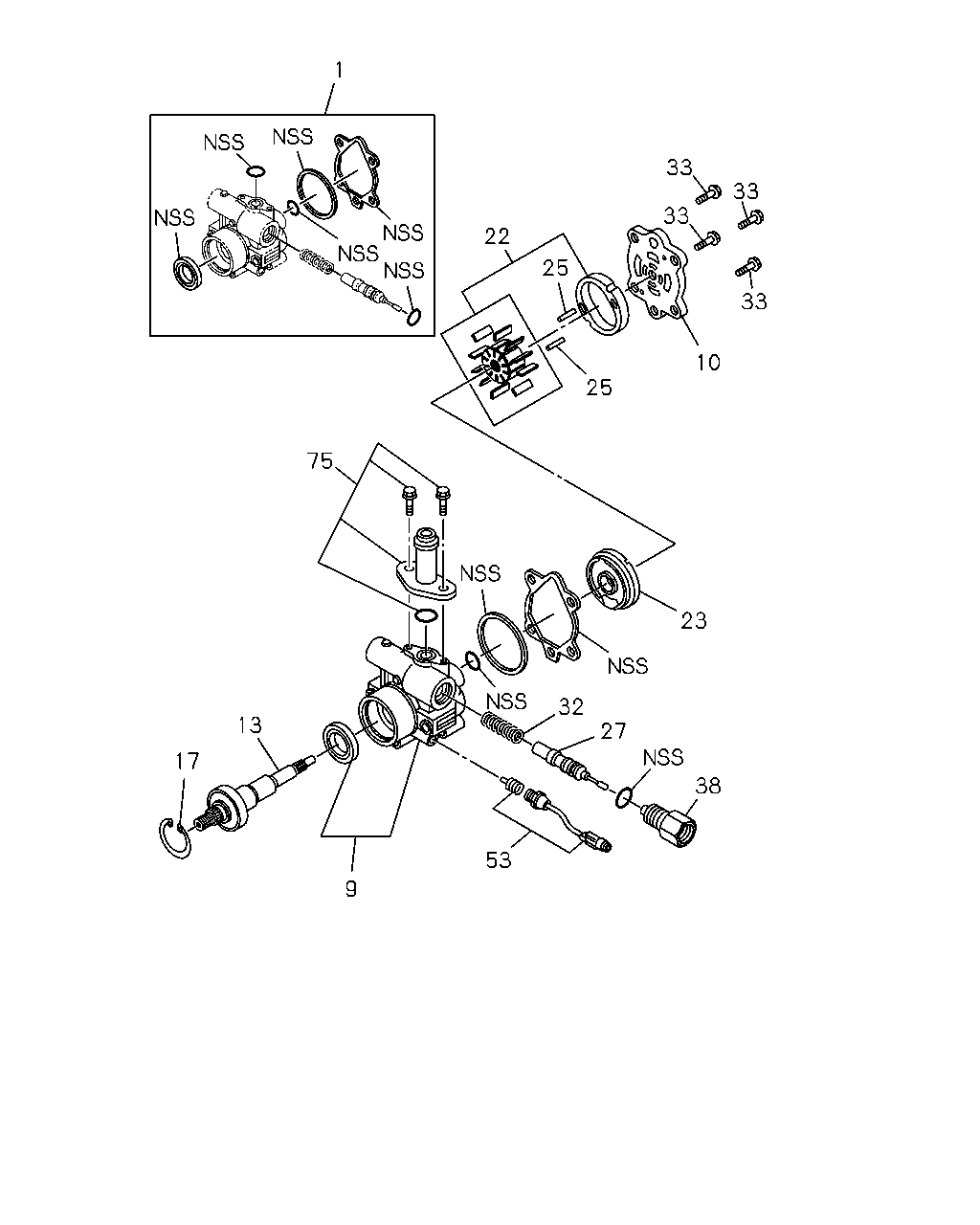

1 22 33 33 33 33 10 25 25 75 32 23 27 38 53 9 13 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97104-020-0, 97104020	8-94311-983-1	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97081-867-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97131-341-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97061-642-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97100-391-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97104-020-0, 97104020	8-97105-554-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP 06.609 ASM PART: A = 8-97104-020-0, 97104020	8-94382-178-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97061-638-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97102-303-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: A = 8-97104-020-0, 97104020	8-94475-373-0	01	1	-
13	06.605 SHAFT KIT; RET 06.614 ASM PART: B = 8-97129-593-3, 97129593	8-97061-633-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: C = 8-97185-604-0, 97185604	8-97102-304-0	01	1	-
17	06.616 RING; RET ASM PART: C = 8-97185-604-0, 97185604	8-97081-855-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97104-020-0, 97104020	8-94475-369-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-97129-593-3, 97129593	8-97110-274-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97188-367-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97168-842-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94475-371-0	02	1	-
25	06.608 PIN; HSG,P/S ASM PART: C = 8-97185-604-0, 97185604	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97081-857-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94475-376-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: A = 8-97104-020-0, 97104020	8-94311-982-1	02	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: B = 8-97129-593-3, 97129593	8-94475-381-0	03	1	-
33	06.606 BOLT; COVER 06.608, (B) ASM PART: A = 8-97104-020-0, 97104020	8-94475-381-0	02	1	-
33	06.606 BOLT; COVER ASM PART: C = 8-97185-604-0, 97185604	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: B = 8-97129-593-3, 97129593	8-97131-502-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97104-020-0, 97104020, B = 8-97129-593-3, 97129593	8-94311-981-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97185-604-0, 97185604	8-97081-865-0	01	1	-
53	06.609 SWITCH KIT; PRESSURE ASM PART: C = 8-97185-604-0, 97185604	8-97188-370-0	01	1	-
75	06.602 PIPE KIT; OIL PUMP 06.609 ASM PART: C = 8-97185-604-0, 97185604	8-97188-379-0	01	1	-
