◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#40624) — 47 parça

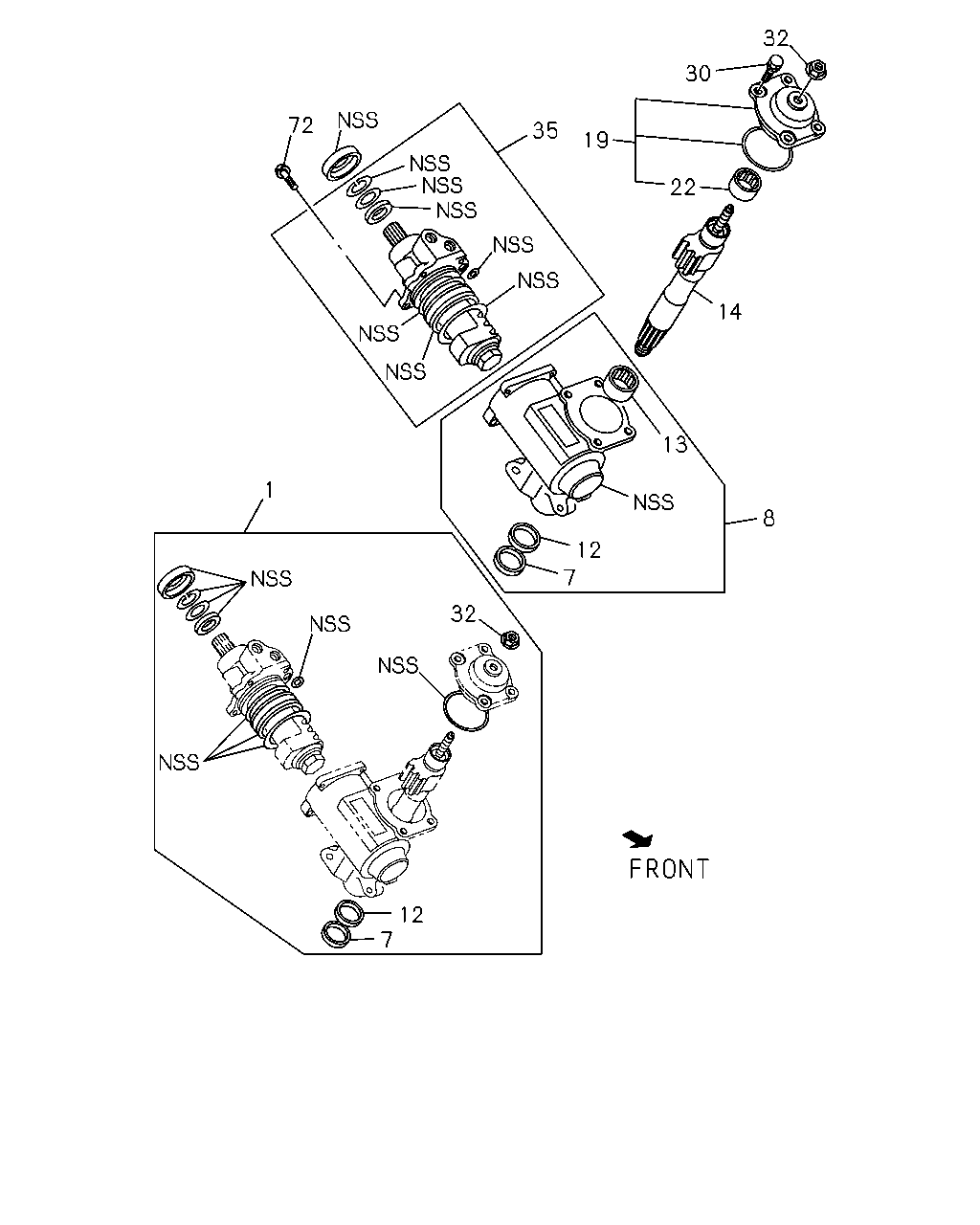

çizim 70067
72 35 19 30 32 22 14 13 8 12 7 32 1 12 7
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97029-945-1 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-94452-707-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		9-09924-261-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-97045-346-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97103-780-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97103-747-0 01 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-94240-933-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97029-941-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-97045-350-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-94312-045-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97029-942-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-94240-939-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97045-344-0, 97045344 		8-94312-047-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
M10X14 M10X22 ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-94173-741-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-94312-046-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97029-944-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97045-344-0, 97045344 		9-09111-410-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
06.524 ASM PART: C = 8-97101-357-2, 97101357 		8-97029-947-2 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356 		8-97102-697-2 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
09.181, M10X22 ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		9-01911-022-0 04 1 -
çizim 70270
8 7 55 43 14 22 23 25 26 19 9 32 30 44 66 59 43
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-94452-707-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		9-09924-261-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-97045-346-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97103-780-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		5-09605-010-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97029-941-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-97045-350-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-94312-045-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97029-942-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-94240-939-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97045-344-0, 97045344 		8-94312-047-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97045-344-0, 97045344 		9-44277-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.515-1.535 ASM PART: A = 8-97045-344-0, 97045344 		9-44279-008-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.545-1.565 ASM PART: A = 8-97045-344-0, 97045344 		9-44279-009-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.575-1.595 ASM PART: A = 8-97045-344-0, 97045344 		9-44279-010-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.605-1.625 ASM PART: A = 8-97045-344-0, 97045344 		9-44279-011-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.635-1.655 ASM PART: A = 8-97045-344-0, 97045344 		9-44279-012-0 01 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-94452-779-1 01 1 -
30 06.809 BOLT; COVER STRG UNIT
M10X14 M10X22 ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-94173-741-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-94312-046-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97101-356-2, 97101356, C = 8-97101-357-2, 97101357 		8-97029-944-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97045-344-0, 97045344 		9-09111-410-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
06.524 ASM PART: A = 8-97045-344-0, 97045344 		8-97045-356-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97045-344-0, 97045344 		8-94413-975-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-97045-348-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: A = 8-97045-344-0, 97045344 		8-94128-207-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: A = 8-97045-344-0, 97045344 		8-97045-353-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
