4-36 — POWER STEERING CONTROL; ENGINE SIDE (#40623) — 120 parça

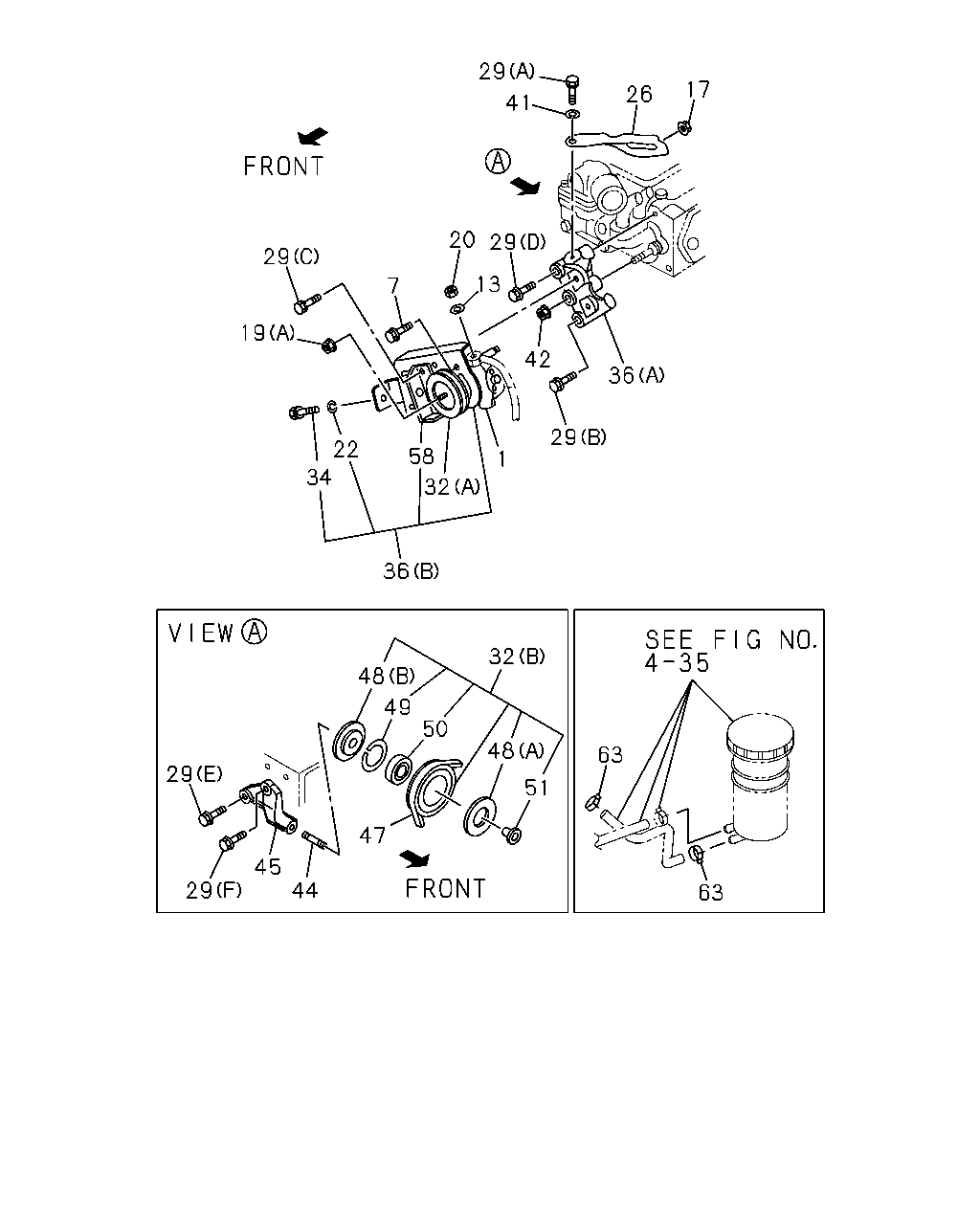

çizim 70099
63 63 51 48 32 50 49 48 29 45 44 29 47 36 32 58 22 34 19 29 7 13 42 29 36 29 20 41 29 26 17 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97129-593-3 01 1 9611- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-97104-020-0 01 1 9611- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 ENG(RLV) POWER STEERING<N40> 		8-97185-604-0 01 1 9712- ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M10X20 W/LK WASHER 		8-97033-053-1 03 1 9611- ● ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 03 1 9611- ● ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VD1 ENG(RLV) 09.198 (A) M10X100 FLANGE 		0-28081-000-0 01 1 9712- ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VD1 ENG(RLV) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ● ● ●
13 06.673 WASHER; LK,FLEX HOSE,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.634 ID=12.2 		9-09150-512-0 01 1 9611- ● ● ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9611- ● ● ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
6VD1 ENG(RLV) POWER STEERING<N40> M12 		8-94139-015-0 01 1 9712- ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.606 (A) M12 		8-94139-015-0 01 1 9611- ● ● ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) POWER STEERING<N40> 00.854 (B) M8 FLANGE 		5-09440-005-0 01 1 9611- ● ● ● ● ● ● ●
20 06.673 NUT; HOSE TO PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 07.347 M12 		9-99111-412-0 01 1 9611- ● ● ● ● ● ● ● ●
22 06.606 WASHER; LK,OIL PUMP,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.002 ID=10.2 		9-09150-510-0 01 1 9611- ● ● ● ● ● ● ● ●
26 06.635 BRACKET; P/S PUMP,RR
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97134-259-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.252 (B) M8X60 W/LK WASHER 		0-50040-860-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.029 (C) M10X28 W/LK WASHER 		0-50041-028-0 02 1 9611-9803 ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 02 1 9804- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (D) M10X60 W/LK WASHER 		0-50041-060-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.780 (E) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 00.004 M10X40 W/LK WASHER 		0-50041-040-0 02 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 9712- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-97042-266-1 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) 		8-97112-740-0 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.655 		8-94450-564-2 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
6VD1 ENG(RLV) POWER STEERING<N40> 		8-97175-769-0 01 1 9712- ● ● ● ●
34 09.181 BOLT; ADJ PLATE
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> M10X70 		0-20801-070-0 01 1 9611- ● ● ● ● ● ● ● ●
34 09.181 BOLT; ADJ PLATE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9611- ● ● ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (A) 		8-94478-880-1 01 1 9611- ● ● ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B) 		8-97066-758-1 01 1 9611- ● ● ● ● ● ● ● ●
41 06.168 WASHER; PL,BRKT
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.029 ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 9611- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.540 M8 FLANGE 		0-91150-208-0 01 1 9611- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9611- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4ZE1 ENG(RLJ) POWER STEERING<N40> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9611- ● ● ● ● ● ●
44 06.665 STUD; IDLER PULLEY
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 03.275 M10X25 L=40 		9-04411-025-0 01 1 9611- ● ● ● ● ● ● ● ●
45 06.655 BRACKET; IDLE PULLEY,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94449-652-0 01 1 9611- ● ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> L=1019 		8-94452-904-0 01 1 9611- ● ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=1451 MITSUBOSHI 		1-13671-301-0 01 1 9611- ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=1399 		5-13671-111-0 01 1 9611- ● ● ● ● ● ● ● ●
48 06.665 COVER; IDLER
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) 		8-97092-819-0 01 1 9611- ● ● ● ● ● ● ● ●
48 06.665 COVER; IDLER
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.181 (A) 		9-13669-603-0 01 1 9611- ● ● ● ● ● ● ● ●
49 06.665 RING; SNAP,IDLER
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94175-036-0 01 1 9611- ● ● ● ● ● ● ● ●
50 06.665 BEARING; IDLER
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94251-052-0 01 1 9611- ● ● ● ● ● ● ● ●
51 06.665 NUT; IDLER
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-97092-813-0 01 1 9611- ● ● ● ● ● ● ● ●
58 06.655 SLIDER; BELT ADJ,P/S OIL PUMP
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 		8-94479-122-0 01 1 9611- ● ● ● ● ● ● ● ●
63 01.762 CLIP; HOSE,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.672 ID=21 		8-94242-034-0 02 1 9611- ● ● ● ● ● ● ● ●
çizim 70309
63 25 29 29 1 63 7 7 32 7 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97129-593-3 01 1 9611- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-97104-020-0 01 1 9611- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 ENG(RLV) POWER STEERING<N40> 		8-97185-604-0 01 1 9712- ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M10X20 W/LK WASHER 		8-97033-053-1 03 1 9611- ● ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 03 1 9611- ● ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VD1 ENG(RLV) 09.198 (A) M10X100 FLANGE 		0-28081-000-0 01 1 9712- ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VD1 ENG(RLV) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9611- ● ● ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
6VD1 ENG(RLV) POWER STEERING<N40> M12 		8-94139-015-0 01 1 9712- ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-94420-004-0 01 1 9611- ● ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
6VD1 ENG(RLV) 		8-97160-608-1 01 1 9712- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.252 (B) M8X60 W/LK WASHER 		0-50040-860-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.029 (C) M10X28 W/LK WASHER 		0-50041-028-0 02 1 9611-9803 ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 02 1 9804- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (D) M10X60 W/LK WASHER 		0-50041-060-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.780 (E) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 00.004 M10X40 W/LK WASHER 		0-50041-040-0 02 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 9712- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-97042-266-1 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) 		8-97112-740-0 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.655 		8-94450-564-2 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
6VD1 ENG(RLV) POWER STEERING<N40> 		8-97175-769-0 01 1 9712- ● ● ● ●
63 01.762 CLIP; HOSE,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.672 ID=21 		8-94242-034-0 02 1 9611- ● ● ● ● ● ● ● ●

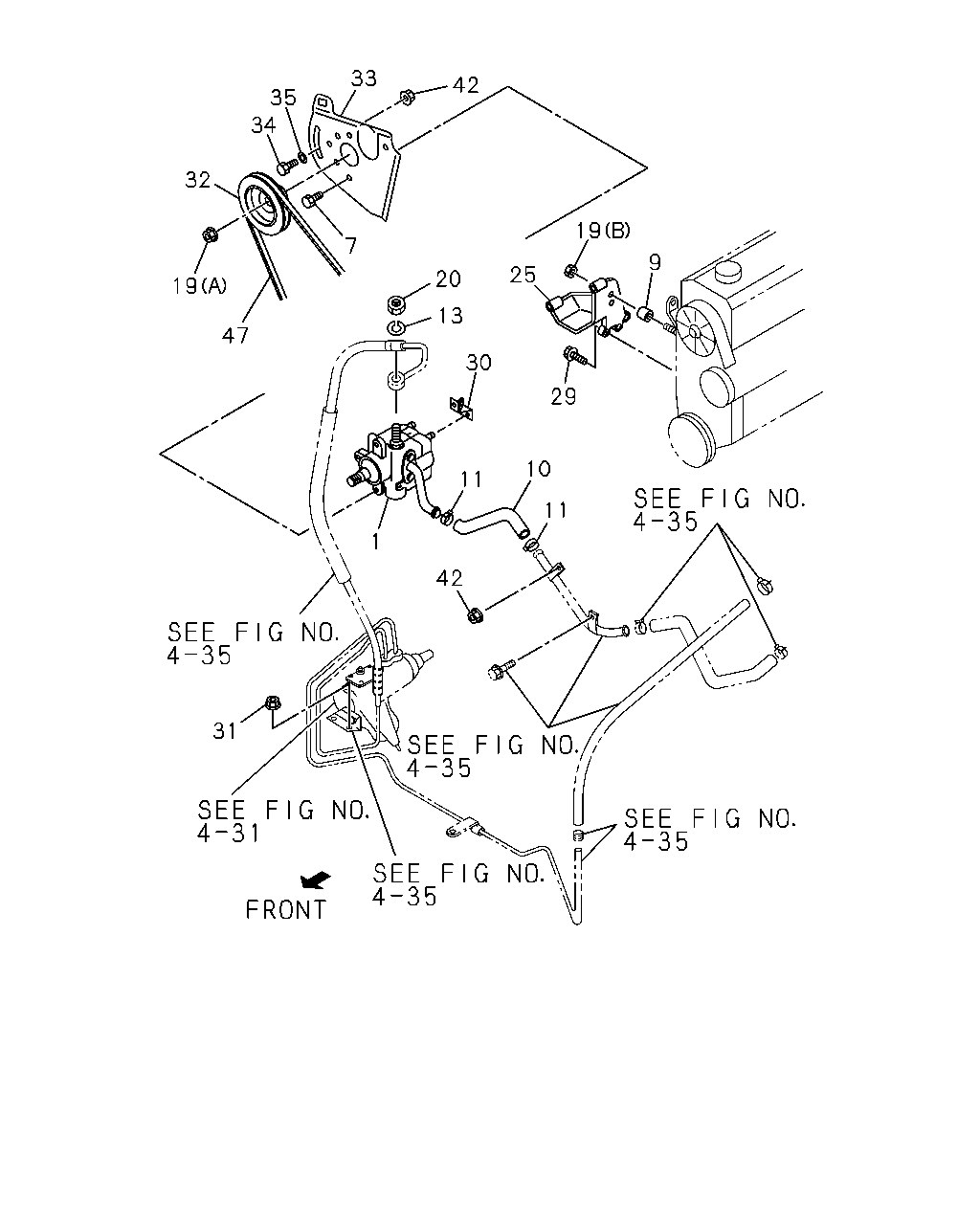

çizim 71051
42 33 35 34 32 19 7 47 20 25 19 13 9 29 30 11 10 1 11 42 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 		8-97129-593-3 01 1 9611- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-97104-020-0 01 1 9611- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6VD1 ENG(RLV) POWER STEERING<N40> 		8-97185-604-0 01 1 9712- ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.606 M10X20 W/LK WASHER 		8-97033-053-1 03 1 9611- ● ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 03 1 9611- ● ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VD1 ENG(RLV) 09.198 (A) M10X100 FLANGE 		0-28081-000-0 01 1 9712- ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VD1 ENG(RLV) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 9712- ● ● ● ●
9 06.606 COLLAR; IDLER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-94146-294-0 01 1 9611- ● ● ● ● ● ● ● ●
10 06.670 HOSE; FLEX,P/S OIL PUMP,INL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673 		8-94471-683-1 01 1 9611- ● ● ● ● ● ● ● ●
11 06.672 CLIP; FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=21 		8-94242-034-0 02 1 9611-9801 ● ● ● ● ● ● ● ●
11 06.672 CLIP; FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=21 		8-94242-034-0 02 1 9611-9801 ● ● ● ● ● ● ● ●
11 06.672 CLIP; FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=21 		8-94242-034-0 01 1 9802- ● ● ● ● ● ● ● ●
11 06.672 CLIP; FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=21 		8-94242-034-0 02 1 9802- ● ● ● ● ● ● ● ●
13 06.673 WASHER; LK,FLEX HOSE,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.634 ID=12.2 		9-09150-512-0 01 1 9611- ● ● ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.606 (A) M12 		8-94139-015-0 01 1 9611- ● ● ● ● ● ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3) POWER STEERING<N40> 00.854 (B) M8 FLANGE 		5-09440-005-0 01 1 9611- ● ● ● ● ● ● ●
20 06.673 NUT; HOSE TO PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 07.347 M12 		9-99111-412-0 01 1 9611- ● ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-94420-004-0 01 1 9611- ● ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
6VD1 ENG(RLV) 		8-97160-608-1 01 1 9712- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.252 (B) M8X60 W/LK WASHER 		0-50040-860-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 00.029 (C) M10X28 W/LK WASHER 		0-50041-028-0 02 1 9611-9803 ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.417 (C) M10X25 FLANGE 		0-28081-025-0 02 1 9804- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (D) M10X60 W/LK WASHER 		0-50041-060-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 00.780 (E) M8X30 W/LK WASHER 		0-50040-830-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (F) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 00.004 M10X40 W/LK WASHER 		0-50041-040-0 02 1 9611- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VD1 ENG(RLV) 03.278 (A) M8X100 FLANGE 		0-28080-800-0 01 1 9712- ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VD1 ENG(RLV) 03.704 (B) M8X40 FLANGE 		0-28680-840-0 02 1 9712- ● ● ● ●
30 06.672 BRACKET; FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-94463-474-0 01 1 9611- ● ● ● ● ● ● ● ●
31 06.672 NUT; FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.655 (A) 		8-97042-266-1 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) 		8-97112-740-0 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.655 		8-94450-564-2 01 1 9611- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
6VD1 ENG(RLV) POWER STEERING<N40> 		8-97175-769-0 01 1 9712- ● ● ● ●
33 06.655 PLATE; ADJ,P/S
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 		8-94472-342-0 01 1 9611- ● ● ● ● ● ● ● ●
34 09.181 BOLT; ADJ PLATE
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> M10X70 		0-20801-070-0 01 1 9611- ● ● ● ● ● ● ● ●
34 09.181 BOLT; ADJ PLATE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9611- ● ● ● ● ● ● ● ●
35 04.085 WASHER; PL,ADJ PLATE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=10.5 OD=26 		9-09164-710-0 02 1 9611- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 01.540 M8 FLANGE 		0-91150-208-0 01 1 9611- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9611- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4ZE1 ENG(RLJ) POWER STEERING<N40> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9611- ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> L=1019 		8-94452-904-0 01 1 9611- ● ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=1451 MITSUBOSHI 		1-13671-301-0 01 1 9611- ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JA1 ENG(RLE) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) L=1399 		5-13671-111-0 01 1 9611- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
