◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#40621) — 54 parça

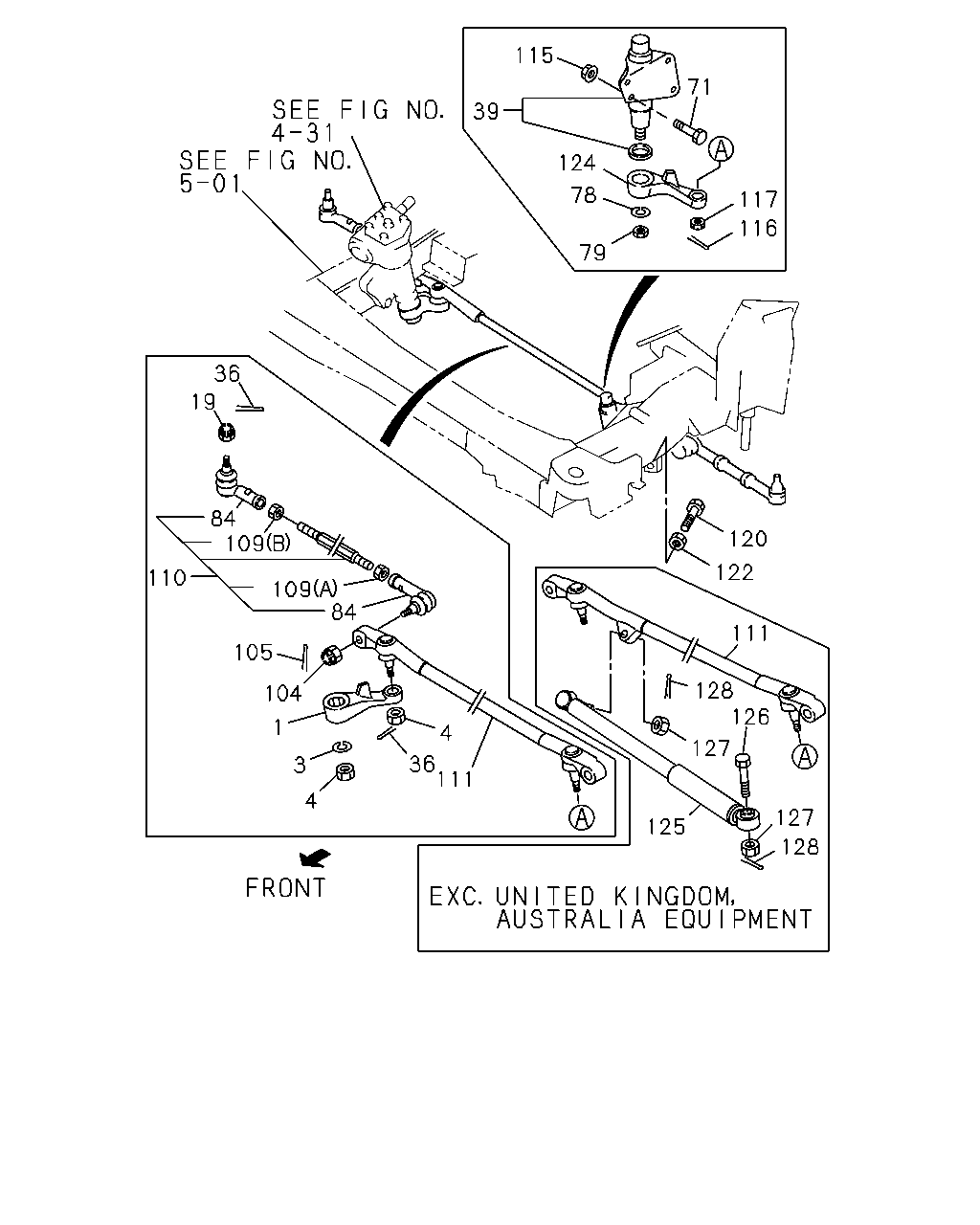

çizim 71089
115 39 71 117 124 116 78 79 120 111 122 128 126 127 127 128 125 111 36 4 3 1 4 104 105 110 109 84 19 36 109 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.859 ARM; PITMAN,STRG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94440-892-3 01 1 9611- ● ● ● ●
1 06.859 ARM; PITMAN,STRG
6VD1 ENG(RLV) 		8-97026-252-0 01 1 9611- ● ●
1 06.859 ARM; PITMAN,STRG 8-97026-252-0 01 1 9611- ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 9611- ● ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
06.865 M14 		8-94465-411-0 01 1 9611- ● ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
08.915 M22 		9-09111-522-0 01 1 9611- ● ● ● ● ● ● ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
M14 		8-94465-411-0 02 1 9611- ● ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
06.865 OD=2.8 L=25 		9-08113-025-0 01 1 9611- ● ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
06.865 OD=2.8 L=25 		9-08113-025-0 02 1 9611- ● ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97106-663-0 01 1 9611- ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE 8-97106-663-0 01 1 9611- ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
AUSTRALIA EQUIPMENT(RR3) 		8-97039-325-1 01 1 9611- ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97039-325-1 01 1 9611- ● ● ● ●
71 06.896 BOLT; RELAY LEVER BRKT
06.509 M10X92 FLANGE 		8-94313-798-1 04 1 9611- ● ● ● ● ● ● ● ●
78 06.897 WASHER; LINK,RELAY LEVER
07.247 ID=16.2 		9-09150-816-0 01 1 9611- ● ● ● ● ● ● ● ●
79 06.897 NUT; RELAY LEVER
04.681 M16 		9-99111-516-0 01 1 9611- ● ● ● ● ● ● ● ●
84 06.874 ROD END; TRACK ROD
RH THREAD 		8-97020-953-1 02 1 9611- ● ● ● ● ● ● ● ●
84 06.874 ROD END; TRACK ROD
LH THREAD 		8-97020-954-2 02 1 9611- ● ● ● ● ● ● ● ●
104 06.233 NUT; ROD END
06.865 M14 		8-94465-411-0 02 1 9611- ● ● ● ● ● ● ● ●
105 06.865 PIN; SPLIT,ROD END
OD=2.8 L=25 		9-08113-025-0 02 1 9611- ● ● ● ● ● ● ● ●
109 06.897 NUT; ROD
(A) M14 LH THREAD 		5-09400-010-0 02 1 9611- ● ● ● ● ● ● ● ●
109 06.897 NUT; ROD
06.232 (B) M14 		9-99110-414-0 02 1 9611- ● ● ● ● ● ● ● ●
110 06.870 ROD; TRACK,OUTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) L=306.9 		8-94459-478-2 02 1 9611- ● ● ● ●
110 06.870 ROD; TRACK,OUTER
6VD1 ENG(RLV) L=262 		8-94459-493-2 02 1 9611- ● ●
110 06.870 ROD; TRACK,OUTER
L=262 		8-94459-493-2 02 1 9611- ● ● ● ●
111 06.870 ROD; TRACK,CENTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94389-209-2 01 1 9611- ● ● ● ●
111 06.870 ROD; TRACK,CENTER
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94459-474-2 01 1 9611- ● ● ●
111 06.870 ROD; TRACK,CENTER
AUSTRALIA EQUIPMENT(RR3) 		8-94459-489-2 01 1 9611-9711 ●
111 06.870 ROD; TRACK,CENTER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94459-489-2 01 1 9611-9711 ● ●
111 06.870 ROD; TRACK,CENTER
UNITED KINGDOM EQUIPMENT(EK3) 		8-94459-489-2 01 1 9712- ● ●
111 06.870 ROD; TRACK,CENTER
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94389-221-2 01 1 9611-9711 ●
111 06.870 ROD; TRACK,CENTER 8-94389-221-2 01 1 9611-9711 ●
111 06.870 ROD; TRACK,CENTER
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94389-221-2 01 1 9611-9711 ● ●
111 06.870 ROD; TRACK,CENTER
6VD1 ENG(RLV) 		8-94389-221-2 01 1 9712- ● ●
111 06.870 ROD; TRACK,CENTER 8-94389-221-2 01 1 9712- ● ●
111 06.870 ROD; TRACK,CENTER
EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94389-221-2 01 1 9712- ● ●
115 06.896 NUT; RELAY LEVER BRKT
06.509 M10 FLANGE 		8-94313-797-0 04 1 9611- ● ● ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.870 OD=2.8 L=20 		9-08113-020-0 01 1 9611- ● ● ● ● ● ● ● ●
117 06.233 NUT; DRAG LINK
M12 SLOTTED 		9-99117-512-0 01 1 9611- ● ● ● ● ● ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.861 L=35 		9-09802-280-0 02 1 9611- ● ● ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
6VD1 ENG(RLV) L=57 		8-94403-347-1 02 1 9611- ● ●
120 06.897 BOLT; RELAY LEVER STOPPER
L=57 		8-94403-347-1 02 1 9611- ● ● ● ●
122 06.896 NUT; RELAY LEVER STOPPER
06.822 M10 		9-09111-410-0 02 1 9611- ● ● ● ● ● ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94440-893-3 01 1 9611- ● ● ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE
6VD1 ENG(RLV) 		8-94404-000-5 01 1 9611- ● ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-94404-000-5 01 1 9611- ● ● ● ●
125 06.865 DAMPER; STEERING
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97161-106-0 01 1 9611- ● ● ● ● ● ●
125 06.865 DAMPER; STEERING 8-97161-106-0 01 1 9611- ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94241-456-0 01 1 9611- ● ● ● ● ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER 8-94241-456-0 01 1 9611- ● ●
127 06.865 NUT; STRG DAMPER
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 05.511 M10 		9-09116-510-0 02 1 9611- ● ● ● ● ● ●
127 06.865 NUT; STRG DAMPER
05.511 M10 		9-09116-510-0 02 1 9611- ● ●
128 06.865 PIN; SPLIT,STRG DAMPER
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 00.793 OD=1.8 L=15 		9-08112-015-0 02 1 9611- ● ● ● ● ● ●
128 06.865 PIN; SPLIT,STRG DAMPER
00.793 OD=1.8 L=15 		9-08112-015-0 02 1 9611- ● ●
