Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#40618) — 292 parça

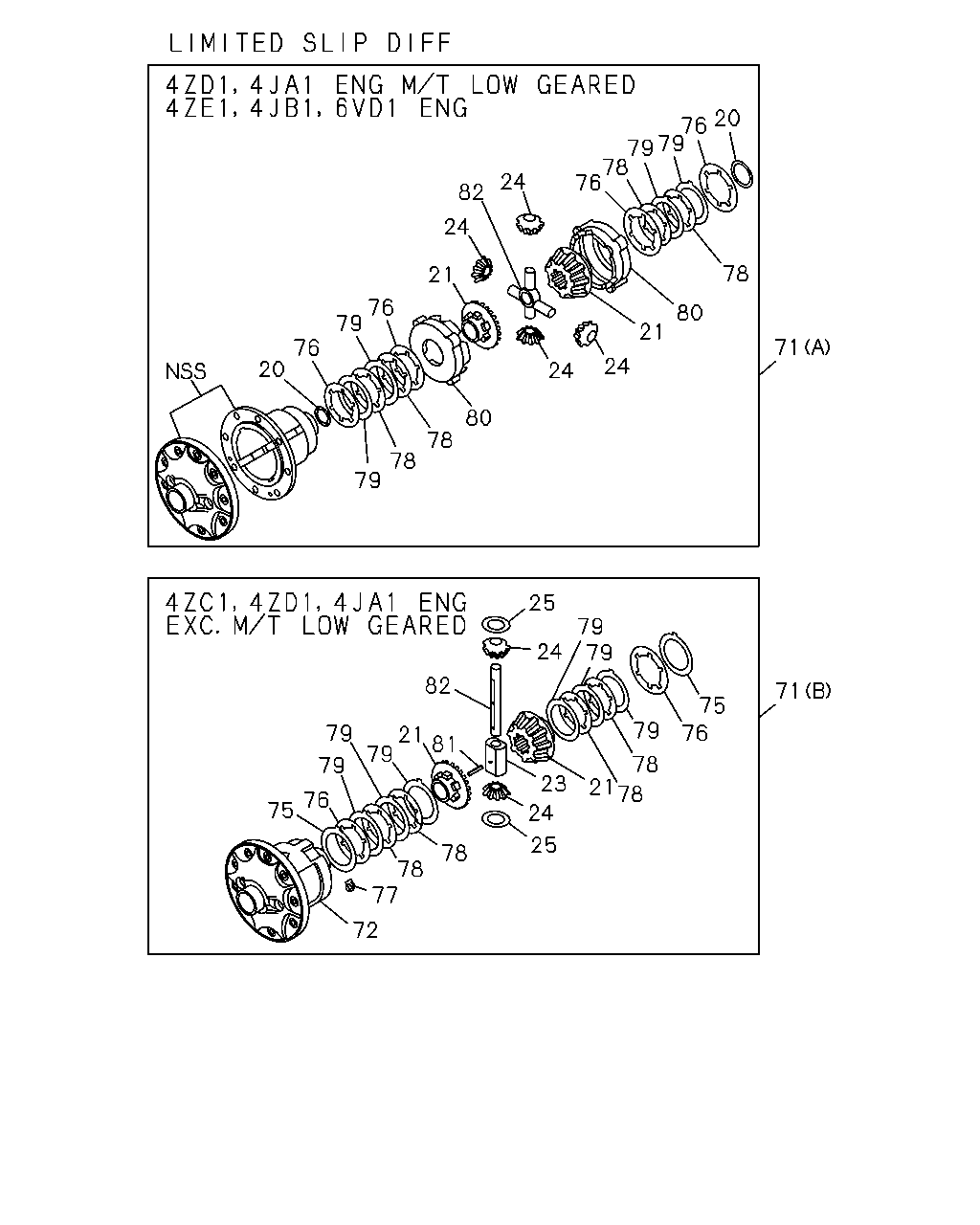

71 71 75 76 79 78 78 21 23 24 25 81 82 24 79 79 25 21 79 79 79 76 75 79 78 78 80 24 24 21 80 78 20 76 79 79 78 76 24 82 24 21 76 79 76 20 78 78 77 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
20	05.543 WASHER; THRUST,SIDE GEAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) T=1.00	5-41562-005-1	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) T=1.05	5-41562-006-1	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) T=1.10	5-41562-007-1	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.60	8-94365-187-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.70	8-94365-188-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.50	8-94453-935-0	02	1	9611-9702	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) REAR SPRING HEAVY DUTY(G50) T=1.50	8-94453-935-0	02	1	9611-9702	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.50	8-94453-935-0	02	1	9703-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) REAR SPRING HEAVY DUTY(G50) T=1.50	8-94453-935-0	02	1	9703-	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	9703-					●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.80	8-97066-412-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) T=1.50	8-94453-935-0	04	1	9611-9702	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) EXC. REAR SPRING HEAVY DUTY(G50), EAST MALAYSIA EQUIPMENT(PM6),WEST MAL AYSIA EQUIPMENT(S3D) T=1.50	8-94453-935-0	04	1	9703-	●		●	●
21	05.528 GEAR; SIDE,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-094-0	02	1	9611-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF)	8-94474-302-0	02	1	9611-9711	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) Z=17	8-97079-519-1	02	1	9712-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF)	8-97023-090-0	02	1	9611-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80)	8-97023-090-0	02	1	9611-	●		●	●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97033-028-0	02	1	9611-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97033-028-0	02	1	9611-	●		●	●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) 05.511	8-94118-097-0	01	1	9611-	●	●	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF)	9-41525-015-2	01	1	9611-	●	●	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	9611-	●	●	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	9611-	●		●	●	●		●	●
24	05.526 GEAR; PINION,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-095-0	02	1	9611-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF)	8-94474-301-0	02	1	9611-9711	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) 05.527 Z=10	8-97079-518-0	02	1	9712-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF)	8-97023-089-0	04	1	9611-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80)	8-97023-089-0	04	1	9611-	●		●	●	●		●	●
24	05.526 GEAR; PINION,DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97033-027-0	02	1	9611-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97033-027-0	02	1	9611-	●		●	●	●		●	●
25	05.528 WASHER; THRUST,PINION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) 05.542	8-94118-099-0	02	1	9611-	●	●	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) (B)	8-94328-477-0	01	1	9611-	●	●	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) (A)	8-97062-975-1	01	1	9611-	●	●	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) (A)	8-97062-975-1	01	1	9611-	●		●	●	●		●	●
72	05.510 CAGE; DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-093-0	01	1	9611-	●	●	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) 05.453	8-97038-515-1	01	1	9611-	●	●	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	9611-	●	●	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	9611-	●		●	●	●		●	●
75	05.511 PLATE; BEVEL 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) 05.518	8-94118-103-0	02	1	9611-	●	●	●	●	●	●	●	●
76	05.511 DISC; BEVEL 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-102-0	02	1	9611-	●	●	●	●	●	●	●	●
76	05.511 DISC; BEVEL 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF)	8-97096-209-0	04	1	9611-	●	●	●	●	●	●	●	●
76	05.511 DISC; BEVEL 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80)	8-97096-209-0	04	1	9611-	●		●	●	●		●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) REAR SPRING HEAVY DUTY(G50) LIMITED SLIP DIFF(G80) REAR AXLE LOW GEARED(6ST)	8-94118-101-0	02	1	9611-	●	●	●	●
77	05.511 SLEEVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3) REAR SPRING HEAVY DUTY(G50) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-101-0	02	1	9611-	●	●	●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) REAR SPRING HEAVY DUTY(G50) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-101-0	02	1	9611-					●
77	05.511 SLEEVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) REAR SPRING HEAVY DUTY(G50) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-101-0	02	1	9611-						●	●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) LIMITED SLIP DIFF(G80)	8-94118-101-0	02	1	9611-							●	●
77	05.511 SLEEVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3) LIMITED SLIP DIFF(G80) EXC. REAR SPRING HEAVY DUTY(G50), M/T LOW GEARED(6WF)	8-94118-101-0	04	1	9611-	●	●	●	●		●	●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) REAR AXLE LOW GEARED(6ST) EXC. REAR SPRING HEAVY DUTY(G50)	8-94118-101-0	04	1	9611-	●	●	●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. REAR AXLE LOW GEARED(6ST)	8-94118-101-0	04	1	9611-	●	●	●	●
77	05.511 SLEEVE 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. UNITED KINGDOM EQUIPMENT(EK3), REAR SPRING HEAVY DUTY(G50),M/T LOWGEARED(6WF)	8-94118-101-0	04	1	9611-					●	●	●	●
78	05.511 DISC; FRICTION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) T=1.40	8-94118-104-0	04	1	9611-	●	●	●	●	●	●	●	●
78	05.511 DISC; FRICTION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) T=1.50	8-94118-105-0	04	1	9611-	●	●	●	●	●	●	●	●
78	05.511 DISC; FRICTION 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF)	8-94453-937-0	04	1	9611-	●	●	●	●	●	●	●	●
78	05.511 DISC; FRICTION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80)	8-94453-937-0	04	1	9611-	●		●	●	●		●	●
79	05.511 PLATE; FRICTION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-106-0	06	1	9611-	●	●	●	●	●	●	●	●
79	05.511 PLATE; FRICTION 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.85	8-94365-189-0	04	1	9611-	●	●	●	●	●	●	●	●
79	05.511 PLATE; FRICTION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.85	8-94365-189-0	04	1	9611-	●		●	●	●		●	●
79	05.511 PLATE; FRICTION 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.75	8-94453-936-0	04	1	9611-	●	●	●	●	●	●	●	●
79	05.511 PLATE; FRICTION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.75	8-94453-936-0	04	1	9611-	●		●	●	●		●	●
80	05.511 RING; PRESSURE 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF)	8-94453-931-0	02	1	9611-	●	●	●	●	●	●	●	●
80	05.511 RING; PRESSURE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80)	8-94453-931-0	02	1	9611-	●		●	●	●		●	●
81	05.511 PIN; SPR,SLIP LK DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-098-0	01	1	9611-	●	●	●	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-096-0	01	1	9611-	●	●	●	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF)	8-94453-932-0	01	1	9611-	●	●	●	●	●	●	●	●
82	05.517 SPIDER; DIFF PINION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80)	8-94453-932-0	01	1	9611-	●		●	●	●		●	●

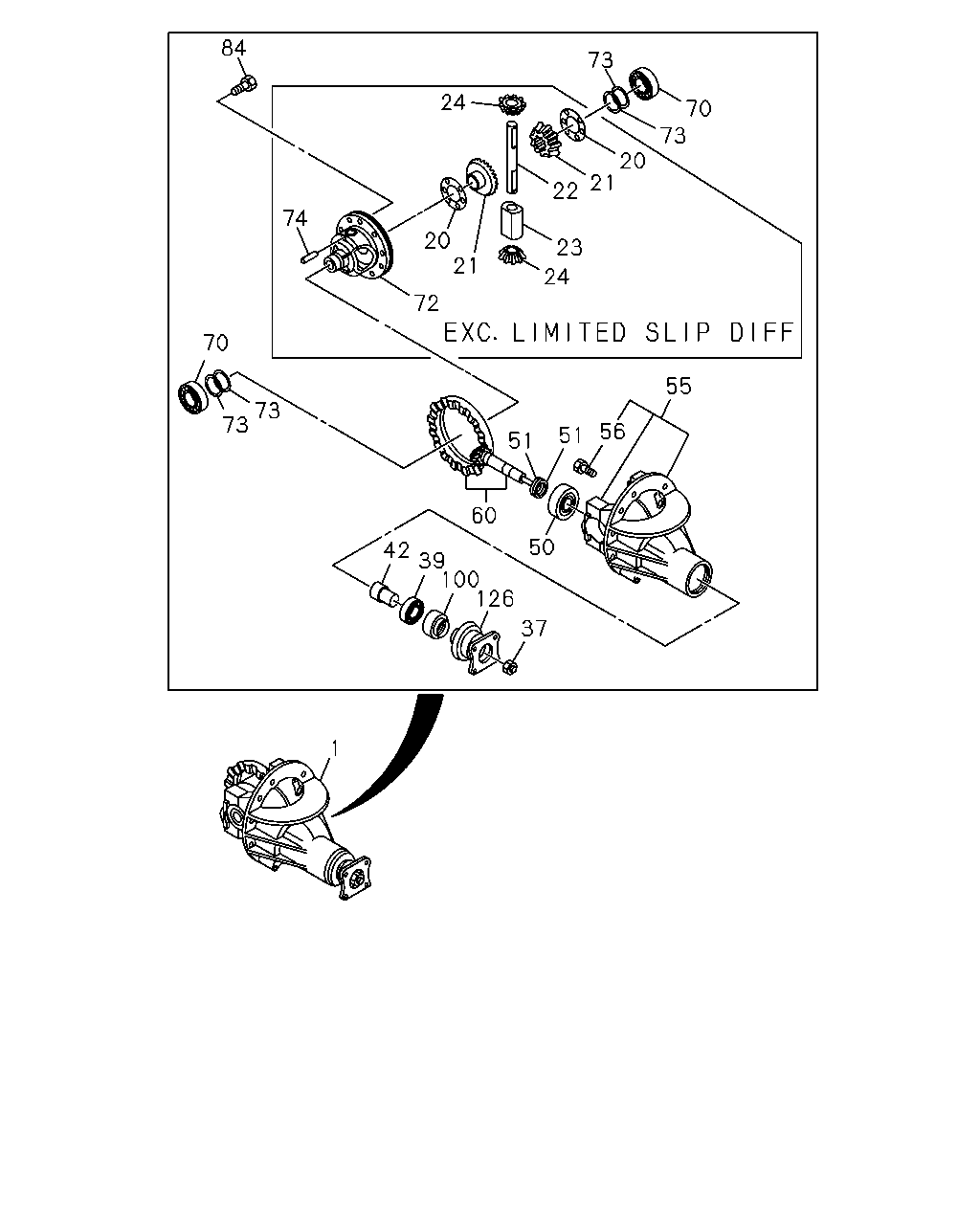

84 24 73 73 20 21 22 24 23 21 20 72 74 70 73 73 60 51 51 56 55 50 126 100 39 42 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) REAR AXLE LOW GEARED(6ST) 41/9	8-94468-547-3	01	1	9611-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4ZD1 ENG(LW3) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) 41/9	8-94468-547-3	01	1	9611-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4ZC1 ENG(LR9) LIMITED SLIP DIFF(G80) 41/9	8-94468-547-3	01	1	9611-		●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) 41/9	8-94468-547-3	01	1	9611-					●
1	05.505 DRIVE ASM; FINAL,RR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) 41/9	8-94468-547-3	01	1	9611-						●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. REAR AXLE LOW GEARED(6ST) 41/10	8-94468-538-3	01	1	9611-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),REAR AXLE LOW GEARED(6ST) 41/10	8-94474-305-3	01	1	9611-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94474-306-3	01	1	9611-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4ZD1 ENG(LW3) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) 41/9	8-94474-306-3	01	1	9611-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4ZC1 ENG(LR9) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94474-306-3	01	1	9611-		●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) 41/9	8-94474-306-3	01	1	9611-					●
1	05.505 DRIVE ASM; FINAL,RR 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) 41/9	8-94474-306-3	01	1	9611-						●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4ZD1 ENG(LW3) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) 41/9	8-97021-094-4	01	1	9611-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 6VD1 ENG(RLV) A/T THM(RMQ) LIMITED SLIP DIFF(G80) 41/9	8-97021-094-4	01	1	9611-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) 41/9	8-97021-094-4	01	1	9611-					●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) 41/9	8-97021-094-4	01	1	9611-					●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) 41/9	8-97021-094-4	01	1	9611-							●	●
1	05.505 DRIVE ASM; FINAL,RR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94337-414-4	01	1	9611-	●	●	●	●	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR 6VD1 ENG(RLV) A/T THM(RMQ) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94337-414-4	01	1	9611-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94337-414-4	01	1	9611-					●		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) 43/10	8-97021-092-3	01	1	9611-9702	●		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D) 43/10	8-97021-092-3	01	1	9703-	●		●	●
1	05.505 DRIVE ASM; FINAL,RR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) LIMITED SLIP DIFF(G80) 43/10	8-97021-092-3	01	1	9703-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. LIMITED SLIP DIFF(G80) 43/10	8-94320-490-3	01	1	9611-9702	●		●	●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. LIMITED SLIP DIFF(G80),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 43/10	8-94320-490-3	01	1	9703-	●		●	●
1	05.505 DRIVE ASM; FINAL,RR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) EXC. LIMITED SLIP DIFF(G80) 43/10	8-94320-490-3	01	1	9703-			●	●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. LIMITED SLIP DIFF(G80) 41/9	8-94387-987-3	01	1	9701-			●
1	05.505 DRIVE ASM; FINAL,RR 4JB1 ENG(RLF) LIMITED SLIP DIFF(G80) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 41/10	8-97021-091-3	01	1	9702-			●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) T=1.00	5-41562-005-1	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) T=1.05	5-41562-006-1	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) T=1.10	5-41562-007-1	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.60	8-94365-187-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.60	8-94365-187-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.70	8-94365-188-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.70	8-94365-188-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.50	8-94453-935-0	02	1	9611-9702	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) REAR SPRING HEAVY DUTY(G50) T=1.50	8-94453-935-0	02	1	9611-9702	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.50	8-94453-935-0	02	1	9703-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) REAR SPRING HEAVY DUTY(G50) T=1.50	8-94453-935-0	02	1	9703-	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.50	8-94453-935-0	02	1	9703-					●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF) T=1.80	8-97066-412-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80) T=1.80	8-97066-412-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=0.80	8-94435-343-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=0.90	8-94435-344-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=1.10	8-94435-345-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=1.20	8-94435-346-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=1.30	8-94435-347-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	9611-	●	●	●	●	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) T=1.00	9-41562-602-0	02	1	9611-	●		●	●	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) T=1.50	8-94453-935-0	04	1	9611-9702	●		●	●
20	05.543 WASHER; THRUST,SIDE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) LIMITED SLIP DIFF(G80) EXC. REAR SPRING HEAVY DUTY(G50), EAST MALAYSIA EQUIPMENT(PM6),WEST MAL AYSIA EQUIPMENT(S3D) T=1.50	8-94453-935-0	04	1	9703-	●		●	●
21	05.528 GEAR; SIDE,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-094-0	02	1	9611-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF)	8-94474-302-0	02	1	9611-9711	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) Z=17	8-97079-519-1	02	1	9712-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF)	8-97023-090-0	02	1	9611-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80)	8-97023-090-0	02	1	9611-	●		●	●	●		●	●
21	05.528 GEAR; SIDE,DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97033-028-0	02	1	9611-	●	●	●	●	●	●	●	●
21	05.528 GEAR; SIDE,DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) Z=18	8-97033-028-0	02	1	9611-	●		●	●	●		●	●
22	05.520 SPIDER; DIFF PINION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) 05.517	9-41521-044-1	01	1	9611-	●	●	●	●	●	●	●	●
22	05.520 SPIDER; DIFF PINION 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80)	8-94435-308-1	01	1	9611-	●	●	●	●	●	●	●	●
22	05.520 SPIDER; DIFF PINION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80)	8-94435-308-1	01	1	9611-	●		●	●	●		●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF) 05.511	8-94118-097-0	01	1	9611-	●	●	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF)	9-41525-015-2	01	1	9611-	●	●	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	9611-	●	●	●	●	●	●	●	●
23	05.517 BLOCK; THRUST,DIFF BOX 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80)	8-94320-494-0	01	1	9611-	●		●	●	●		●	●
24	05.526 GEAR; PINION,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-095-0	02	1	9611-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF)	8-94474-301-0	02	1	9611-9711	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) 05.527 Z=10	8-97079-518-0	02	1	9712-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) M/T LOW GEARED(6WF)	8-97023-089-0	04	1	9611-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) LIMITED SLIP DIFF(G80)	8-97023-089-0	04	1	9611-	●		●	●	●		●	●
24	05.526 GEAR; PINION,DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97033-027-0	02	1	9611-	●	●	●	●	●	●	●	●
24	05.526 GEAR; PINION,DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80) Z=10	8-97033-027-0	02	1	9611-	●		●	●	●		●	●
37	05.595 NUT; DRIVING PINION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) M18 LOCK NUT	8-94376-262-0	01	1	9611-	●	●	●	●	●	●	●	●
37	05.595 NUT; DRIVING PINION 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M24 FLANGE	8-94376-261-1	01	1	9611-	●	●	●	●	●	●	●	●
37	05.595 NUT; DRIVING PINION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) M24 FLANGE	8-94376-261-1	01	1	9611-	●		●	●	●		●	●
39	05.484 BEARING; FINAL PINION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) NSK	8-94472-099-0	01	1	9611-	●	●	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) NSK	9-00093-078-0	01	1	9611-	●	●	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) NSK	9-00093-078-0	01	1	9611-	●		●	●	●		●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94472-118-0	01	1	9611-	●	●	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-97035-399-0	01	1	9611-	●	●	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV)	8-97035-399-0	01	1	9611-	●		●	●	●		●	●
50	05.447 BEARING; FINAL PINION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.484 NSK	9-00093-621-0	01	1	9611-	●	●	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) NSK	8-94435-342-0	01	1	9611-	●	●	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) NSK	8-94435-342-0	01	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.18	9-41519-153-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.20	9-41519-154-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.22	9-41519-155-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.24	9-41519-156-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.26	9-41519-157-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.28	9-41519-158-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.30	9-41519-159-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.32	9-41519-160-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.34	9-41519-161-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.36	9-41519-162-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.38	9-41519-163-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.40	9-41519-164-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.42	9-41519-165-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.44	9-41519-166-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.46	9-41519-167-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.48	9-41519-168-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.50	9-41519-169-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.52	9-41519-170-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.54	9-41519-171-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.460 T=2.56	9-41519-172-1	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=1.94	8-94435-356-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=1.94	8-94435-356-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=1.96	8-94435-357-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=1.96	8-94435-357-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=1.98	8-94435-358-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=1.98	8-94435-358-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.00	8-94435-359-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.00	8-94435-359-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.02	8-94435-360-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.02	8-94435-360-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.04	8-94435-361-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.04	8-94435-361-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.06	8-94435-362-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.06	8-94435-362-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.08	8-94435-363-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.08	8-94435-363-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.10	8-94435-364-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.10	8-94435-364-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.12	8-94435-365-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.12	8-94435-365-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.14	8-94435-366-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.14	8-94435-366-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.16	8-94435-367-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.16	8-94435-367-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.18	8-94435-368-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.18	8-94435-368-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.20	8-94435-369-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.20	8-94435-369-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.22	8-94435-370-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.22	8-94435-370-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.24	8-94435-371-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.24	8-94435-371-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.26	8-94435-372-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.26	8-94435-372-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.28	8-94435-373-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.28	8-94435-373-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.30	8-94435-374-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.30	8-94435-374-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.32	8-94435-375-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.32	8-94435-375-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.34	8-94435-376-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.34	8-94435-376-0	AR	1	9611-	●		●	●	●		●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=2.36	8-94435-377-0	AR	1	9611-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=2.36	8-94435-377-0	AR	1	9611-	●		●	●	●		●	●
55	05.505 CARRIER; DIFF 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST)	5-41110-016-3	01	1	9611-	●	●	●	●
55	05.505 CARRIER; DIFF 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF)	5-41110-016-3	01	1	9611-	●	●	●	●
55	05.505 CARRIER; DIFF 4ZC1 ENG(LR9)	5-41110-016-3	01	1	9611-		●	●	●
55	05.505 CARRIER; DIFF 4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	5-41110-016-3	01	1	9611-					●
55	05.505 CARRIER; DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	5-41110-016-3	01	1	9611-						●	●	●
55	05.505 CARRIER; DIFF 4JA1 ENG(RLE) EXC. REAR AXLE LOW GEARED(6ST)	5-41110-014-3	01	1	9611-	●	●	●	●
55	05.505 CARRIER; DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94435-290-4	01	1	9611-	●	●	●	●	●	●	●	●
55	05.505 CARRIER; DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV)	8-94435-290-4	01	1	9611-	●		●	●	●		●	●
56	05.506 BOLT; BRG CAP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 05.387 M12X62	8-94376-322-0	04	1	9611-	●	●	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 05.387 M12X75	8-94435-341-0	04	1	9611-	●	●	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 05.387 M12X75	8-94435-341-0	04	1	9611-	●		●	●	●		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) REAR AXLE LOW GEARED(6ST) 41/9	8-97065-093-0	01	1	9611-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4ZD1 ENG(LW3) EXC. M/T LOW GEARED(6WF) 41/9	8-97065-093-0	01	1	9611-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4ZC1 ENG(LR9) 41/9	8-97065-093-0	01	1	9611-		●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 41/9	8-97065-093-0	01	1	9611-					●
60	05.529 GEAR SET; FINAL DRIVE,RR 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 41/9	8-97065-093-0	01	1	9611-						●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JA1 ENG(RLE) EXC. REAR AXLE LOW GEARED(6ST) 41/10	8-97063-573-0	01	1	9611-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 41/9	8-97087-826-0	01	1	9611-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 6VD1 ENG(RLV) A/T THM(RMQ) 41/9	8-97087-826-0	01	1	9611-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 41/9	8-97087-826-0	01	1	9611-					●		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) 43/10	8-97039-238-1	01	1	9611-9702	●		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. EAST MALAYSIA EQUIPMENT(PM6), WEST MALAYSIA EQUIPMENT(S3D) 43/10	8-97039-238-1	01	1	9703-	●		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 43/10	8-97039-238-1	01	1	9703-			●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 4JB1 ENG(RLF) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 41/10	8-97063-394-2	01	1	9703-			●
70	05.536 BEARING; DIFF CAGE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) NSK	9-00093-074-0	02	1	9611-	●	●	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) NSK	8-94435-355-0	02	1	9611-	●	●	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) NSK	8-94435-355-0	02	1	9611-	●		●	●	●		●	●
72	05.510 CAGE; DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) LIMITED SLIP DIFF(G80) EXC. M/T LOW GEARED(6WF)	8-94118-093-0	01	1	9611-	●	●	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. LIMITED SLIP DIFF(G80),M/T LOWGEARED(6WF) 05.453	8-97038-515-1	01	1	9611-	●	●	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	9611-	●	●	●	●	●	●	●	●
72	05.510 CAGE; DIFF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. LIMITED SLIP DIFF(G80)	8-94325-448-0	01	1	9611-	●		●	●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) T=0.10	8-97130-386-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) T=0.50	8-97130-387-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) T=0.24	9-41519-109-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) T=0.15	9-41519-111-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=0.12	8-94435-348-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=0.12	8-94435-348-0	AR	1	9611-	●		●	●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=0.15	8-94435-349-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=0.15	8-94435-349-0	AR	1	9611-	●		●	●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=0.18	8-94435-350-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=0.18	8-94435-350-0	AR	1	9611-	●		●	●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=0.25	8-94435-351-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=0.25	8-94435-351-0	AR	1	9611-	●		●	●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=0.30	8-94435-352-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=0.30	8-94435-352-0	AR	1	9611-	●		●	●	●		●	●
73	05.537 SHIM; DIFF SIDE BRG 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) T=0.50	8-94435-353-0	AR	1	9611-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) T=0.50	8-94435-353-0	AR	1	9611-	●		●	●	●		●	●
74	05.518 PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF(G80) OD=5 L=35	9-09878-096-0	01	1	9611-	●	●	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) M10X17	8-97038-065-0	10	1	9611-	●	●	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M10X18.5	8-97038-064-0	12	1	9611-	●	●	●	●	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) M10X18.5	8-97038-064-0	12	1	9611-	●		●	●	●		●	●
100	05.469 SEAL; OIL,FINAL PINION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) NOK	8-97146-826-0	01	1	9611-	●	●	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) NOK	8-94408-084-1	01	1	9611-	●	●	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) NOK	8-94408-084-1	01	1	9611-	●		●	●	●		●	●
126	05.545 COUPLING; DRIVING PINION 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94426-786-6	01	1	9611-	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-97075-216-2	01	1	9611-	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV)	8-97075-216-2	01	1	9611-	●		●	●	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
