1 |

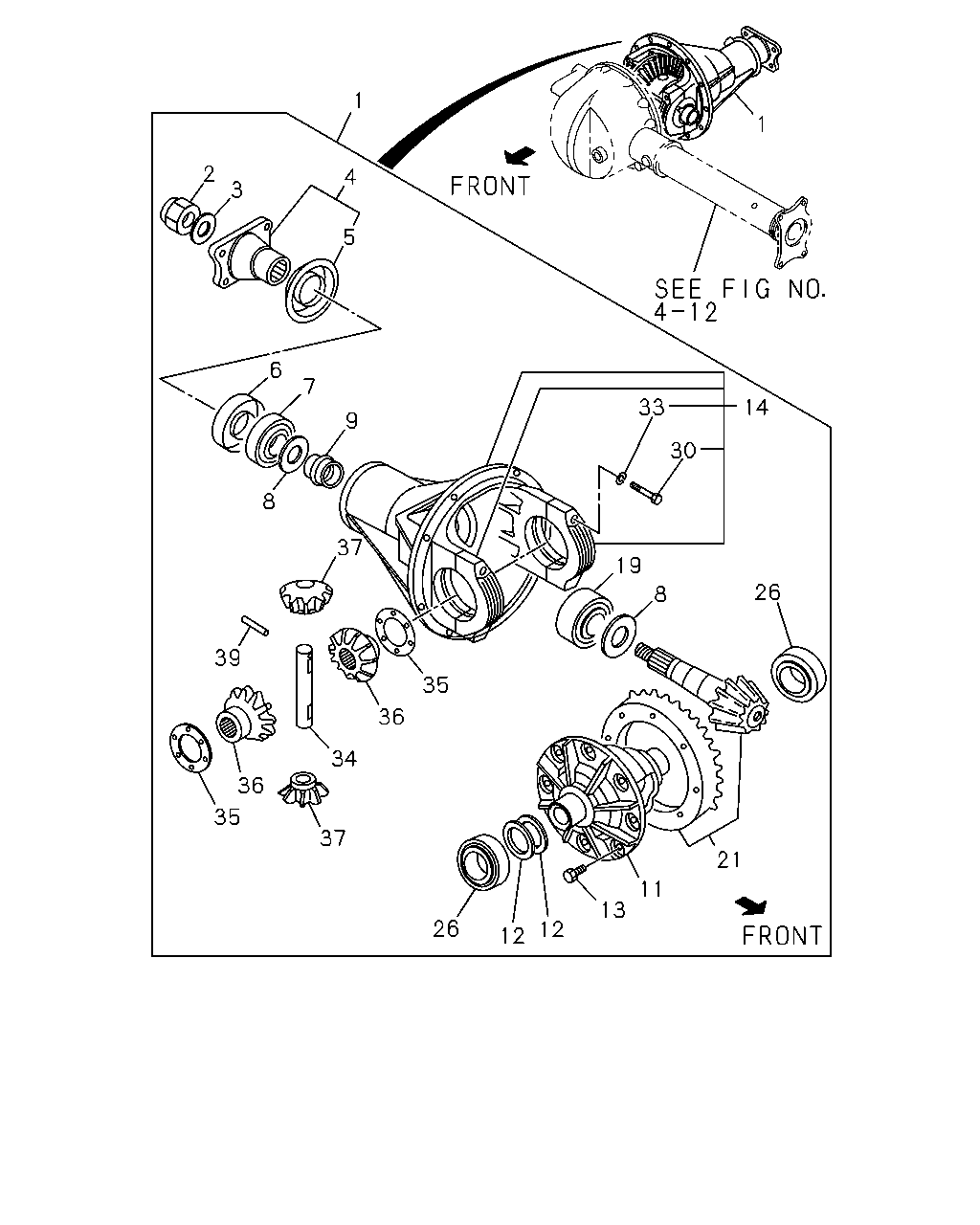

05.505 DRIVE ASM; FINAL,FRT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
41/9
|
8-94376-220-1 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
1 |
05.505 DRIVE ASM; FINAL,FRT
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
41/9
|
8-94376-220-1 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
1 |
05.505 DRIVE ASM; FINAL,FRT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
41/9
|
8-94171-966-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
2 |
05.595 NUT; FINAL DRIVE PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M18 LOCK NUT
|
8-94376-262-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
2 |
05.595 NUT; FINAL DRIVE PINION
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
M18 LOCK NUT
|
8-94376-262-0 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
2 |
05.595 NUT; FINAL DRIVE PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
M18 SELF LOCK
|
9-09644-026-1 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
3 |
05.595 WASHER; LK,FINAL DRIVE PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
ID=18.5 OD=35
|
8-03431-198-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
4 |
05.545 COUPLING; FINAL DRIVE PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94318-527-3 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
4 |
05.545 COUPLING; FINAL DRIVE PINION
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-94318-527-3 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
4 |
05.545 COUPLING; FINAL DRIVE PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
5-37245-007-2 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
5 |
05.545 COVER; DUST,PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94318-409-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
5 |
05.545 COVER; DUST,PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-94318-409-0 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
5 |
05.545 COVER; DUST,PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
9-37249-072-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
6 |
05.469 SEAL; OIL,FINAL PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94318-520-2 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
6 |
05.469 SEAL; OIL,FINAL PINION
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-94318-520-2 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
6 |
05.469 SEAL; OIL,FINAL PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
5-09625-002-2 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
7 |
05.447 BEARING; PINION,OUTER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
05.484
NSK
|
8-94472-099-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
7 |
05.447 BEARING; PINION,OUTER
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
05.484
NSK
|
8-94472-099-0 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
7 |
05.447 BEARING; PINION,OUTER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
9-00093-622-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.18
|
9-41519-153-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.18
|
9-41519-153-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.20
|
9-41519-154-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.20
|
9-41519-154-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.22
|
9-41519-155-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.22
|
9-41519-155-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.24
|
9-41519-156-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.24
|
9-41519-156-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.26
|
9-41519-157-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.26
|
9-41519-157-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.28
|
9-41519-158-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.28
|
9-41519-158-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.30
|
9-41519-159-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.30
|
9-41519-159-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.32
|
9-41519-160-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.32
|
9-41519-160-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.34
|
9-41519-161-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.34
|
9-41519-161-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.36
|
9-41519-162-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.36
|
9-41519-162-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.38
|
9-41519-163-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.38
|
9-41519-163-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.40
|
9-41519-164-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.40
|
9-41519-164-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.42
|
9-41519-165-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.42
|
9-41519-165-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.44
|
9-41519-166-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.44
|
9-41519-166-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.46
|
9-41519-167-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.46
|
9-41519-167-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.48
|
9-41519-168-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.48
|
9-41519-168-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.50
|
9-41519-169-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.50
|
9-41519-169-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.52
|
9-41519-170-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.52
|
9-41519-170-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.54
|
9-41519-171-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.54
|
9-41519-171-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=2.56
|
9-41519-172-1 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=2.56
|
9-41519-172-1 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.39
|
5-41519-001-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.41
|
5-41519-002-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.43
|
5-41519-003-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.45
|
5-41519-004-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.47
|
5-41519-005-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.49
|
5-41519-006-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.51
|
5-41519-007-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.53
|
5-41519-008-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.55
|
5-41519-009-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.57
|
5-41519-010-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.59
|
5-41519-011-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.61
|
5-41519-012-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.63
|
5-41519-013-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.65
|
5-41519-014-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.67
|
5-41519-015-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.69
|
5-41519-016-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.71
|
5-41519-017-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.73
|
5-41519-018-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.75
|
5-41519-019-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.77
|
5-41519-020-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.79
|
8-94168-482-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.81
|
8-94168-483-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.83
|
8-94168-484-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.85
|
8-94168-485-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.87
|
8-94168-486-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.89
|
8-94168-487-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.91
|
8-94168-488-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.93
|
8-94168-489-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
8 |
05.460 SHIM; PINION,FINAL DRIVE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.95
|
8-94168-490-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
9 |
05.453 COLLAR; DIST,PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94472-118-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
9 |
05.453 COLLAR; DIST,PINION
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-94472-118-0 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
9 |
05.453 COLLAR; DIST,PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-94329-969-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
11 |
05.453 CAGE; FINAL PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97038-515-1 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
11 |
05.453 CAGE; FINAL PINION
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-97038-515-1 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
11 |
05.453 CAGE; FINAL PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
05.510
|
5-41511-007-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=0.10
|
8-97130-386-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=0.10
|
8-97130-386-0 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=0.50
|
8-97130-387-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=0.50
|
8-97130-387-0 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=0.24
|
9-41519-109-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=0.24
|
9-41519-109-0 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=0.15
|
9-41519-111-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=0.15
|
9-41519-111-0 |
AR |
1 |
9611- |
● |
|
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=0.10
|
9-41519-103-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=0.13
|
9-41519-104-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=0.16
|
9-41519-105-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
12 |
05.537 SHIM; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=0.40
|
9-41519-106-0 |
AR |
1 |
9611- |
● |
● |
● |
● |
| |
13 |
05.531 BOLT; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
M10X17
|
8-97038-065-0 |
10 |
1 |
9611- |
● |
● |
● |
● |
| |
13 |
05.531 BOLT; FINAL PINION CAGE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
M10X17
|
8-97038-065-0 |
10 |
1 |
9611- |
● |
|
● |
● |
| |
13 |
05.531 BOLT; FINAL PINION CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
9-09602-050-0 |
08 |
1 |
9611- |
● |
● |
● |
● |
| |
14 |
05.505 CARRIER ASM; FINAL DRIVE,FRT AXL
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-94376-231-2 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
14 |
05.505 CARRIER ASM; FINAL DRIVE,FRT AXL
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
|
8-94376-231-2 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
14 |
05.505 CARRIER ASM; FINAL DRIVE,FRT AXL
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-94171-970-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
19 |
05.484 BEARING; PINION,INNER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
NSK
|
9-00093-621-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
19 |
05.484 BEARING; PINION,INNER
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
NSK
|
9-00093-621-0 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
19 |
05.484 BEARING; PINION,INNER
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
NSK
|
9-00093-127-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
21 |
05.529 GEAR SET; FINAL DRIVE,FRT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
41/9
|
8-94376-223-1 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
21 |
05.529 GEAR SET; FINAL DRIVE,FRT
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
41/9
|
8-94376-223-1 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
21 |
05.529 GEAR SET; FINAL DRIVE,FRT
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
41/9
|
8-94226-876-1 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
26 |
05.536 BEARING; DIFF CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
NSK
|
9-00093-074-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
26 |
05.536 BEARING; DIFF CAGE
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
NSK
|
9-00093-074-0 |
02 |
1 |
9611- |
● |
|
● |
● |
| |
26 |
05.536 BEARING; DIFF CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
NSK
|
9-00093-101-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
30 |
05.506 BOLT; DIFF CAGE SETTING
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
05.387
M12X62
|
8-94376-322-0 |
04 |
1 |
9611- |
● |
● |
● |
● |
| |
30 |
05.506 BOLT; DIFF CAGE SETTING
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
05.387
M12X62
|
8-94376-322-0 |
04 |
1 |
9611- |
● |
|
● |
● |
| |
30 |
05.506 BOLT; DIFF CAGE SETTING
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
M12X50
|
5-09000-143-0 |
04 |
1 |
9611- |
● |
● |
● |
● |
| |
33 |
04.634 WASHER; LK,DIFF CAGE
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
ID=12.2
|
9-09150-512-0 |
04 |
1 |
9611- |
● |
● |
● |
● |
| |
34 |
05.520 PIN; CROSS,DIFF PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
05.517
|
9-41521-044-1 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
34 |
05.520 PIN; CROSS,DIFF PINION
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
05.517
|
9-41521-044-1 |
01 |
1 |
9611- |
● |
|
● |
● |
| |
34 |
05.520 PIN; CROSS,DIFF PINION
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
05.517
|
5-41521-005-2 |
01 |
1 |
9611- |
● |
● |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=1.00
|
5-41562-005-1 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=1.00
|
5-41562-005-1 |
02 |
1 |
9611- |
● |
|
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=1.05
|
5-41562-006-1 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=1.05
|
5-41562-006-1 |
02 |
1 |
9611- |
● |
|
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
T=1.10
|
5-41562-007-1 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
T=1.10
|
5-41562-007-1 |
02 |
1 |
9611- |
● |
|
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.05
|
9-41562-614-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.15
|
9-41562-615-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
35 |
05.543 WASHER; THRUST,SIDE GEAR
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
T=1.25
|
9-41562-616-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
36 |
05.528 GEAR; SIDE,DIFF
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
Z=17
|
8-97079-519-1 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
36 |
05.528 GEAR; SIDE,DIFF
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
Z=17
|
8-97079-519-1 |
02 |
1 |
9611- |
● |
|
● |
● |
| |
36 |
05.528 GEAR; SIDE,DIFF
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-94233-414-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
37 |
05.527 GEAR; PINION DIFF
4ZD1 ENG(LW3),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
Z=10
|
8-97079-518-0 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
37 |
05.527 GEAR; PINION DIFF
4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1
ENG(RLV)
Z=10
|
8-97079-518-0 |
02 |
1 |
9611- |
● |
|
● |
● |
| |
37 |
05.527 GEAR; PINION DIFF
4ZD1 ENG(LW3),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
05.526
|
8-94226-880-1 |
02 |
1 |
9611- |
● |
● |
● |
● |
| |
39 |
05.518 PIN; LK,CROSS PIN
OD=5 L=35
|
9-09878-096-0 |
01 |
1 |
9611- |
● |
● |
● |
● |
