Sayfa 4-12 - Isuzu EPC

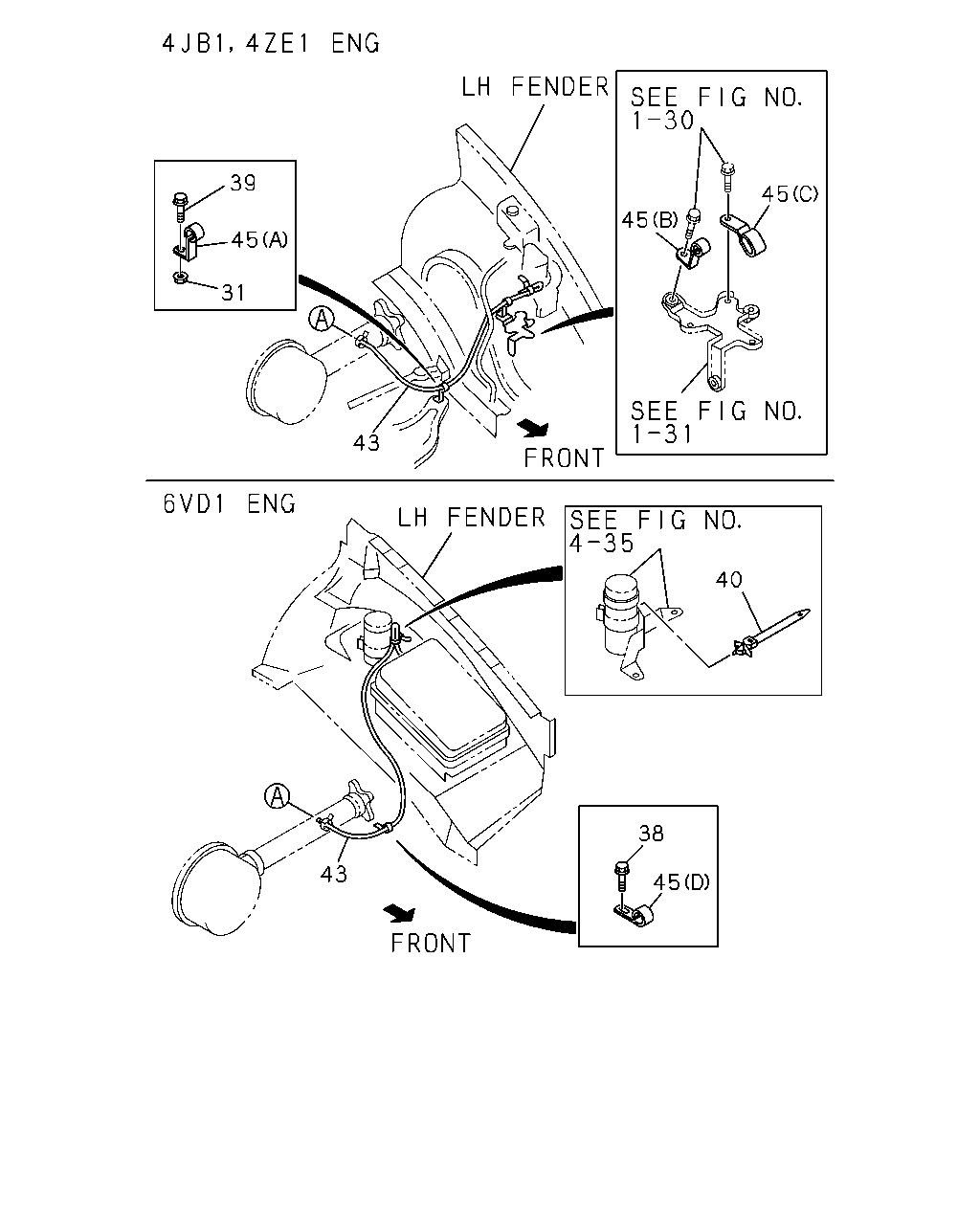

4-12 — FRONT DRIVE SHAFT (#40614) — 136 parça

39 45 31 43 45 45 40 45 38 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	06.008 NUT; MUD COVER TO BRKT AUSTRALIA EQUIPMENT(RR3) 04.594 M6 FLANGE	0-91150-106-0	01	1	9611-9711	●	●	●
31	06.008 NUT; MUD COVER TO BRKT 4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-	●	●	●
38	06.008 BOLT; AIR BREATHER,FRT AXLE 6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9712-		●	●
39	06.008 BOLT; BREATHER HOSE CLIP AUSTRALIA EQUIPMENT(RR3) 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9611-9711	●	●	●
39	06.008 BOLT; BREATHER HOSE CLIP 4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 01.540 M6X25 W/LK&PL WASHER	0-50140-625-0	01	1	9712-	●	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 03.162 L=170	5-09707-054-0	01	1	9611-	●	●	●
40	06.008 CLIP; BAND,AIR BREATHER HOSE 6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) 02.587 L=172	8-94232-620-0	01	1	9712-		●	●
43	06.008 HOSE; RUBBER,AIR BREATHER AUSTRALIA EQUIPMENT(RR3) 08.962 L=1100 SERVICED BY L=3000	0-04750-300-0	01	1	9611-	●	●	●
45	06.008 CLIP AUSTRALIA EQUIPMENT(RR3) (C)	8-94343-613-0	01	1	9611-9711	●	●	●
45	06.008 CLIP 6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) 04.785 (D) ID=11 L=40	9-09525-073-0	01	1	9712-		●	●
45	06.008 CLIP AUSTRALIA EQUIPMENT(RR3) 02.343 (A) ID=13 H=24 L=20	9-09527-012-0	01	1	9611-9711	●	●	●
45	06.008 CLIP 4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) 02.343 (A) ID=13 H=24 L=20	9-09527-012-0	01	1	9712-	●	●	●
45	06.008 CLIP 4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) 04.686 (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9611-	●	●	●
45	06.008 CLIP 4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (C)	8-94343-613-0	01	1	9712-	●	●	●

23 19 24 26 19 26 26 27 28 37 44 37 43 48 49 18 22 20 34 36 35 35 30 27 28 34 36 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	06.008 CASE; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-97018-230-0	01	1	9611-	●	●	●	●
18	06.008 CASE; FRT AXLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV)	8-97018-230-0	01	1	9611-	●	●	●
18	06.008 CASE; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	5-43212-001-1	01	1	9611-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X25 W/LK WASHER	8-97093-664-0	06	1	9611-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) M8X25 W/LK WASHER	8-97093-664-0	06	1	9611-	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X30 W/LK WASHER	8-97093-665-0	02	1	9611-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) M8X30 W/LK WASHER	8-97093-665-0	02	1	9611-	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) M8X90 W/LK WASHER	8-97093-666-0	02	1	9611-	●	●	●	●
19	06.156 BOLT; FRT AXLE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) M8X90 W/LK WASHER	8-97093-666-0	02	1	9611-	●	●	●
19	06.156 BOLT; FRT AXLE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.428 M8X18 W/LK&PL WASHER	1-09030-004-0	06	1	9611-	●	●	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9611-	●	●	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	9611-	●	●	●	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	9611-	●	●	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	9611-	●	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	9611-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING	8-94462-170-2	01	1	9611-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) W/BUSHING	8-94462-170-2	01	1	9611-	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING	8-94462-169-2	01	1	9611-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) W/BUSHING	8-94462-169-2	01	1	9611-	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94462-172-1	01	1	9611-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94462-171-1	01	1	9611-	●	●	●	●
27	06.056 BRACKET; AXLE CASE 6VD1 ENG(RLV)	8-97113-948-1	01	1	9712-		●	●
27	06.056 BRACKET; AXLE CASE 6VD1 ENG(RLV)	8-94382-042-1	01	1	9712-		●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	9611-	●	●	●	●
30	06.008 NUT; FRT AXLE MTG 07.529 M14	9-99110-514-0	02	1	9611-	●	●	●	●
34	06.008 BOLT; FRT AXLE MTG (B) M14X84	8-94452-339-2	02	1	9611-	●	●	●	●
34	06.008 BOLT; FRT AXLE MTG (A) M14X75	9-91066-475-0	02	1	9611-	●	●	●	●
35	06.008 WASHER; FRT AXLE MTG (A) ID=14 OD=40	8-94457-273-0	02	1	9611-	●	●	●	●
35	06.008 WASHER; FRT AXLE MTG (C) ID=14 OD=50	8-97093-581-0	04	1	9611-	●	●	●	●
35	06.008 WASHER; FRT AXLE MTG 08.929 (B) ID=15 OD=36	9-09164-714-0	02	1	9611-	●	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG ID=15 L=49.3	8-94481-466-0	04	1	9611-9711	●	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ID=15 L=49.3	8-94481-466-0	04	1	9712-	●	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG 6VD1 ENG(RLV)	8-97018-240-0	04	1	9712-		●	●
37	06.008 BREATHER; FRT AXLE CASE 4ZD1 ENG(LW3),4JA1 ENG(RLE) (A)	8-94311-349-0	01	1	9611-	●	●	●	●
37	06.008 BREATHER; FRT AXLE CASE 4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94311-349-0	01	1	9611-	●	●	●
37	06.008 BREATHER; FRT AXLE CASE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) (B)	8-94226-943-0	01	1	9611-	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER AUSTRALIA EQUIPMENT(RR3) 08.962 L=1100 SERVICED BY L=3000	0-04750-300-0	01	1	9611-	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE AUSTRALIA EQUIPMENT(RR3) 03.163 ID=11	8-94238-570-0	01	1	9611-9709	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE AUSTRALIA EQUIPMENT(RR3) 03.163 ID=11	8-97173-219-0	01	1	9710-	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	01	1	9611-	●	●	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	9611-	●	●	●	●

13 5 2 4 4 3 11 4 4 3 2 5 7 4 4 3 2 5 10 9 17 1 14 4 2 5 4 2 5 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94453-694-3	01	1	9611-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94453-694-3	01	1	9611-	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94453-693-3	01	1	9611-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94453-693-3	01	1	9611-	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94453-696-1	01	1	9611-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94453-695-1	01	1	9611-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94423-038-1	01	1	9611-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94423-037-1	01	1	9611-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-096-0	01	1	9611-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-096-0	01	1	9611-	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-095-0	01	1	9611-	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97139-095-0	01	1	9611-	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-085-0	02	1	9611-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-085-0	02	1	9611-	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94312-683-0	02	1	9611-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-682-0	02	1	9611-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-401-0	02	1	9611-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-401-0	02	1	9611-	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-083-0	02	1	9611-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-083-0	02	1	9611-	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94462-594-0	02	1	9611-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94462-593-0	02	1	9611-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94312-929-0	02	1	9611-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-94312-929-0	02	1	9611-	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94310-658-0	04	1	9611-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94310-658-0	04	1	9611-	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94462-598-0	04	1	9611-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94462-597-0	04	1	9611-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE	8-94312-931-0	02	1	9611-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE	8-94312-931-0	02	1	9611-	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE	8-97138-938-0	02	1	9611-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE	8-97138-938-0	02	1	9611-	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) ID=26.9	9-09180-029-0	02	1	9611-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> ID=26.9	9-09180-029-0	02	1	9611-	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9611-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-402-0	02	1	9611-	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) ID=24.2	9-09180-026-0	02	1	9611-	●	●	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	9611-	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94407-724-0	02	1	9611-	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV)	8-94407-724-0	02	1	9611-	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 06.061 NSK	5-09800-045-1	02	1	9611-	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF)	8-94366-610-0	02	1	9611-	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV)	8-94366-610-0	02	1	9611-	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF)	8-94366-611-0	02	1	9611-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-098-1	01	1	9611-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-098-1	01	1	9611-	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-097-1	01	1	9611-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-097-1	01	1	9611-	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94312-675-0	01	1	9611-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94312-674-0	01	1	9611-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-673-0	01	1	9611-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-672-0	01	1	9611-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-396-0	02	1	9611-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97131-396-0	02	1	9611-	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-102-1	01	1	9611-	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-102-1	01	1	9611-	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-101-1	01	1	9611-	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-101-1	01	1	9611-	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94313-104-0	01	1	9611-	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94312-677-0	01	1	9611-	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94313-103-0	01	1	9611-	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-676-0	01	1	9611-	●	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-979-0	01	1	9611-	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-979-0	01	1	9611-	●	●	●
12	06.060 JOINT ASM 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-978-0	01	1	9611-	●	●	●	●
12	06.060 JOINT ASM 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-978-0	01	1	9611-	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-106-0	02	1	9611-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-106-0	02	1	9611-	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94312-679-0	02	1	9611-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-678-0	02	1	9611-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-981-0	02	1	9611-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-981-0	02	1	9611-	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF)	8-94313-081-0	02	1	9611-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV>	8-94313-081-0	02	1	9611-	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF)	8-94312-681-0	02	1	9611-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF)	8-94312-680-0	02	1	9611-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-980-0	02	1	9611-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV>	8-97138-980-0	02	1	9611-	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4ZD1 ENG(LW3),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 04.416 ID=27.9	9-09180-030-0	04	1	9611-	●	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4JB1 ENG(RLF),4ZE1 ENG(RLJ),6VD1 ENG(RLV) 04.416 ID=27.9	9-09180-030-0	04	1	9611-	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 4ZD1 ENG(LW3),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 08.934 ID=25.9	9-09180-028-0	04	1	9611-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
