3-60 — BRAKE PIPING; VACUUM (#40610) — 22 parça

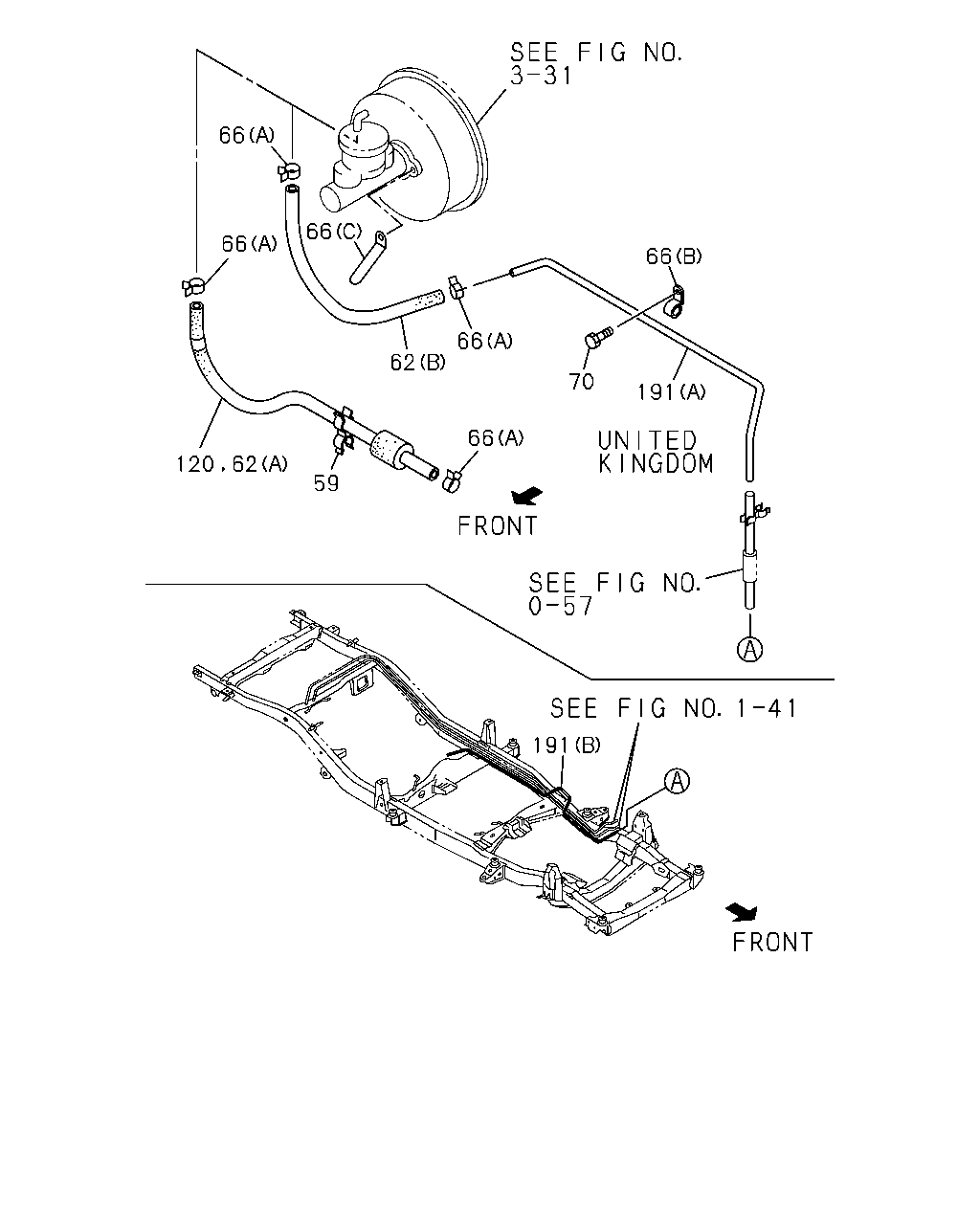

çizim 69982
191 59 62 120 66 66 66 62 66 66 66 191 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
59 04.930 CLIP; VAC HOSE TO ENG
4ZC1 ENG(LR9) 02.559 ID=16.5 & 16.5 		8-94468-380-0 01 1 9611- ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE) (A) L=560 		0-08108-560-0 01 1 9611- ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) L=560 		0-08108-560-0 01 1 9611- ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JB1 ENG(RLF) (B) L=520 		8-97109-466-1 01 1 9611- ● ● ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) L=520 		8-97109-466-1 01 1 9611- ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
(A) ID=16 		8-94238-568-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
04.681 (A) ID=16 		8-97173-222-0 02 1 9712- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) (C) L=91 ID=8.5 		8-94329-956-0 01 1 9611- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) (C) L=91 ID=8.5 		8-94329-956-0 01 1 9611- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JB1 ENG(RLF) 03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 9611- ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 9611- ● ● ● ●
70 04.930 BOLT; CLIP FIX
4JB1 ENG(RLF) 08.900 M6X14 W/LK&PL WASHER 		0-50140-614-0 01 1 9611-9711 ● ● ● ● ● ●
70 04.930 BOLT; CLIP FIX
4JB1 ENG(RLF) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9712- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
4ZD1 ENG(LW3) 		8-97094-899-0 01 1 9611- ● ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
4ZE1 ENG(RLJ) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97094-899-0 01 1 9611- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
4ZE1 ENG(RLJ) ELECTRIC FUEL INJECTION<6GG> 		8-97166-534-1 01 1 9611- ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
4ZC1 ENG(LR9) 		8-97166-535-0 01 1 9611- ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
6VD1 ENG(RLV) 		8-97169-071-2 01 1 9712- ● ● ● ●
191 04.685 PIPE; VAC
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97061-335-2 01 1 9611- ● ●
191 04.685 PIPE; VAC
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97088-564-2 01 1 9611- ● ● ● ●
191 04.685 PIPE; VAC
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97061-336-1 01 1 9611-9712 ● ●
191 04.685 PIPE; VAC
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97189-642-0 01 1 9801- ● ●
