◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#40609) — 33 parça

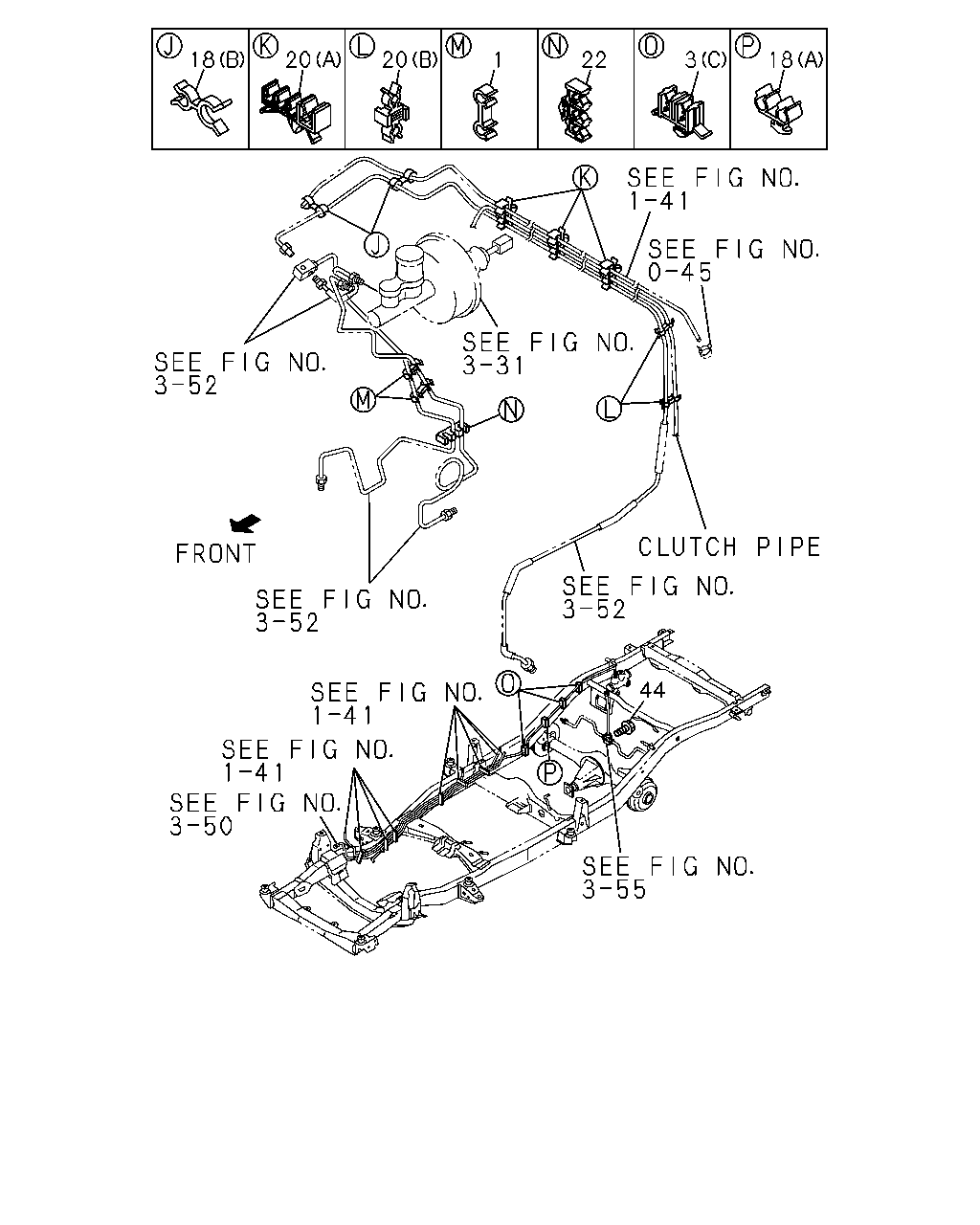

çizim 16035
44 18 3 22 1 20 20 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.686 CLIP; OIL PIPE TO BODY 8-94338-104-0 02 1 9611- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.686 (A) ID=6.3 & 4.5 		8-94425-589-0 02 1 9611- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 04.686 (A) ID=6.3 & 4.5 		8-94425-589-0 02 1 9611- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 04 1 9611- ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 02 1 9611- ● ●
3 04.685 CLIP; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9611- ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 03 1 9611- ● ●
18 04.686 CLIP; BRK PIPE
(A) 		8-94389-586-0 01 1 9611- ● ● ● ●
18 04.686 CLIP; BRK PIPE
6VD1 ENG(RLV) (B) ID=6.4 & 4.8 		8-94257-329-0 02 1 9712-9712 ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) 		8-97102-873-0 03 1 9611- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 02.183 (B) ID=6 & 4.8 		8-94313-325-0 02 1 9712- ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94442-883-1 01 1 9611- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
6VD1 ENG(RLV) 		8-94442-883-1 02 1 9712- ● ● ● ●
44 04.686 BOLT; CLIP TO FRAME
M8X30 FLANGE 		0-28680-830-0 01 1 9611- ● ● ● ● ● ● ● ●

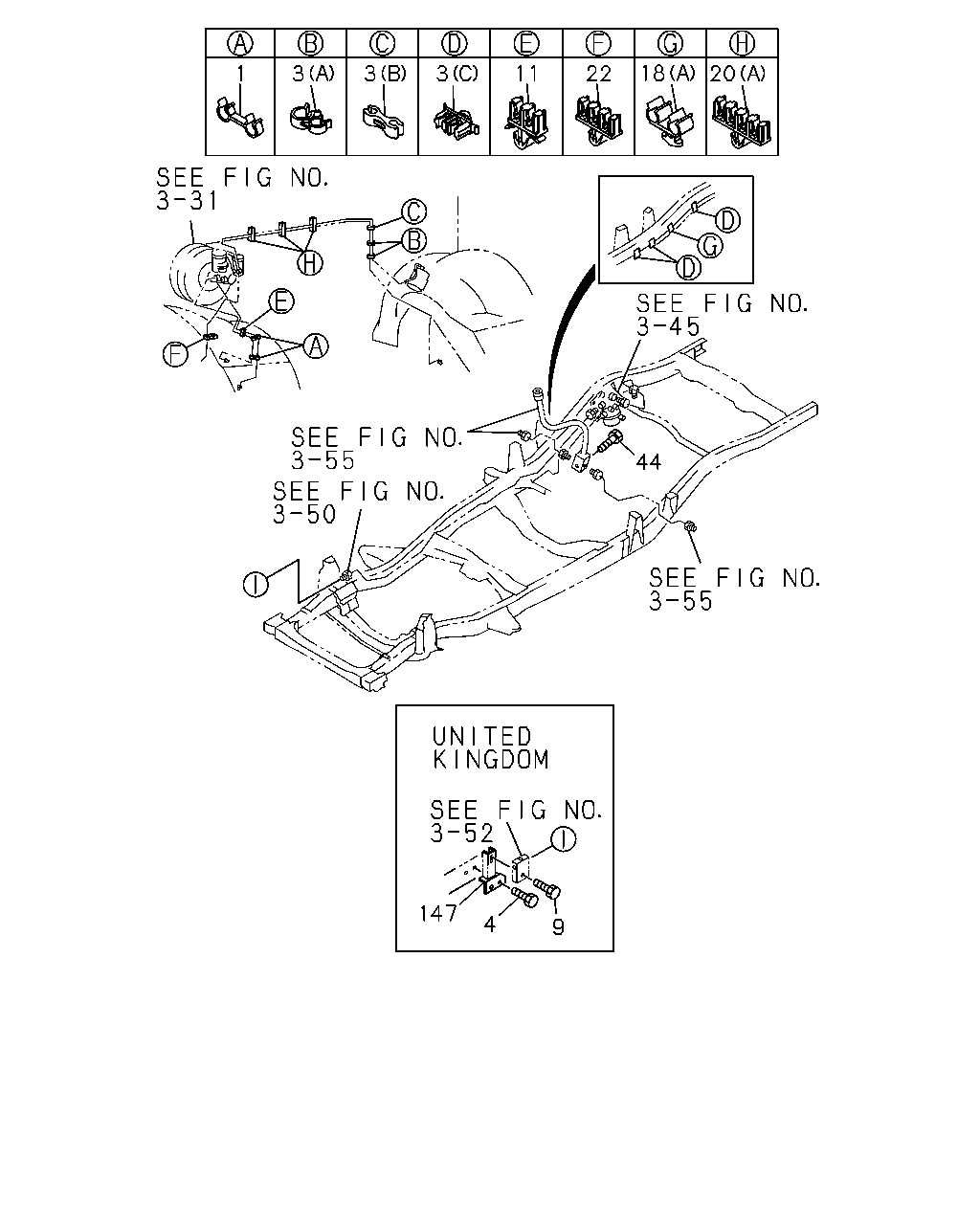

çizim 70176
1 3 3 3 11 22 18 20 44 147 4 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.686 CLIP; OIL PIPE TO BODY 8-94338-104-0 02 1 9611- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.686 (A) ID=6.3 & 4.5 		8-94425-589-0 02 1 9611- ● ● ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
4ZD1 ENG(LW3),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 04.686 (A) ID=6.3 & 4.5 		8-94425-589-0 02 1 9611- ● ● ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 04 1 9611- ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 02 1 9611- ● ●
3 04.685 CLIP; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 9611- ● ● ● ●
3 04.685 CLIP; BRK PIPE
04.686 (C) 		8-94435-553-0 03 1 9611- ● ●
4 04.686 BOLT; BRKT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9611- ● ●
9 04.686 BOLT; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 02.334 M8X40 W/LK&PL WASHER 		0-51240-840-0 02 1 9611-9711 ● ●
9 04.686 BOLT; BRKT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 01.252 M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9712- ● ●
11 04.686 CLIP; OIL PIPE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ID=4.8X2 		8-94113-470-0 02 1 9611- ● ● ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(A) 		8-94389-586-0 01 1 9611- ● ● ● ●
18 04.686 CLIP; BRK PIPE
6VD1 ENG(RLV) (B) ID=6.4 & 4.8 		8-94257-329-0 02 1 9712-9712 ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) 		8-97102-873-0 03 1 9611- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 02.183 (B) ID=6 & 4.8 		8-94313-325-0 02 1 9712- ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94442-883-1 01 1 9611- ● ● ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
6VD1 ENG(RLV) 		8-94442-883-1 02 1 9712- ● ● ● ●
44 04.686 BOLT; CLIP TO FRAME
M8X30 FLANGE 		0-28680-830-0 01 1 9611- ● ● ● ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-94333-040-1 01 1 9611- ● ●
