3-52 — BRAKE PIPING; OIL,FRONT (#40607) — 50 parça

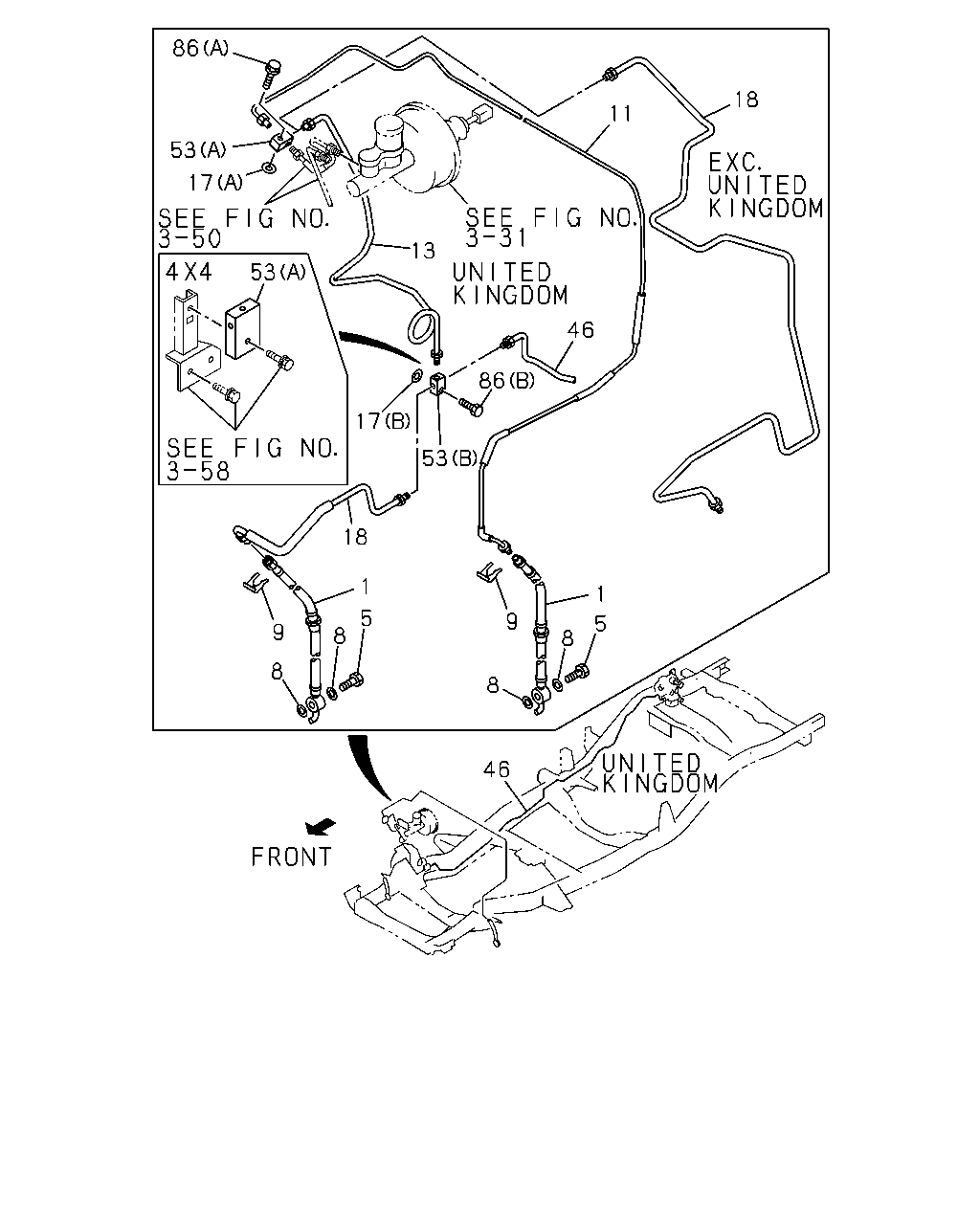

çizim 69606
86 53 13 11 18 46 86 53 17 53 17 18 5 1 8 9 8 8 9 5 1 8 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-829-0 02 1 9611- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9712- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-830-0 02 1 9611- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9611- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9611- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9611- ● ● ● ● ● ● ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97160-147-0 01 1 9611- ● ● ● ●
11 04.685 PIPE; BRK,UNION TO FLEX HOSE,FRT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97020-999-1 01 1 9611- ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-97084-570-0 01 1 9611- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3) EXC. ELECTRIC FUEL INJECTION<6GG> 		8-94333-042-1 01 1 9611- ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 9611- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.2 		8-94312-733-0 01 1 9611- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94450-591-3 01 1 9611- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) 		8-94450-591-3 01 1 9611- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94450-591-3 01 1 9611- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97086-043-0 01 1 9611- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) 		8-97175-539-2 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) 		8-97179-621-0 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97104-394-0 01 1 9611- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
UNITED KINGDOM EQUIPMENT(EK3) 		8-97115-645-0 01 1 9611- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-623-0 01 1 9611- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97117-624-0 01 1 9611- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9611- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9611- ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94328-125-0 01 1 9611- ● ●
86 04.686 BOLT; BRK PIPE
03.634 (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 9611- ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9611- ● ●

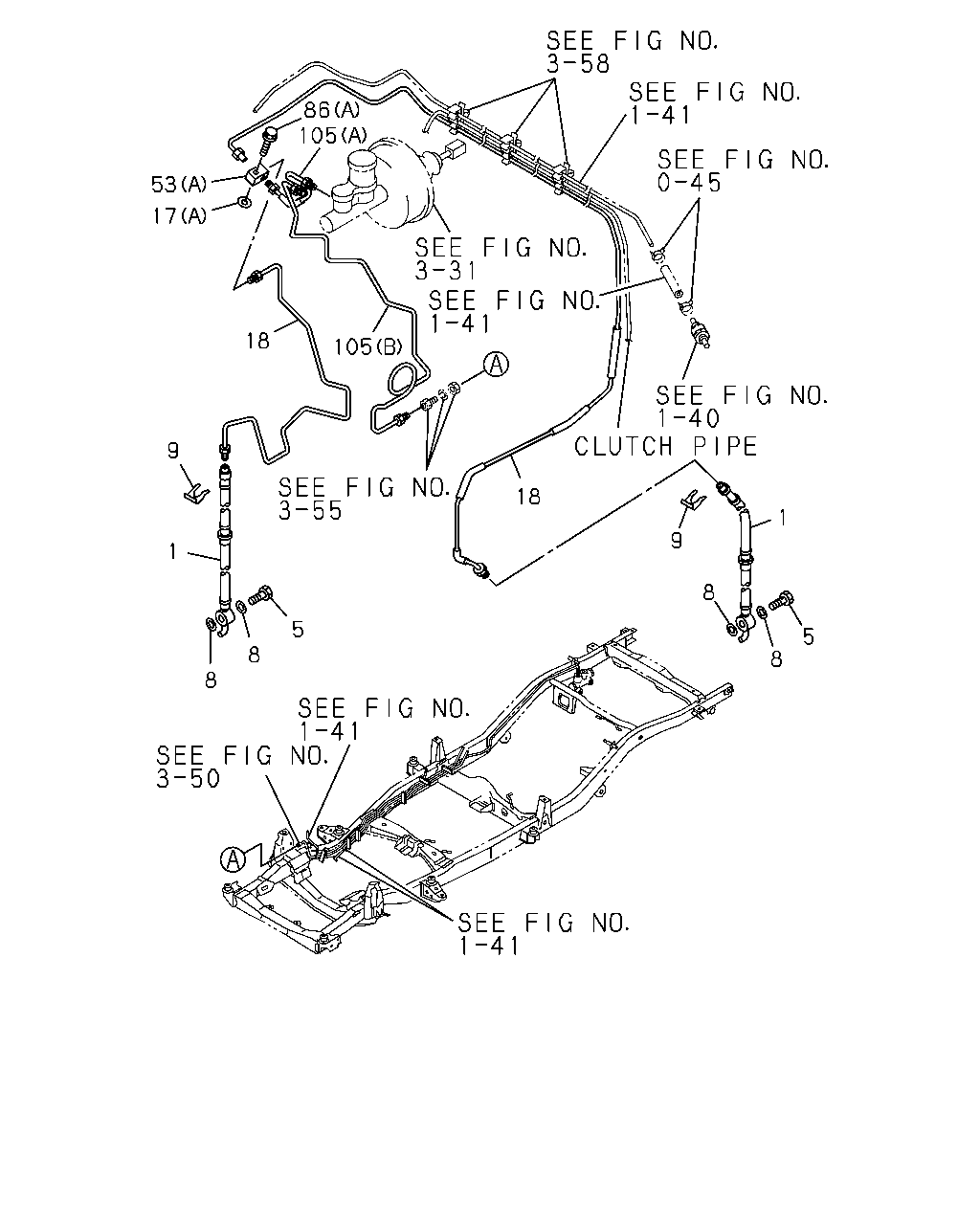

çizim 69718
1 5 8 8 9 18 105 18 9 1 5 8 8 105 86 53 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-829-0 02 1 9611- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9712- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97134-830-0 02 1 9611- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9611- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9611- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9611- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 9611- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.2 		8-94312-733-0 01 1 9611- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94450-591-3 01 1 9611- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) 		8-94450-591-3 01 1 9611- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94450-591-3 01 1 9611- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97086-043-0 01 1 9611- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) 		8-97175-539-2 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) 		8-97179-621-0 01 1 9712- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97104-394-0 01 1 9611- ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
UNITED KINGDOM EQUIPMENT(EK3) 		8-97115-645-0 01 1 9611- ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9611- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9611- ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94328-125-0 01 1 9611- ● ●
86 04.686 BOLT; BRK PIPE
03.634 (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 9611- ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9611- ● ●
105 04.686 PIPE; BRK,MASTER CYLINDER
6VD1 ENG(RLV) (A) 		8-97175-537-1 01 1 9712- ● ● ● ●
105 04.686 PIPE; BRK,MASTER CYLINDER
6VD1 ENG(RLV) (B) 		8-97175-538-1 01 1 9712- ● ● ● ●
