3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#40606) — 52 parça

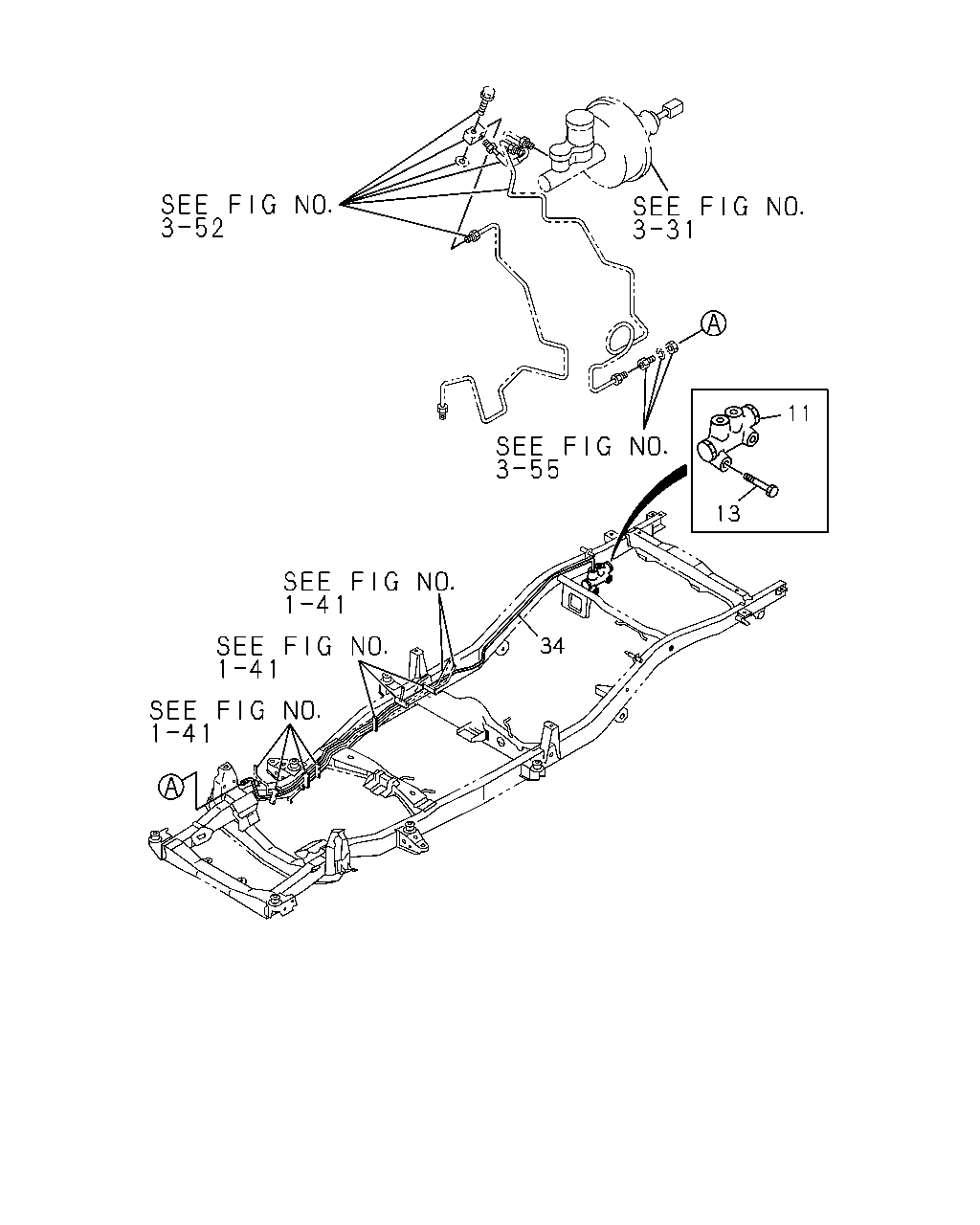

çizim 15957
13 11 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-764-3 01 1 9611- ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) 		8-97179-791-0 01 1 9712- ● ● ● ●
11 04.686 VALVE; BRK CONT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97171-502-0 01 1 9611- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9611- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9611- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9611- ● ● ● ●
34 04.685 PIPE; BRK,UNION TO DSPV
6VD1 ENG(RLV) 		8-97179-626-1 01 1 9712- ● ● ● ●

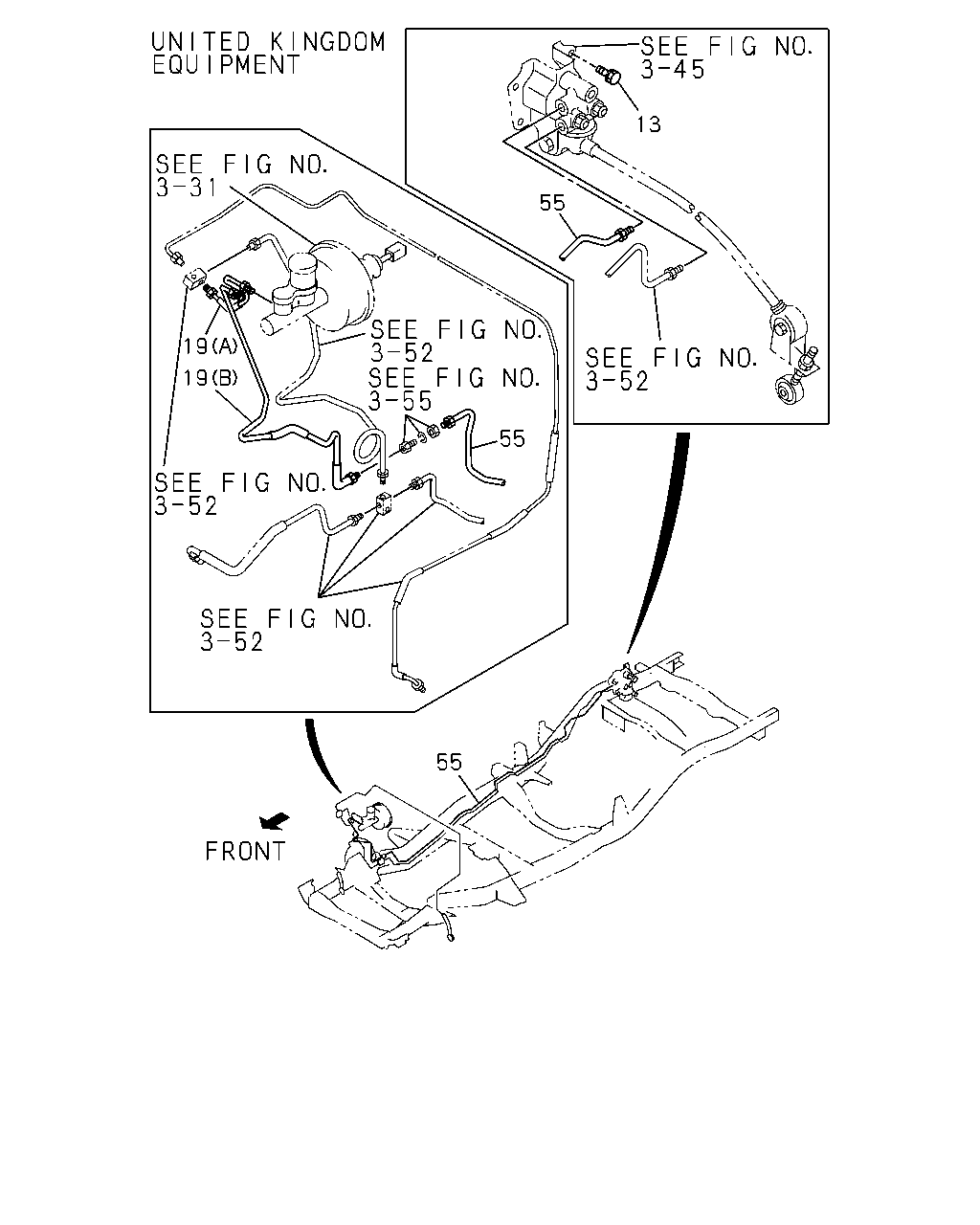

çizim 70102
13 55 55 19 19 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9611- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9611- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9611- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) M/CYL-3WAY 		8-94450-598-0 01 1 9611- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) (A) M/CYL-3WAY 		8-94450-598-0 01 1 9611- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) M/CYL-2WAY 		8-97075-994-0 01 1 9611- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) (B) M/CYL-2WAY 		8-97075-994-0 01 1 9611- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (A) M/CYL-3WAY 		8-97145-387-2 01 1 9611-9612 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (A) M/CYL-3WAY 		8-97173-099-0 01 1 9701- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (B) M/CYL-2WAY 		8-97145-388-0 01 1 9611-9612 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (B) M/CYL-2WAY 		8-97173-100-1 01 1 9701- ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97165-362-0 01 1 9611-9711 ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97165-362-0 01 1 9712- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97122-660-0 01 1 9611- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-616-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-625-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97165-363-0 01 1 9611- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-251-3 01 1 9611-9712 ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97136-730-0 01 1 9801- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97117-617-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-626-0 01 1 9611- ● ●
çizim 70308
13 11 55 55 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-764-3 01 1 9611- ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) 		8-97179-791-0 01 1 9712- ● ● ● ●
11 04.686 VALVE; BRK CONT
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97171-502-0 01 1 9611- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9611- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9611- ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9611- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) M/CYL-3WAY 		8-94450-598-0 01 1 9611- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) (A) M/CYL-3WAY 		8-94450-598-0 01 1 9611- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) M/CYL-2WAY 		8-97075-994-0 01 1 9611- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) (B) M/CYL-2WAY 		8-97075-994-0 01 1 9611- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (A) M/CYL-3WAY 		8-97145-387-2 01 1 9611-9612 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (A) M/CYL-3WAY 		8-97173-099-0 01 1 9701- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (B) M/CYL-2WAY 		8-97145-388-0 01 1 9611-9612 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) (B) M/CYL-2WAY 		8-97173-100-1 01 1 9701- ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97165-362-0 01 1 9611-9711 ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97165-362-0 01 1 9712- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97122-660-0 01 1 9611- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-616-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-625-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97165-363-0 01 1 9611- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-94435-251-3 01 1 9611-9712 ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97136-730-0 01 1 9801- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) TURBOCHARGER<K51> 		8-97117-617-0 01 1 9611- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-626-0 01 1 9611- ● ●
