3-10 — BRAKE PEDAL AND CONTROL (#40601) — 26 parça

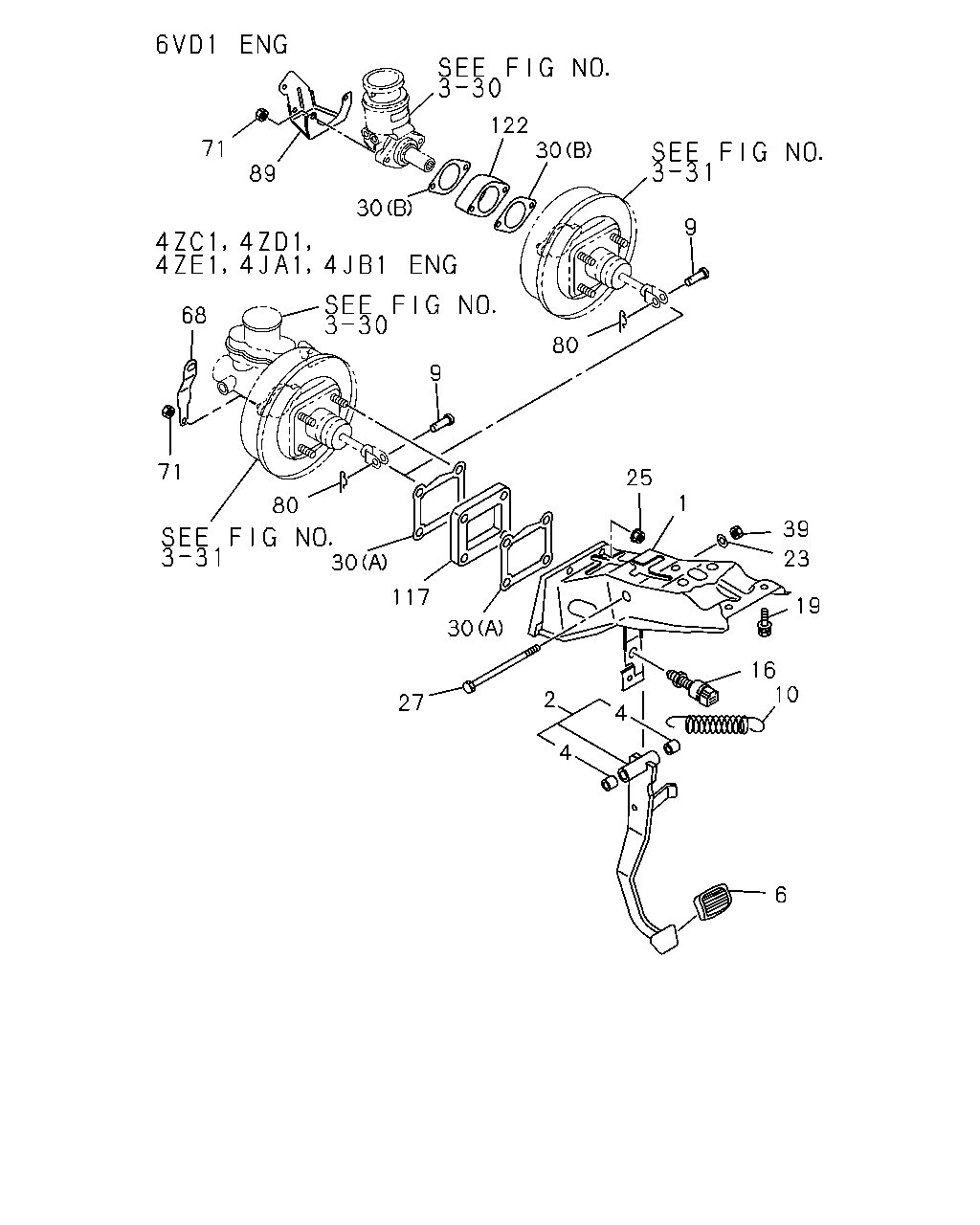

çizim 70995
6 10 19 23 39 1 25 30 117 30 80 71 68 9 80 9 30 122 30 89 71 27 2 4 4 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.634 BRACKET ASM; PEDAL 8-97134-254-2 01 1 9611- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD),A/T THM(RMQ) 		8-97100-340-2 01 1 9611- ● ● ●
2 04.625 PEDAL; BRK
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97100-339-2 01 1 9611- ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK 8-97100-339-2 01 1 9611- ●
4 04.634 BUSHING; BRK PEDAL
00.833 		8-94244-439-0 02 1 9611- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD),A/T THM(RMQ) 		5-31413-004-0 01 1 9611- ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94222-524-1 01 1 9611- ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL 8-94222-524-1 01 1 9611- ●
9 04.634 PIN; JAW JOINT
04.662 		8-94250-182-0 01 1 9611- ● ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 9611- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
12V 12A 		8-94362-930-0 01 1 9611- ● ● ● ● ● ● ● ●
19 04.634 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 05 1 9611- ● ● ● ● ● ● ● ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-510-0 01 1 9611- ● ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
00.854 M8 FLANGE 		5-09440-005-0 04 1 9611- ● ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-94480-803-0 01 1 9611- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
(A) 		8-94111-590-0 02 1 9611- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97178-015-0 02 1 9712- ● ● ● ●
39 04.634 NUT; STOPPER LK
09.011 M10 		9-09110-410-0 01 1 9611- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97061-908-0 01 1 9611- ● ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9611- ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9611- ● ● ● ● ● ● ● ●
89 04.901 BRACKET; M/CYL
6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) 		8-97192-085-0 01 1 9712- ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 9611- ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94126-762-0 01 1 9611- ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4ZE1 ENG(RLJ),6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) 		8-94440-231-0 01 1 9611- ● ● ● ● ● ●
122 04.901 SPACER; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) 		8-97178-014-0 01 1 9712- ● ● ● ●
