3-05 — REAR WHEEL BRAKE (#40600) — 53 parça

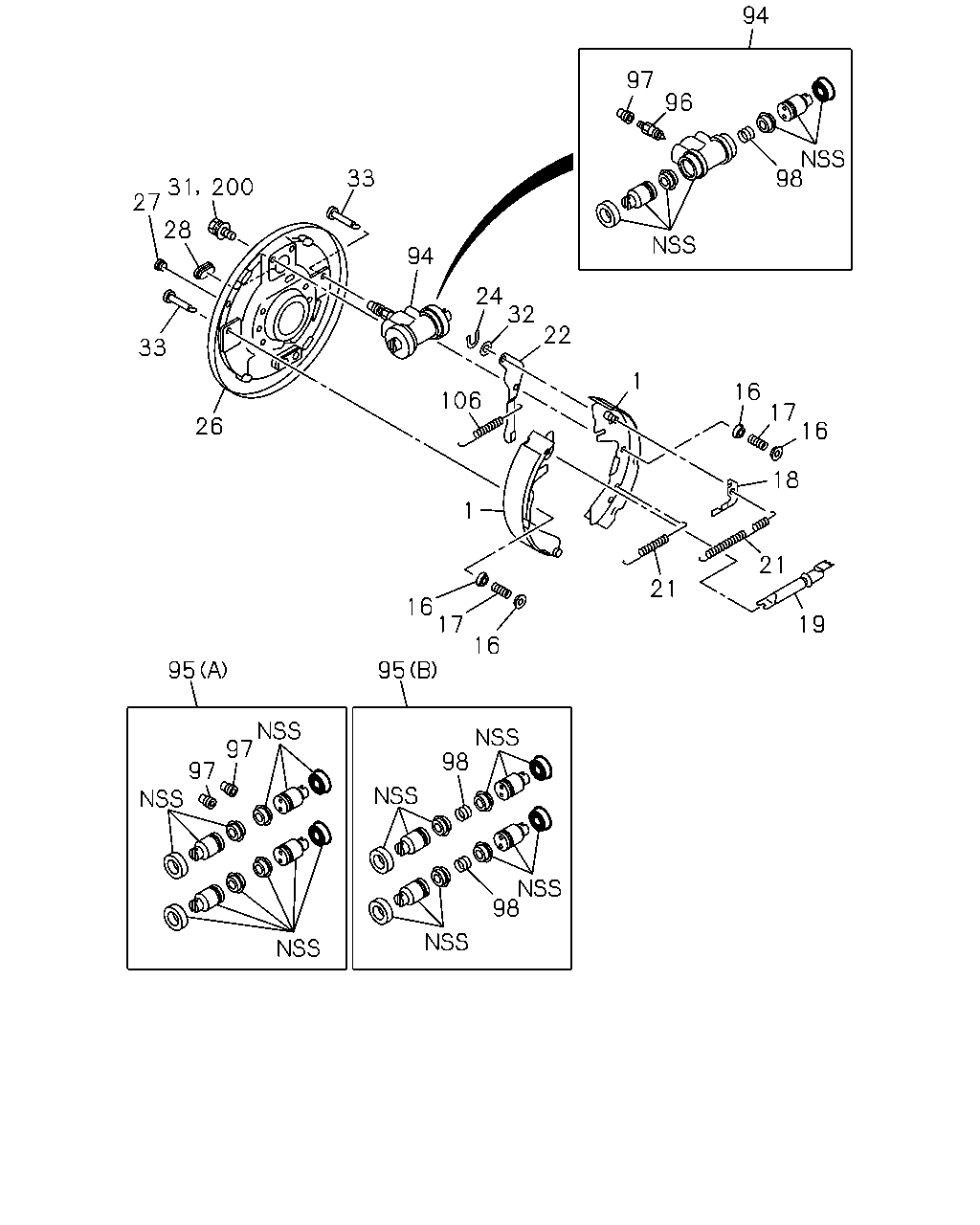

çizim 68868
19 21 21 1 1 106 24 22 16 32 17 18 98 94 97 96 94 33 200 31 27 33 26 95 97 17 16 16 97 98 98 28 16 95
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 05.017 SHOE; BRK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) LEADING 		8-97147-565-0 02 1 9611- ● ● ● ●
1 05.017 SHOE; BRK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TRAILING 		8-97049-177-0 01 1 9611- ● ● ● ●
1 05.017 SHOE; BRK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) TRAILING 		8-97049-176-0 01 1 9611- ● ● ● ●
1 05.017 SHOE; BRK,RR
6VD1 ENG(RLV) LEADING 		8-97113-220-1 02 1 9611- ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-97113-220-1 02 1 9611- ● ● ● ●
1 05.017 SHOE; BRK,RR
6VD1 ENG(RLV) TRAILING 		8-97113-219-1 01 1 9611- ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97113-219-1 01 1 9611- ● ● ● ●
1 05.017 SHOE; BRK,RR
6VD1 ENG(RLV) TRAILING 		8-97113-218-1 01 1 9611- ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97113-218-1 01 1 9611- ● ● ● ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 04 1 9611- ● ● ● ● ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		8-94134-106-0 04 1 9611- ● ● ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-94124-866-1 01 1 9611- ● ● ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-94124-865-1 01 1 9611- ● ● ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-94127-078-1 01 1 9611- ● ● ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-94127-077-1 01 1 9611- ● ● ● ● ● ● ● ●
21 05.026 SPRING; SHOE,RET
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) LOWER 		8-94127-066-0 02 1 9611- ● ● ● ●
21 05.026 SPRING; SHOE,RET
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) UPPER 		8-94480-191-0 02 1 9611- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.158 		8-94124-868-2 01 1 9611- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.158 		8-94124-867-2 01 1 9611- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
6VD1 ENG(RLV) 		8-97127-628-1 01 1 9611- ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97127-628-1 01 1 9611- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
6VD1 ENG(RLV) 		8-97127-627-1 01 1 9611- ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97127-627-1 01 1 9611- ● ● ● ●
24 05.158 RETAINER; PARKING BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		9-46349-005-1 02 1 9712- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97147-567-0 01 1 9611- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97147-566-0 01 1 9611- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
6VD1 ENG(RLV) 		8-97113-217-1 01 1 9611- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97113-217-1 01 1 9611- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
6VD1 ENG(RLV) 		8-97113-216-1 01 1 9611- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97113-216-1 01 1 9611- ● ● ● ●
27 05.810 COVER; CHECK HOLE,DRUM COVER 8-97122-854-0 02 1 9611- ● ● ● ● ● ● ● ●
28 05.117 COVER; ADJ HOLE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94111-509-0 02 1 9611- ● ● ● ●
28 05.117 COVER; ADJ HOLE
6VD1 ENG(RLV) 		8-97123-320-0 02 1 9611- ● ●
28 05.117 COVER; ADJ HOLE 8-97123-320-0 02 1 9611- ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
05.056 M6X10 FLANGE 		8-94134-103-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL
05.056 M6X10 FLANGE 		8-94134-103-0 04 1 9712- ● ● ● ● ● ● ● ●
32 05.056 WASHER; LK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.158 ID=9.5 		9-09850-529-0 02 1 9611- ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN 8-94201-061-0 04 1 9611- ● ● ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94233-500-6 02 1 9611- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94233-500-6 02 1 9611- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
4JA1 ENG(RLE),6VD1 ENG(RLV) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97127-616-0 02 1 9611- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97127-616-0 02 1 9611- ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87830-489-3 01 1 9611- ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) W/PISTON 		5-87830-489-3 01 1 9611- ● ●
95 04.665 CUP SET; RR WHEEL CYL
4JA1 ENG(RLE),6VD1 ENG(RLV) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		5-87831-543-0 01 1 9611- ● ●
95 04.665 CUP SET; RR WHEEL CYL
(B) 		5-87831-543-0 01 1 9611- ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 9-47615-027-0 02 1 9611- ● ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		1-47619-009-0 02 1 9611- ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
6VD1 ENG(RLV) 		8-94482-339-0 02 1 9611- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-94482-339-0 02 1 9611- ● ● ● ●
98 04.669 SPRING; RR WHEEL CYL 8-94230-597-2 02 1 9611- ● ● ● ● ● ● ● ●
106 05.107 SPRING; ADJ LEVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.026 		8-94480-190-0 02 1 9611- ● ● ● ●
200 05.056 BOLT
M6X10 FLANGE 		8-94134-103-0 02 1 9611- ● ● ● ● ● ● ● ●
