Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#4060) — 809 parça

14 33 48 81 206 223 228 305 418 14 16 33 48 217 235 305 148 14 171 194 206 228 231 305 16 148 168 16 235 235 16 171 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

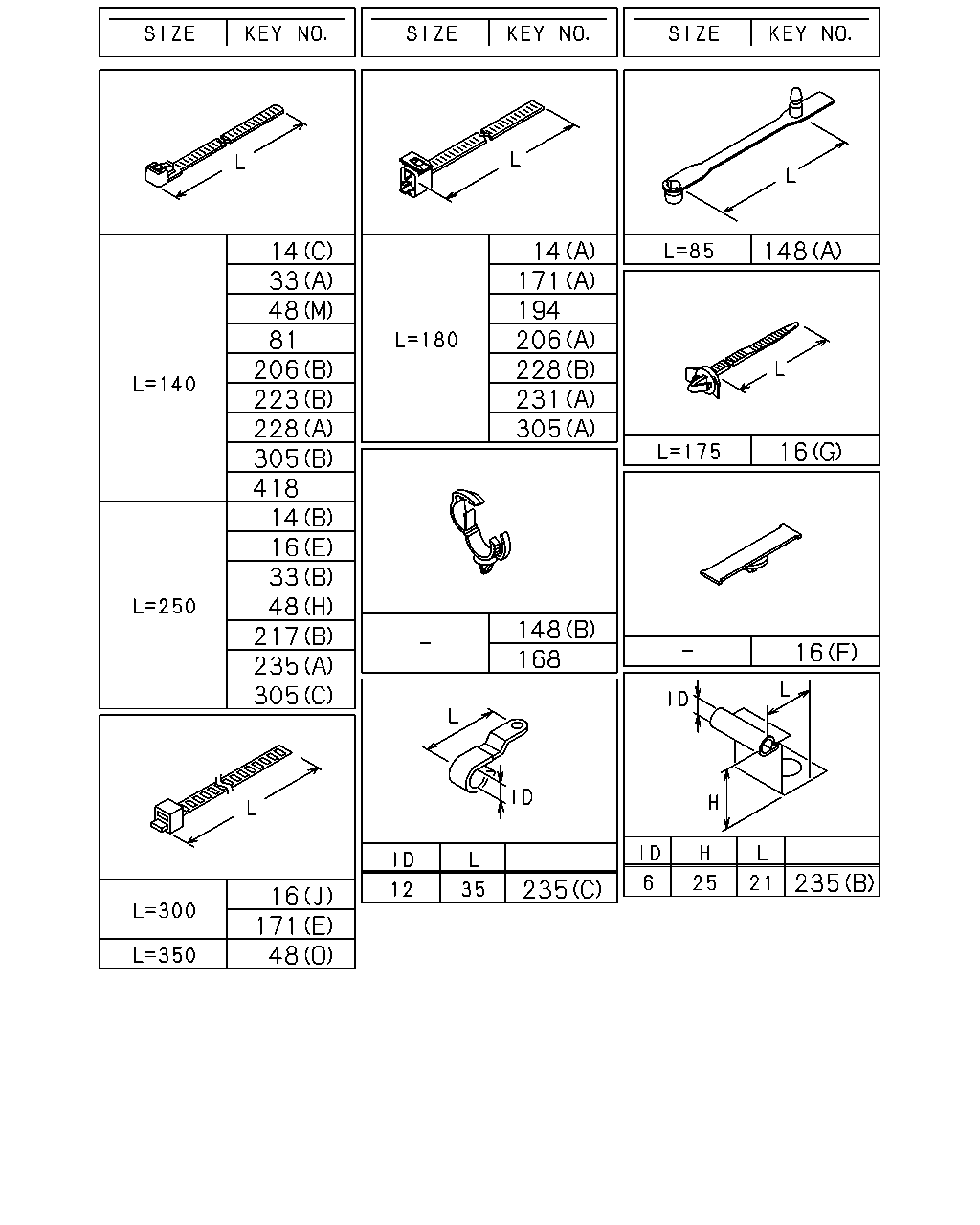

14	CLIP; BAND,HARNESS 6HK1 TCC ENG(81L) (C) L=140	5-09707-031-1	02	1	0608-1205	●
14	CLIP; BAND,HARNESS 6HK1 TCC ENG(81L) (C) L=140	8-98216-431-0	02	1	1206-	●
14	CLIP; BAND,HARNESS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180	1-09707-162-1	01	1	9803-	●	●
14	CLIP; BAND,HARNESS 6HH1 STD ENG(65L) (B) L=250	5-09707-030-1	01	1	0002-1205	●	●
14	CLIP; BAND,HARNESS 6HH1 STD ENG(65L) (B) L=250	8-98216-430-0	01	1	1206-	●	●

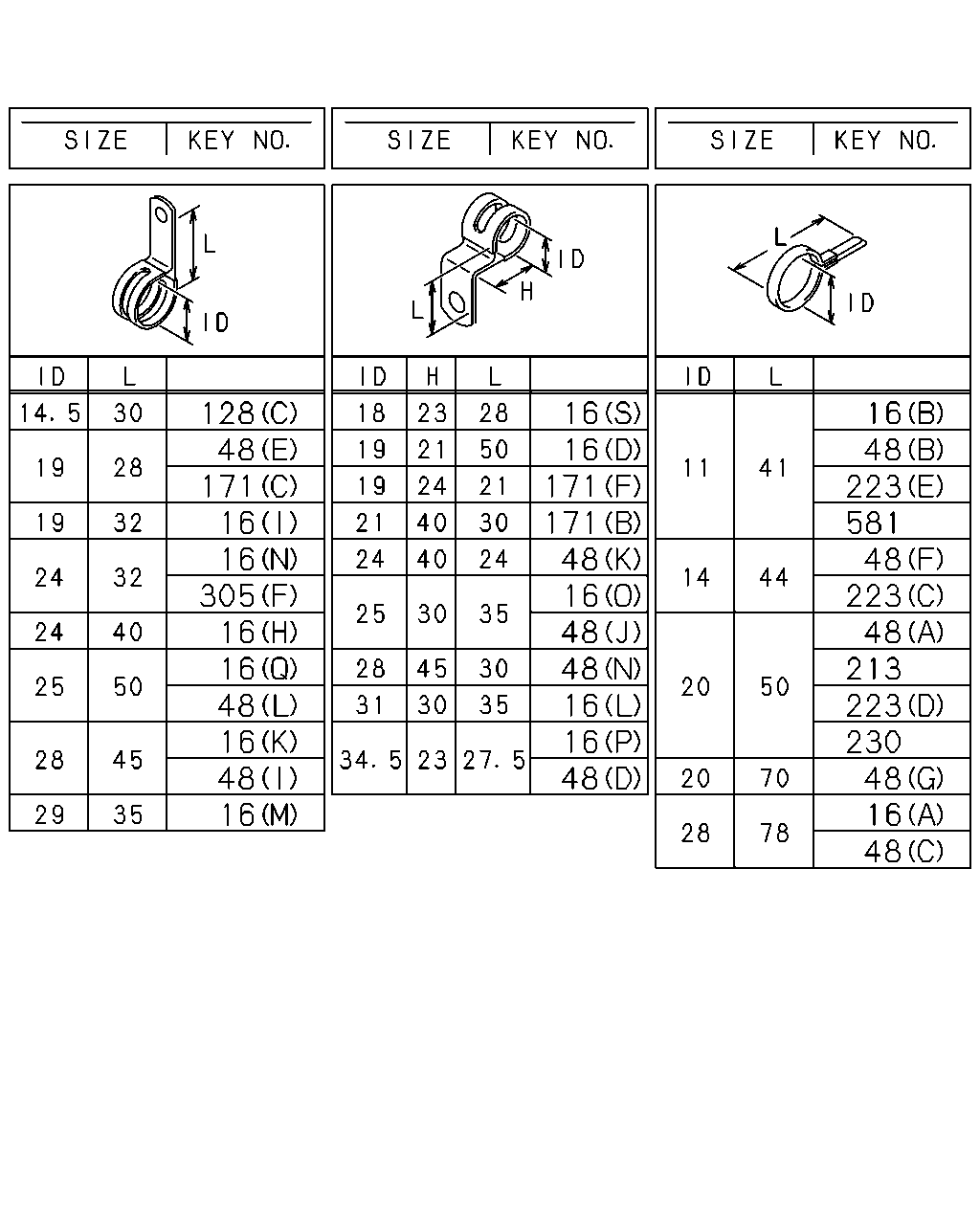

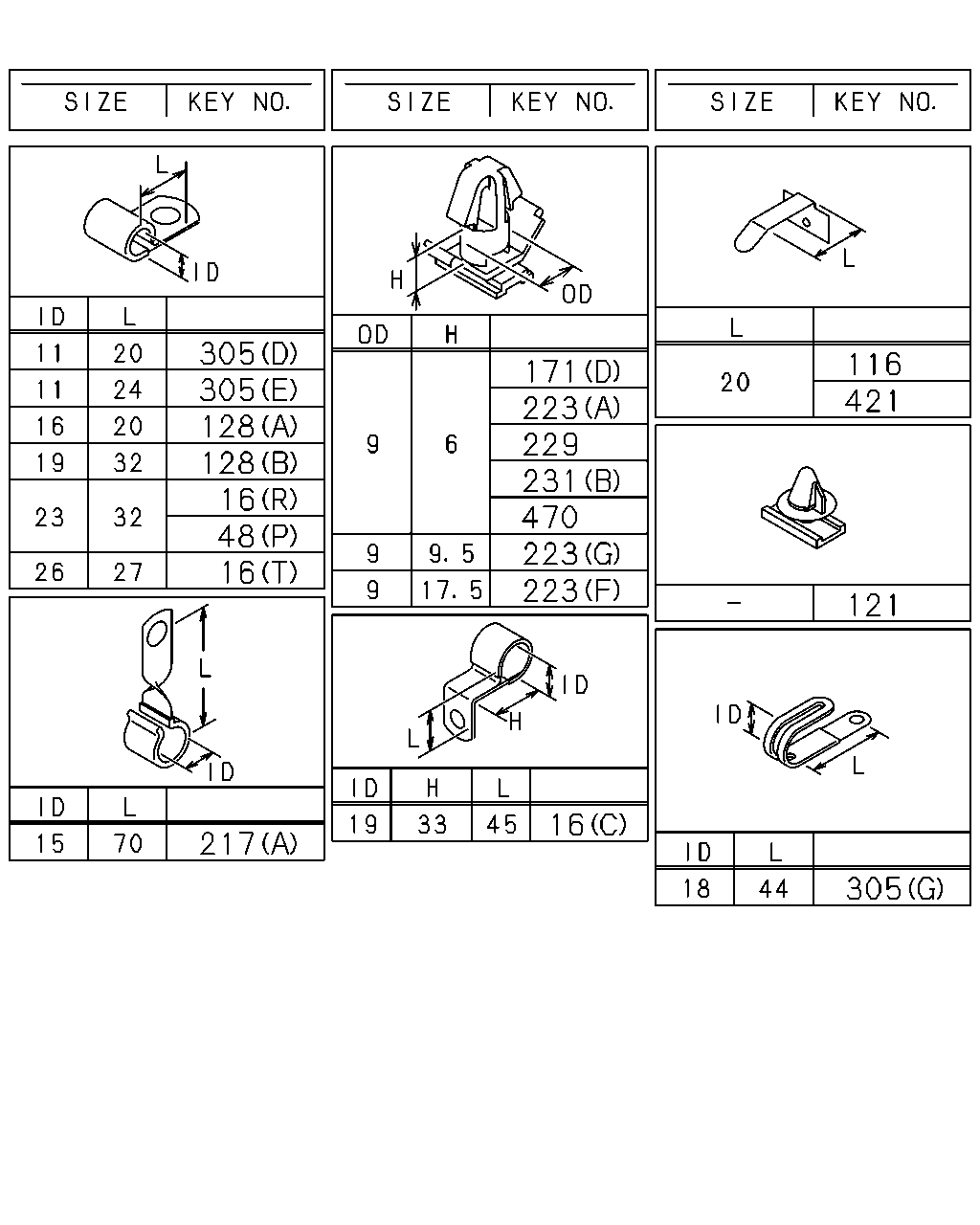

16	CLIP; HARNESS 6HK1 TCC ENG(81L) (S) ID=18 H=23 L=28	1-09700-860-0	01	1	0608-	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (T) ID=26 L=27	1-09701-006-0	01	1	0608-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (R) ID=23 L=32	1-09700-346-0	01	1	0307-	●
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9510-9802	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9803-	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9803-	●	●
16	CLIP; HARNESS (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-	●	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	9510-9709	●	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	9710-0306	●	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (Q) ID=25 L=50	1-09701-019-0	01	1	9710-0306	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	0307-	●	●
16	CLIP; HARNESS (C) ID=19 H=33 L=45	1-09701-045-0	01	1	9510-9801	●	●
16	CLIP; HARNESS (D) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-	●	●
16	CLIP; HARNESS (J) L=300	1-09707-001-1	01	1	9510-	●	●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	9510-	●	●
16	CLIP; HARNESS (I) ID=19 L=32	9-09525-866-0	01	1	9510-0606	●	●
16	CLIP; HARNESS (I) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	06	1	9510-0101	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	9510-9904	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	06	1	9905-0101	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	02	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-	●	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (K) ID=28 L=45	1-09700-825-1	01	1	0005-0302	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (K) ID=28 L=45	1-09700-825-1	01	1	0303-	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) ID=24 L=40	1-09701-139-0	01	1	0005-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 L=40	1-09701-139-0	01	1	0005-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 L=40	1-09701-139-0	01	1	9710-0004	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (O) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (L) ID=31 H=30 L=35	1-09700-994-0	01	1	0005-0006	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (M) ID=29 L=35	5-09700-293-1	01	1	0005-	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (N) ID=24 L=32	1-09700-766-1	01	1	0005-	●
33	CLIP; HARNESS,VLV 6HE1 TC ENG(57L) WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	03	1	0705-	●
33	CLIP; HARNESS,VLV 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A) L=140	5-09707-031-1	01	1	0005-0704	●
33	CLIP; HARNESS,VLV 6HE1 TC ENG(57L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) EURO2 SPECIFICATION<THN> (B) L=250	5-09707-030-1	01	1	0705-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	13	1	1101-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=50	9-09917-430-0	03	1	0612-0806	●
48	CLIP; FRAME HARNESS 6HK1 TCC ENG(81L) (B) ID=11 L=41	1-09700-403-0	02	1	0608-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0505-0806	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0807-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=50	9-09917-430-0	02	1	0807-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (P) ID=23 L=32	1-09700-346-0	01	1	0307-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	09	1	9510-0607		●
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) (A) ID=20 L=50	9-09917-430-0	09	1	0608-		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-	●	●
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	04	1	9510-	●	●
48	CLIP; FRAME HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	9510-0606	●	●
48	CLIP; FRAME HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	9510-0004	●	●
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	01	1	0005-0601	●	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (F) ID=14 L=44	9-09917-427-0	01	1	0602-		●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) (F) ID=14 L=44	9-09917-427-0	01	1	0602-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9512-0004	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0005-0504	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	0505-0607	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	0608-	●	●
48	CLIP; FRAME HARNESS 6HK1 TCC ENG(81L) (A) ID=20 L=50	9-09917-430-0	01	1	0608-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511	●	●
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	01	1	9512-	●	●
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-	●	●
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	03	1	9512-	●	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	9710-0004	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (I) ID=28 L=45	1-09700-825-1	01	1	0005-0302	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (I) ID=28 L=45	1-09700-825-1	01	1	0303-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	11	1	9510-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0005-0806	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0807-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (B) ID=11 L=41	1-09700-403-0	01	1	0807-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	13	1	9510-1012	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	14	1	1101-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	14	1	9510-0611	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	17	1	0612-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	0612-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	9706-9802	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	9902-0611	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	15	1	0612-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	9710-0004	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0007-0010	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0007-0010	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	02	1	9710-0004	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (M) L=140	5-09707-031-1	03	1	0005-0607	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> (M) L=140	5-09707-031-1	03	1	0608-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	9710-9802	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	9803-0004	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30	1-09700-948-0	02	1	0005-0006	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30	1-09700-948-0	03	1	0007-0302	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (N) ID=28 H=45 L=30	1-09700-948-0	03	1	0303-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0005-0306	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0005-0306	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0307-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (O) L=350	1-09707-183-0	01	1	0005-	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (K) ID=24 H=40 L=24	1-09701-243-0	02	1	0007-0010	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (K) ID=24 H=40 L=24	1-09701-243-1	02	1	0011-	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
81	CLIP; HARNESS L=140	5-09707-031-1	02	1	9510-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (A) L=85	8-94232-611-0	01	1	9510-	●	●
148	CLIP; BAND,HEADLAMP HARNESS (B) ID=6 & 10-13	8-97069-515-0	01	1	9510-	●	●
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	05	1	9510-	●	●
171	CLIP; STARTER HARNESS 6HK1 TCC ENG(81L) (C) ID=19 L=28	0-95235-856-0	01	1	0608-0611	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> (F) ID=19 L=24 H=21	1-09700-109-1	01	1	0612-	●
171	CLIP; STARTER HARNESS 6HK1 TCC ENG(81L) (F) ID=19 L=24 H=21	1-09700-109-1	01	1	0612-	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	03	1	9510-9809	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	9810-0606	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-	●	●
171	CLIP; STARTER HARNESS (E) L=300	1-09707-001-1	01	1	0005-	●	●
171	CLIP; STARTER HARNESS FLYWHEEL HOUSING FC<E1R> (C) ID=19 L=28	9-09525-856-0	01	1	9510-9802	●	●
171	CLIP; STARTER HARNESS FLYWHEEL HOUSING FC<E1R> (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809	●	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809		●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809	●
171	CLIP; STARTER HARNESS EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9510-9809	●	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9810-0004	●	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9810-0004	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212		●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-		●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS (D) OD=9 H=6	1-09709-178-0	01	1	9510-0004	●	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (D) OD=9 H=6	1-09709-178-0	01	1	9510-0004	●	●
171	CLIP; STARTER HARNESS (D) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (A) L=180	1-09707-162-1	01	1	9510-	●	●
194	CLIP; BAND L=180	1-09707-162-1	01	1	9510-	●	●
194	CLIP; BAND CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180	1-09707-162-1	02	1	9510-0004	●
194	CLIP; BAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=180	1-09707-162-1	02	1	0005-	●
194	CLIP; BAND CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180	1-09707-162-1	02	1	0005-	●
206	CLIP; FUEL TANK HARNESS (B) L=140	5-09707-031-1	02	1	9510-	●	●
206	CLIP; FUEL TANK HARNESS REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180	1-09707-162-0	01	1	9510-9802	●	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9510-0208	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	9510-	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	05	1	0306-	●
223	CLIP; AIR TANK HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	9510-0004	●	●
223	CLIP; AIR TANK HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	0005-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41	1-09700-403-0	01	1	0005-	●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	9510-0204	●	●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0205-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6	1-09709-178-0	01	1	0205-	●
223	CLIP; AIR TANK HARNESS (B) L=140	5-09707-031-1	01	1	9510-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	9510-0004	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	0005-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44	9-09917-427-0	02	1	0005-	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	9510-9909	●	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	9910-0004	●	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0005-0212		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0005-0212	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305		●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0306-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0306-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) OD=9 H=17.5	1-09709-181-0	01	1	0005-0301	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) OD=9 H=9.5	1-09709-179-0	01	1	0302-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	03	1	0005-0212	●
228	CLIP; COOLER HARNESS (A) L=140	5-09707-031-1	01	1	9510-0112	●	●
228	CLIP; COOLER HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140	5-09707-031-1	01	1	0201-0405	●	●
228	CLIP; COOLER HARNESS (A) L=140	5-09707-031-1	01	1	0406-	●	●
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180	1-09707-162-1	01	1	0201-0405	●	●
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	9510-0001	●	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=180	1-09707-162-1	01	1	0002-0004	●	●
231	CLIP; BAND,OIL PRESS 6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	0002-0004	●
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	0005-0607		●
231	CLIP; BAND,OIL PRESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (A) L=180	1-09707-162-1	01	1	0005-0607	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	0005-0607	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=180	1-09707-162-1	01	1	0608-		●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	0608-	●
231	CLIP; BAND,OIL PRESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (A) L=180	1-09707-162-1	01	1	0608-	●
231	CLIP; BAND,OIL PRESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6	1-09709-178-0	01	1	0002-0004	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6	1-09709-178-0	01	1	0005-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) ID=6 H=25 L=21	1-09700-432-0	01	1	9510-9802	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) ID=12 L=35	5-09700-206-0	01	1	9803-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) L=250	5-09707-030-0	01	1	9510-9802	●	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (D) ID=11 L=20	0-95235-035-0	01	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (E) ID=11 L=24	0-95235-045-0	01	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (F) ID=24 L=32	1-09700-766-1	03	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (G) ID=18 L=44	8-94225-185-0	03	1	0608-0801	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (G) ID=18 L=44	8-97367-985-1	03	1	0802-	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-0	01	1	9510-9709	●	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-1	01	1	9710-0001		●
305	CLIP; ENG HARNESS EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	9710-0001	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-1	01	1	0002-	●	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-0	01	1	9510-9709	●	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-1	01	1	9710-0001	●	●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<THN> (B) L=140	5-09707-031-1	01	1	9710-0001	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-1	01	1	0002-	●	●
305	CLIP; ENG HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=140	5-09707-031-1	04	1	0005-	●
305	CLIP; ENG HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-1	02	1	0005-	●
418	CLIP; LAMP HARNESS RADIO CLARION(SK2) L=140	5-09707-031-1	01	1	0703-	●	●

119 64 210 423 520 184 133 209 294 524 219 294 219 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SCREW; CLIP EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	9710-	●
119	SCREW; DOOR HARNESS EARTH POWER WINDOW<A30> M5X14 W/PL WASHER	8-94447-551-0	02	1	9510-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9510-0110	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	9908-	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	9-09150-505-0	01	1	9510-0603	●	●
209	WASHER; LK,GEN,EARTH ID=5.1	0-91510-505-0	01	1	0604-	●	●
210	WASHER; PL,GEN ID=8.4	1-09503-264-0	01	1	9908-	●	●
219	NUT (A) M8	9-09110-408-0	04	1	9510-9606	●	●
219	NUT (A) M8	9-09110-408-0	02	1	9607-9609	●	●
219	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9610-0602	●	●
219	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●
219	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0608-	●	●
219	NUT 6HK1 TCC ENG(81L) (B) M8 FLANGE	0-91180-108-0	02	1	0608-	●
219	NUT (A) M8	9-09110-408-0	02	1	9510-9606	●	●
219	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9609	●	●
219	NUT (B) M8 FLANGE	0-91150-108-0	04	1	9610-9709	●	●
219	NUT (B) M8 FLANGE	0-91150-108-0	04	1	9710-0004	●	●
219	NUT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	04	1	9710-0004	●
219	NUT (B) M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●
219	NUT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91150-108-0	04	1	0005-0602	●
219	NUT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	04	1	0005-0602	●
219	NUT (B) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
219	NUT CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91180-108-0	04	1	0603-	●
219	NUT EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91180-108-0	04	1	0603-	●
219	NUT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91150-108-0	01	1	0011-0602	●
219	NUT 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●
294	NUT (A) M8	9-09110-408-0	02	1	9510-9606	●	●
294	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9607-0602	●	●
294	NUT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
294	NUT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (A) M8	9-09110-408-0	01	1	9510-9606	●	●
294	NUT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8 FLANGE	0-91150-108-0	01	1	9607-0602	●	●
294	NUT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8 FLANGE	0-91180-108-0	01	1	0603-1006	●	●
294	NUT WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6 FLANGE	0-91150-106-0	01	1	0005-0602	●
294	NUT WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6 FLANGE	0-91180-106-0	01	1	0603-	●
294	NUT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91150-108-0	04	1	0005-0602	●
294	NUT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	04	1	0603-	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	9908-9909	●	●
423	WASHER; HARNESS,EARTH EURO2 SPECIFICATION<THN> ID=8.4	1-09503-264-0	01	1	9908-9909	●
520	WASHER; PL,EARTH CABLE ID=8.4	1-09503-264-0	01	1	9908-	●	●
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	9510-0602	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0603-	●	●

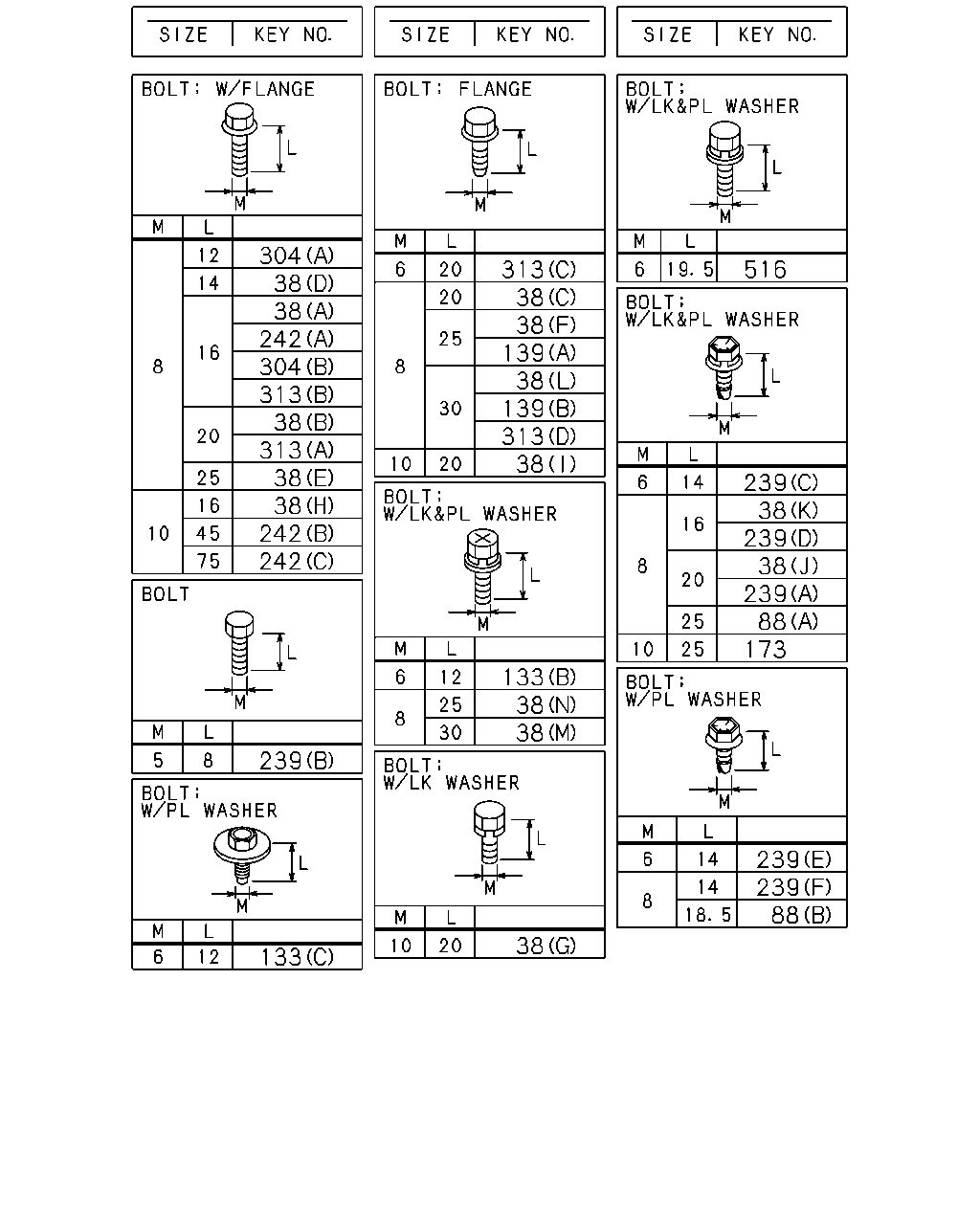

304 38 38 242 304 313 38 313 38 38 242 242 313 38 38 139 38 139 313 38 516 239 38 239 38 239 88 173 133 38 38 239 239 239 88 38 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28050-820-0	01	1	0608-0608	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X20 FLANGE	0-28050-820-0	01	1	0608-	●
38	BOLT; CLIP,HARNESS (D) M8X14 FLANGE	0-28080-814-0	04	1	9510-9606	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	04	1	9607-0512	●	●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	02	1	9607-0004	●	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28080-816-0	02	1	0005-0006	●
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
38	BOLT; CLIP,HARNESS (F) M8X25 FLANGE	0-28680-825-0	02	1	9607-0512	●	●
38	BOLT; CLIP,HARNESS (F) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS (G) M10X20 W/LK WASHER	0-50051-020-0	01	1	9510-9606	●	●
38	BOLT; CLIP,HARNESS (H) M10X16 FLANGE	0-28181-016-0	01	1	9607-9802	●	●
38	BOLT; CLIP,HARNESS (I) M10X20 FLANGE	0-28781-020-0	01	1	9803-0512	●	●
38	BOLT; CLIP,HARNESS (I) M10X20 FLANGE	0-28751-020-0	01	1	0601-	●	●
38	BOLT; CLIP,HARNESS (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9709	●	●
38	BOLT; CLIP,HARNESS (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9710-9907	●	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9710-9907	●
38	BOLT; CLIP,HARNESS (K) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-9909	●	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (K) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-9909	●
38	BOLT; CLIP,HARNESS (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9910-0004	●	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9910-0004	●
38	BOLT; CLIP,HARNESS (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0010	●	●
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0010	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0005-0010	●
38	BOLT; CLIP,HARNESS (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0011-0607	●	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0011-0607	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0011-0607	●
38	BOLT; CLIP,HARNESS (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0608-1201	●	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0608-1201	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (J) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0608-1201	●
38	BOLT; CLIP,HARNESS (J) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-	●	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EURO2 SPECIFICATION<THN> (J) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (J) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1202-	●
38	BOLT; CLIP,HARNESS (L) M8X30 FLANGE	0-28680-830-0	02	1	9607-0512	●	●
38	BOLT; CLIP,HARNESS (L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS (N) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9607-9702	●	●
38	BOLT; CLIP,HARNESS (M) M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9703-0512	●	●
38	BOLT; CLIP,HARNESS (M) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010	●	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (C) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010	●
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C) M8X20 FLANGE	0-28680-820-0	02	1	0005-0010	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	02	1	0011-0512	●	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28680-820-0	02	1	0011-0512	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
38	BOLT; CLIP,HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X16 FLANGE	0-28080-816-0	01	1	9810-0004	●	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	9810-0004	●
38	BOLT; CLIP,HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0006		●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0006	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	0005-0006	●
38	BOLT; CLIP,HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X16 FLANGE	0-28080-816-0	01	1	0007-0512		●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28080-816-0	01	1	0007-0512	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	0007-0512	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	0007-0512	●
38	BOLT; CLIP,HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0607		●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0607	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0607	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0607	●
38	BOLT; CLIP,HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (A) M8X16 FLANGE	0-28050-816-0	01	1	0608-		●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	01	1	0608-	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	01	1	0608-	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) (A) M8X16 FLANGE	0-28050-816-0	01	1	0608-	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (F) M8X25 FLANGE	0-28680-825-0	03	1	9710-0004	●
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M8X25 FLANGE	0-28680-825-0	03	1	0005-0512	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (F) M8X25 FLANGE	0-28680-825-0	03	1	0005-0512	●
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (F) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION<THN> (F) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28680-820-0	04	1	9710-0512	●
38	BOLT; CLIP,HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (B) M8X20 FLANGE	0-28080-820-0	01	1	0005-0006	●
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X20 FLANGE	0-28080-820-0	01	1	0005-0006	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (B) M8X20 FLANGE	0-28080-820-0	02	1	0007-0010	●
38	BOLT; CLIP,HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M8X20 FLANGE	0-28080-820-0	02	1	0007-0010	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (B) M8X20 FLANGE	0-28080-820-0	02	1	0011-0512	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28680-820-0	01	1	0011-0512	●
38	BOLT; CLIP,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
88	BOLT; DOOR HARNESS EARTH DOOR WINDOW MANUAL CONT<SKF> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9510-1007	●	●
88	BOLT; DOOR HARNESS EARTH DOOR WINDOW MANUAL CONT<SKF> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1008-	●	●
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9510-1007	●	●
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9510-0110	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (C) M6X12 W/PL WASHER	8-97806-950-0	01	1	0111-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN (B) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0107-0210	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-0512	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
173	BOLT; STARTER EARTH M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	9510-	●	●
239	BOLT; GRAND (B) M5X8	0-20800-508-0	01	1	9510-	●	●
239	BOLT; GRAND (C) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	9510-1007	●	●
239	BOLT; GRAND (E) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-	●	●
239	BOLT; GRAND (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9907	●	●
239	BOLT; GRAND (D) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-1201	●	●
239	BOLT; GRAND (F) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●	●
242	BOLT; BRKT,HARNESS 6HK1 TCC ENG(81L) (A) M8X16 FLANGE	0-28050-816-0	02	1	0608-	●
242	BOLT; BRKT,HARNESS 6HK1 TCC ENG(81L) (B) M10X45 FLANGE	0-28151-045-0	01	1	0608-	●
242	BOLT; BRKT,HARNESS 6HK1 TCC ENG(81L) (C) M10X75 FLANGE	8-94399-669-1	01	1	0608-	●
304	BOLT; ENG HARNESS CLIP 6HK1 TCC ENG(81L) (A) M8X12 FLANGE	0-28050-812-0	04	1	0608-	●
304	BOLT; ENG HARNESS CLIP 6HK1 TCC ENG(81L) (B) M8X16 FLANGE	0-28050-816-0	04	1	0608-	●
313	BOLT; BRKT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (A) M8X20 FLANGE	0-28080-820-0	01	1	9510-9606	●	●
313	BOLT; BRKT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8X16 FLANGE	0-28080-816-0	01	1	9607-0512	●	●
313	BOLT; BRKT PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
313	BOLT; BRKT WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X20 FLANGE	0-28680-620-0	01	1	0005-0512	●
313	BOLT; BRKT WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M6X20 FLANGE	0-28650-620-0	01	1	0601-	●
313	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●
313	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-	●	●

128 48 171 16 16 305 16 16 48 16 48 16 16 16 171 171 48 16 48 48 16 16 48 16 48 223 581 48 223 48 213 223 230 48 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS 6HK1 TCC ENG(81L) (S) ID=18 H=23 L=28	1-09700-860-0	01	1	0608-	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (T) ID=26 L=27	1-09701-006-0	01	1	0608-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (R) ID=23 L=32	1-09700-346-0	01	1	0307-	●
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9510-9802	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9803-	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9803-	●	●
16	CLIP; HARNESS (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-	●	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	9510-9709	●	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	9710-0306	●	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (Q) ID=25 L=50	1-09701-019-0	01	1	9710-0306	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	0307-	●	●
16	CLIP; HARNESS (C) ID=19 H=33 L=45	1-09701-045-0	01	1	9510-9801	●	●
16	CLIP; HARNESS (D) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-	●	●
16	CLIP; HARNESS (J) L=300	1-09707-001-1	01	1	9510-	●	●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	9510-	●	●
16	CLIP; HARNESS (I) ID=19 L=32	9-09525-866-0	01	1	9510-0606	●	●
16	CLIP; HARNESS (I) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	06	1	9510-0101	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	9510-9904	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	06	1	9905-0101	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	02	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-	●	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (K) ID=28 L=45	1-09700-825-1	01	1	0005-0302	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (K) ID=28 L=45	1-09700-825-1	01	1	0303-	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) ID=24 L=40	1-09701-139-0	01	1	0005-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 L=40	1-09701-139-0	01	1	0005-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 L=40	1-09701-139-0	01	1	9710-0004	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (O) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (L) ID=31 H=30 L=35	1-09700-994-0	01	1	0005-0006	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (M) ID=29 L=35	5-09700-293-1	01	1	0005-	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (N) ID=24 L=32	1-09700-766-1	01	1	0005-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	13	1	1101-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=50	9-09917-430-0	03	1	0612-0806	●
48	CLIP; FRAME HARNESS 6HK1 TCC ENG(81L) (B) ID=11 L=41	1-09700-403-0	02	1	0608-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0505-0806	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0807-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=50	9-09917-430-0	02	1	0807-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (P) ID=23 L=32	1-09700-346-0	01	1	0307-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	09	1	9510-0607		●
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) (A) ID=20 L=50	9-09917-430-0	09	1	0608-		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-	●	●
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	04	1	9510-	●	●
48	CLIP; FRAME HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	9510-0606	●	●
48	CLIP; FRAME HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	9510-0004	●	●
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	01	1	0005-0601	●	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (F) ID=14 L=44	9-09917-427-0	01	1	0602-		●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) (F) ID=14 L=44	9-09917-427-0	01	1	0602-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9512-0004	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0005-0504	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	0505-0607	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	0608-	●	●
48	CLIP; FRAME HARNESS 6HK1 TCC ENG(81L) (A) ID=20 L=50	9-09917-430-0	01	1	0608-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511	●	●
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	01	1	9512-	●	●
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-	●	●
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	03	1	9512-	●	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	9710-0004	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (I) ID=28 L=45	1-09700-825-1	01	1	0005-0302	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (I) ID=28 L=45	1-09700-825-1	01	1	0303-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	11	1	9510-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0005-0806	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0807-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (B) ID=11 L=41	1-09700-403-0	01	1	0807-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	13	1	9510-1012	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	14	1	1101-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	14	1	9510-0611	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	17	1	0612-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	0612-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	9706-9802	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	9902-0611	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	15	1	0612-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	9710-0004	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0007-0010	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0007-0010	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	02	1	9710-0004	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (M) L=140	5-09707-031-1	03	1	0005-0607	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> (M) L=140	5-09707-031-1	03	1	0608-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	9710-9802	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	9803-0004	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30	1-09700-948-0	02	1	0005-0006	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30	1-09700-948-0	03	1	0007-0302	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (N) ID=28 H=45 L=30	1-09700-948-0	03	1	0303-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0005-0306	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0005-0306	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0307-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (O) L=350	1-09707-183-0	01	1	0005-	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (K) ID=24 H=40 L=24	1-09701-243-0	02	1	0007-0010	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (K) ID=24 H=40 L=24	1-09701-243-1	02	1	0011-	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	9510-0606	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=32	9-09525-862-0	01	1	9510-0011	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=14.5 L=30	9-09916-893-1	01	1	0012-	●	●
171	CLIP; STARTER HARNESS 6HK1 TCC ENG(81L) (C) ID=19 L=28	0-95235-856-0	01	1	0608-0611	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> (F) ID=19 L=24 H=21	1-09700-109-1	01	1	0612-	●
171	CLIP; STARTER HARNESS 6HK1 TCC ENG(81L) (F) ID=19 L=24 H=21	1-09700-109-1	01	1	0612-	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	03	1	9510-9809	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	9810-0606	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-	●	●
171	CLIP; STARTER HARNESS (E) L=300	1-09707-001-1	01	1	0005-	●	●
171	CLIP; STARTER HARNESS FLYWHEEL HOUSING FC<E1R> (C) ID=19 L=28	9-09525-856-0	01	1	9510-9802	●	●
171	CLIP; STARTER HARNESS FLYWHEEL HOUSING FC<E1R> (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809	●	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809		●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809	●
171	CLIP; STARTER HARNESS EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9510-9809	●	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9810-0004	●	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9810-0004	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212		●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-		●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS (D) OD=9 H=6	1-09709-178-0	01	1	9510-0004	●	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (D) OD=9 H=6	1-09709-178-0	01	1	9510-0004	●	●
171	CLIP; STARTER HARNESS (D) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (A) L=180	1-09707-162-1	01	1	9510-	●	●
213	CLIP; END CROSS HARNESS ID=20 L=50	9-09917-430-0	03	1	9510-	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	05	1	0306-	●
223	CLIP; AIR TANK HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	9510-0004	●	●
223	CLIP; AIR TANK HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	0005-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41	1-09700-403-0	01	1	0005-	●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	9510-0204	●	●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0205-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6	1-09709-178-0	01	1	0205-	●
223	CLIP; AIR TANK HARNESS (B) L=140	5-09707-031-1	01	1	9510-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	9510-0004	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	0005-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44	9-09917-427-0	02	1	0005-	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	9510-9909	●	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	9910-0004	●	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0005-0212		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0005-0212	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305		●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0306-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0306-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) OD=9 H=17.5	1-09709-181-0	01	1	0005-0301	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) OD=9 H=9.5	1-09709-179-0	01	1	0302-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	03	1	0005-0212	●
230	CLIP; C/MBR HARNESS ID=20 L=50	9-09917-430-0	02	1	9510-	●	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (D) ID=11 L=20	0-95235-035-0	01	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (E) ID=11 L=24	0-95235-045-0	01	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (F) ID=24 L=32	1-09700-766-1	03	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (G) ID=18 L=44	8-94225-185-0	03	1	0608-0801	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (G) ID=18 L=44	8-97367-985-1	03	1	0802-	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-0	01	1	9510-9709	●	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-1	01	1	9710-0001		●
305	CLIP; ENG HARNESS EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	9710-0001	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-1	01	1	0002-	●	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-0	01	1	9510-9709	●	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-1	01	1	9710-0001	●	●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<THN> (B) L=140	5-09707-031-1	01	1	9710-0001	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-1	01	1	0002-	●	●
305	CLIP; ENG HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=140	5-09707-031-1	04	1	0005-	●
305	CLIP; ENG HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-1	02	1	0005-	●
581	CLIP; HARNESS,REAR SUSP WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 L=41	1-09700-403-0	03	1	0005-	●

312 312 312 335 53 154 154 53 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=95	1-82699-085-0	04	1	0005-	●
53	BRACKET; HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A)	1-47476-812-1	01	1	9710-0004	●
53	BRACKET; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-47476-812-1	01	1	0005-	●
53	BRACKET; HARNESS EURO2 SPECIFICATION<THN> (A)	1-47476-812-1	01	1	0005-	●
59	BRACKET; FRAME HARNESS (A) L=95	1-82699-085-0	01	1	9510-9601	●	●
59	BRACKET; FRAME HARNESS (B) L=145	1-47475-655-0	01	1	9602-9605	●	●
59	BRACKET; FRAME HARNESS (A) L=95	1-82699-085-0	01	1	9606-	●	●
154	BRACKET; STARTER EARTH CABLE (A)	1-47465-518-0	01	1	9510-9807	●	●
154	BRACKET; STARTER EARTH CABLE 6HH1 STD ENG(65L) (A)	1-47465-518-0	01	1	9808-9904		●
154	BRACKET; STARTER EARTH CABLE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47465-518-0	01	1	9808-9904	●
154	BRACKET; STARTER EARTH CABLE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47465-518-0	01	1	9905-0004	●	●
154	BRACKET; STARTER EARTH CABLE 6HH1 STD 4VALVE ENG(1A6) EXC. HEAVY DUTY P/S OIL PUMP<E1N> (B)	1-47475-868-0	01	1	0005-0009	●
154	BRACKET; STARTER EARTH CABLE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47465-518-0	01	1	0005-0010	●	●
154	BRACKET; STARTER EARTH CABLE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-47465-518-0	01	1	0011-0106	●	●
154	BRACKET; STARTER EARTH CABLE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	1-47465-518-0	01	1	0011-0106	●
154	BRACKET; STARTER EARTH CABLE 6HH1 STD ENG(65L) (A)	1-47465-518-0	01	1	0107-	●	●
154	BRACKET; STARTER EARTH CABLE 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A)	1-47465-518-0	01	1	0107-	●	●
154	BRACKET; STARTER EARTH CABLE 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (A)	1-47465-518-0	01	1	0107-	●
312	BRACKET; CLIP HARNESS PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (B)	1-82699-588-0	01	1	9510-0302	●	●
312	BRACKET; CLIP HARNESS PARKING BRAKE DRUM 10"(B1T) MLD6 M/T<X9Y> (C)	1-47478-981-0	01	1	0303-	●	●
312	BRACKET; CLIP HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-82699-109-0	01	1	0005-	●
335	BRACKET; CONNECTOR	1-82699-517-0	01	1	9510-9910	●	●
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	9911-	●	●

224 224 185 224 224 224 513 530 503 178 178 178 178 503 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-1	02	1	9510-9909		●
178	GROMMET; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (A) ID=28 OD=35 T=17	9-09956-256-1	02	1	9510-9909	●
178	GROMMET; HARNESS WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17	9-09956-256-1	02	1	9510-9909	●
178	GROMMET; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17	9-09956-256-1	02	1	9910-0004		●
178	GROMMET; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17	9-09956-256-1	02	1	9910-0004	●
178	GROMMET; HARNESS WHEEL BASE 4600MM(46W) (A) ID=28 OD=35 T=17	9-09956-256-1	02	1	9910-0004	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0005-0607		●
178	GROMMET; HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0005-0607	●
178	GROMMET; HARNESS WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0005-0607	●
178	GROMMET; HARNESS WHEEL BASE 3600MM(36W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0608-		●
178	GROMMET; HARNESS WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0608-	●
178	GROMMET; HARNESS WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0608-	●
178	GROMMET; HARNESS (B) ID=19 OD=23 T=24	1-09332-103-0	01	1	9510-	●	●
178	GROMMET; HARNESS LOW ROOF<6XQ> (D) ID=32 OD=48 T=5	9-09575-232-0	01	1	9510-	●	●
178	GROMMET; HARNESS WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9510-9705	●
178	GROMMET; HARNESS WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9706-9909	●
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W) (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9706-9909	●
178	GROMMET; HARNESS HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9910-0004		●
178	GROMMET; HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9910-0004	●
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W) (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	9910-0004	●
178	GROMMET; HARNESS WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	0005-	●
178	GROMMET; HARNESS WHEEL BASE 5500MM(55W) (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	0005-	●
185	SLEEVE; RUBBER MLD7 M/T<X9Z> ID=17 OD=21 L=40	1-09337-012-0	01	1	9510-	●	●
224	SLEEVE; RUBBER,HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (A) ID=32 OD=36 L=50	1-09337-023-0	01	1	0005-	●
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=10 OD=14 L=30	9-09956-682-0	03	1	0005-	●
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) ID=17 OD=21 L=40	1-09337-012-0	01	1	0005-	●
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (D) ID=29 OD=39 L=100	1-09337-022-0	01	1	0007-0007	●
224	SLEEVE; RUBBER,HARNESS EURO2 SPECIFICATION<THN> (D) ID=29 OD=39 L=100	1-09337-022-0	01	1	0007-0007	●
224	SLEEVE; RUBBER,HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (E) L=1300	1-09360-677-1	01	1	0007-	●
224	SLEEVE; RUBBER,HARNESS EURO2 SPECIFICATION<THN> (E) L=1300	1-09360-677-1	01	1	0007-	●
503	CONNECTOR (B)	1-82690-668-0	01	1	9510-9608	●	●
503	CONNECTOR (B)	1-82690-668-0	01	1	9609-9802	●	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	9609-9802	●	●
503	CONNECTOR (B)	1-82690-668-0	01	1	9803-9810	●	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	9803-9810		●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60),EURO2 SPECIFICATION<THN> (B)	1-82690-668-0	01	1	9803-9810	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	9811-0004		●
503	CONNECTOR (B)	1-82690-668-0	01	1	9811-0004		●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60),EURO2 SPECIFICATION<THN> (B)	1-82690-668-0	01	1	9811-0004	●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	9811-0004	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0005-0109	●	●
503	CONNECTOR (B)	1-82690-668-0	01	1	0005-0109		●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	0005-0109	●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-668-0	01	1	0110-	●	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0110-	●	●
503	CONNECTOR STARTER SWITCH DELETION<E5D> (A)	1-82690-666-0	01	1	0212-	●	●
510	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	01	1	9710-	●
513	TAPE; SOFT,HARNESS 100X30	1-72498-014-1	02	1	9709-9709	●	●
513	TAPE; SOFT,HARNESS 100X30	1-72498-014-1	02	1	9710-9903	●	●
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X30	1-72498-014-1	02	1	9710-9903	●
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	02	1	9904-0002	●	●
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X40	1-72498-022-0	02	1	9904-0002	●
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	02	1	0003-0004	●	●
513	TAPE; SOFT,HARNESS 100X40	1-72498-022-0	02	1	0005-0101	●	●
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X40	1-72498-022-0	02	1	0005-0101	●
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X40	1-72498-022-1	02	1	0102-0607	●
513	TAPE; SOFT,HARNESS 6HK1 TCC ENG(81L) 100X40	1-72498-022-1	02	1	0608-	●
513	TAPE; SOFT,HARNESS EURO2 SPECIFICATION<THN> 100X40	1-72498-022-1	02	1	0608-	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	0407-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	06	1	0102-	●	●

305 305 128 128 16 48 16 116 421 171 223 229 231 470 223 223 121 16 217 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS 6HK1 TCC ENG(81L) (S) ID=18 H=23 L=28	1-09700-860-0	01	1	0608-	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6),6HK1 TCC ENG(81L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (T) ID=26 L=27	1-09701-006-0	01	1	0608-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (R) ID=23 L=32	1-09700-346-0	01	1	0307-	●
16	CLIP; HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9510-9802	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9803-	●	●
16	CLIP; HARNESS (A) ID=28 L=78	1-09700-858-0	01	1	9803-	●	●
16	CLIP; HARNESS (P) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-	●	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	9510-9709	●	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	9710-0306	●	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (Q) ID=25 L=50	1-09701-019-0	01	1	9710-0306	●
16	CLIP; HARNESS (Q) ID=25 L=50	1-09701-019-0	01	1	0307-	●	●
16	CLIP; HARNESS (C) ID=19 H=33 L=45	1-09701-045-0	01	1	9510-9801	●	●
16	CLIP; HARNESS (D) ID=19 H=21 L=50	1-09700-910-1	01	1	9802-	●	●
16	CLIP; HARNESS (J) L=300	1-09707-001-1	01	1	9510-	●	●
16	CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	9510-	●	●
16	CLIP; HARNESS (I) ID=19 L=32	9-09525-866-0	01	1	9510-0606	●	●
16	CLIP; HARNESS (I) ID=19 L=32	0-95235-866-0	01	1	0607-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	06	1	9510-0101	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	04	1	9510-9904	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	06	1	9905-0101	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (G) L=175	8-97110-167-0	02	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-	●	●
16	CLIP; HARNESS POWER WINDOW<A30> (F) L=55	8-94432-655-0	03	1	0102-	●	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (K) ID=28 L=45	1-09700-825-1	01	1	0005-0302	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (K) ID=28 L=45	1-09700-825-1	01	1	0303-	●
16	CLIP; HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (H) ID=24 L=40	1-09701-139-0	01	1	0005-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 L=40	1-09701-139-0	01	1	0005-	●
16	CLIP; HARNESS EURO2 SPECIFICATION<THN> (H) ID=24 L=40	1-09701-139-0	01	1	9710-0004	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (O) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (L) ID=31 H=30 L=35	1-09700-994-0	01	1	0005-0006	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (M) ID=29 L=35	5-09700-293-1	01	1	0005-	●
16	CLIP; HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (N) ID=24 L=32	1-09700-766-1	01	1	0005-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	13	1	1101-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=50	9-09917-430-0	03	1	0612-0806	●
48	CLIP; FRAME HARNESS 6HK1 TCC ENG(81L) (B) ID=11 L=41	1-09700-403-0	02	1	0608-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0505-0806	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0807-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (A) ID=20 L=50	9-09917-430-0	02	1	0807-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (P) ID=23 L=32	1-09700-346-0	01	1	0307-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	09	1	9510-0607		●
48	CLIP; FRAME HARNESS WHEEL BASE 3600MM(36W) (A) ID=20 L=50	9-09917-430-0	09	1	0608-		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	03	1	9510-	●	●
48	CLIP; FRAME HARNESS (C) ID=28 L=78	1-09700-858-0	04	1	9510-	●	●
48	CLIP; FRAME HARNESS (E) ID=19 L=28	9-09525-856-0	01	1	9510-0606	●	●
48	CLIP; FRAME HARNESS (E) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	02	1	9510-0004	●	●
48	CLIP; FRAME HARNESS (F) ID=14 L=44	9-09917-427-0	01	1	0005-0601	●	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (F) ID=14 L=44	9-09917-427-0	01	1	0602-		●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HH1 STDENG(65L),6HE1 TCC ENG(76L) (F) ID=14 L=44	9-09917-427-0	01	1	0602-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	9512-0004	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	02	1	0005-0504	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	0505-0607	●	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	01	1	0608-	●	●
48	CLIP; FRAME HARNESS 6HK1 TCC ENG(81L) (A) ID=20 L=50	9-09917-430-0	01	1	0608-	●
48	CLIP; FRAME HARNESS (A) ID=20 L=50	9-09917-430-0	03	1	9510-9511	●	●
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	01	1	9512-	●	●
48	CLIP; FRAME HARNESS (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	9510-	●	●
48	CLIP; FRAME HARNESS (G) ID=20 L=70	1-09700-485-0	03	1	9512-	●	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	9710-0004	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (I) ID=28 L=45	1-09700-825-1	01	1	0005-0302	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (I) ID=28 L=45	1-09700-825-1	01	1	0303-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (A) ID=20 L=50	9-09917-430-0	11	1	9510-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0005-0806	●
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=11 L=41	1-09700-403-0	01	1	0807-	●
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (B) ID=11 L=41	1-09700-403-0	01	1	0807-	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (A) ID=20 L=50	9-09917-430-0	13	1	9510-1012	●
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	14	1	1101-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=50	9-09917-430-0	14	1	9510-0611	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	17	1	0612-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	0612-	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	9706-9802	●
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=50	9-09917-430-0	17	1	9902-0611	●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=20 L=50	9-09917-430-0	15	1	0612-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	9710-0004	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0007-0010	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	0007-0010	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-1	01	1	0011-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	02	1	9710-0004	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (M) L=140	5-09707-031-1	03	1	0005-0607	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L),6HK1 TCC ENG(81L) EURO2 SPECIFICATION<THN> (M) L=140	5-09707-031-1	03	1	0608-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	9710-9802	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (K) ID=24 H=40 L=24	1-09701-243-0	01	1	9803-0004	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30	1-09700-948-0	02	1	0005-0006	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (N) ID=28 H=45 L=30	1-09700-948-0	03	1	0007-0302	●
48	CLIP; FRAME HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. EURO2 SPECIFICATION<THN> (N) ID=28 H=45 L=30	1-09700-948-0	03	1	0303-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0005-0306	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0005-0306	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (L) ID=25 L=50	1-09700-976-0	01	1	0307-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (O) L=350	1-09707-183-0	01	1	0005-	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (J) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0006	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (K) ID=24 H=40 L=24	1-09701-243-0	02	1	0007-0010	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (K) ID=24 H=40 L=24	1-09701-243-1	02	1	0011-	●
48	CLIP; FRAME HARNESS 6HH1 STD 4VALVE ENG(1A6) EXC. EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
48	CLIP; FRAME HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (H) L=250	5-09707-030-1	01	1	0007-	●
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	02	1	9510-0009	●	●
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	03	1	0010-1409	●	●
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	04	1	1410-	●	●
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	05	1	9510-0009	●	●
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	05	1	9510-0009	●	●
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	06	1	0010-0112	●	●
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	06	1	0010-0112	●	●
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	05	1	0201-1409	●	●
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	05	1	0201-1409	●	●
116	CLIP; ROOF HARNESS LOW ROOF<6XQ> L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-	●	●
116	CLIP; ROOF HARNESS MAP LAMP<C85> L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-	●	●
121	CLIP; FACIA HARNESS EXC. POWER WINDOW<A30> OD=7 H=1.2	8-94364-750-0	02	1	9510-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	9510-0606	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=19 L=32	9-09525-862-0	01	1	9510-0011	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (C) ID=14.5 L=30	9-09916-893-1	01	1	0012-	●	●
171	CLIP; STARTER HARNESS 6HK1 TCC ENG(81L) (C) ID=19 L=28	0-95235-856-0	01	1	0608-0611	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. EURO2 SPECIFICATION<THN> (F) ID=19 L=24 H=21	1-09700-109-1	01	1	0612-	●
171	CLIP; STARTER HARNESS 6HK1 TCC ENG(81L) (F) ID=19 L=24 H=21	1-09700-109-1	01	1	0612-	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	03	1	9510-9809	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	9-09525-856-0	04	1	9810-0606	●	●
171	CLIP; STARTER HARNESS (C) ID=19 L=28	0-95235-856-0	04	1	0607-	●	●
171	CLIP; STARTER HARNESS (E) L=300	1-09707-001-1	01	1	0005-	●	●
171	CLIP; STARTER HARNESS FLYWHEEL HOUSING FC<E1R> (C) ID=19 L=28	9-09525-856-0	01	1	9510-9802	●	●
171	CLIP; STARTER HARNESS FLYWHEEL HOUSING FC<E1R> (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809	●	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L) (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809		●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) (C) ID=19 L=28	9-09525-856-0	01	1	9803-9809	●
171	CLIP; STARTER HARNESS EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9510-9809	●	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9810-0004	●	●
171	CLIP; STARTER HARNESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9810-0004	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212		●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0005-0212	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-		●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6),6HE1 TC ENG(57L),6HE1 TCCENG(76L) EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS 6HH1 STD 4VALVE ENG(1A6) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS 6HH1 STD ENG(65L) EXC. FLYWHEEL HOUSING FC<E1R>,EURO2 SPECIFICATION<THN> (B) ID=21 L=30 H=40	1-09700-991-1	01	1	0301-	●
171	CLIP; STARTER HARNESS (D) OD=9 H=6	1-09709-178-0	01	1	9510-0004	●	●
171	CLIP; STARTER HARNESS MLD6 M/T<X9Y> (D) OD=9 H=6	1-09709-178-0	01	1	9510-0004	●	●
171	CLIP; STARTER HARNESS (D) OD=9 H=6	1-09709-178-0	02	1	0005-	●	●
171	CLIP; STARTER HARNESS MLD7 M/T<X9Z> (A) L=180	1-09707-162-1	01	1	9510-	●	●
217	CLIP; RR BODY HARNESS (A) ID=15 L=70	1-09700-980-0	02	1	9510-0208	●	●
217	CLIP; RR BODY HARNESS (B) L=250	5-09707-030-1	02	1	9510-	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	05	1	0306-	●
223	CLIP; AIR TANK HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	9510-0004	●	●
223	CLIP; AIR TANK HARNESS (E) ID=11 L=41	1-09700-403-0	01	1	0005-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=11 L=41	1-09700-403-0	01	1	0005-	●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	03	1	9510-0204	●	●
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0205-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=9 H=6	1-09709-178-0	01	1	0205-	●
223	CLIP; AIR TANK HARNESS (B) L=140	5-09707-031-1	01	1	9510-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	9510-0004	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	0005-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14 L=44	9-09917-427-0	02	1	0005-	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	03	1	9510-9909	●	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	9910-0004	●	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0005-0212		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0005-0212	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305		●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305	●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0301-0305	●
223	CLIP; AIR TANK HARNESS (D) ID=20 L=50	9-09917-430-0	04	1	0306-		●
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=20 L=50	9-09917-430-0	04	1	0306-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) OD=9 H=17.5	1-09709-181-0	01	1	0005-0301	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) OD=9 H=9.5	1-09709-179-0	01	1	0302-	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) ID=20 L=50	9-09917-430-0	03	1	0005-0212	●
229	CLIP; STARTER SUB SW HARNESS OD=9 H=6	1-09709-178-0	01	1	9510-	●	●
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	9510-0001	●	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=180	1-09707-162-1	01	1	0002-0004	●	●
231	CLIP; BAND,OIL PRESS 6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	0002-0004	●
231	CLIP; BAND,OIL PRESS (A) L=180	1-09707-162-1	01	1	0005-0607		●
231	CLIP; BAND,OIL PRESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L) (A) L=180	1-09707-162-1	01	1	0005-0607	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	0005-0607	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=180	1-09707-162-1	01	1	0608-		●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	0608-	●
231	CLIP; BAND,OIL PRESS 6HH1 STD 4VALVE ENG(1A6),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (A) L=180	1-09707-162-1	01	1	0608-	●
231	CLIP; BAND,OIL PRESS 6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6	1-09709-178-0	01	1	0002-0004	●
231	CLIP; BAND,OIL PRESS 6HE1 TC ENG(57L),6HE1 TCC ENG(76L) EURO2 SPECIFICATION<THN> (B) OD=9 H=6	1-09709-178-0	01	1	0005-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (D) ID=11 L=20	0-95235-035-0	01	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (E) ID=11 L=24	0-95235-045-0	01	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (F) ID=24 L=32	1-09700-766-1	03	1	0608-	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (G) ID=18 L=44	8-94225-185-0	03	1	0608-0801	●
305	CLIP; ENG HARNESS 6HK1 TCC ENG(81L) (G) ID=18 L=44	8-97367-985-1	03	1	0802-	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-0	01	1	9510-9709	●	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-1	01	1	9710-0001		●
305	CLIP; ENG HARNESS EXC. EURO2 SPECIFICATION<THN> (A) L=180	1-09707-162-1	01	1	9710-0001	●
305	CLIP; ENG HARNESS (A) L=180	1-09707-162-1	01	1	0002-	●	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-0	01	1	9510-9709	●	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-1	01	1	9710-0001	●	●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<THN> (B) L=140	5-09707-031-1	01	1	9710-0001	●
305	CLIP; ENG HARNESS EXC. TACHOMETER<UD7> (B) L=140	5-09707-031-1	01	1	0002-	●	●
305	CLIP; ENG HARNESS 6HH1 STD 4VALVE ENG(1A6) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) L=140	5-09707-031-1	04	1	0005-	●
305	CLIP; ENG HARNESS 6HH1 STD 4VALVE ENG(1A6) EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-1	02	1	0005-	●
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	9510-9708	●	●
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	9709-0101	●	●
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	01	1	0102-0406	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	9510-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
